SK105GD
Rechargeable Green Cross Line Laser

SK105GD
Rechargeable Green Cross Line Laser

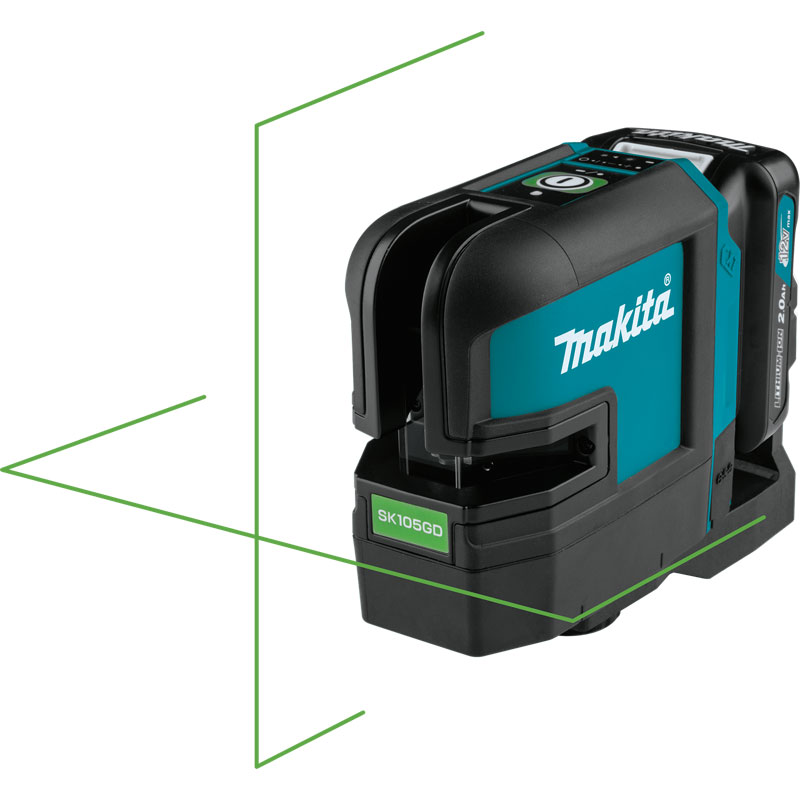

12V max Rechargeable Green Cross Line Laser

  

๐ High brightness green laser for increased visibility at bright site ๐ Up to 20 hours of continuous illumination in high visibility mode with BL1041B ๐ Line visibility range up to 35 m / 80 m (with Receiver) ๐ Pendulum lock enables slope incline applications for increased versatility; Offers added protection of laser diode during transport and storage ๐ Handy and accurate self-leveling crossline laser (crossline/horizontal/vertical) ๐ Brightness selection: 2 Modes (Bright mode / Eco mode) ๐ Accuracy +/- 3 mm @ 10 m ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions (IP54 rated for body) ๐ Self-leveling is correctable up to 4° of slope allowing operation on uneven surfaces ๐ Recessed laser windows are highly protected from fracture damage in slot positions for increased durability ๐ Horizontal aligning: Convenient way to transfer reference points from one wall to another ๐ Vertical aligning: The simple way to ensure that walls, floor, tiles, joints precisely meet one another ๐ Allows for attachment to a tripod

Standard Equipments : Soft bag, Adapter, Target plate


Technical specifications

Measuring range 35 m
Measuring range w/ detector 80 m
Leveling accuracy +/- 3 mm / 10 m
Self-leveling range 4

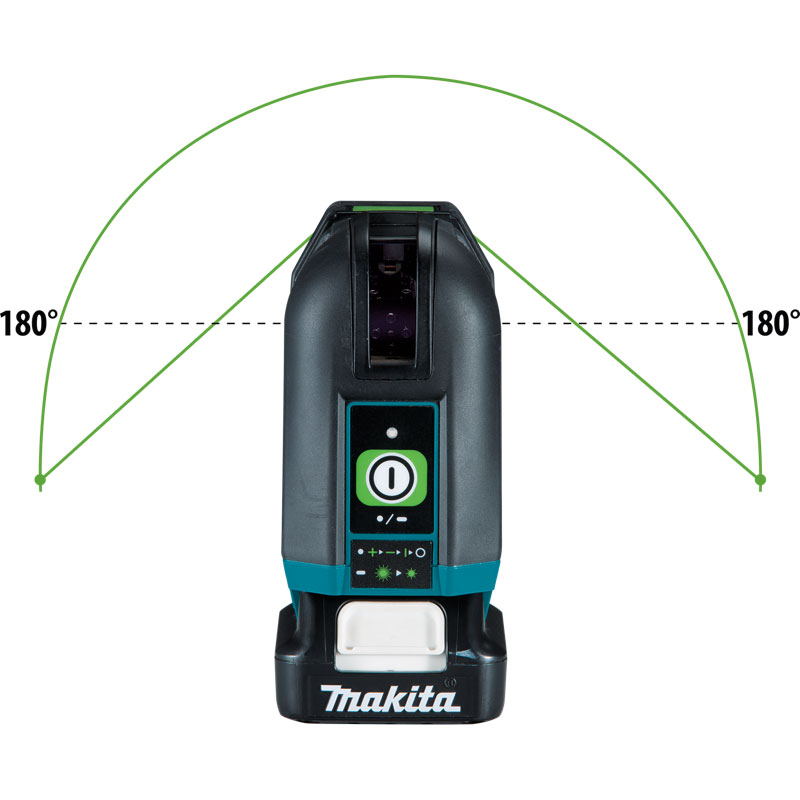

Laser fan angle Horizontal 180°

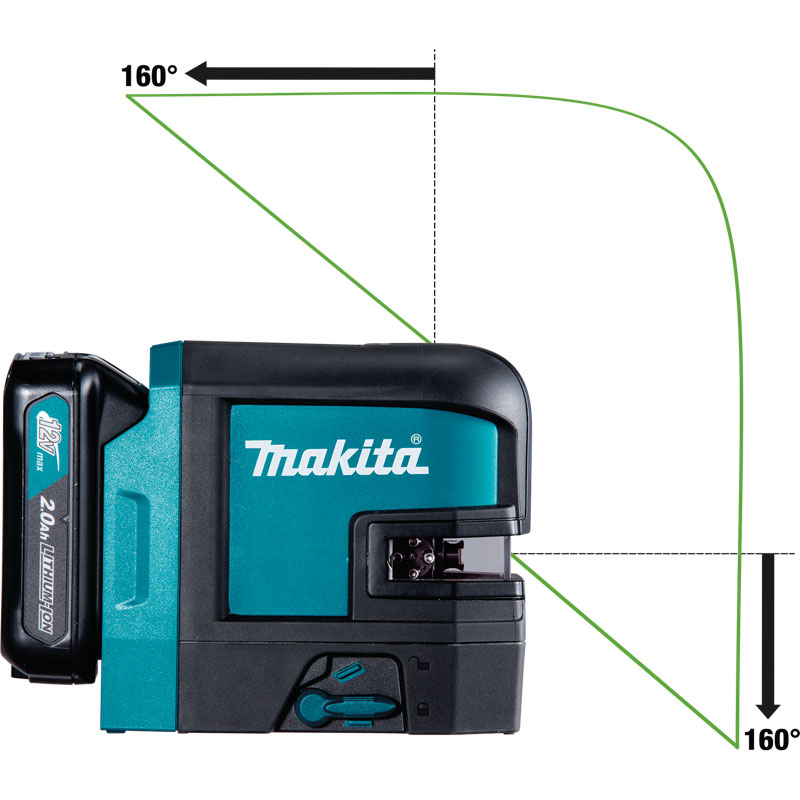

Laser fan angle Vertical 160°
Number of laser lines 2 (1V1H)
Laser type Laser class 2: 525 nm
Operating time (approx.) 7 - 20 hours
Dimensions (L x W x H) 138 x 64 x 102 mm
Net weight 0.67 - 0.84 kg
Carrying Case
