JV103D
Cordless Jig Saw



JV103D
Cordless Jig Saw

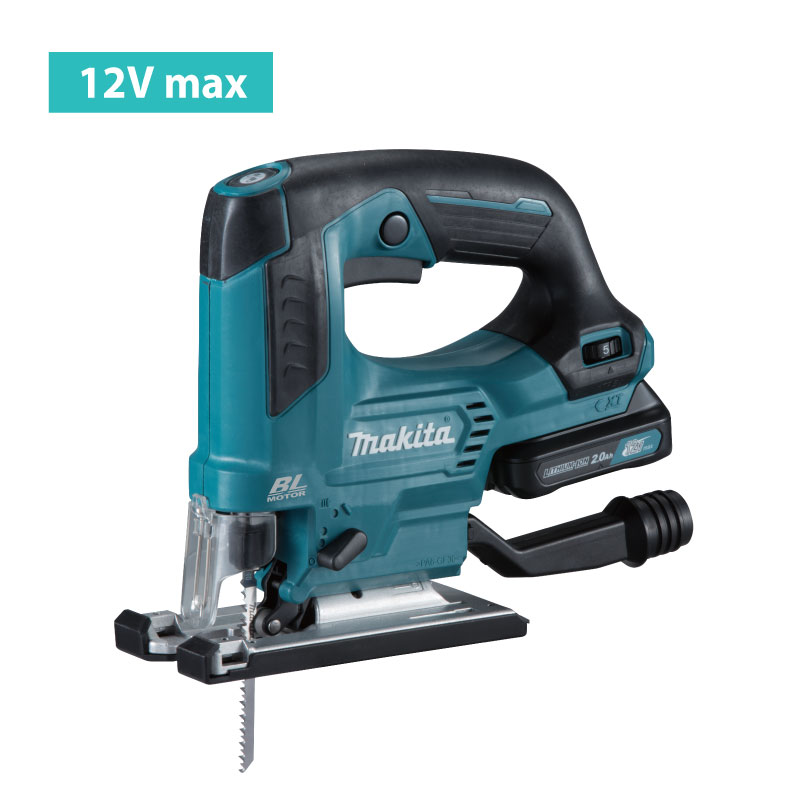

12V max Cordless Top Handle Jig Saw

  

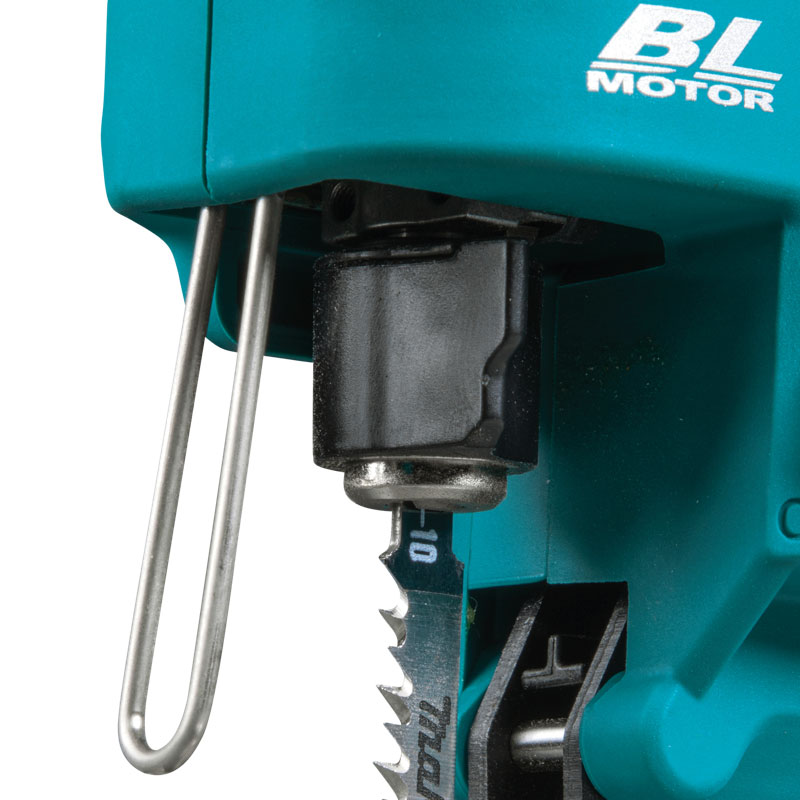

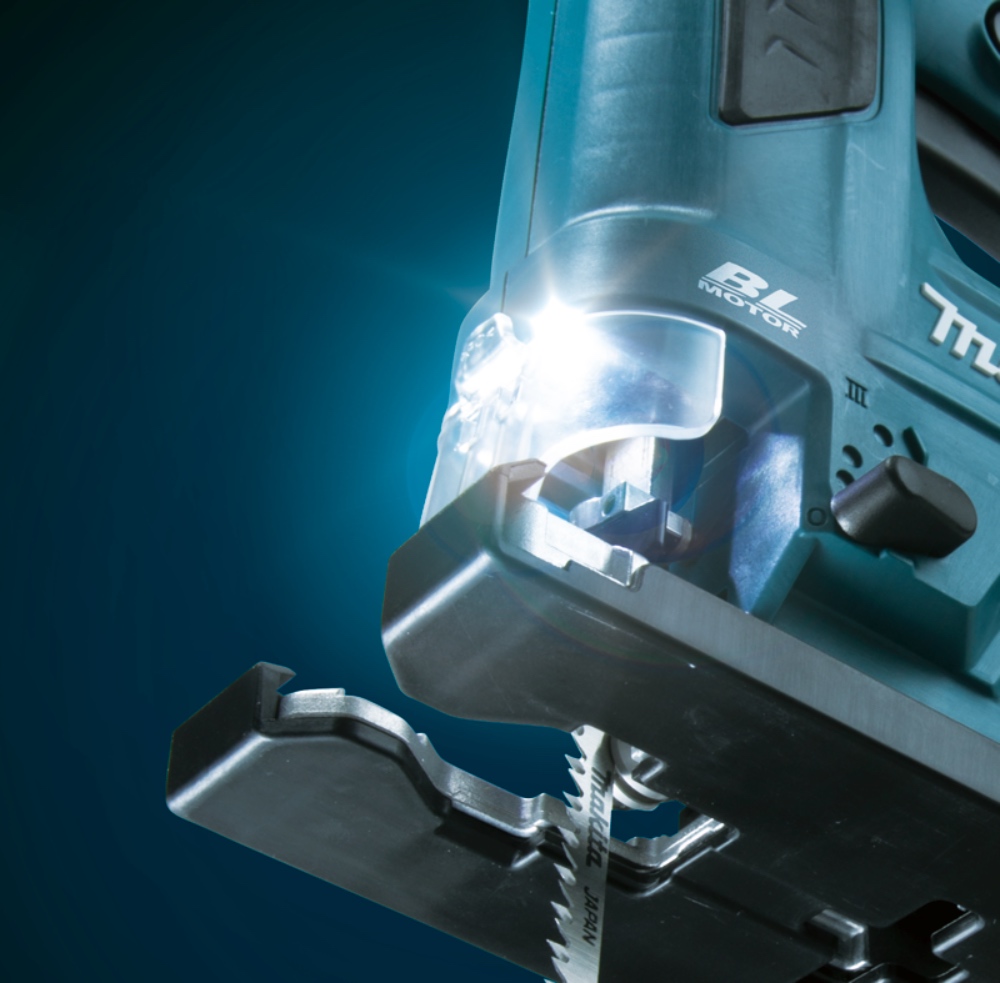

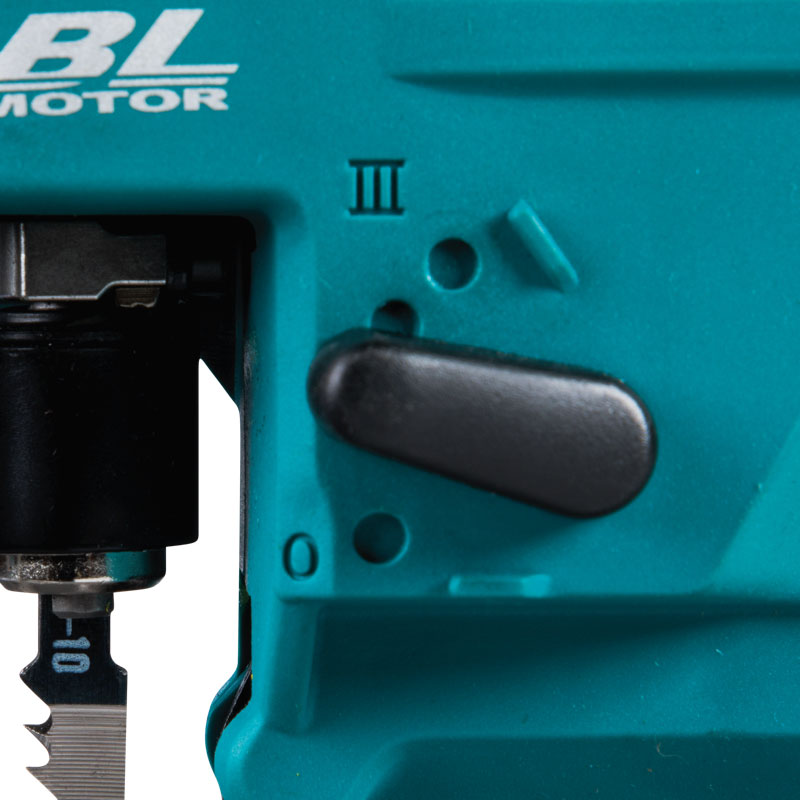

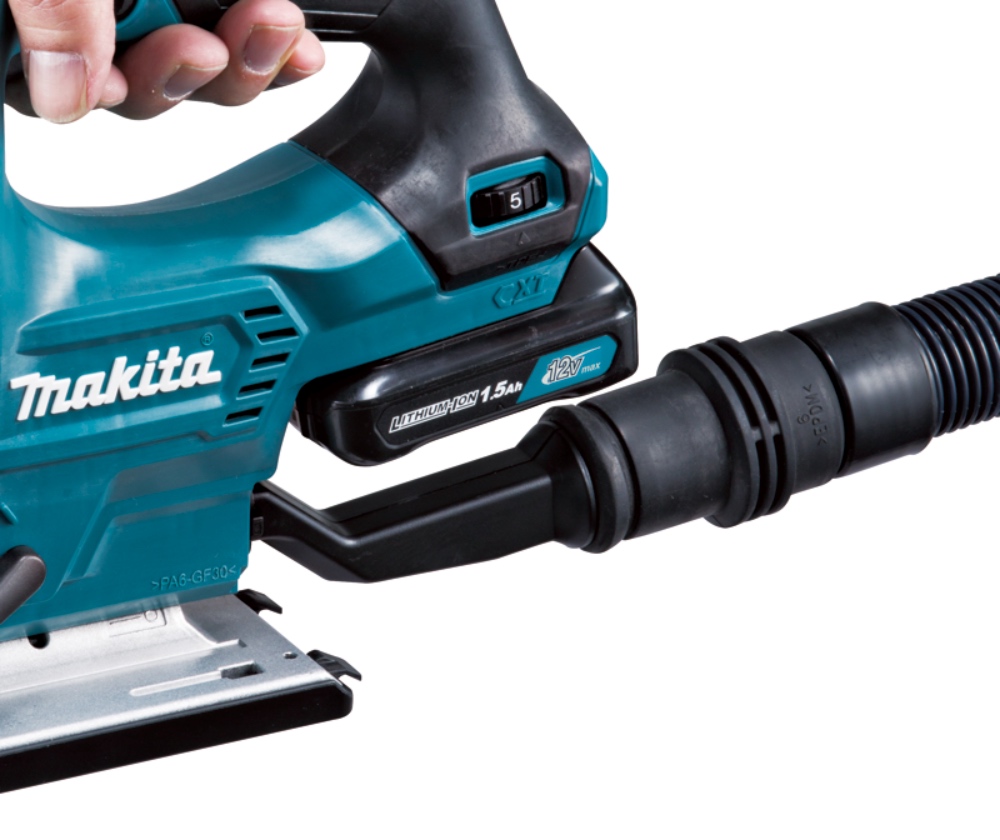

๐ Disabling soft no-load rotation function in operator's preference ๐ Soft no-load rotation reduces vibration and aligns blade with the cutting line easily ๐ Toolless blade clamp for easy blade change ๐ Independent dust nozzle can be attached for connection to Makita vacuum cleaner and doesn't require to be removed even when bevel cutting ๐ Lock on button for continuous operation ๐ Delivers 800-3,000 strokes per minute for faster cutting ๐ 3 orbital settings plus straight cutting for use in a wide range of materials ๐ Compact and lightweight for reduced operator fatigue ๐ Built-in dust blower clears the line of cut for increased accuracy ๐ Soft grip handle provides increased comfort on the job ๐ Aluminum die-cast base adjusts from 0°-45° right to left ๐ LED job light brightly illuminates the cut line for easy cutting in the dark place ๐ Electric brake for increased operator safety ๐ On-board wrench for fast bevel adjustments and blade changes ๐ Two-stage safety trigger switch minimizes accidental start up

Standard Equipments: Jig saw blade, Hex wrench, Cover plate, Dust nozzle, Dust cover


Technical specifications

Capacity : Wood 90 mm
Capacity : Aluminum 20 mm
Capacity : Mild Steel 10 mm
Length of Stroke 23 mm
Strokes Per Minute 800 - 3,000 minˉ¹
Bevel range 0 - 45°
Dimensions (L x W x H) 237 x 76 x 206 mm
Net weight 1.9 - 2.0 kg
Variable Speed
Brake
Auto-Decomperssion
Soft Start
Orbital Cutting
Bayonet Shank Jig Saw Blade
Dust Collection
Built-in-Job Light
