JV101D
Cordless Jig Saw



JV101D
Cordless Jig Saw

12V max Cordless Top Handle Jig Saw

  

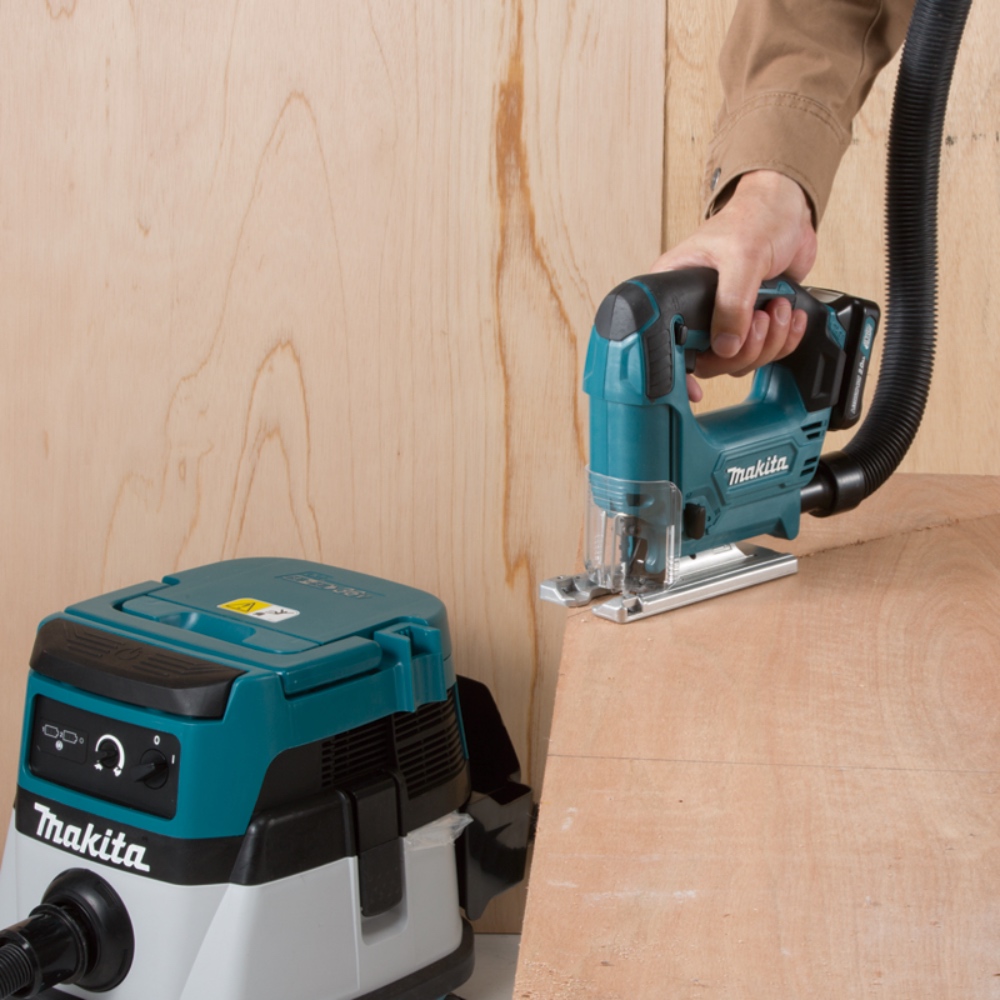

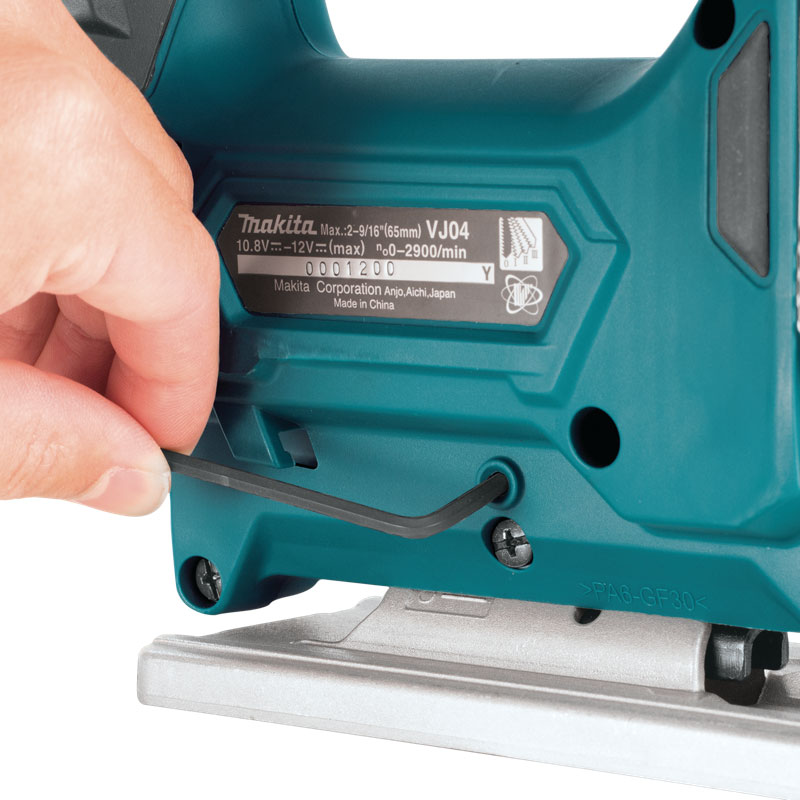

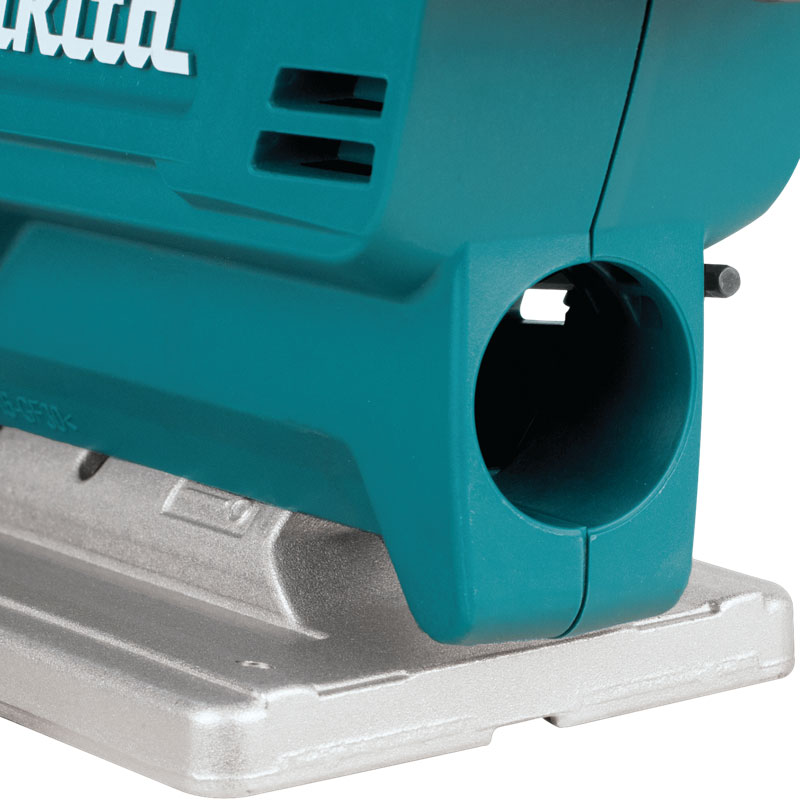

๐ Delivers 0-2,900 strokes per minute for faster cutting ๐ 3 Orbital settings plus straight cutting for use in a wide range of materials ๐ Lightweight for reduced operator fatigue ๐ Through-the-body dust port provides optimal dust management with use of clear dust cover and vacuum ๐ Built-in dust blower clears the line of cut for increased accuracy ๐ Soft grip handle provides increased comfort on the job ๐ Aluminum die-cast base adjusts from 0°-45° right to left ๐ Electric brake for increased operator safety ๐ On-board wrench for fast bevel adjustments and blade changes ๐ Two-stage safety trigger switch minimizes accidental start up ๐ Battery protection circuit protects against overloading, over-discharging and over-heating ๐ Low vibration level ๐ Low noise level at only 80 dB(A)

Standard Equipments : Jig saw blade, Hex wrench,


Technical specifications

Capacity : Wood 65 mm
Capacity : Aluminum 4 mm
Capacity : Mild Steel 2 mm
Length of Stroke 18 mm
Strokes Per Minute 0 - 2,900 minˉ¹
Bevel range 0 - 45°
Dimensions (L x W x H) 232 x 76 x 196 mm
Net weight 1.8 - 1.9 kg
Variable Speed
Brake
Orbital Cutting
Bayonet Shank Jig Saw Blade
Dust Collection
