DSP600
Cordless Plunge Cut Saw
DSP600
Cordless Plunge Cut Saw
18V X2 (36V) Cordless Plunge Cut Saw 165 mm (6-1/2")
Features
- 18V X2 (36V) LXT BL Cordless 165 mm (6-1/2") Plunge Cut Saw
- Up to 40% Faster Cutting than Corded Model SP6000
- 18V solution for corded power demands

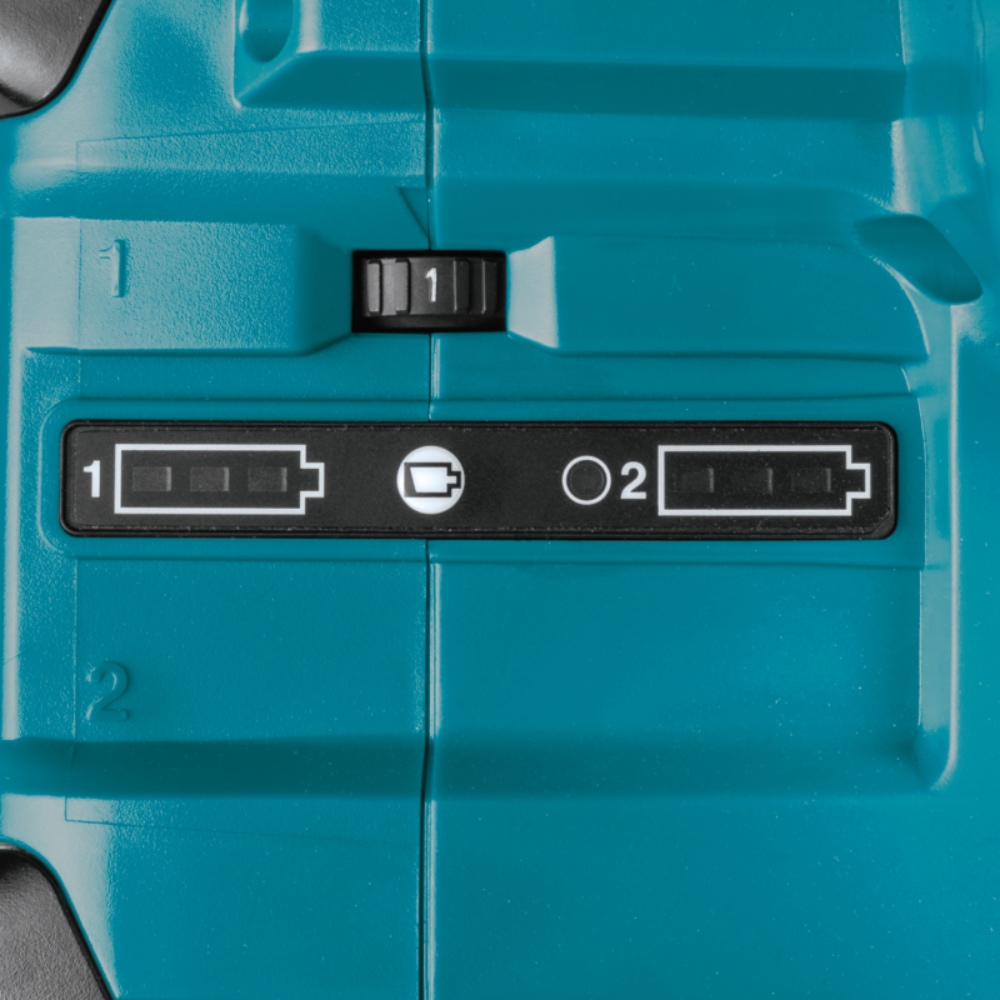

- Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform
- Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance

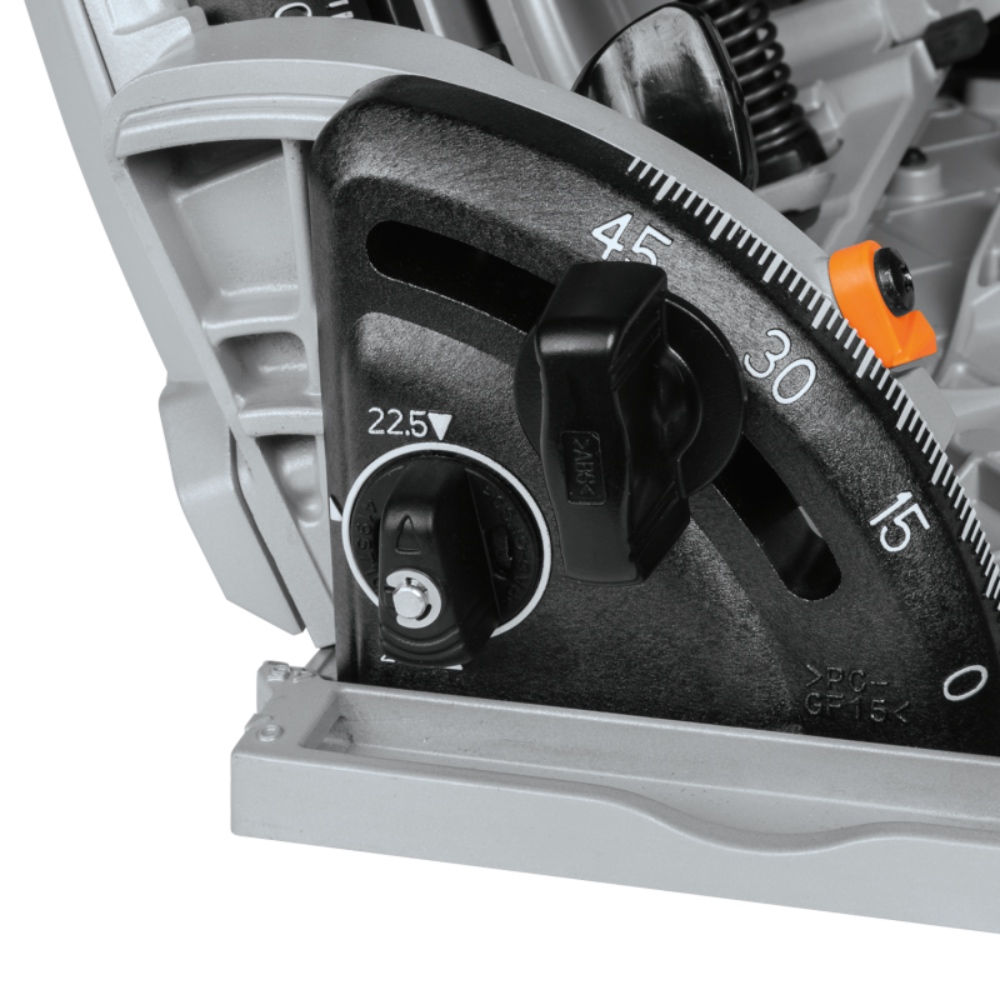

- Large cutting capacity (56 mm at 90º, 40 mm at 45º and 38 mm at 48º) and bevel capacity (-1° - 48°) with a positive stop at 22.5°
- Precision accurate cutting delivers a splinter-free mirror finish

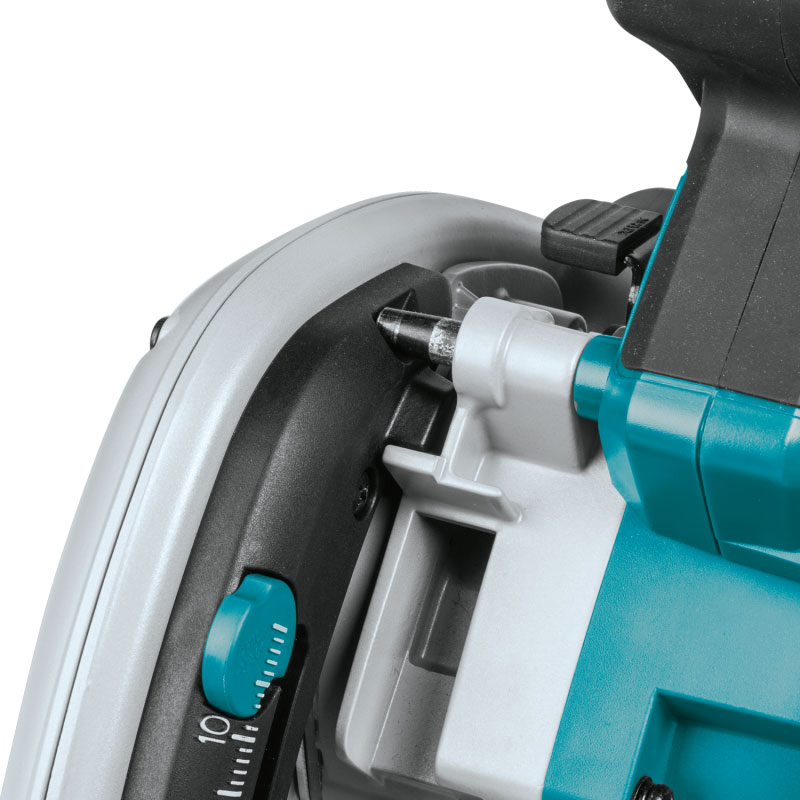

- Depth stopper for splinter-free cutting enables to easily cut a preliminary groove at a depth of 2 mm
- Variable speed dial control (2,500 - 6,300 RPM) for optimum performance in a variety of materials
- Electronic soft start feature for smooth start-ups

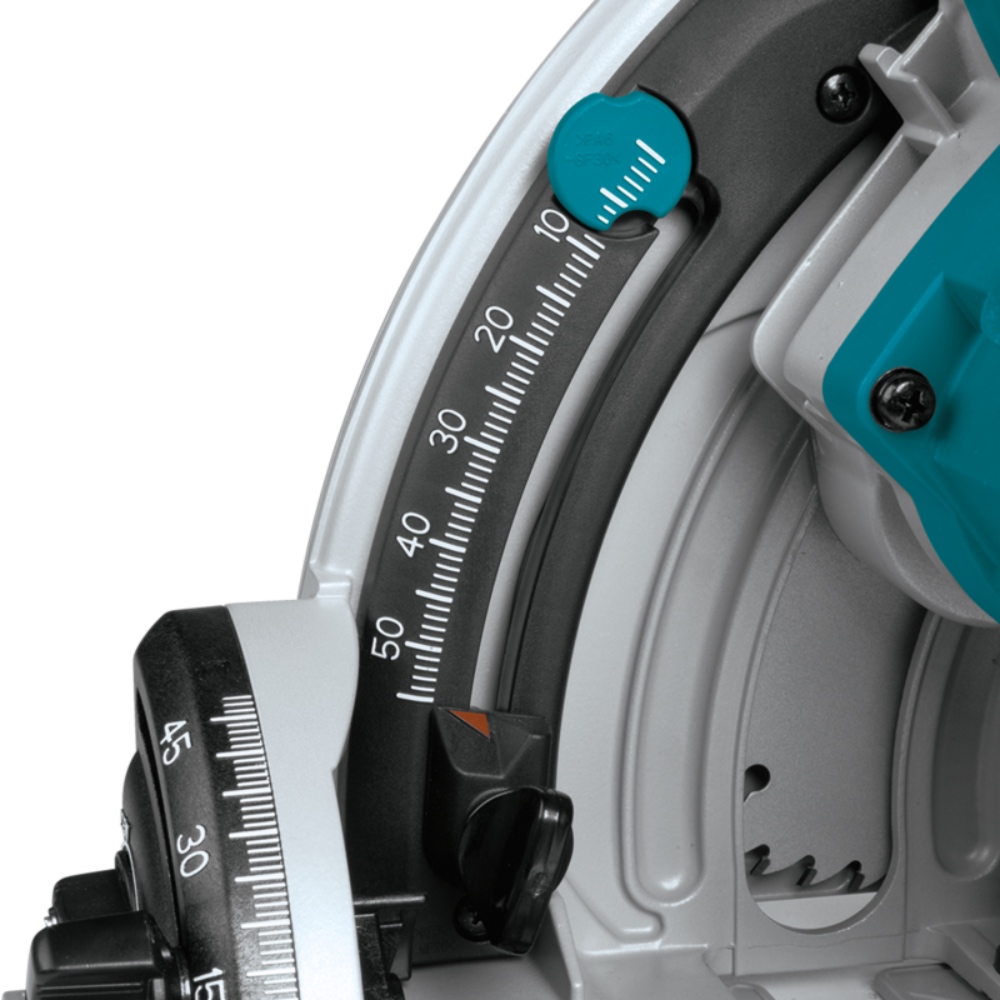

- Easy to set depth adjustment with large scale
- Magnesium components deliver a well balanced and lightweight saw

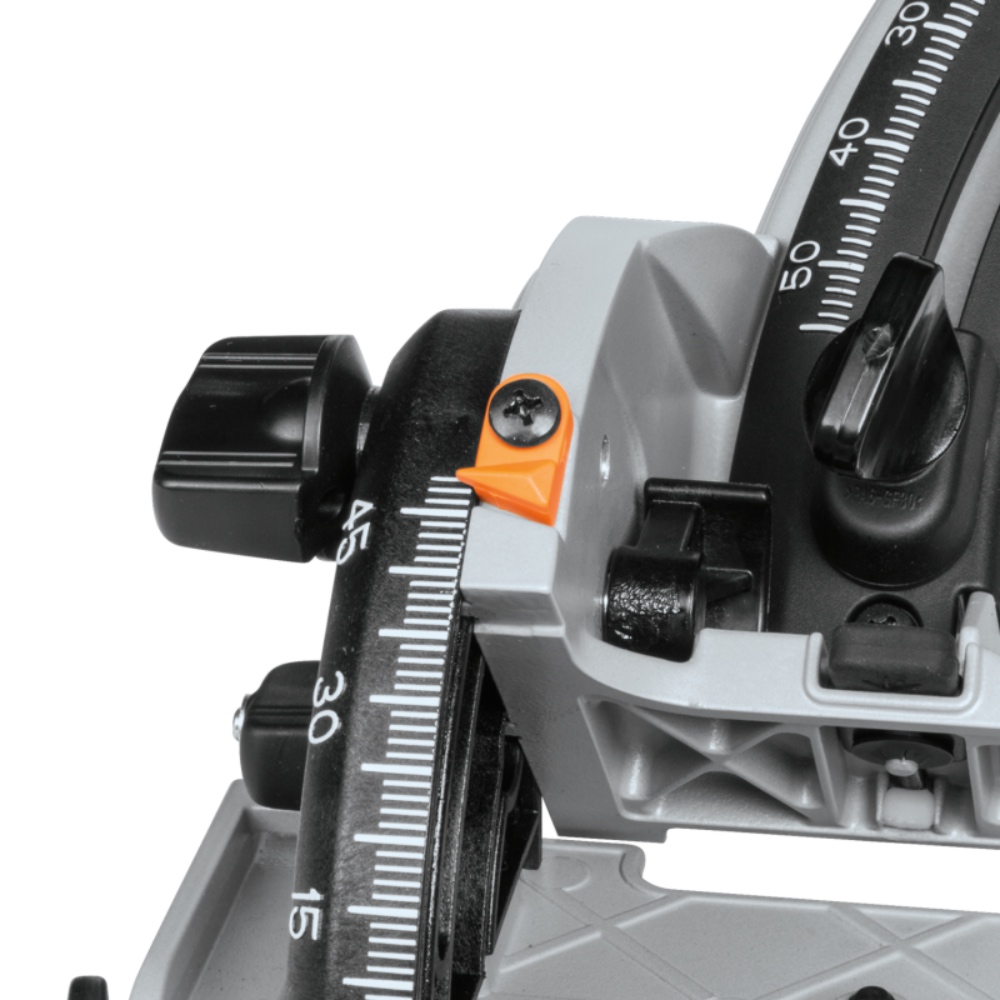

- Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
- Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation
- Electric brake for improved productivity and increased operator safety.
- Rubberized handles for added comfort.

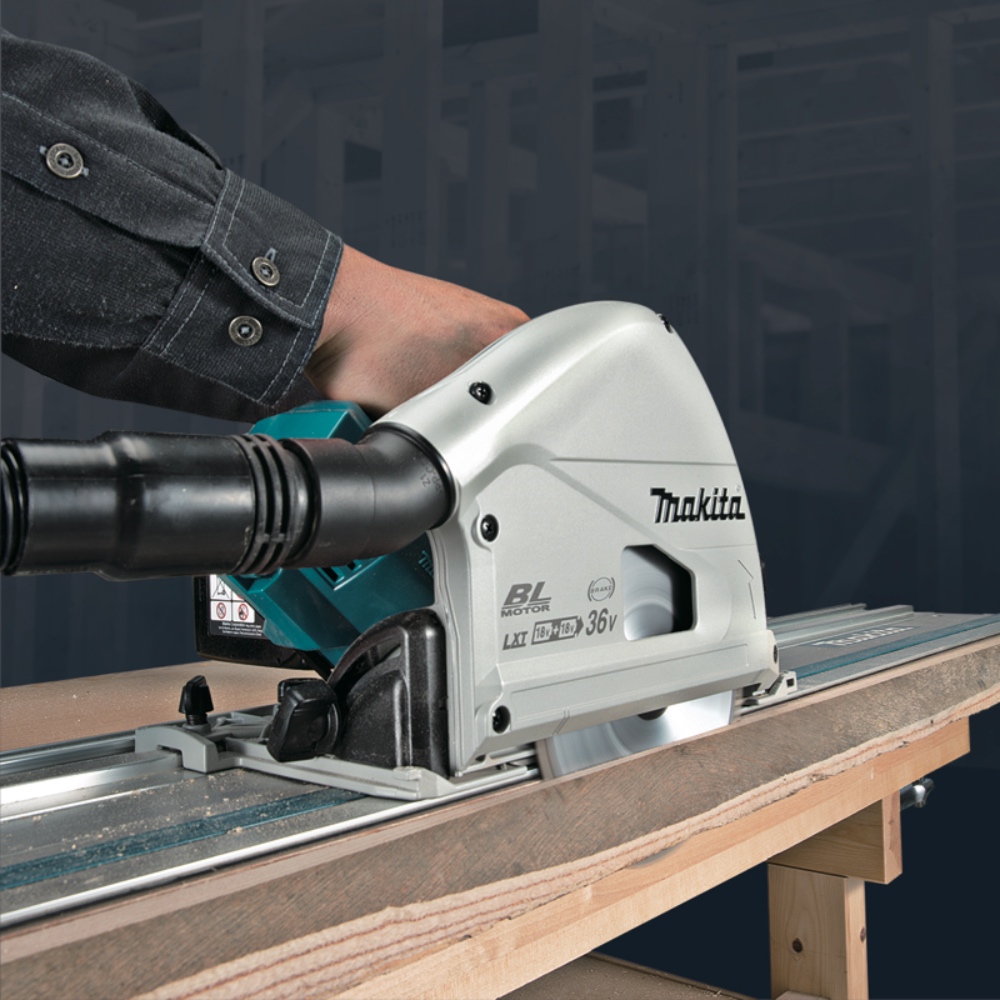

- Large rear dust port directs material away from the operator and easily connects to a vacuum system.
- Tip-resistant design minimizes the machine from falling down.
- Onboard hex wrench for fast and easy blade changes.
- Battery protection circuit protects against overloading, over-discharging and over-heating.

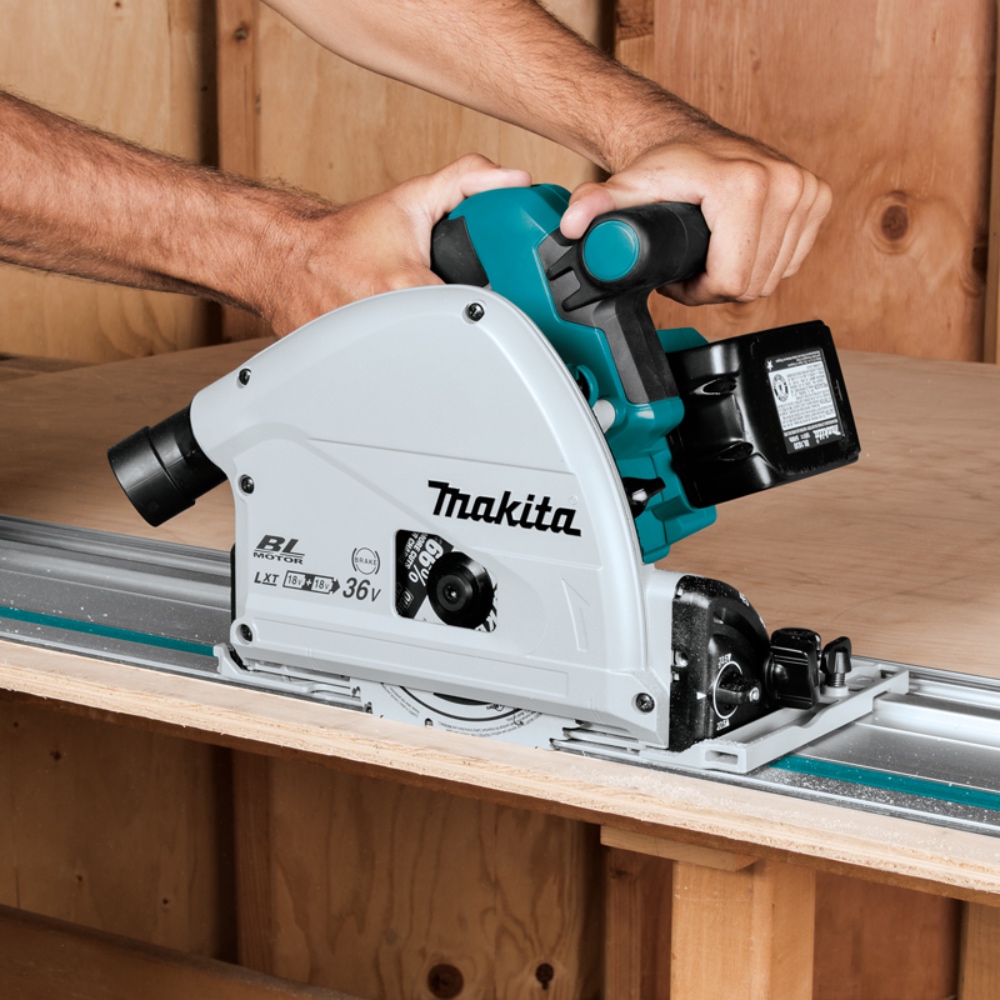

- Compatible with optional guide rail for increased maneuverability

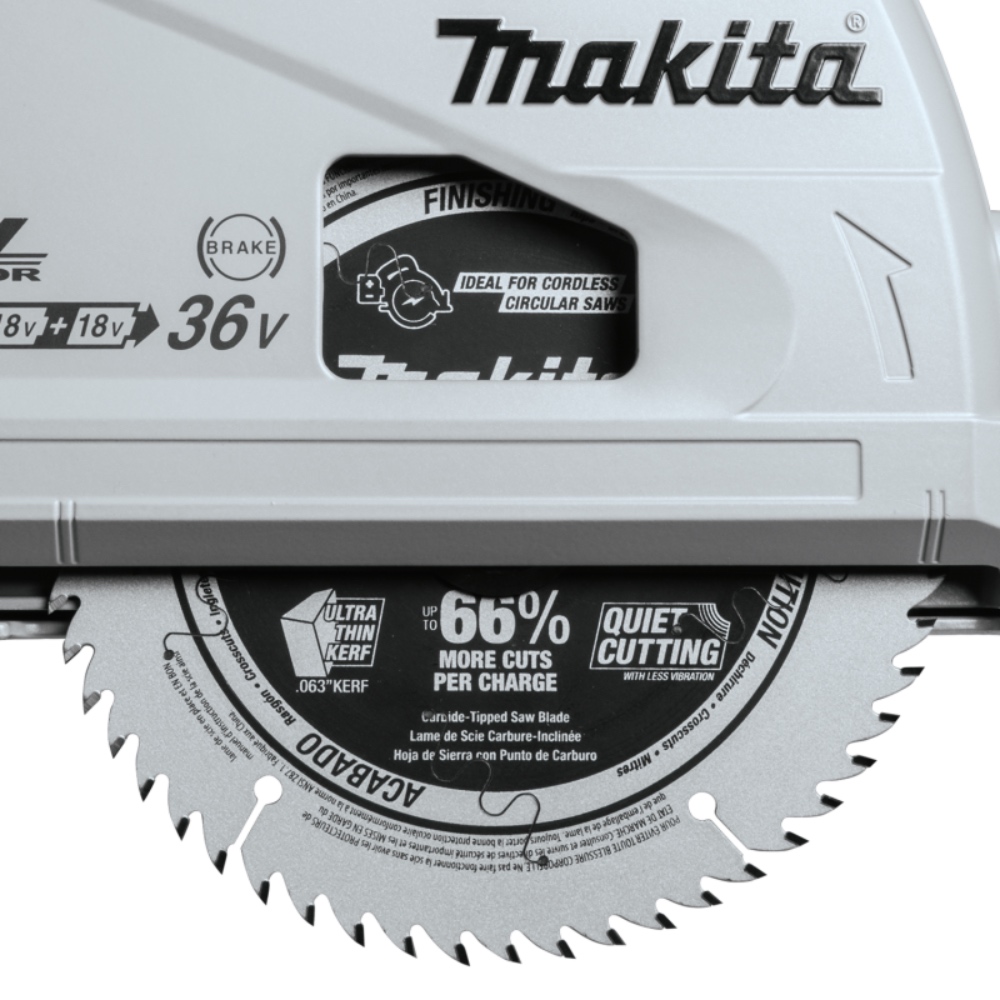

Standard Equipments: TCT saw blade, Hex wrench,
Available options
Technical specifications
| Wheel Diameter | 165 mm |
|---|---|
| Hole diameter | 20 mm |
| Bevel angle | -1 - 48° |
| Max Cutting Capacity | 56 mm |
| Max Cutting Capacity 45° | 40 mm |
| No Load Speed | 2,500 - 6,300 minˉ¹ |
| Dimensions (L x W x H) | 346 x 241 x 272 mm |
| Net weight | 4.4 - 5.1 kg |
