DHS680
Cordless Circular Saw
DHS680
Cordless Circular Saw
18V Cordless Circular Saw 165 mm (6-1/2")
Features
- High-efficiency BL motor provides higher power and more work amount
- Smooth cutting at high rotational speed of 5,000 RPM
- Compact and lightweight design
- ADT (Automatic Torque Drive Technology) adjusts speed and torque during operation for optimum performance
- Blower function blows sawdust off the cut line ahead for a better cutting view
- Dual LED job lights for more visibility
- Soft grip provides increased comfort on the job

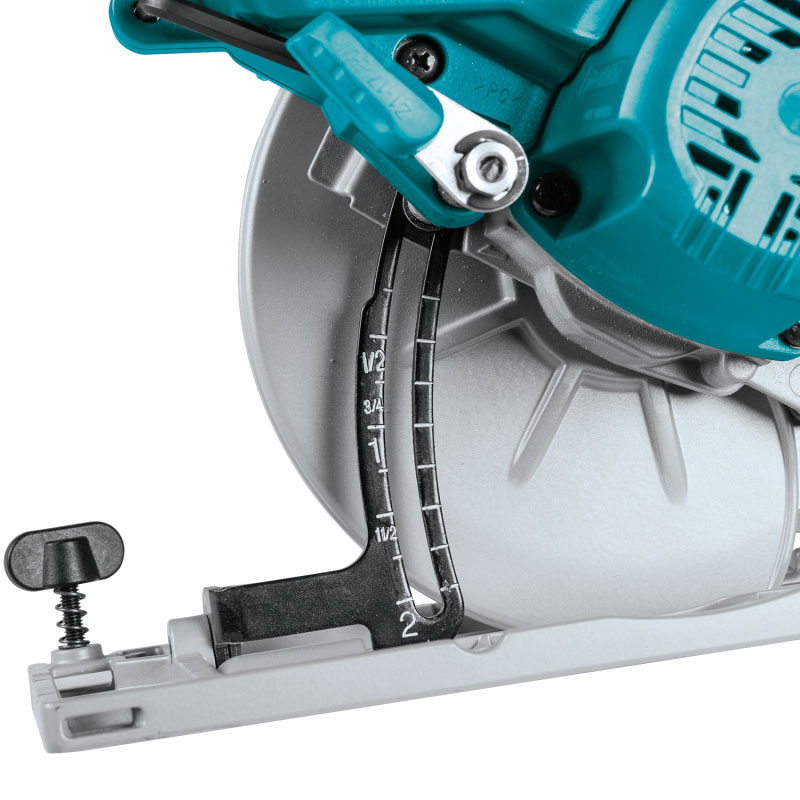

- Large rubberized levers for quick and easy depth and bevel adjustments
- Electric brake for maximum productivity and increased operator safety
- Soft start suppresses start-up reaction for more control and better accuracy

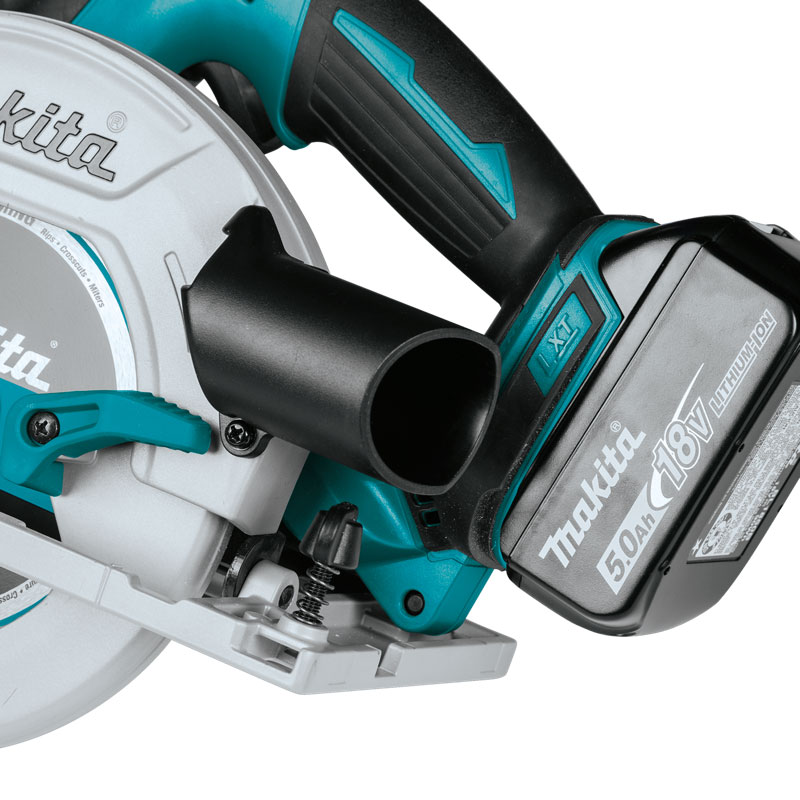

- Dust nozzle is attachable for connecting to vacuum cleaner

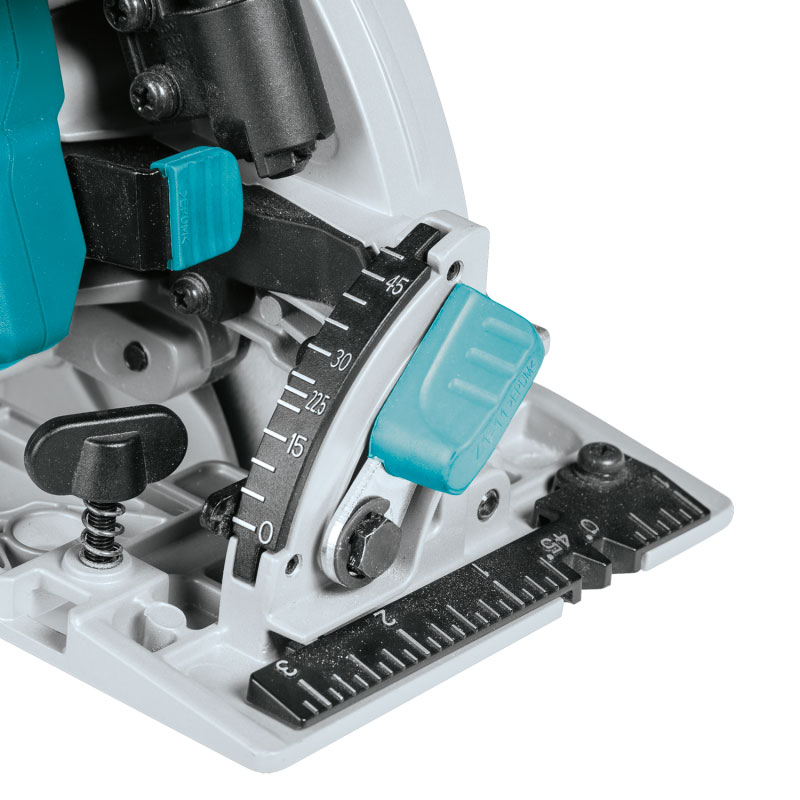

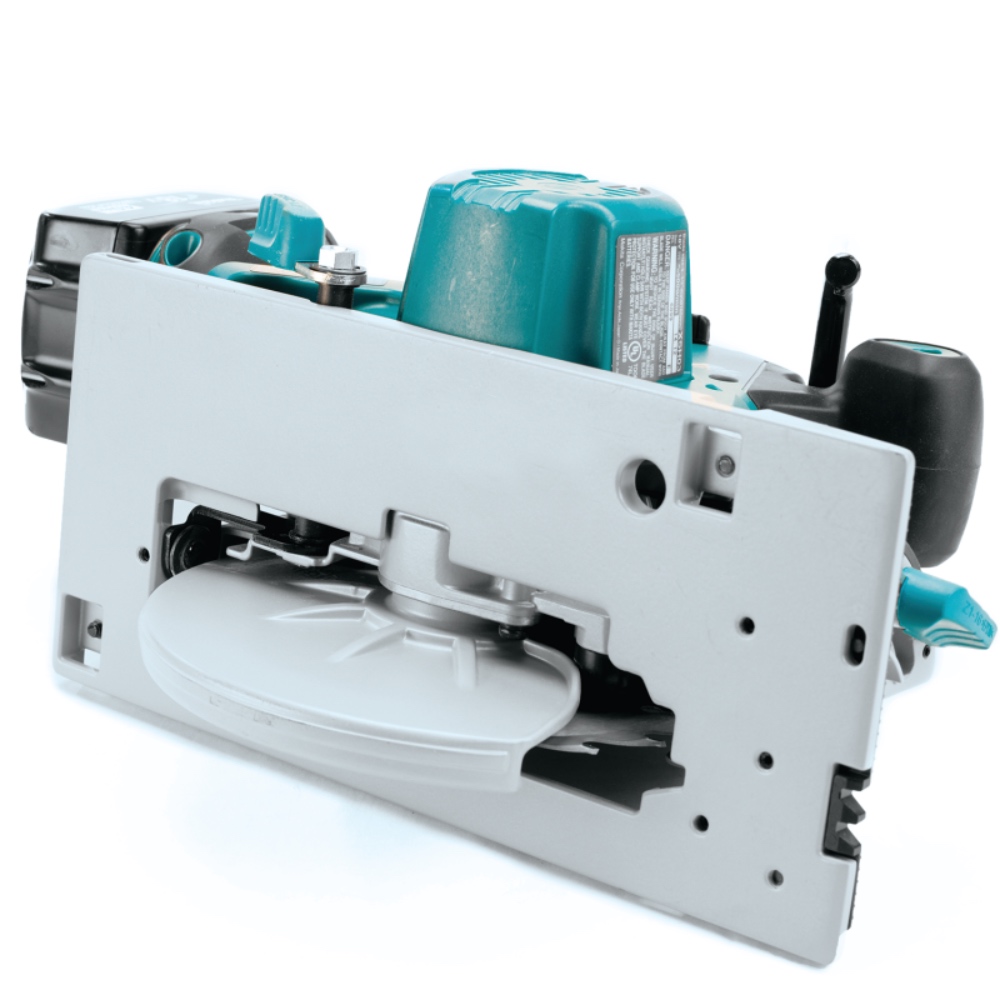

- Magnesium base with 45 and 50 degrees bevel cutting capacity
- Rear dust exhaust port
- LED indicator panel with 3 indicators for: Battery Fuel Gauge, Automatic Torque Drive and Overload Protection
- Tool hanger for hanging on a ladder or rafter
- Large, comfortable front grip
- Large lock off lever easily operated even with a gloved hand
- 24T thin kerf TCT saw blade for fast cutting
Standard Equipments : TCT saw blade, Hex wrench, Guide rule, Dust nozzle
Available options
Technical specifications
| Wheel Diameter | 165 mm |
|---|---|
| Hole diameter | 20 / 30 mm |
| Max Cutting Capacity | 57 mm |
| Max Cutting Capacity 45° | 41 mm |
| No Load Speed | 5,000 minˉ¹ |
| Dimensions (L x W x H) | 350 x 170 x 238 mm |
| Net weight | 3 - 3.3 kg |
