M1901B
Power Planer
M1901B
Power Planer

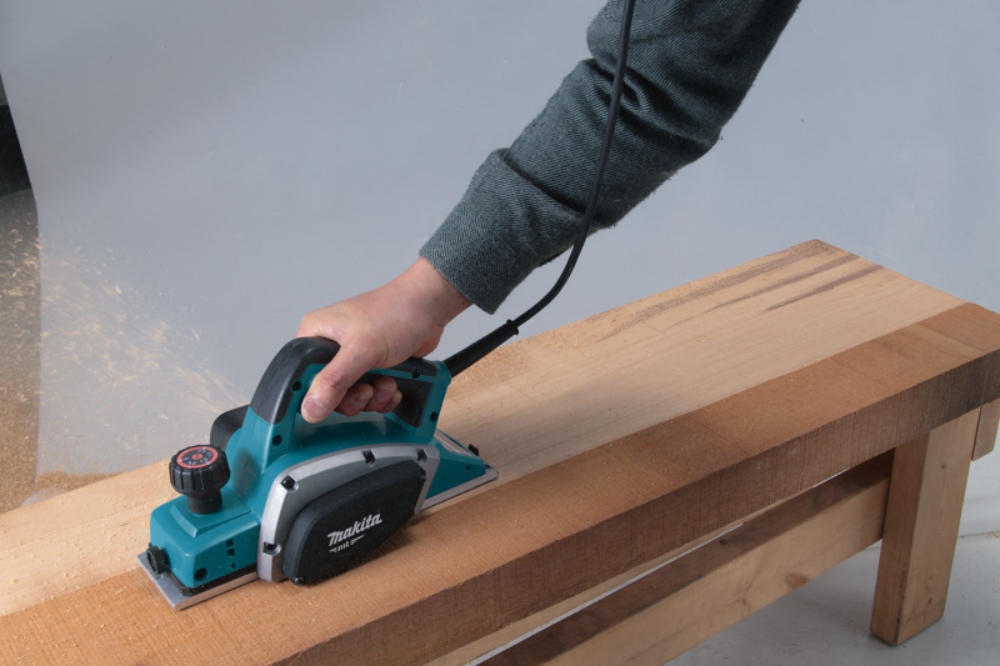

82 mm (3-1/4") 500 W Power Planer
๐ Planes up to 82 mm wide and 2 mm deep in a single pass ๐ Shiplapping cuts up to 9 mm ๐ Two-blade cutter head with 16,000 RPM delivers smooth finish and fast stock removal ๐ Base plate foot protects workpiece and blades from scratches and damages ๐ V-groove on base for easy chamfer cutting ๐ Compact design at only 285 mm long ๐ European specification unit is available with Dust nozzle for use with vacuum cleaner ๐ Large, conveniently located depth setting knob for easy adjustment ๐ Aluminum diecast bracket for high durability and long tool life
Standard Equipments : Planer blade, Sharpening holder assembly (for resharpenable blade), Blade gauge, Socket wrench, Guide rule, Dust nozzle
Technical specifications
| Continuous Rating Input | 500 W |
|---|---|
| Planing Width | 82 mm |
| Planing Depth | 2 mm |
| Max Shiplapping | 9 mm |
| No Load Speed | 16,000 minˉ¹ |
| Vibration Level | 3.5 m/s² |
| Sound Pressure Level | 85 dB(A) |
| Sound Power Level | 96 dB(A) |
| Dimensions (L x W x H) | 285 x 157 x 160 mm |
| Net weight | 2.8 - 2.9 kg |
| Power Supple Cord | 2.0 m |
| Carbon Brush | 411 |
