M1100B
Planer
M1100B
Planer

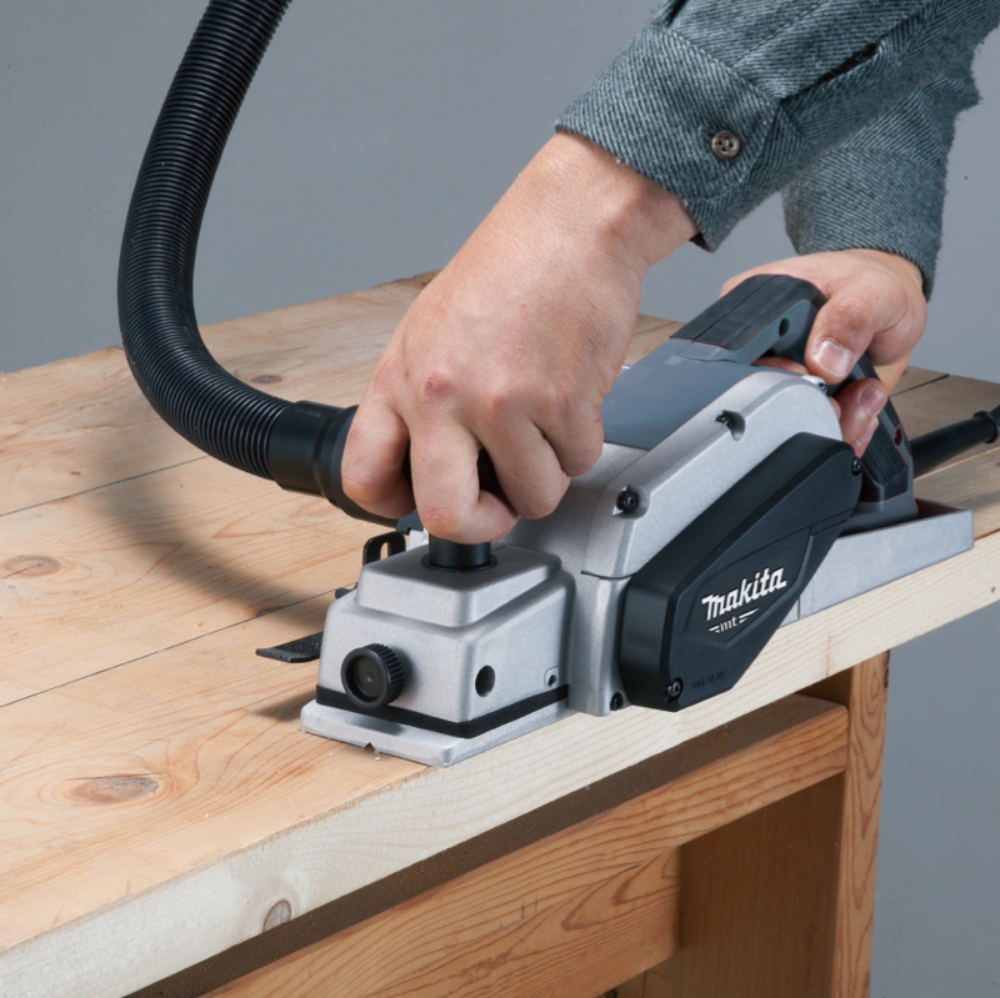

82 mm (3-1/4") 750 W Planer
Features
๐ Planes up to 82 mm (3-1/4") wide and 3 mm (1/8") deep in a single pass
๐ Shiplapping cuts up to 20 mm (3/4")
๐ Two-blade cutter head with 18,000 RPM delivers smooth finish
๐ Long rear shoe ensures smooth and accurate planing
๐ Easy blade setting system for fast blade installation
๐ V-groove on base for easy chamfer cutting
๐ Large, conveniently located depth setting knob for easy adjustment
๐ Aluminum diecast bracket for high durability and long tool life
Standard Equipments : Planer blade, Sharpening holder assembly (for resharpenable blade), Blade gauge, Socket wrench, Guide rule
Technical specifications
| Continuous Rating Input | 750 W |
|---|---|
| Planing Width | 82 mm |
| Planing Depth | 3 mm |
| Max Shiplapping | 20 mm |
| No Load Speed | 18,000 minˉ¹ |
| Vibration Level | 2.5 m/s² |
| Sound Pressure Level | 91 dB(A) |
| Sound Power Level | 102 dB(A) |
| Dimensions (L x W x H) | 390 x 175 x 140 mm |
| Net weight | 4.6 kg |
| Power Supple Cord | 2.0 m |
| Carbon Brush | 303 |
