AF506
Pneumatic Brad Nailer

AF506
Pneumatic Brad Nailer

18 Ga 50 mm (2") Pneumatic Brad Nailer

  

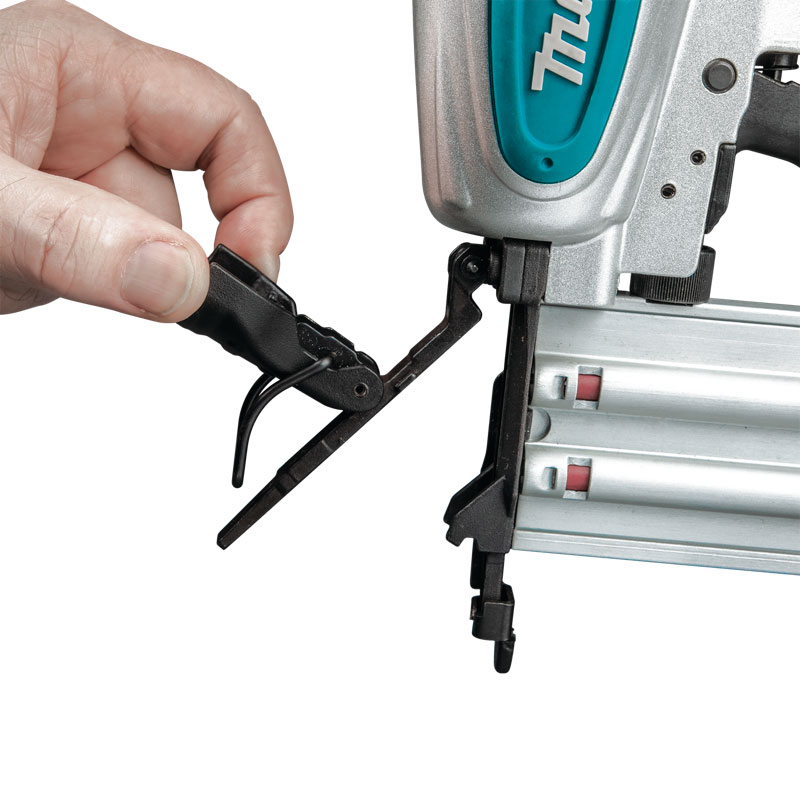

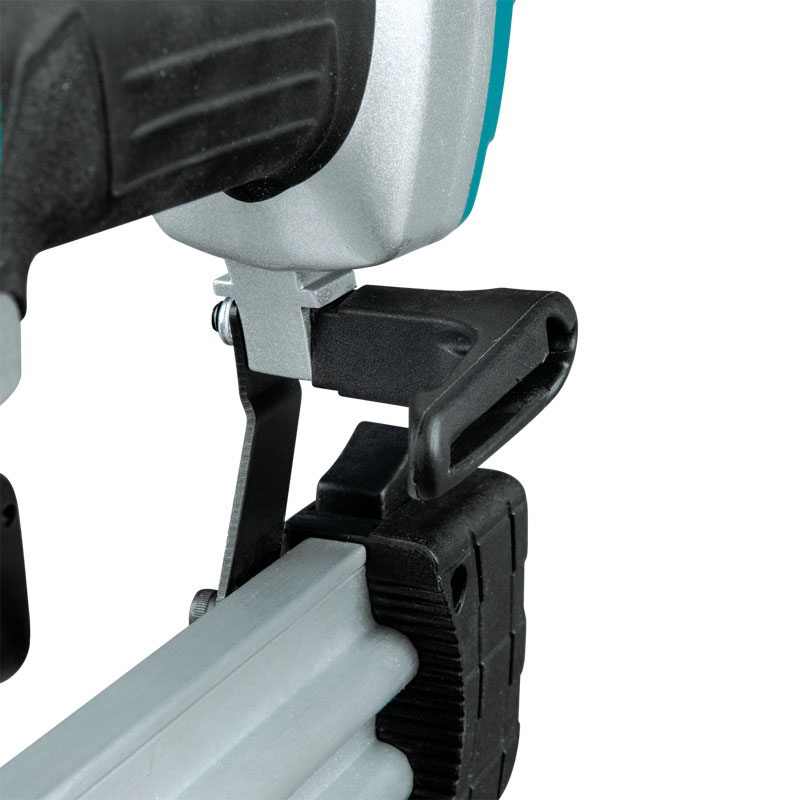

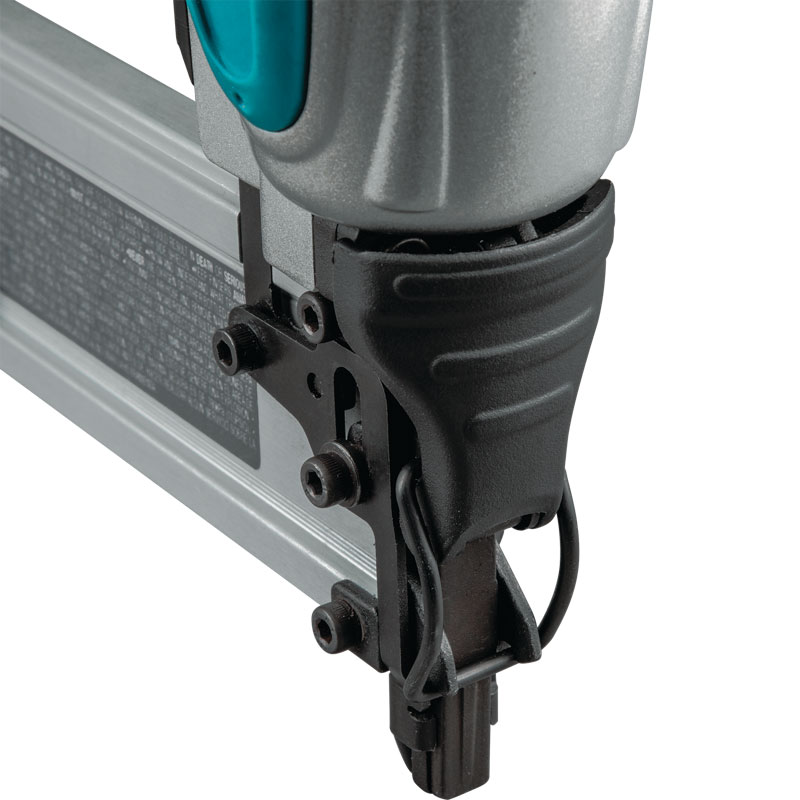

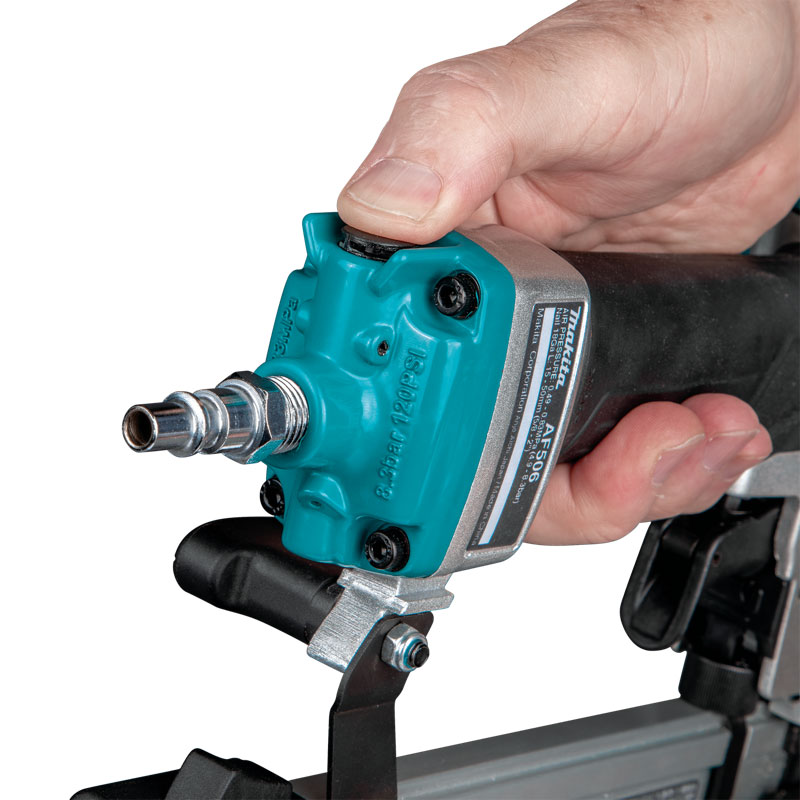

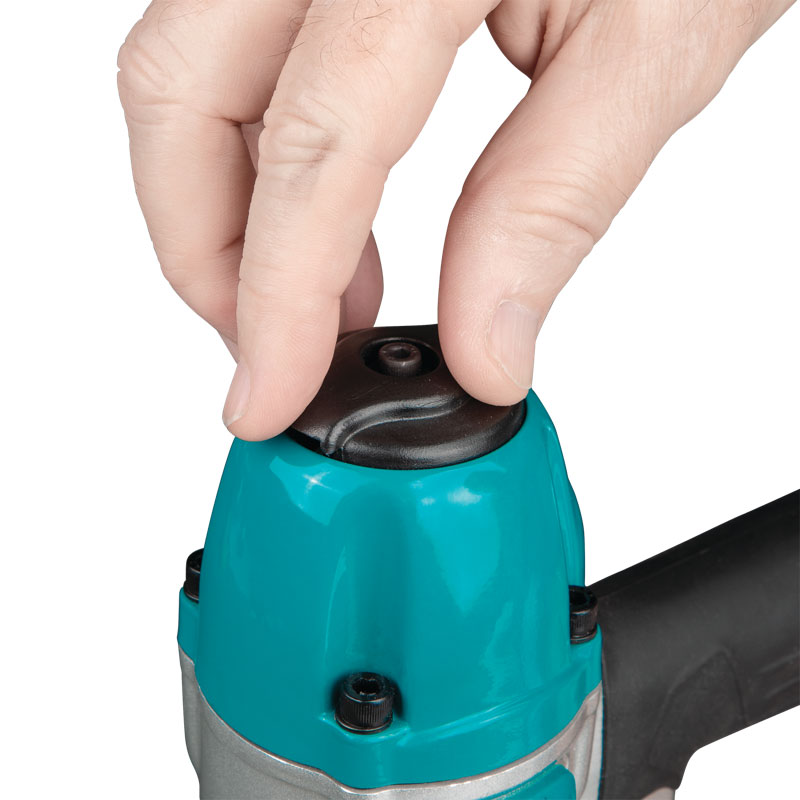

๐ Lightweight at Only 1.3 kg (2.9 lbs) for Increased Maneuverability ๐ Air duster for sweeping up job site floor as well as workpieces ๐ Compatible with EN ISO11148-13 ๐ Slim soft grip provides increased comfort ๐ Drives a range of 18 gauge brad nails, from 15mm (5/8") to 50mm (2"), into hard or soft wood applications; magazine capacity is up to 100 nails ๐ Quick-release cam-lock opens nail guide assembly to easily clear jammed nails; efficient design minimizes downtime ๐ Easy to use "tool-less" depth adjustment dial for a wide variety of finish applications ๐ Clear window allows operator to see number of remaining staples ๐ Easy-to-see slim nose tip allows quick and easy access to a desired fastening point ๐ Nose adapter for minimizing workpiece surface from being scratched or damaged ๐ Non-marring rubber nose and bumpers protect the wood's surface from being scratched or damaged ๐ Tool hook is convenient for hanging the tool temporarily


Technical specifications

Capacity 15 - 50 mm / 18 Ga
Operating pressure 0.49 - 0.83 MPa (70 - 120 PSI)
Magazine capacity 100
Compressed air : Driver stroke 85.5 mm
Compressed air : Cylinder bore diameter 28 mm
Dimensions (L x W x H) 250 x 70 x 256 mm
Net weight 1.3 kg

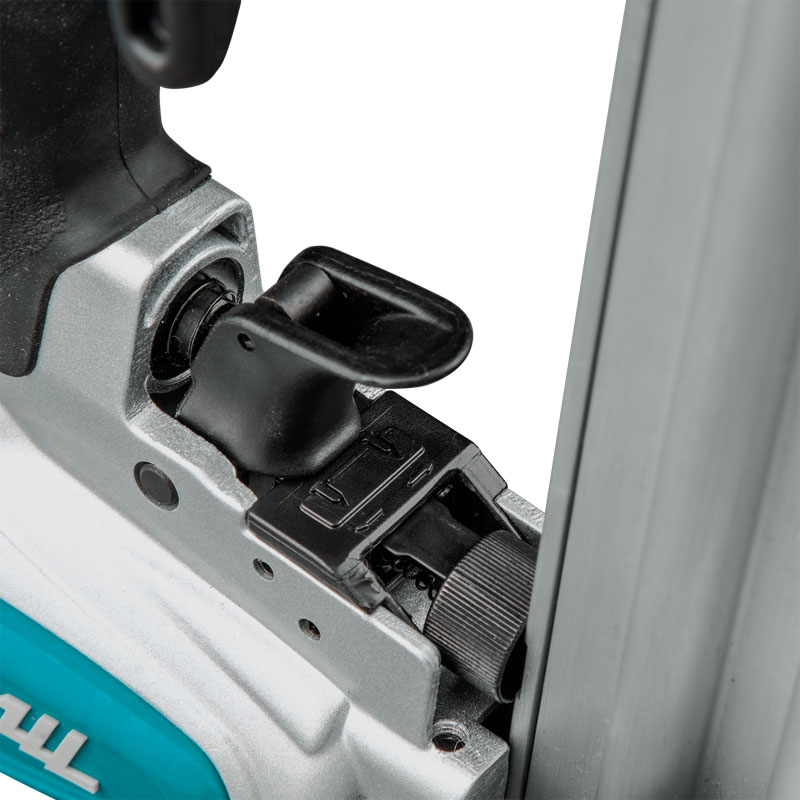

Depth Adjustment
