DHP489

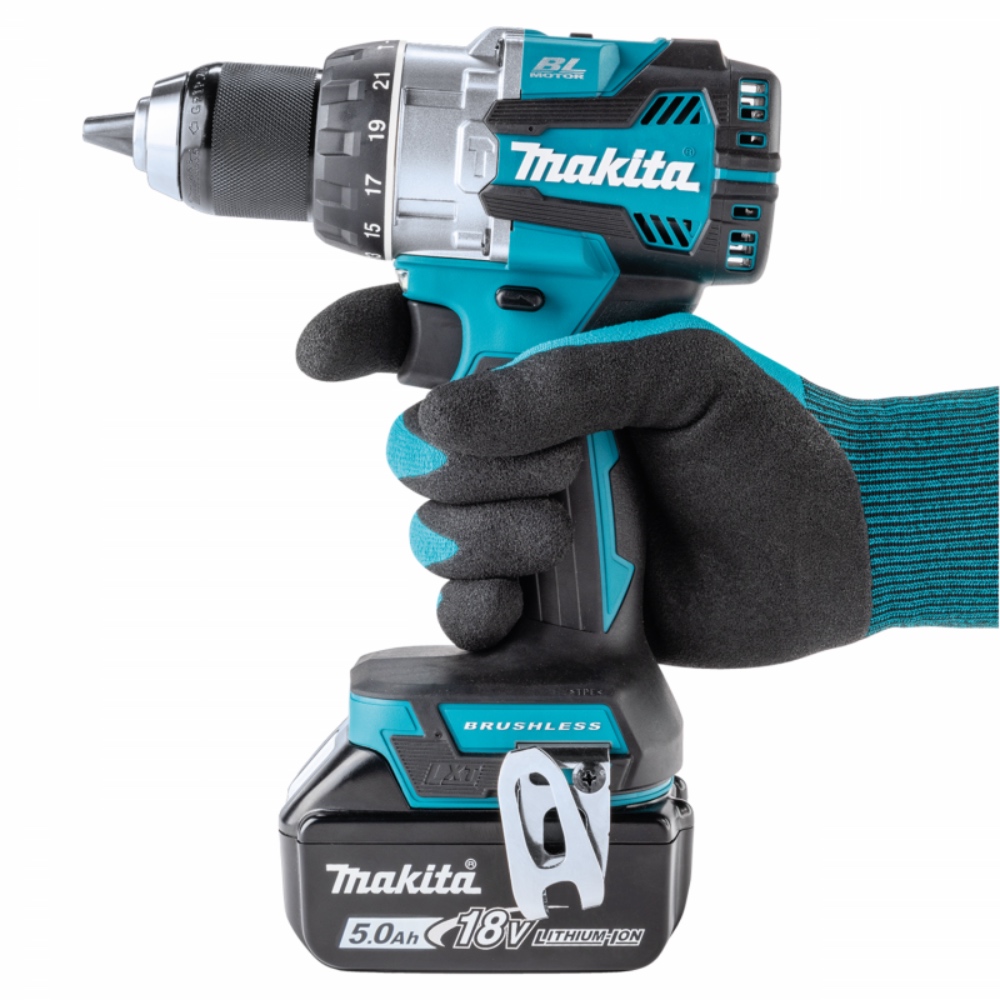

Cordless Hammer Driver Drill

DHP489 Parts List (0.90 MB)

DHP489 Leaflet (10.28 MB)

DHP489
Cordless Hammer Driver Drill

18V Cordless Hammer Driver Drill 13 mm (1/2") 110 N·m

  
Variable Speed
Brake
Reversing

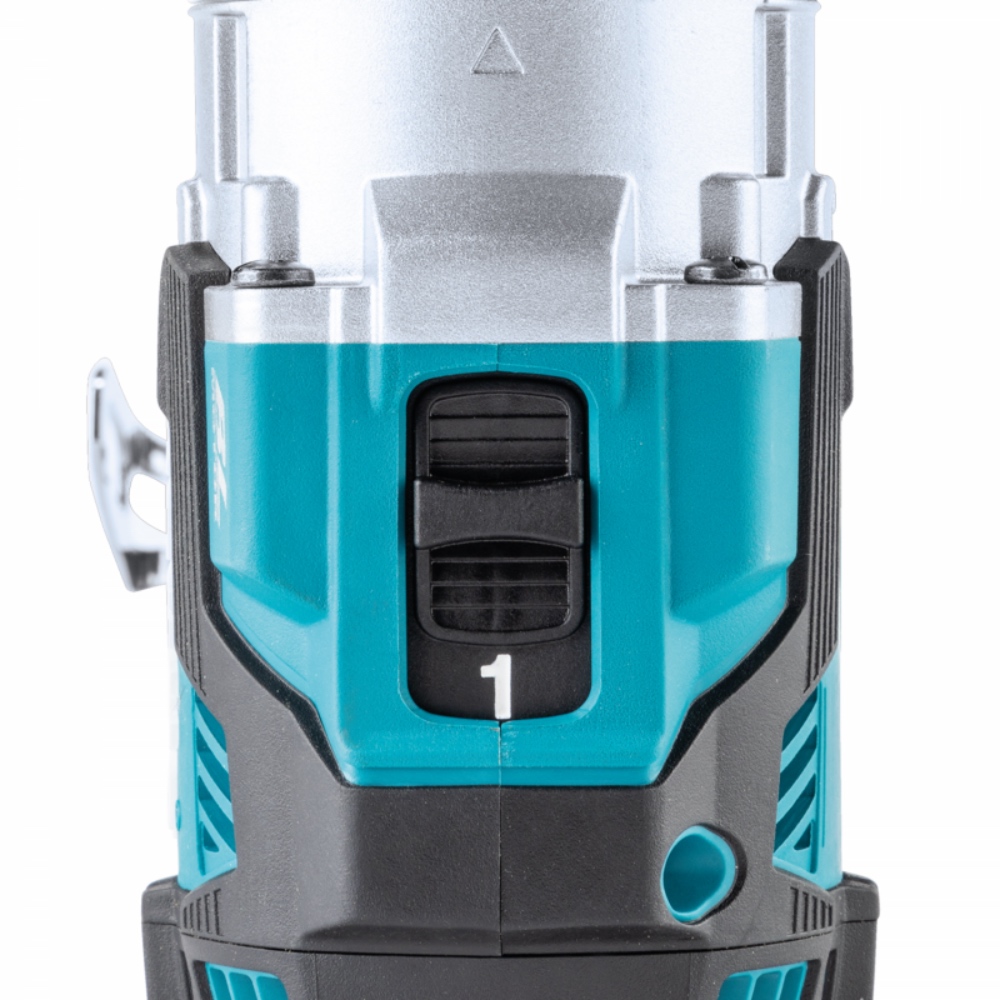

Mechanical 2-Speed
Keyless Chuck
Torque Setting 21
Built-in-Job Light

Features

  • Excellent drilling capacity: Drilling in 2x lumber with up to 1" ship auger bit in high speed mode
  • Robust keyless drill chuck with single metal sleeve
  • Metal gear housing
  • Excellent maneuverability
    Despite increased efficiency, the overall length is shorter than that of our current model due to optimally redesigned gear assembly
  • Variable 2-speed for a wide range of drilling, fastening and hammer drilling applications

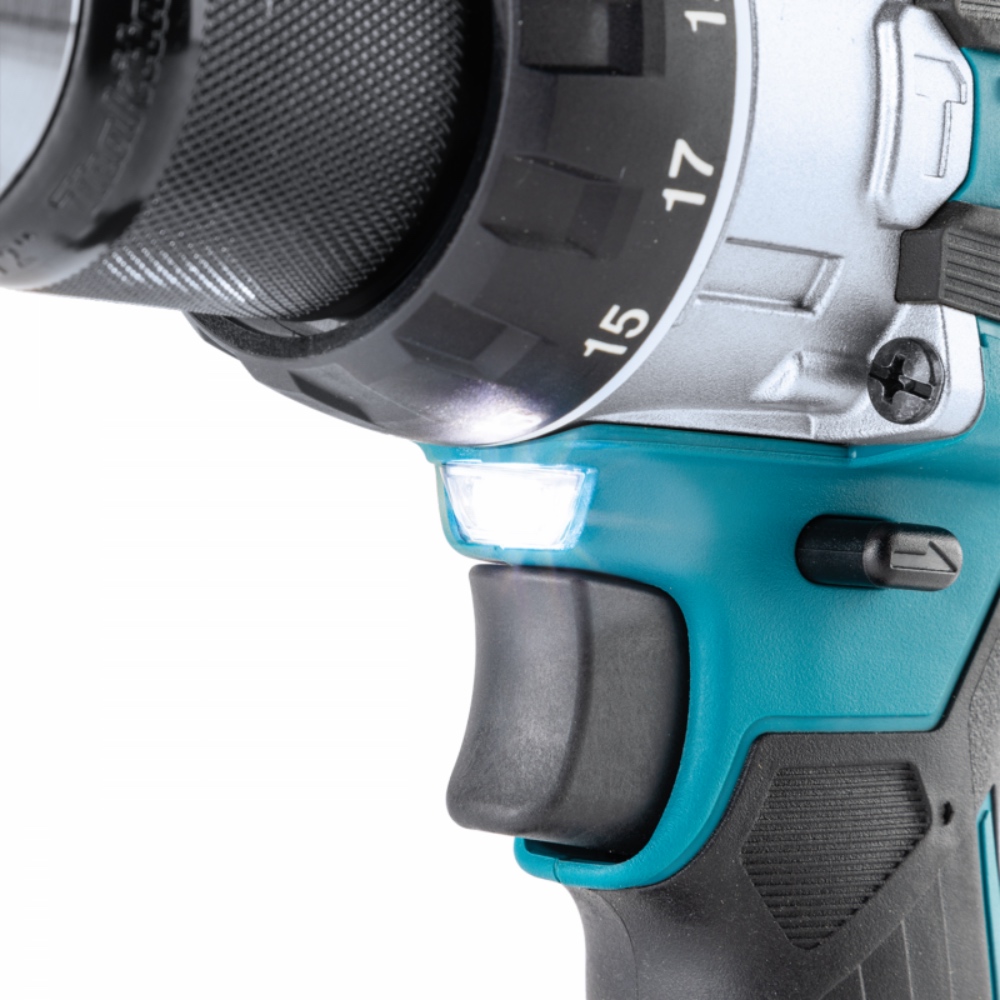

  • Built-in twin LED light with pre-glow and afterglow functions illuminates the work area
  • Convenient 13 mm (1/2") keyless chuck for quick bit changes

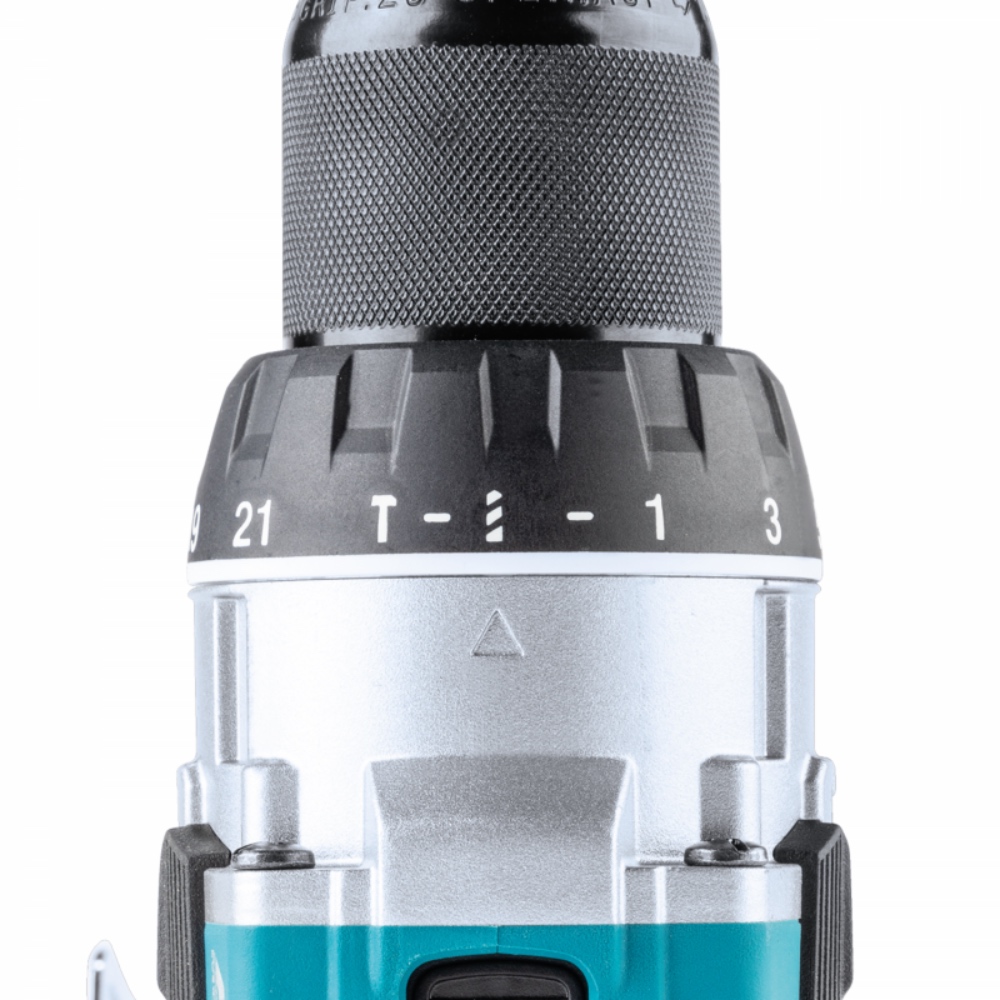

  • 21 clutch settings and drill mode for added fastening control
  • Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
  • Electric brake for maximum productivity
  • Reversing switch is conveniently located
  • Durable, reversible belt clip convenient for temporary tool hanging
  • Water-resistance compatible with XPT
  • Battery protection circuit protects against overloading, over-discharging and over-heating

Standard equipment : Belt clip, Double Ended Screwdriver bit, Hook


Parts List
(0.90 MB)


Leaflet
(10.28 MB)

Domestic Sales Model

DHP489Z
Tool only

DHP489RTJ
Battary 18V 5Ah x2 + Charger DC18RC + Makpac Type 2


Technical specifications

Capacity : Masonry 16 mm
Capacity : Steel 13 mm
Capacity : Wood 38 mm
Chuck Capacity 1.5 - 13 mm
Impacts Per Minute 0 - 27,000 / 0 - 8,250 minˉ¹
Max Fastening Torque : High/Low 73/ 40 N·m
Max Lock Torque 80 N·m
Max peak torque 110 N･m
Dimensions (L x W x H) 175 x 81 x 213 mm
Net weight 1.8 - 2.5 kg
