DHP484
Cordless Hammer Driver Drill

DHP484 Parts List (0.88 MB)

DHP484 Leaflet (1.64 MB)

DHP484
Cordless Hammer Driver Drill

18V Cordless Hammer Driver Drill 13 mm (1/2") 65 N·m

  
Variable Speed
Brake
Reversing
Mechanical 2-Speed
Keyless Chuck
Torque Setting 21
Built-in-Job Light

Features

  • Delivers up to 55% higher hammer drilling speed than previous model
  • Aluminum gear housing creates the impression of rigidity of the machine
  • Compact and ergonomic design at only 182 mm (7-1/8") long
  • Variable 2-speed (0-500 & 0-2,000 RPM) for a wide range of drilling, fastening and hammer drilling applications
  • 0-30,000 IPM for fast hammer drilling in masonry materials
  • BL motor delivers 65 N·m (580 in.lbs) of max torque
  • BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
  • Lightweight for reduced operator fatigue

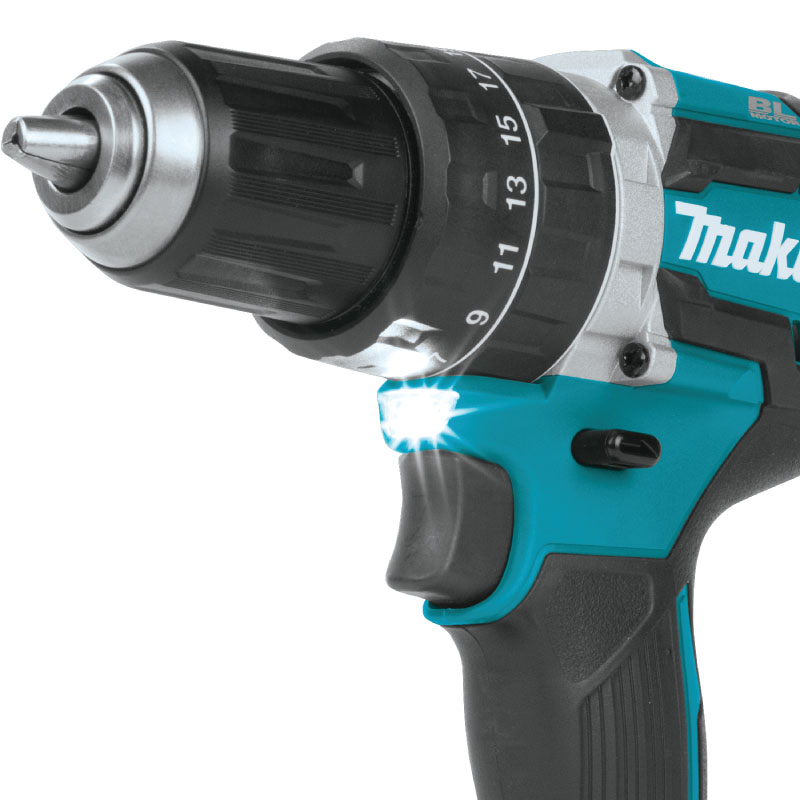

  • Built-in dual LED lights with pre-glow and afterglow functions illuminate the work area
  • Best possible ergonomic handle with soft grip for driver-drill applicatios provides increased comfort on the job
  • All metal gears for increased durability
  • Water-resistance compatible with XPT

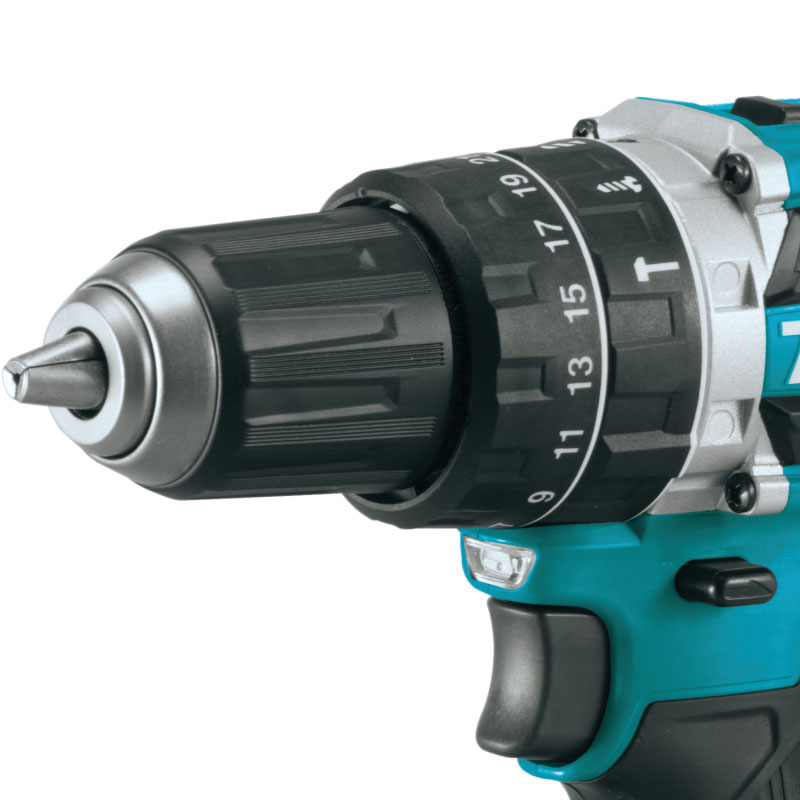

  • Convenient 13 mm (1/2") keyless chuck for quick bit changes
  • 21 Clutch settings and drill mode for added fastening control

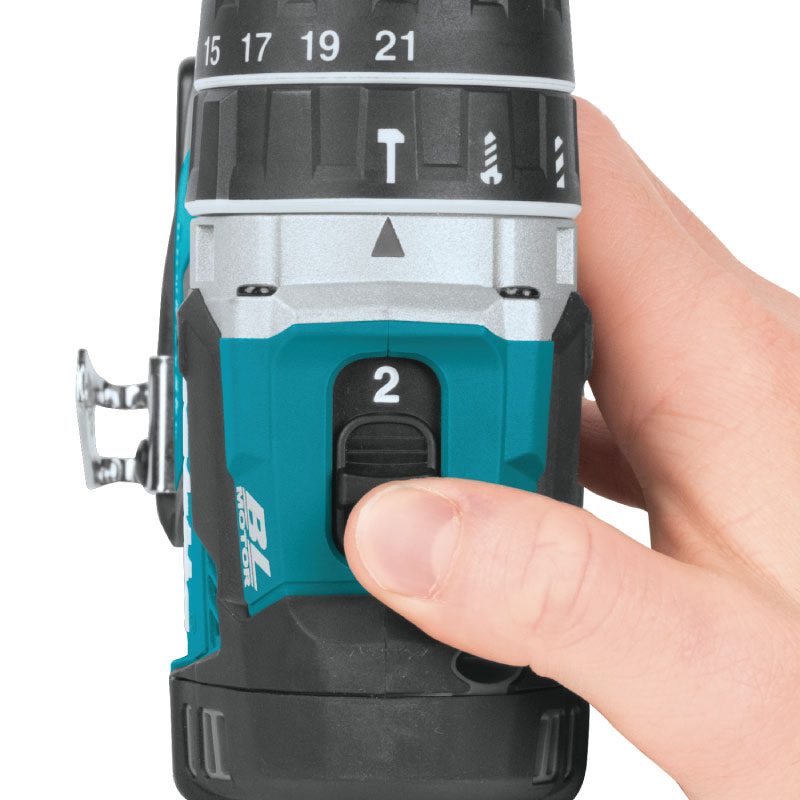

  • Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
  • Battery protection circuit protects against overloading, over-discharging and over-heating
  • Electric brake for maximum productivity and increased operator safety.
    Reversing switch is conveniently located.
    Durable, reversible belt clip convenient for temporary tool hanging


Parts List
(0.88 MB)


Leaflet
(1.64 MB)

Domestic Sales Model

DHP484Z
Tool only

DHP484RFE
Battary 18V 3Ah x2 + Charger DC18RC   


Technical specifications

Capacity : Masonry 13 mm
Capacity : Steel 13 mm
Capacity : Wood 38 mm
Chuck Capacity 1.5 - 13 mm
Impacts Per Minute 0 -30,000 / 0 - 7,500 minˉ¹
No Load Speed : High/Low 0 - 2,000 / 0 - 500 minˉ¹
Max Fastening Torque : High/Low 54 / 30 N·m
Max Lock Torque 60 N·m
Dimensions (L x W x H) 182 x 79 x 261 mm
Net weight 1.6 - 1.9 kg
