(EN / TH)

DHP486
Cordless Hammer Driver Drill



DHP486 Parts List (0.95 MB)

DHP486 Leaflet (0.43 MB)

DHP486
Cordless Hammer Driver Drill

18V Cordless Hammer Driver Drill 13 mm (1/2") 141 N·m

  
Variable Speed
Brake
Reversing
Mechanical 2-Speed
Keyless Chuck
Torque Setting 21
Built-in-Job Light
Carrying Case

Features

  • Increased performance in continuous heavy-duty applications
  • Increased max clutch torque enables to adjust clutch torque even when tightening
    fasteners into hard material
  • Compact and ergonomic design at only 178 mm long

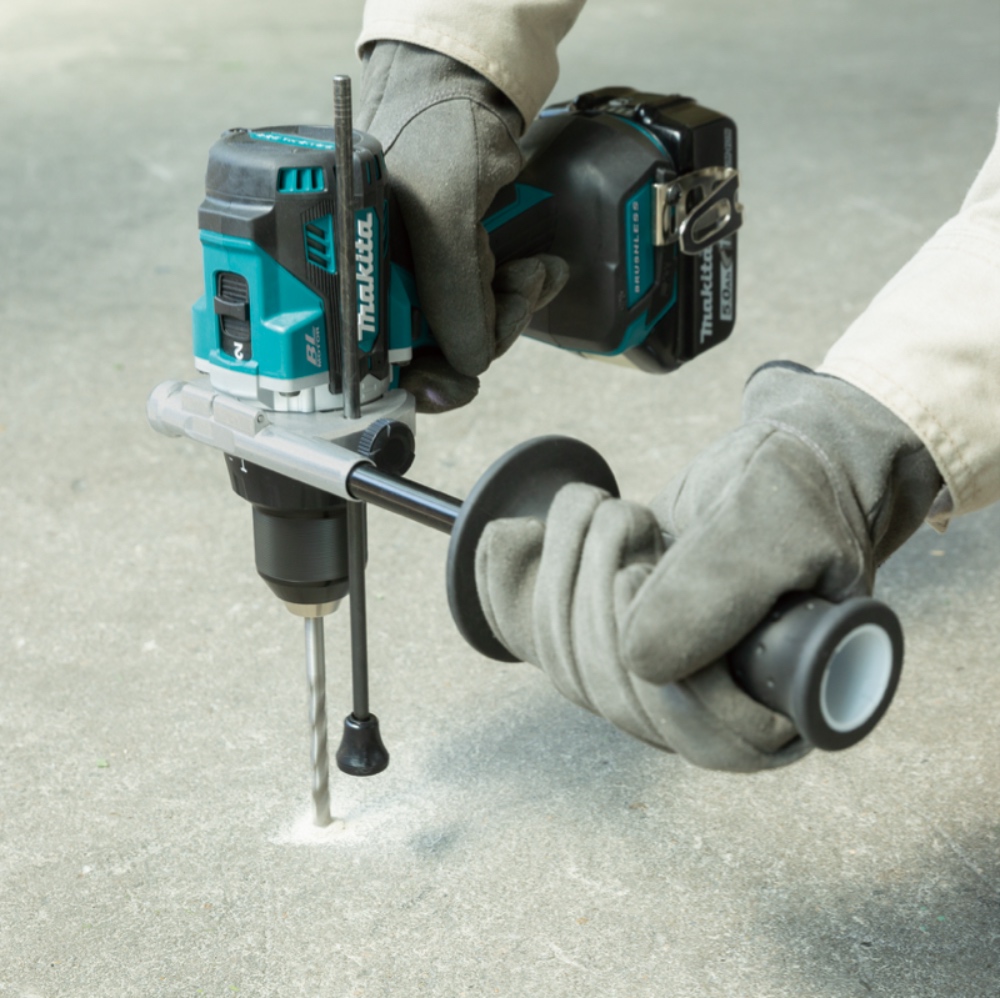

  • 0-31,500 IPM for fast hammer drilling in masonry materials
  • BL motor delivers 141 N·m of max torque
  • BL motor is electronically controlled to optimize battery energy use for longer run time per charge
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life

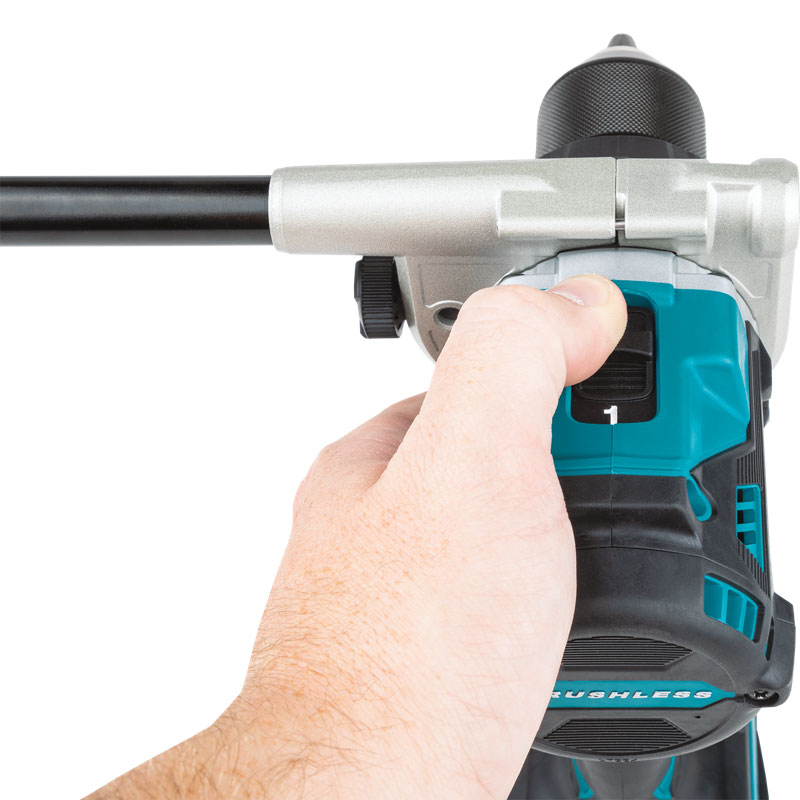

  • All metal variable 2-speed transmission (0-550 & 0-2,100 RPM) for a wide range of drilling, fastening and hammer drilling applications
  • All metal gears and gear housing for maximum job site durability
  • All metal 13 mm self ratcheting chuck for improved bit gripping strength and durability
  • Lightweight for reduced operator fatigue
  • 21 clutch settings and drill mode for added fastening control
  • 3-stage LED gauge indicates battery charge level
  • Water-resistance compatible with XPT
  • Twin LED lights with afterglow feature illuminate the work area
  • Electric brake for maximum productivity
  • Reversing switch is conveniently located

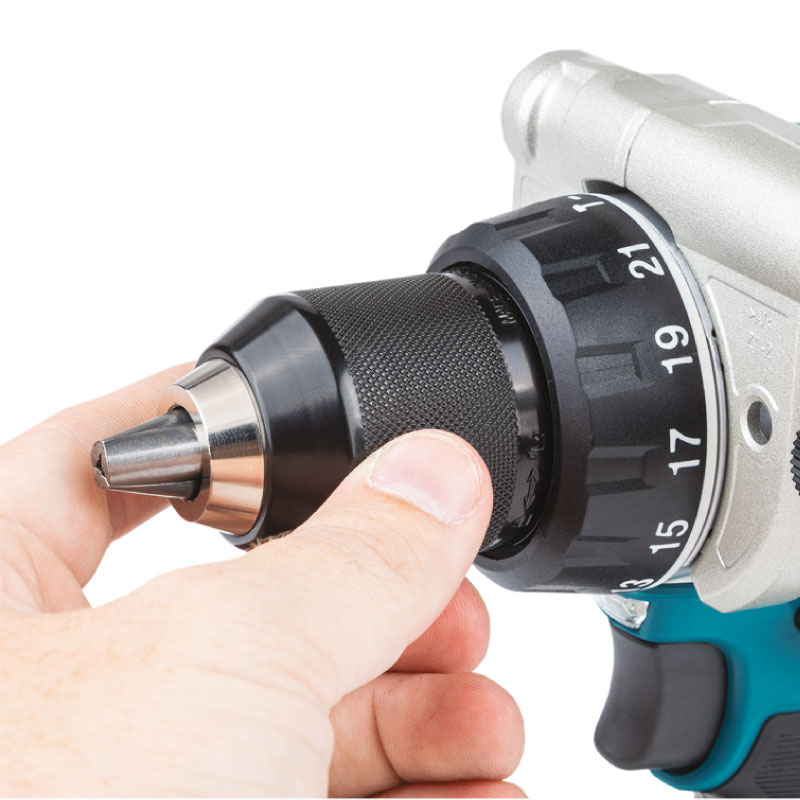

  • Keyless chuck for quick and easy bit installation and removal
  • Depth gauge for increased drilling consistency.
    Durable, reversible belt clip convenient for temporary tool hanging.
    Battery protection circuit protects against overloading, over-discharging and over-heating


Parts List
(0.95 MB)


Leaflet
(0.43 MB)

Domestic Sales Model

DHP486Z
Tool only   

DHP486RTJ
Battary 18V 5Ah x2 + Charger DC18RC + Makpac Type 2


Technical specifications

Capacity : Steel 13 mm
Capacity : Wood 50 mm
Chuck Capacity 1.5 - 13 mm
Capacity : Masonry 16 mm
Impacts Per Minute 0 - 31,500 / 0 - 8,250 minˉ¹
No Load Speed : High/Low 0 - 2,100/ 0 - 550 minˉ¹
Max Fastening Torque : High/Low 130 / 65 N·m
Max Lock Torque 125 N·m
Dimensions (L x W x H) 181 x 86 x 275 mm
Net weight 2.7 - 3.0 kg
