(EN / TH)

DLM540
Cordless Lawn Mower

DLM540 Parts List (3.92 MB)

DLM540 Leaflet (15.55 MB)

DLM540
Cordless Lawn Mower

36V Cordless Lawn Mower 53 cm (21") Self-Propelled

  
Brake
Anti-restart function
Electronic 2-Speed
Constant Speed

Features

  • Overview:

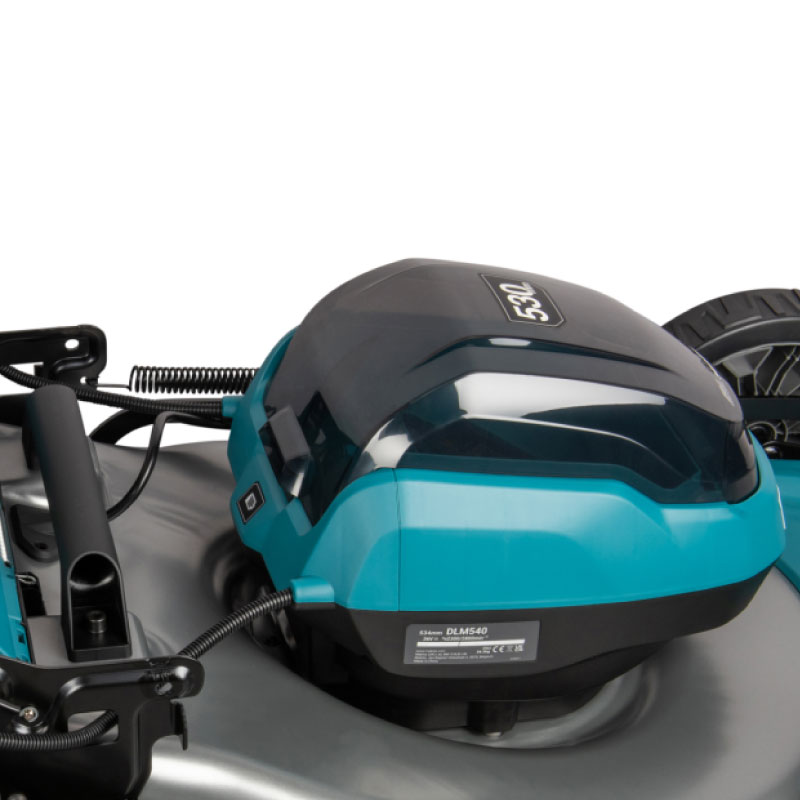

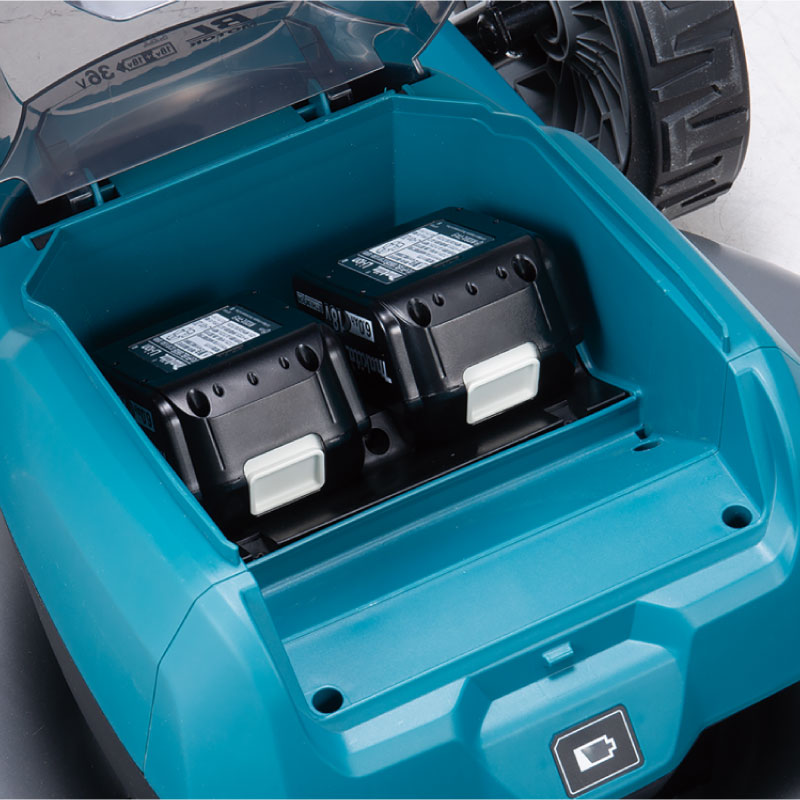

    The DLM540 is a 530 mm (21”) cordless self-propelled lawn mower with a steel deck, powered by two 18V LXT Li-Ion batteries connected in series. With its robust steel deck, the mower is highly durable, while its brushless motor and improved motor control deliver consistent cutting performance, making the blade less likely to stall even when mowing dense grass. The mower can mow up to 1,900 m² at a self-propelled speed of 5.0 km/h, and up to 2,550 m² when pushed manually, using two high-capacity 18V LXT batteries (BL18120), making it suitable for medium to large gardens.
  • The blade is slightly tilted toward the front, minimizing double-cutting and reducing the load for more comfortable operation.
  • The stepless self-propelled speed range of 1.5 to 5.0 km/h provides easy maneuvering in narrow spaces and efficient mowing on flat ground.
  • The quiet mode (Noise reduction mode) allows for mowing with low noise, making the mower suitable for use in noise-sensitive areas such as residential areas.

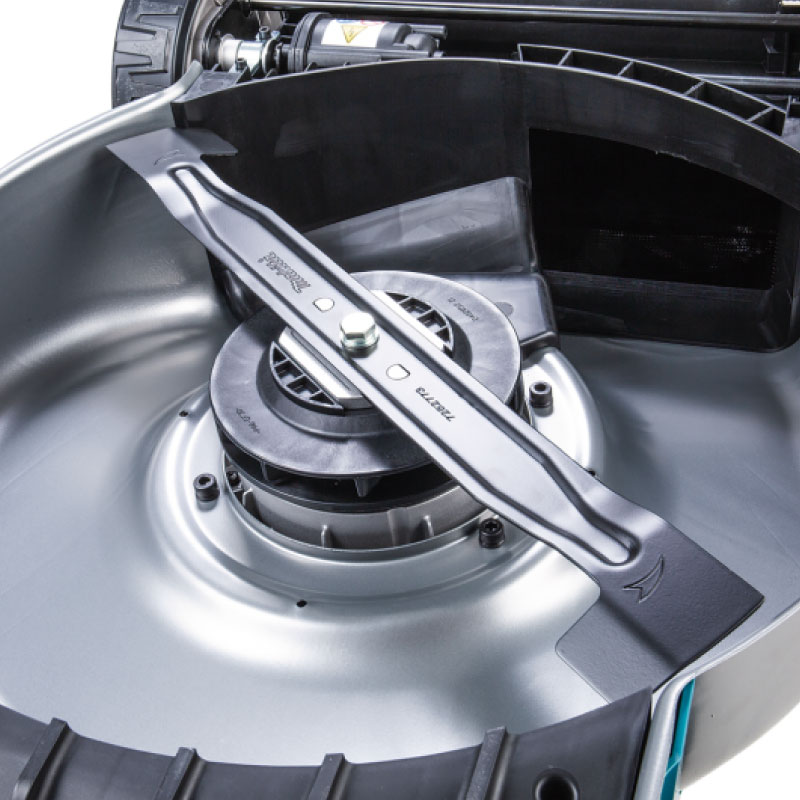

  • The supplied two-tooth blade is compatible with both cutting and mulching operations.
  • Approx. 20% lighter than our previous models, the machine reduces pushing effort during mowing and makes turning easier.

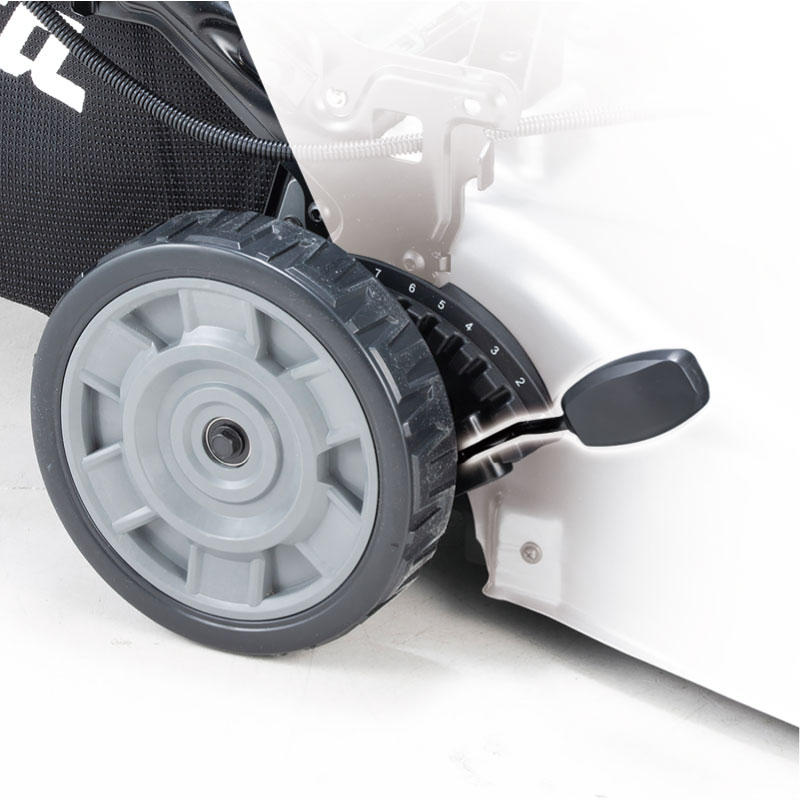

  • The cutting height can be adjusted in 10 stages from 20 mm (13/16") to 100 mm (3-15/16") with one easy movement.
  • The inside of the cutting deck is washable with water for easy maintenance.
    * High-pressure water is not allowable.
    * The self-propelled motor unit cannot be washed with water.

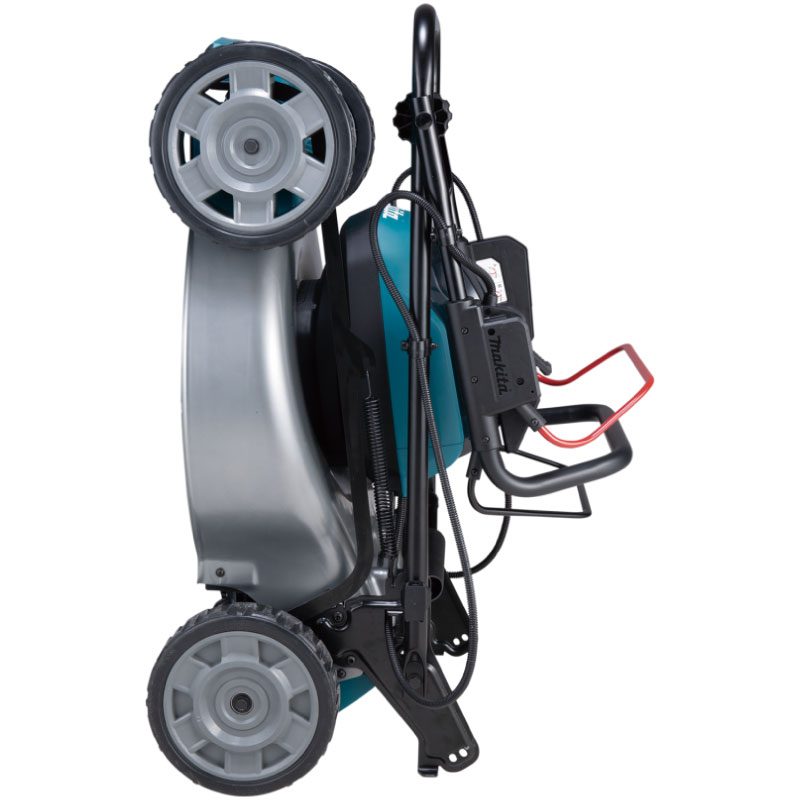

  • The machine can be stored vertically for compact storage by folding the handle without tools.
  • A single red LED is located on the rear of the battery cover. It blinks when the battery capacity is low and lights up when the battery capacity runs out.
  • The handle height can be adjusted in two stages without tools.
  • Ergonomic soft grip for comfortable operation
  • Electric brake that stops the blade for user protection
  • Water-resistance with XPT (eXtreme Protection Technology)
  • Grass catcher with grass level indicator
  • 4 in 1 (Lawn mowing, Grass collecting, Mulching, Rear/Rear-side discharge)

Standard equipment : Mulching plug, Discharge chute, Socket wrench, Rod


Parts List
(3.92 MB)


Leaflet
(15.55 MB)

Available options

DLM540Z
Tool only


Technical specifications

No Load Speed 2,300 - 2,800 minˉ¹
Cutting Width 530 mm
Continuous Use BL18120 x2 : 43 - 57 min.
Dimensions (L x W x H) 1,740 - 1,810 x 595 x 970 - 1,080 mm
Net weight 34.5 kg
