HG001G
Cordless Heat Gun

HG001G Parts List (0.85 MB)

HG001G Leaflet (13.88 MB)

HG001G
Cordless Heat Gun

40Vmax Cordless Heat Gun

  
Anti-restart function
Electronic 4-Speed
Built-in-Job Light
Carrying Case

Features

  • Overview:

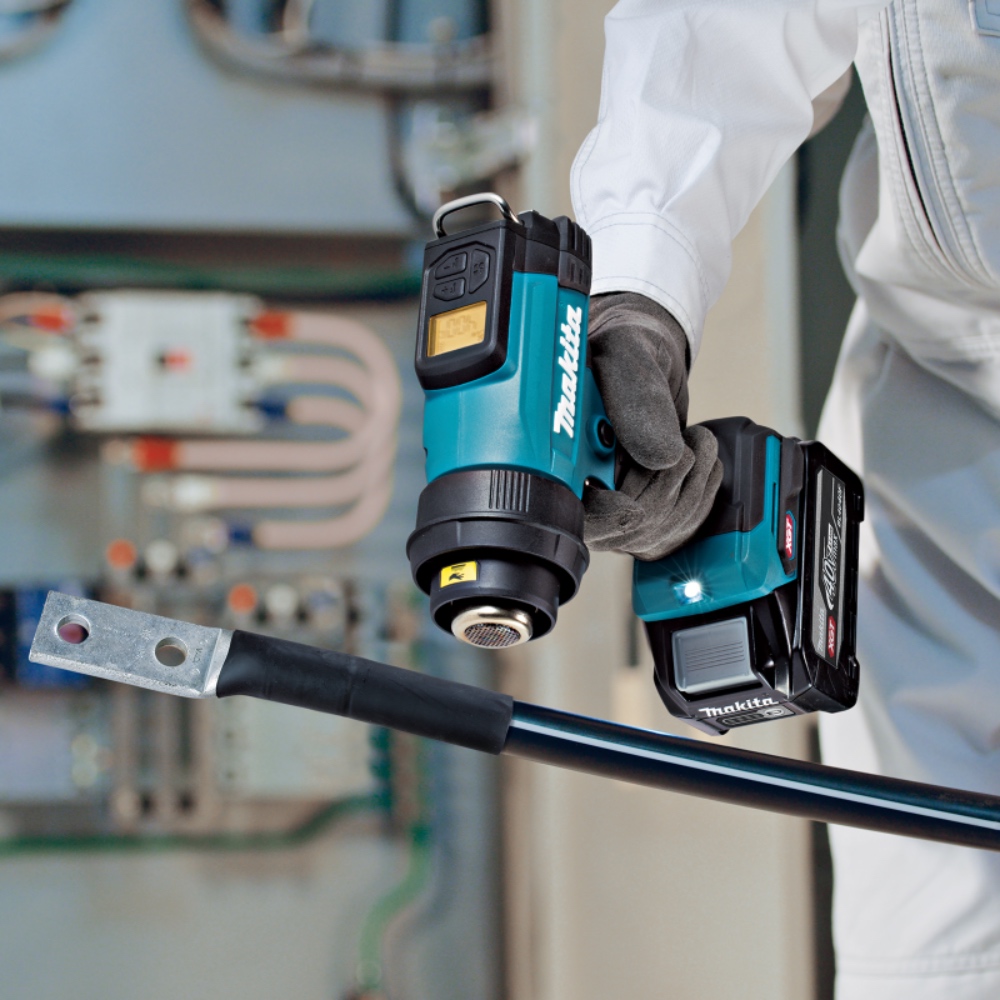

    By adopting an XGT battery and increasing the voltage compared with the existing models, the tool achieves a maximum temperature equivalent to that of AC models. It offers excellent efficiency in demanding tasks requiring high temperature and air volume, such as heat welding waterproof sheets and shrinking heat-shrink tubing for thick cables with diameters of 25 mm or more, including power lines.
  • A maximum temperature of 600°C and air volume of 200 L/min for fast PVC welding and efficient shrinking of thick cables

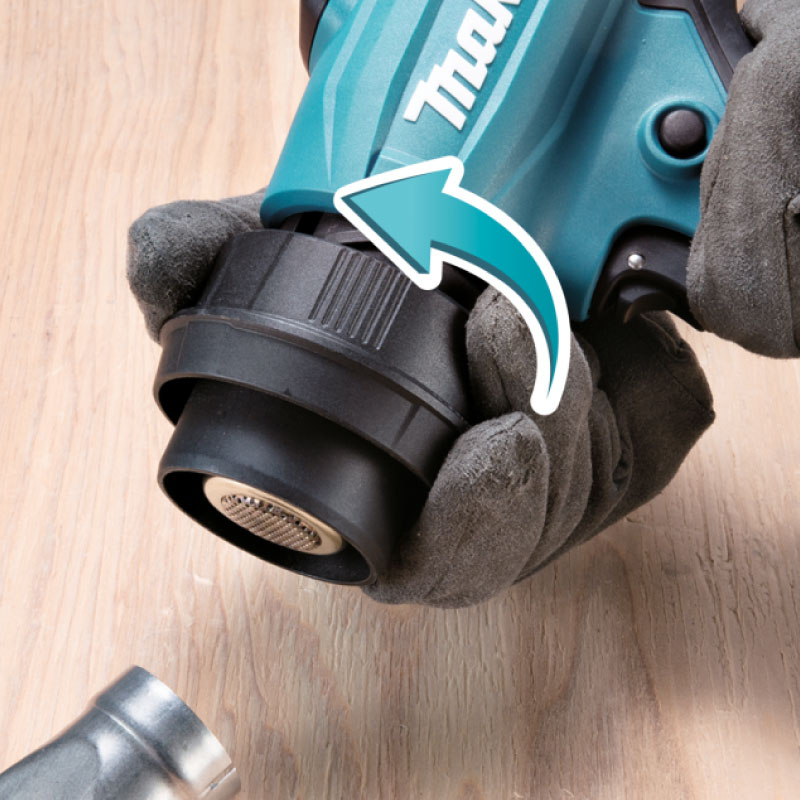

  • The quick-release mechanism allows tool-free nozzle removal without touching hot metal parts.
  • The tool maintains constant temperature and airflow by adjusting the current when battery voltage drops.

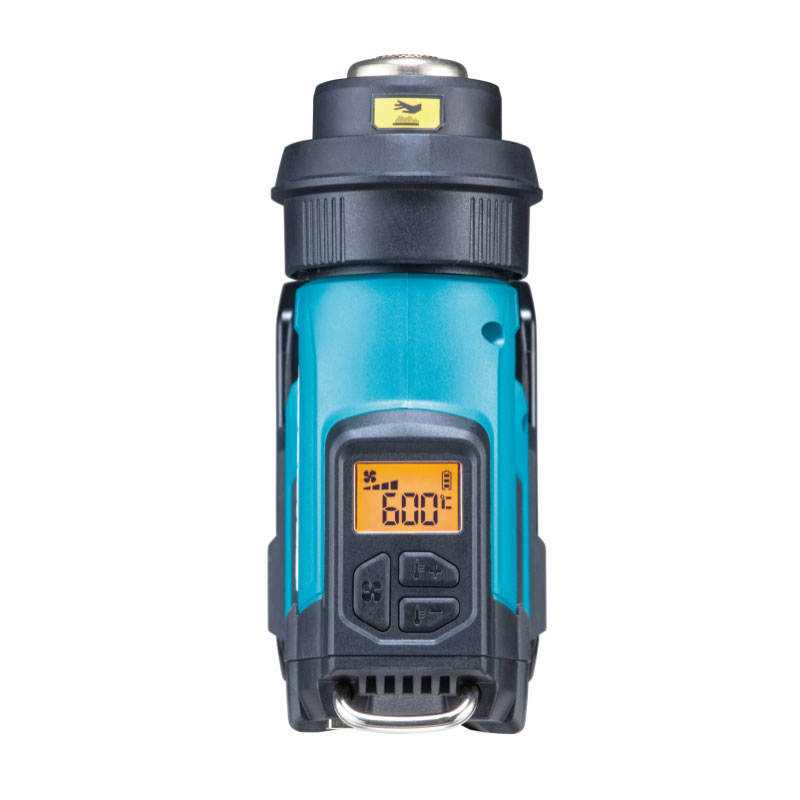

  • Equipped with a backlit LCD, the tool enables precise adjustment of temperature and airflow.

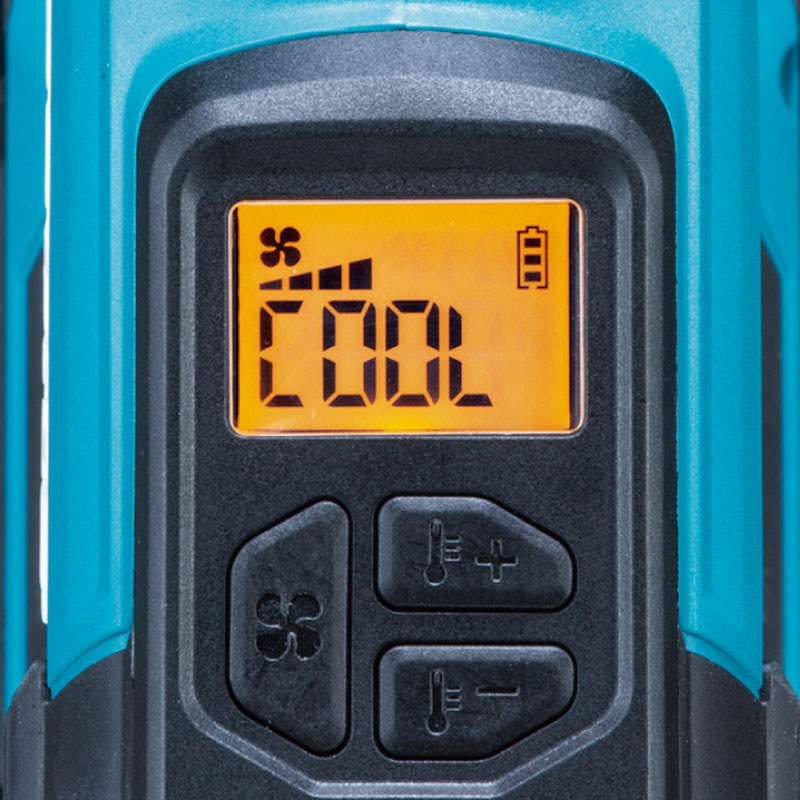

  • The display includes numeric temperature (°C/°F), airflow level icons, battery fuel gauge with low-battery blinking, and error indicators.
  • Memory and maximum temperature control functions enhance usability.
  • Compatible with existing nozzles for our DC and AC models, offering greater versatility.

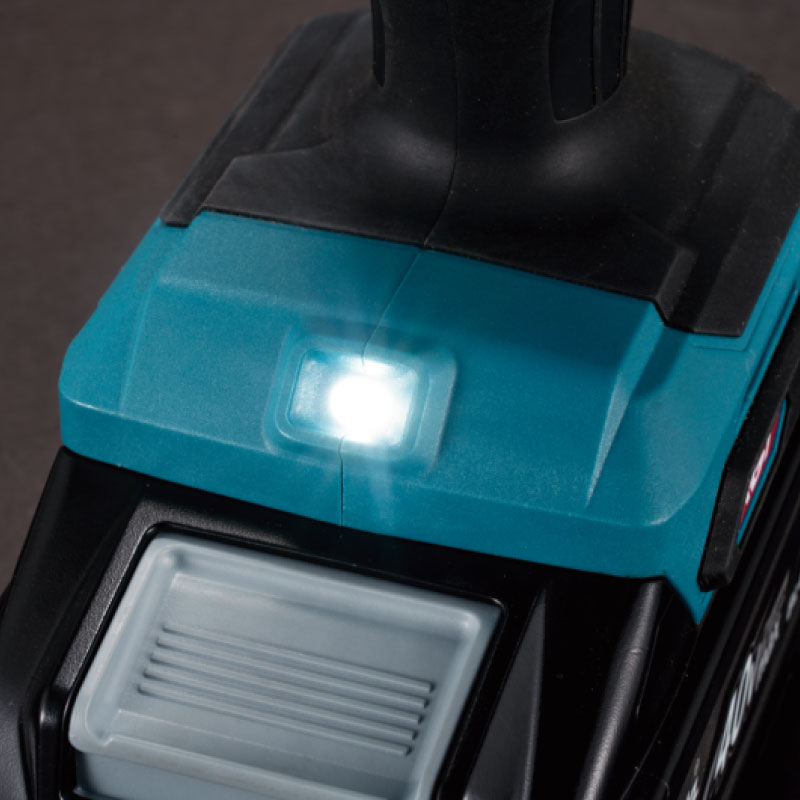

  • A single LED job light with after-glow function effectively illuminates the work area.
  • Equipped with a lock-on button for comfortable continuous operation

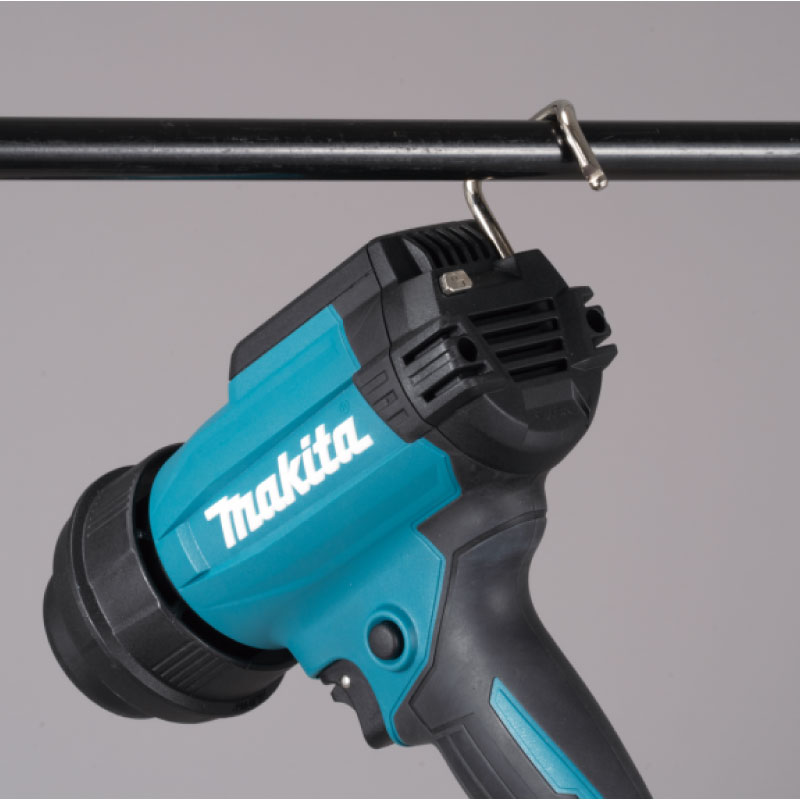

  • Equipped with a hanging hook for easier storage and improved user convenience
  • Rubberized soft grip provides increased comfort on the job
  • Standard nozzles:
    • Glass protection nozzle: Protects windows when stripping frames
    • Wide-slot nozzle: Heats over a wider area
    • Reflector nozzle: For shrinking heat-shrink tubing
    • Reduction nozzle: Provides concentrated heating over a small area
  • Optional nozzles:
    • Overlap welding nozzle: For patching a vinyl sheet with the optional pressure roller
    • Solder sleeves reflector: For shrinking heat-shrink tubing
    • Welding nozzle: Provides concentrated heating over a small area
    • Speed welding nozzle: For welding optional resin rods when used with the welding nozzle


Parts List
(0.85 MB)


Leaflet
(13.88 MB)

Available options

HG001GZ
Tool only


Technical specifications

Air temperature 600 °C
Air volume 120 / 150 / 180 / 200 L/min
Continuous Use BL4040 : 14 min.
Dimensions (L x W x H) 191 x 86 x 272 mm
Net weight 1.5 - 2.7 kg
