DRV150
Cordless Rivet Gun



DRV150
Cordless Rivet Gun

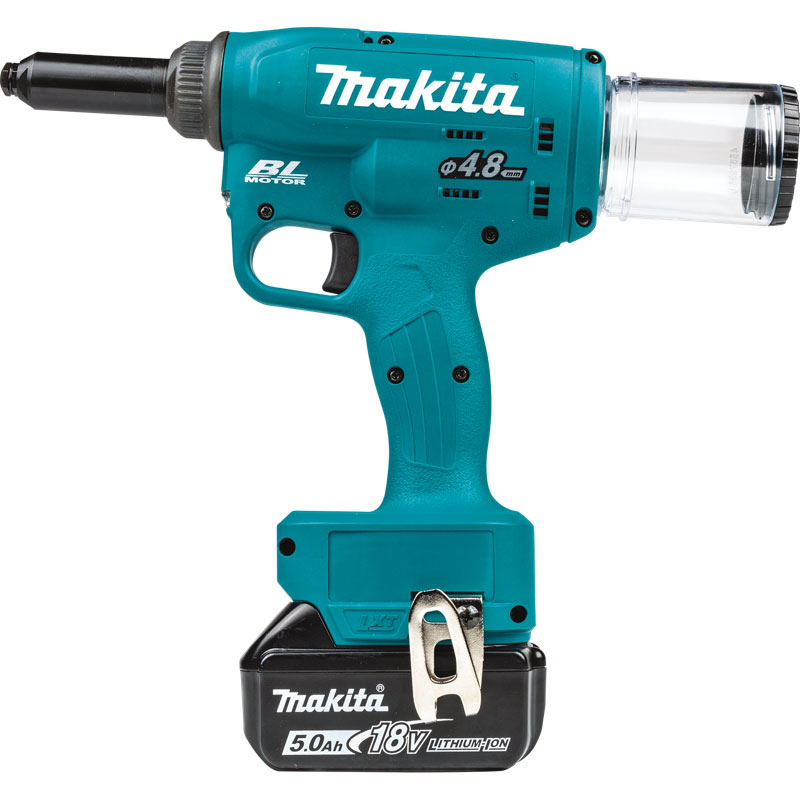

18V Cordless Rivet Gun

  

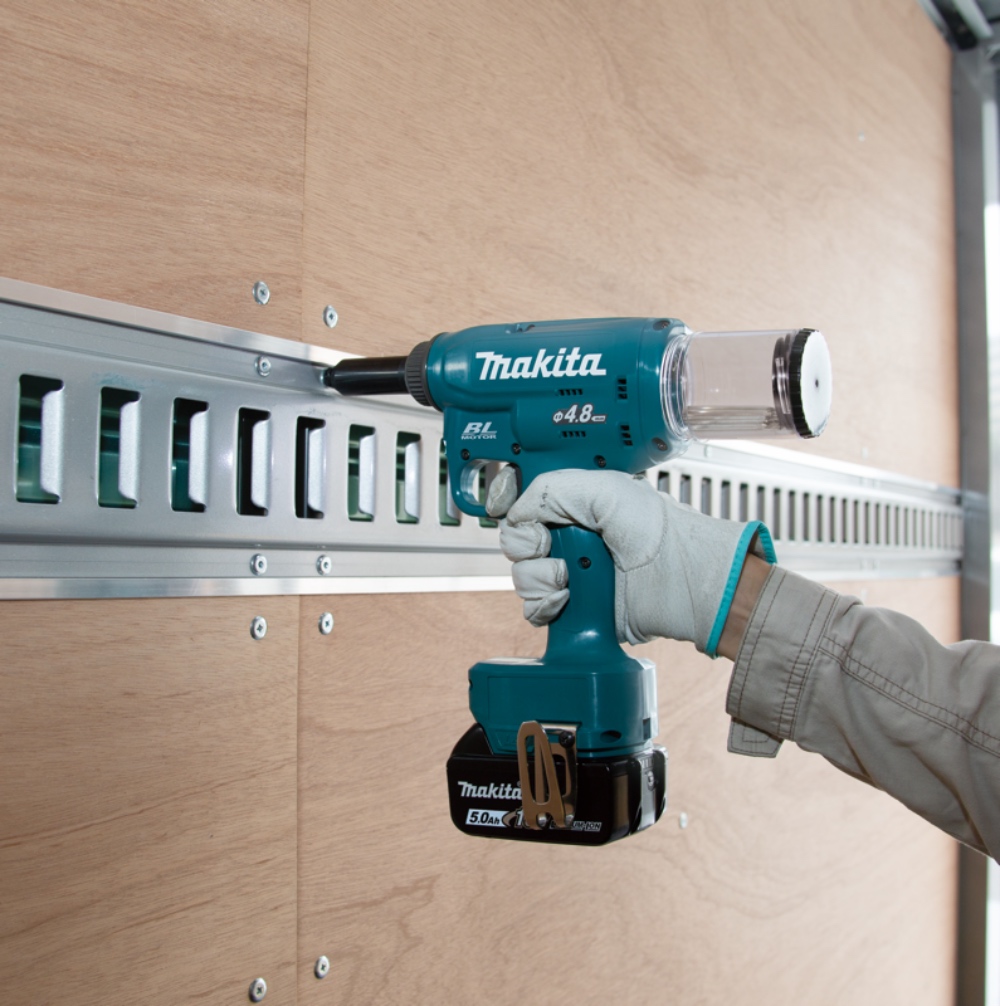

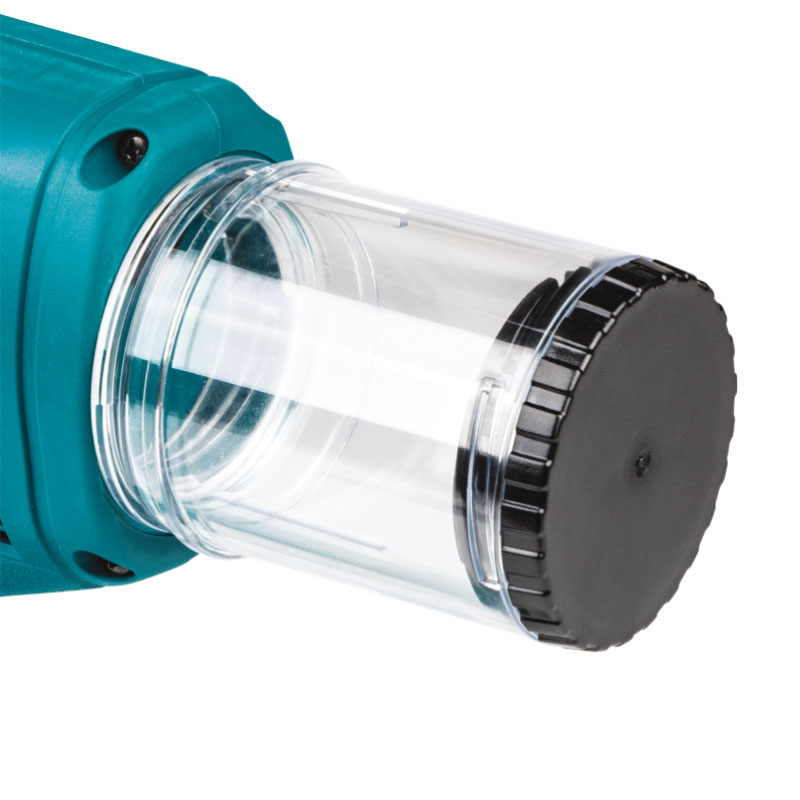

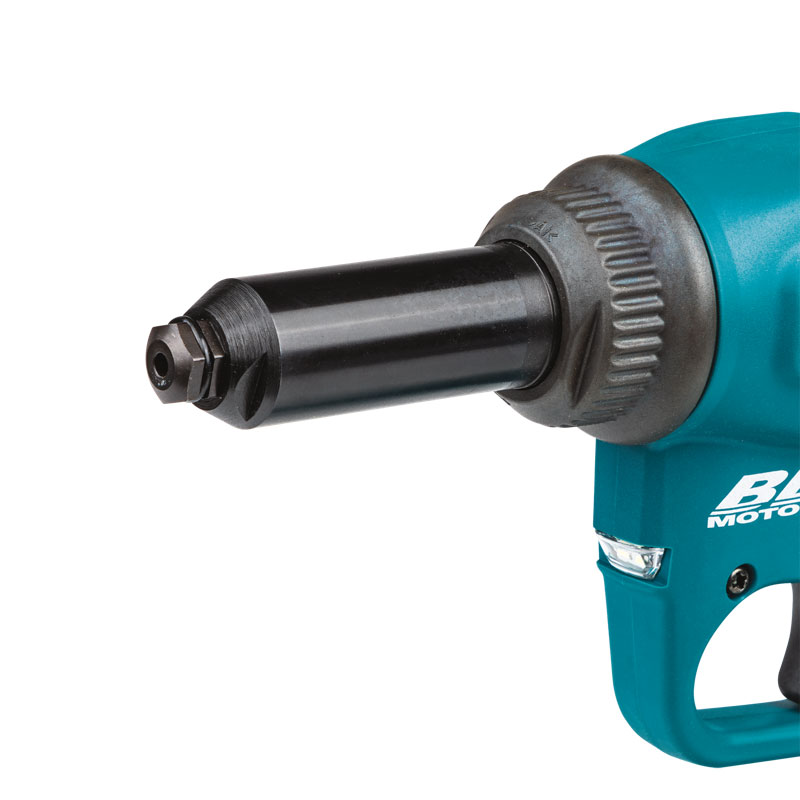

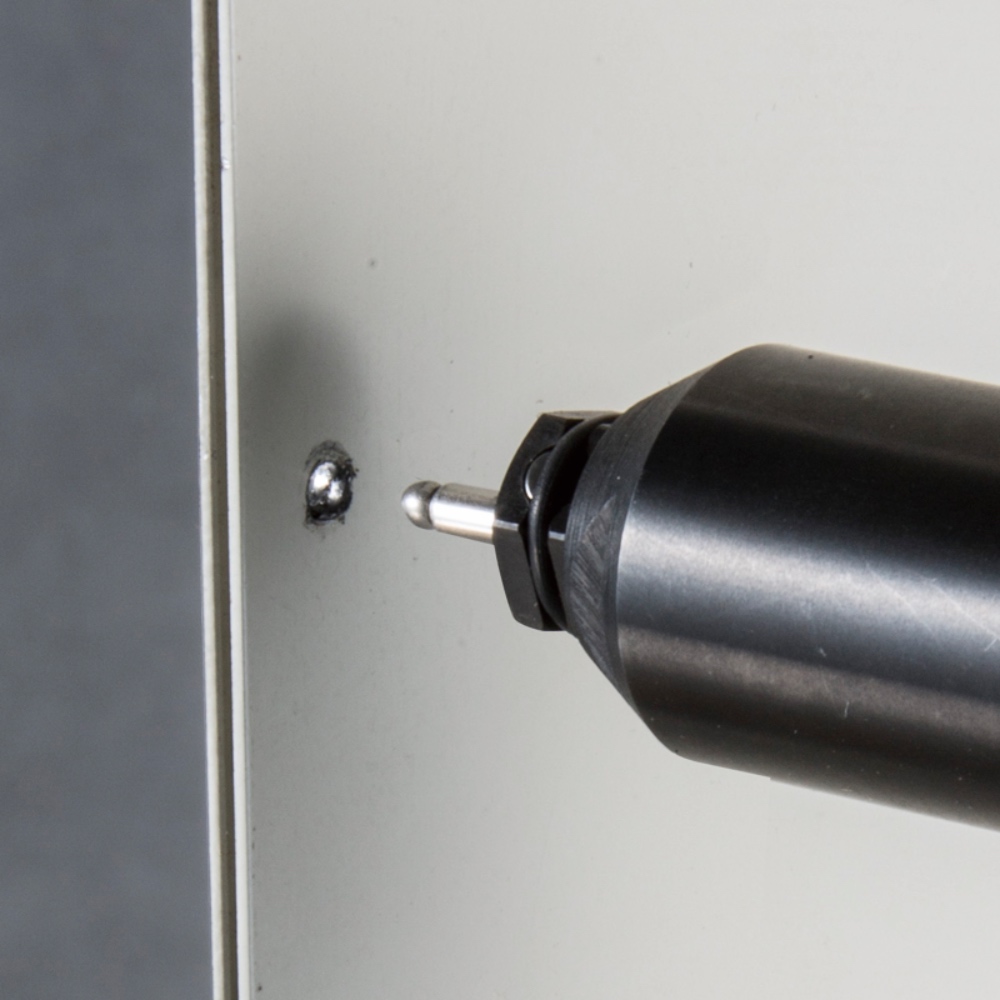

๐ Jaw Case Designed to Enable Tight Space Operation ๐ The short center height allows for tight space operation such as close-to-wall riveting ๐ Compatible with various sizes of blind rivets ๐ A wide range of nose pieces and jaw pushers allow for tightening various sizes of blind rivets ๐ Compatible rivet diameter: ø2.4mm, ø3.2mm, ø4.0mm, ø4.8mm ๐ Higher speed riveting than DRV250 ๐ Rivet holding mechanism; Once a rivet is installed, it is held in place and do not drop out even when the tool is directed downward; No need for holding the rivet by hand even in vertical down application ๐ Transparent mandrel container; The amount of spent mandrels can be checked ๐ BL motor delivers 10 kN of max pulling force ๐ BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life ๐ Twin LED job light with pre-glow and afterglow functions illuminates the work area ๐ Electric brake for maximum productivity ๐ Water-resistance compatible with XPT ๐ Battery protection circuit protects against overloading, over-discharging and over-heating

Standard Equipments: Hook, Grease, Accessory set BS for 4.0, Accessory set S for 3.2, Accessory set S for 2.4, Jaw 4.8 set


Technical specifications

Pulling force 10 kN
Stroke 25 mm
Rivet diameter range 2.4 - 4.8 mm
Center height 26 mm
Work amount w/ BL1860B : 2,800 pcs
Dimensions (L x W x H) 313 x 80 x 270 mm
Net weight 1.9 - 2.2 kg
Brake
Built-in-Job Light
