JS1601
Straight Metal Shear

JS1601
Straight Metal Shear

Straight Metal Shear 1.6 mm (16 Ga) 380W

  

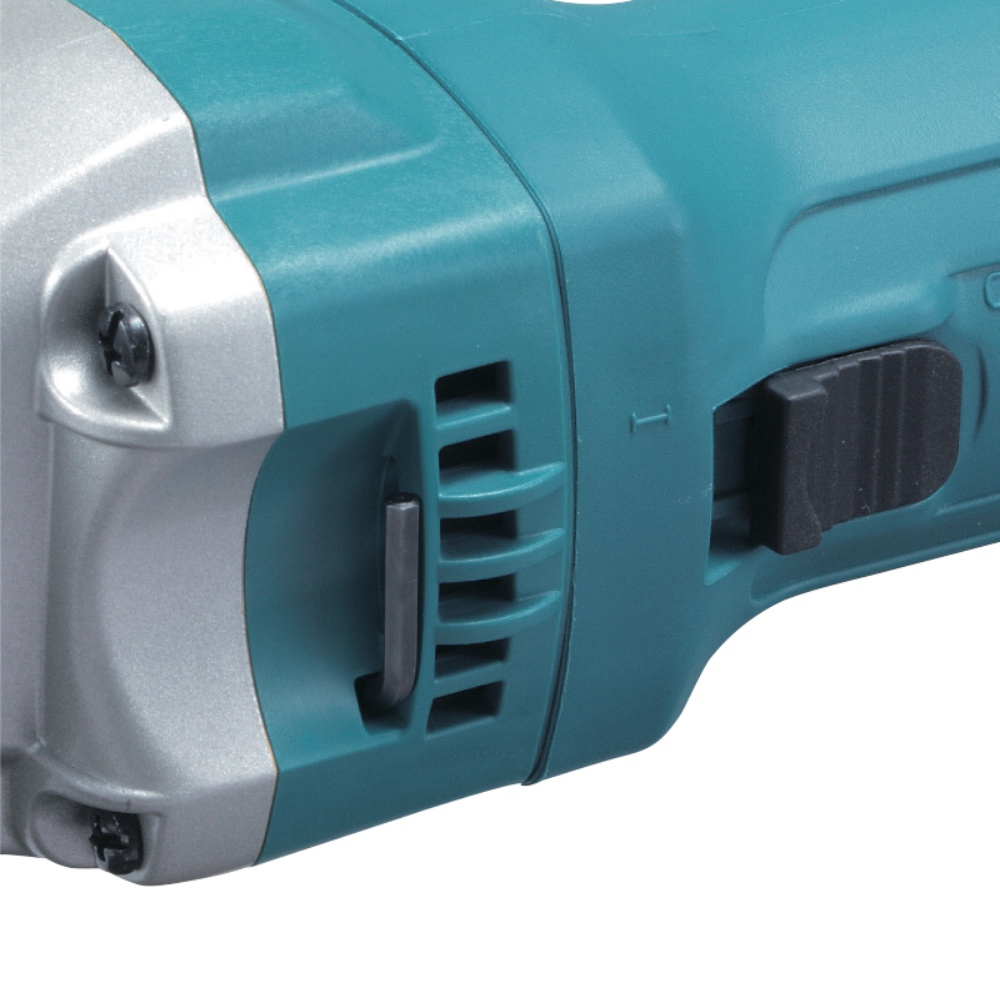

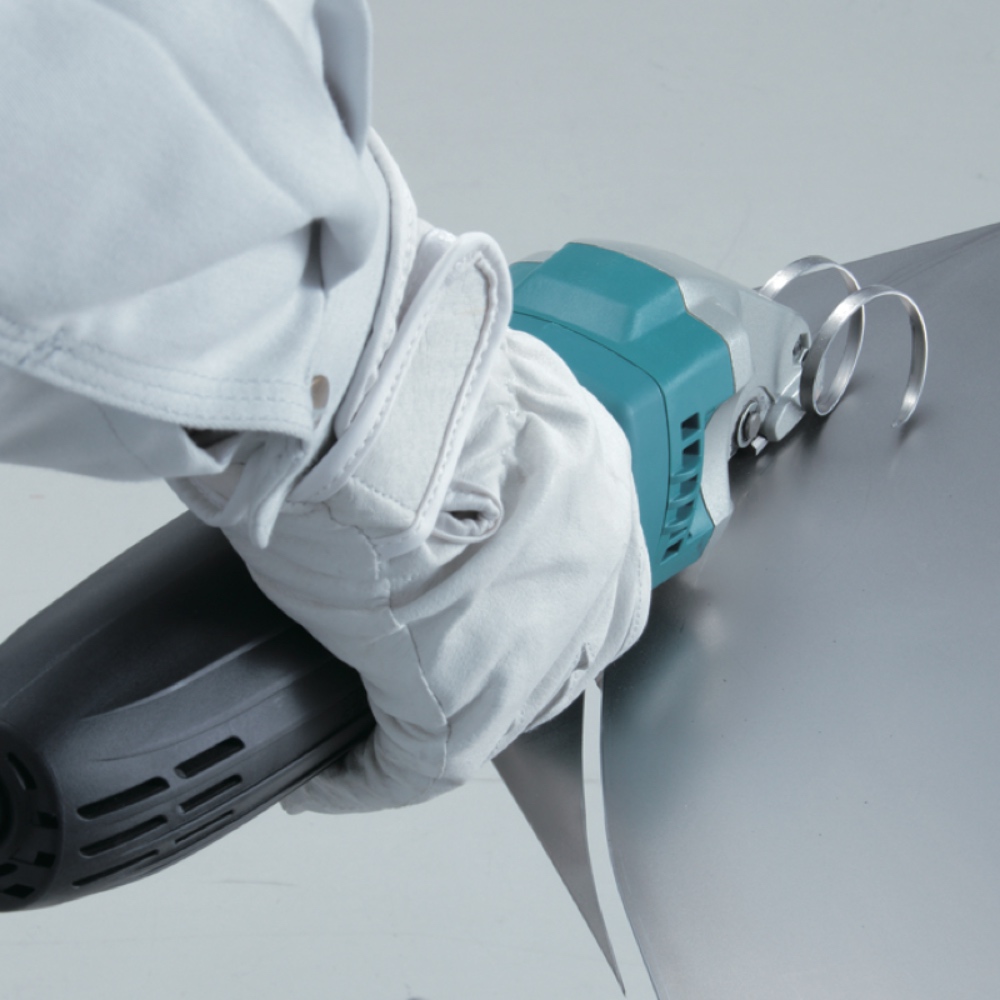

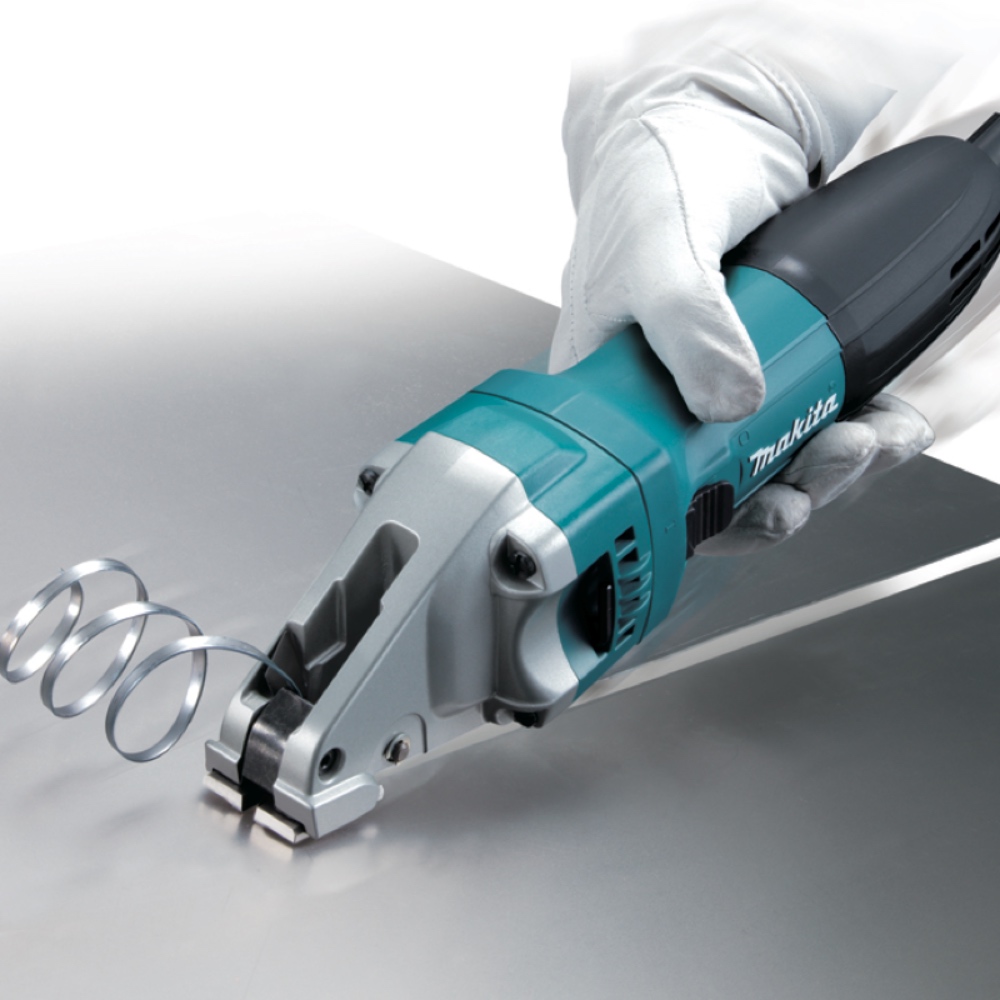

๐ Fast Cutting Action In Steel And Aluminum With Increased Comfort, Maneuverability And Control ๐ Minimum outside cutting radius of 250 mm (9-7/8") ๐ Small circumference motor housing for increased comfort, maneuverability and control ๐ Ribbed motor housing and rear cover for improved gripping during operation ๐ Powerful motor with 380W Continuous Input Rating ๐ Sliding On / Off thumb switch ๐ On-board hex wrench storage ๐ Removes continuous metal curl with no distortion ๐ 360o rotatable shear head ๐ Double insulated

Standard Equipments : Hex wrench, Thickness gauge


Technical specifications

Continuous Rating Input 380 W
Capacity : Steel 1.6 mm
Capacity : Aluminum 2.5 mm
Min.cutting radius Outside edge 250 mm
Strokes Per Minute 4,500 minˉ¹
Dimensions (L x W x H) 320 x 70 x 78 mm
Net weight 1.4 kg
Power Supple Cord 2.5 m
Carbon Brush 459
Double Insulation
