BAC01
Power Converter

BAC01
Power Converter

Power converter powered by Makita portable power pack

  

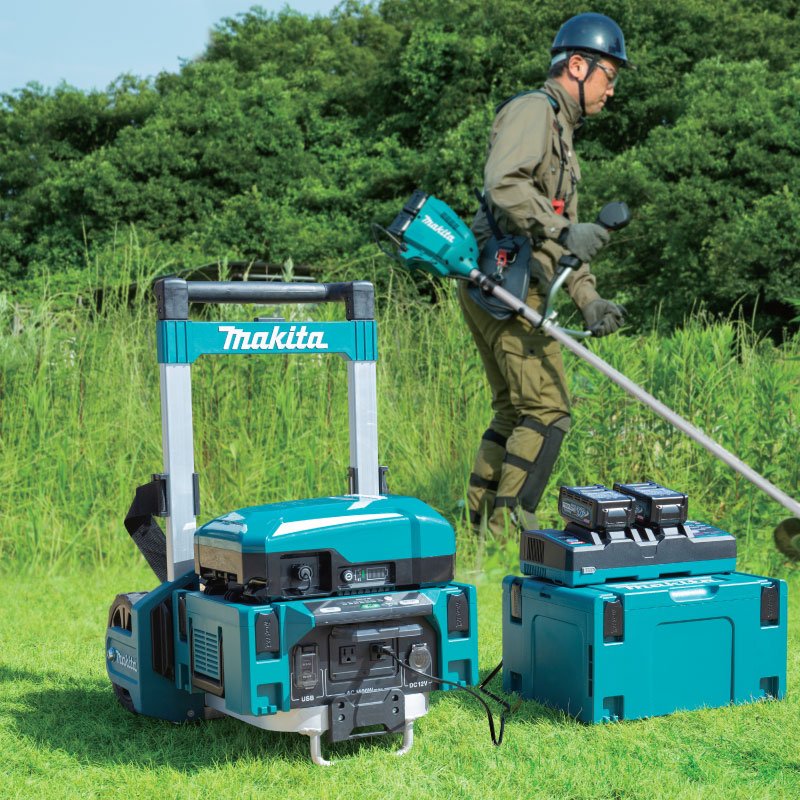

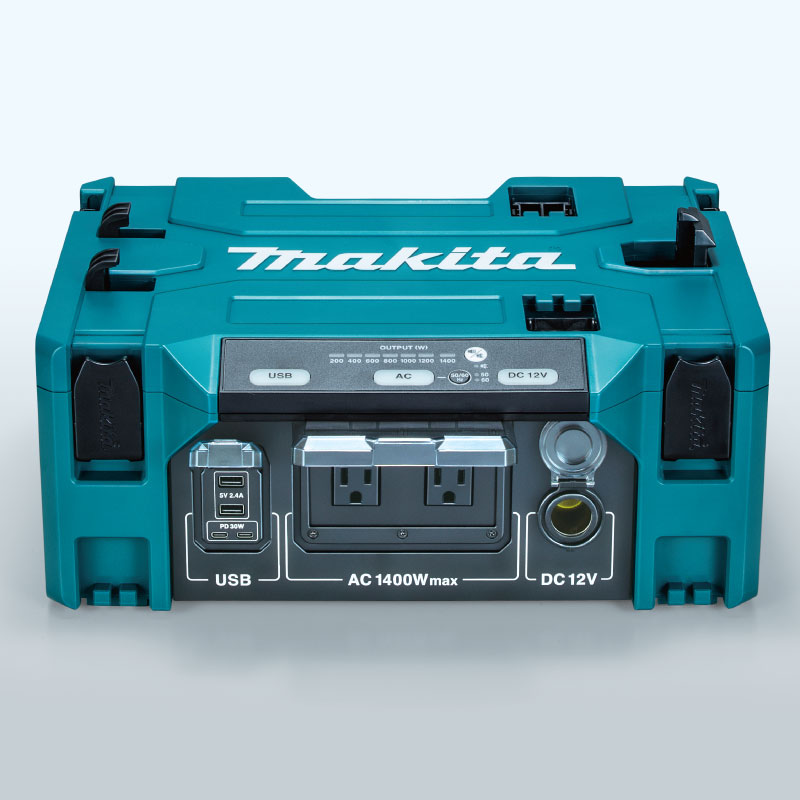

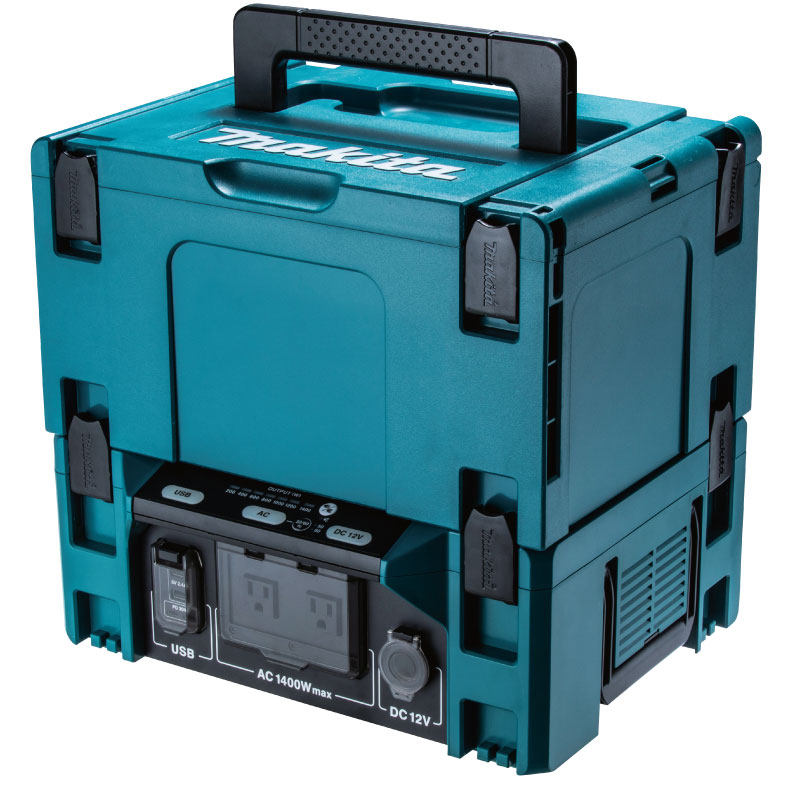

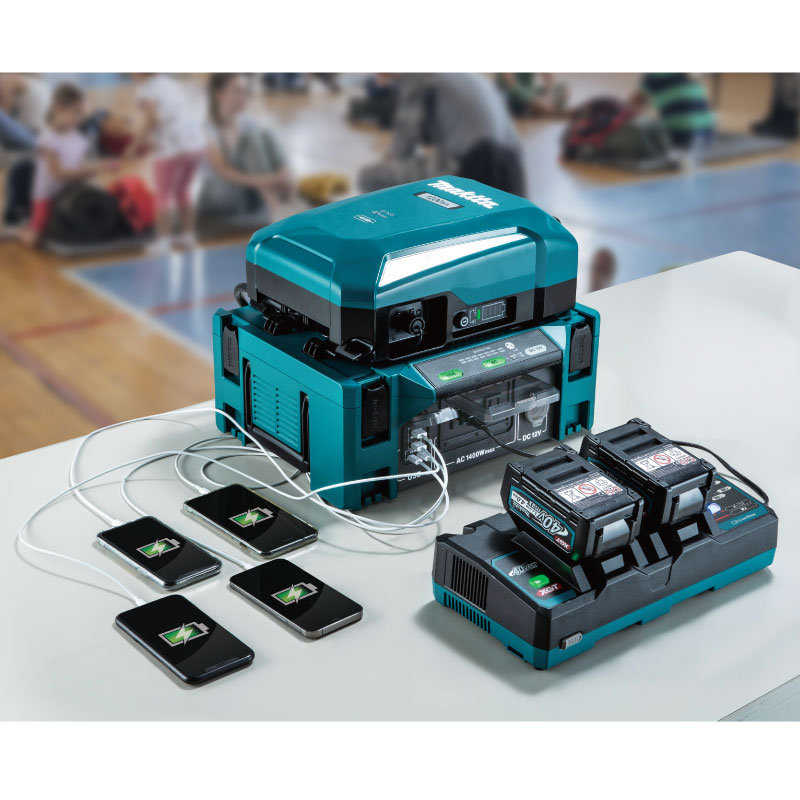

๐ Turns DC power into AC power, is optimal for a wide range of applications ๐ Battery charging or use of corded tools in outdoor job sites where AC outlet is not available ๐ Emergency power source ๐ Outdoor leisure activities ๐ Multiple outputs including: 2 AC outlets, 2 Type-A USB output ports, 2 Type-C USB output ports, 1 (one) DC12V cigar socket ๐ 7-stage output indication by 7 LED lamps ๐ The 7th LED lamp, which indicates 1,400 W, starts blinking when: ∙ AC power output alone reaches 1,450 W(VA) ∙ Total power output reaches 1,500 W(VA) ๐ Warning buzzer This power inverter warns user acoustically when it stops supplying power output due to overload, high temperature, low battery capacity or other errors (This warning function can be disabled) ๐ Can be connected firmly with accessories of MAKPAC system, allowing for easy transportation on MAKPAC trolley or cart ๐ Carrying handle • Located on both sides • Retractable when not in use ๐ Double insulated


Technical specifications

AC output voltage 230 V
Inverter capacity 1,400 W
Continuous rating output PDC1200: 1,400 / PDC01: 750 W
Max out put 2,800 W W
Battery Energy Capacity w/ PDC1200 : 1,206 Wh
Dimensions (L x W x H) 395 x 345 x 163 mm
Net weight 7.3 - 16.2 kg
