PP001G
Cordless Hole Puncher
PP001G
Cordless Hole Puncher

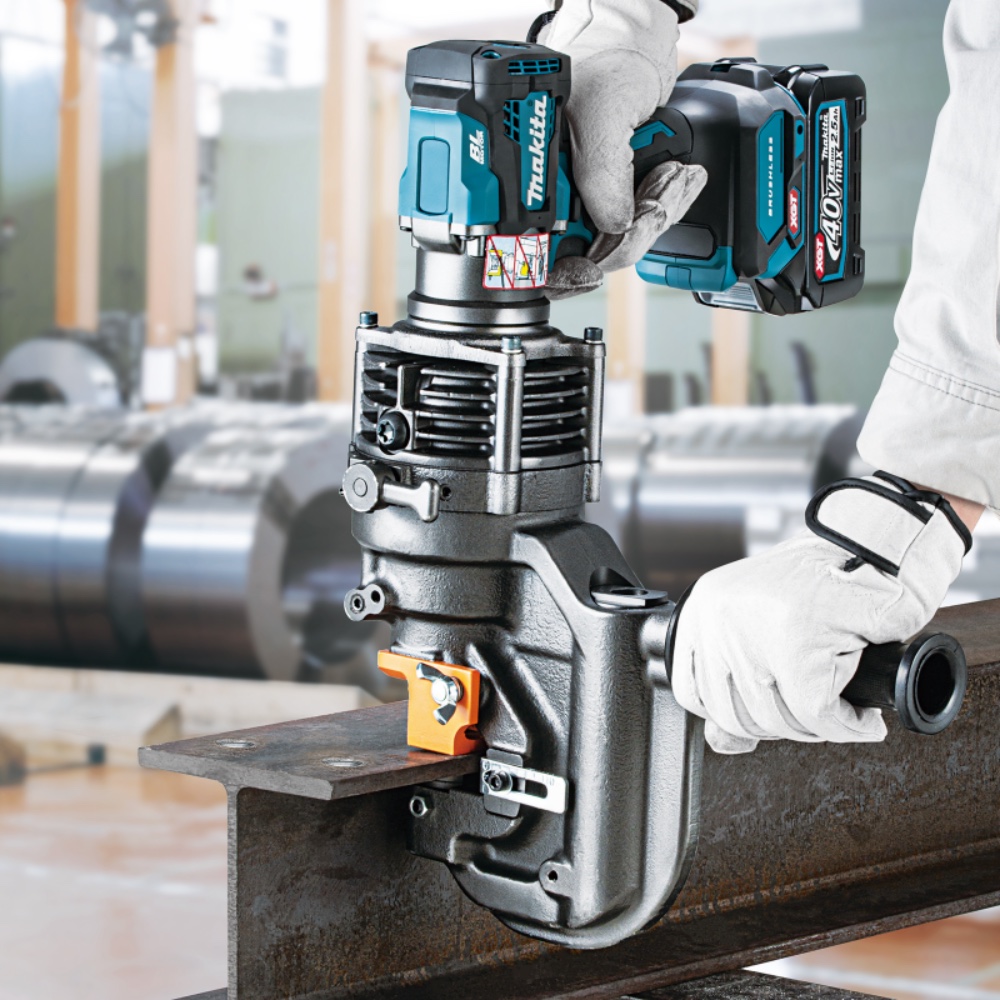

40V max Cordless Hole Puncher
• High-efficiency punching -Equipped with the 40Vmax XGT Li-Ion battery and a high-power BL motor, the operating speed has been improved by approx. 85% compared to the existing 18V LXT model, DPP200 -This double-acting puncher hydraulically operates the punching holes and lifting. It eliminates the snagging with the material during lifting, enabling smooth operation • Compatible with various steel materials This tool supports hole punching up to a maximum plate thickness of 9mm and a hole diameter of ø20mm, and hole punching processing for common steel, stainless steel, channel steel, aluminum and copper • 360° rotatable motor section The motor section can be rotated to flexibly respond to site conditions • Return lever In case of punching trouble, the punching section can be returned to its original position with the return lever • Compact design By redesigning the motor housing, the tool has become 19mm shorter compared to the existing 18V LXT model, DPP200
Standard Equipments : Punch, Die, Bar for fastening nuts, Hex wrench, Wrench
Technical specifications
Capacity : Steel | 20 mm |
---|---|
Capacity Stainless steel | 20 mm |
Dimensions (L x W x H) | 398 x 129 x 315 mm |
Net weight | 11.6 - 12.8 kg |
