SC103D
Cordless Threaded Rod Cutter

SC103D
Cordless Threaded Rod Cutter

12V max Cordless Threaded Rod Cutter

  

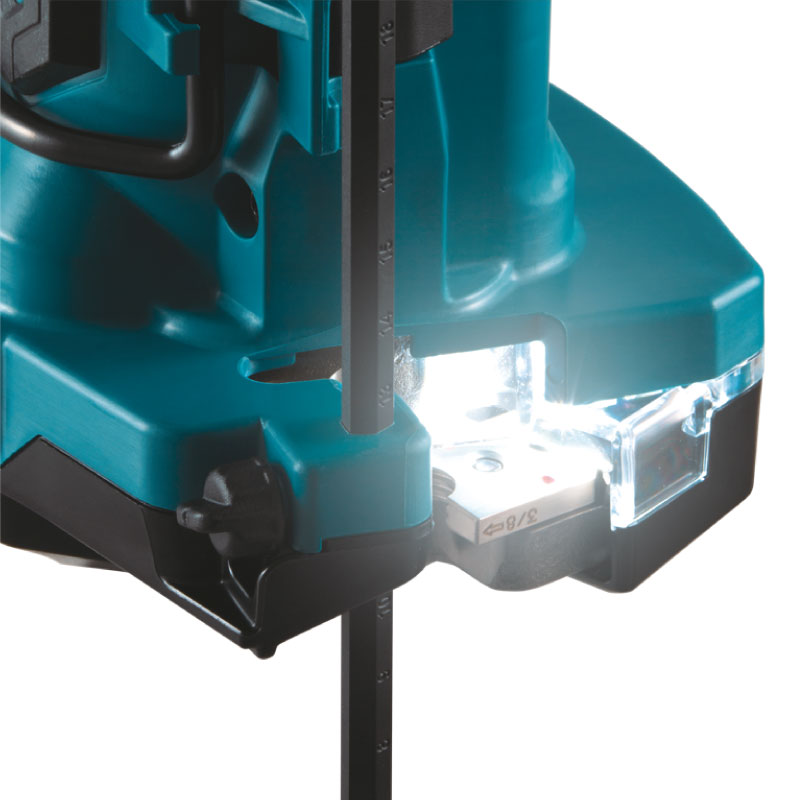

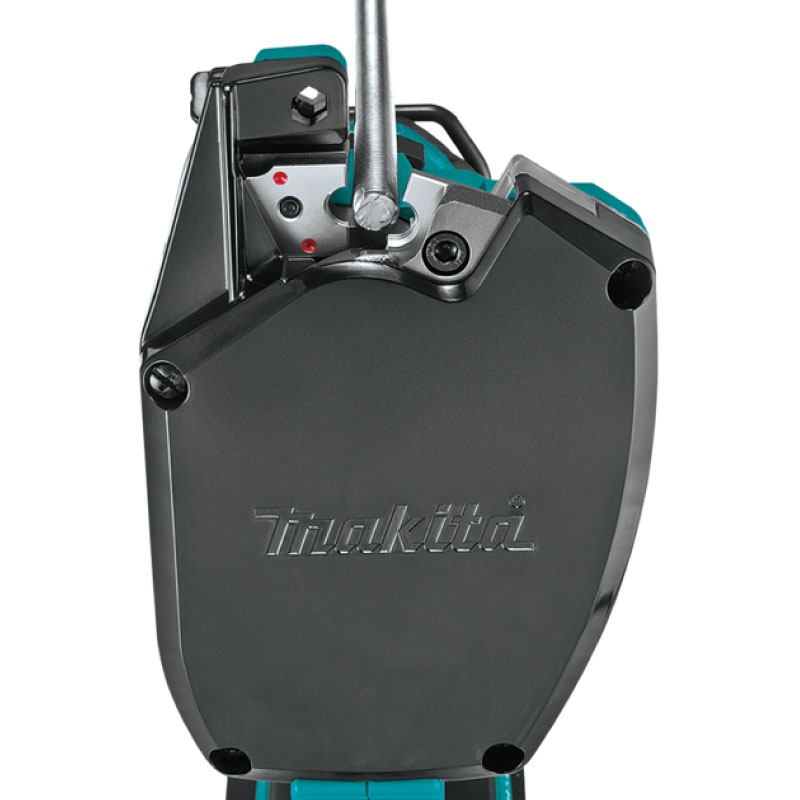

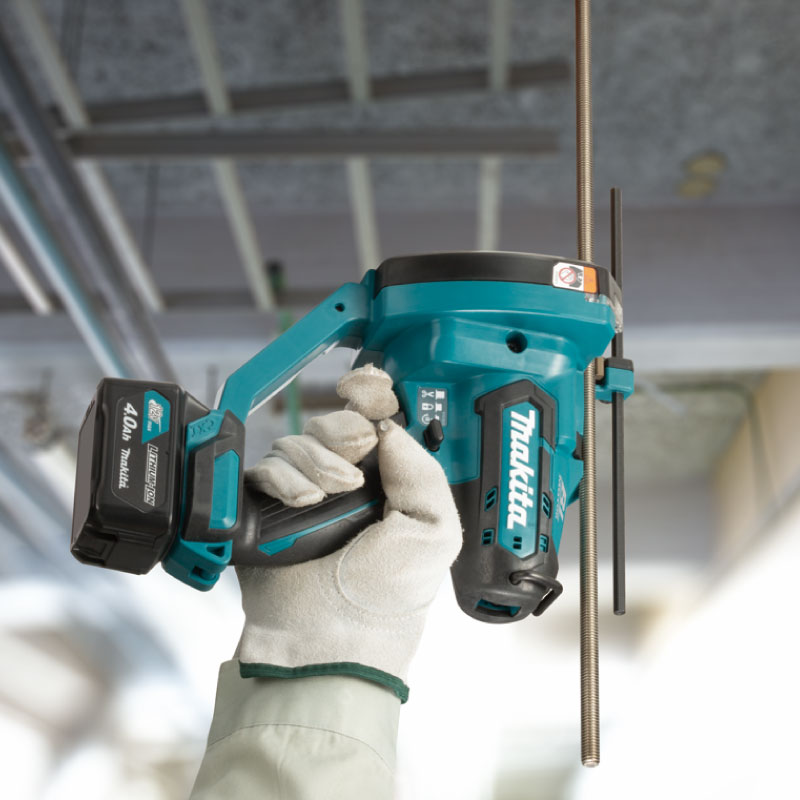

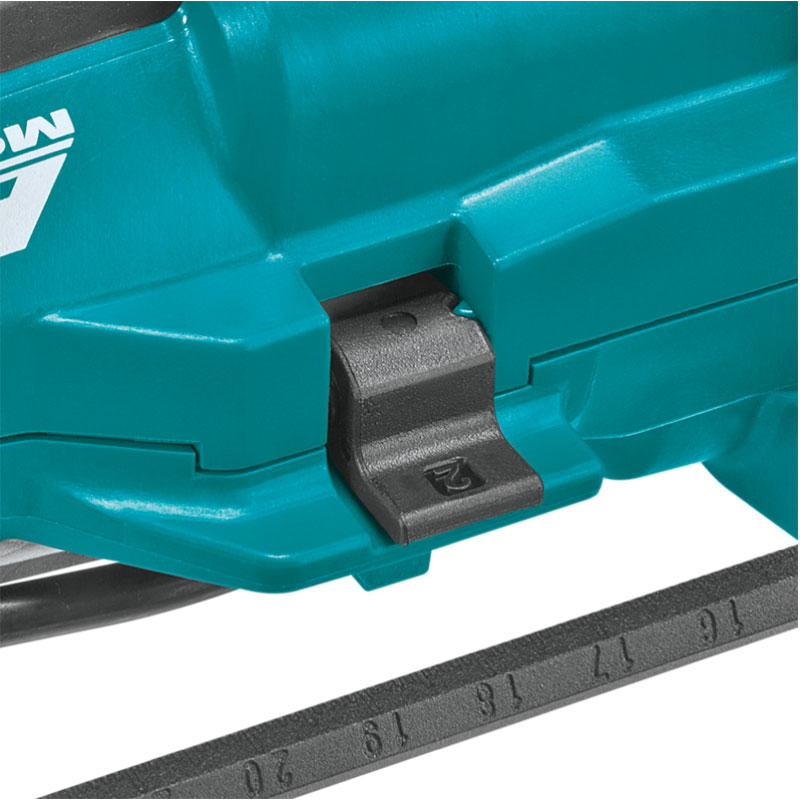

๐ More Compact & High Productivity ๐ Cuts up to M10 ๐ Compact motor section with overall length of 177 mm ๐ Excellent tool balance allows for operation with less wrist fatigue ๐ Compatible with both 18V and 14.4V LXT Li-Ion batteries ๐ Superior handling in overhead applications ๐ Performs stable cutting even on the floor ๐ Both fixed blade and movable blade are double-edged and can be reversed as "new" ones for longer blade life ๐ Burr-free cuts allow for easy nut tightening ๐ Automatic blade stop mechanism allows operator to quickly resume operation by letting the movable blades stop at its full open position ๐ Rod guide adjustable for precise cutting ๐ LED job light ๐ Reversing switch for easy blade release from a rod ๐ Hook is convenient for hanging the tool temporarily ๐ Electric brake for maximum productivity and increased operator safety ๐ Battery protection circuit protects against overloading, over-discharging and over-heating

Standard Equipments : Cutter blade, Hex socket head bolt, Blade cover, Depth gauge, Thumb screw, Hex wrench


Technical specifications

Max cutting capacity : Mild steel M10
Max cutting capacity : Stainless steel W3/8
Min. cutting length 20 mm
Work amount (pcs) M10 (Mild steel) w/ BL1041B: 550
Dimensions (L x W x H) 180 x 107 x 289 mm
Net weight 2.7 - 2.8 kg
Brake
Reversing
Built-in-Job Light
Carrying Case
