CA5000
Aluminum Groove Cutter
CA5000
Aluminum Groove Cutter
Aluminum Groove Cutter 118 mm (4-5/8") 1,300 W

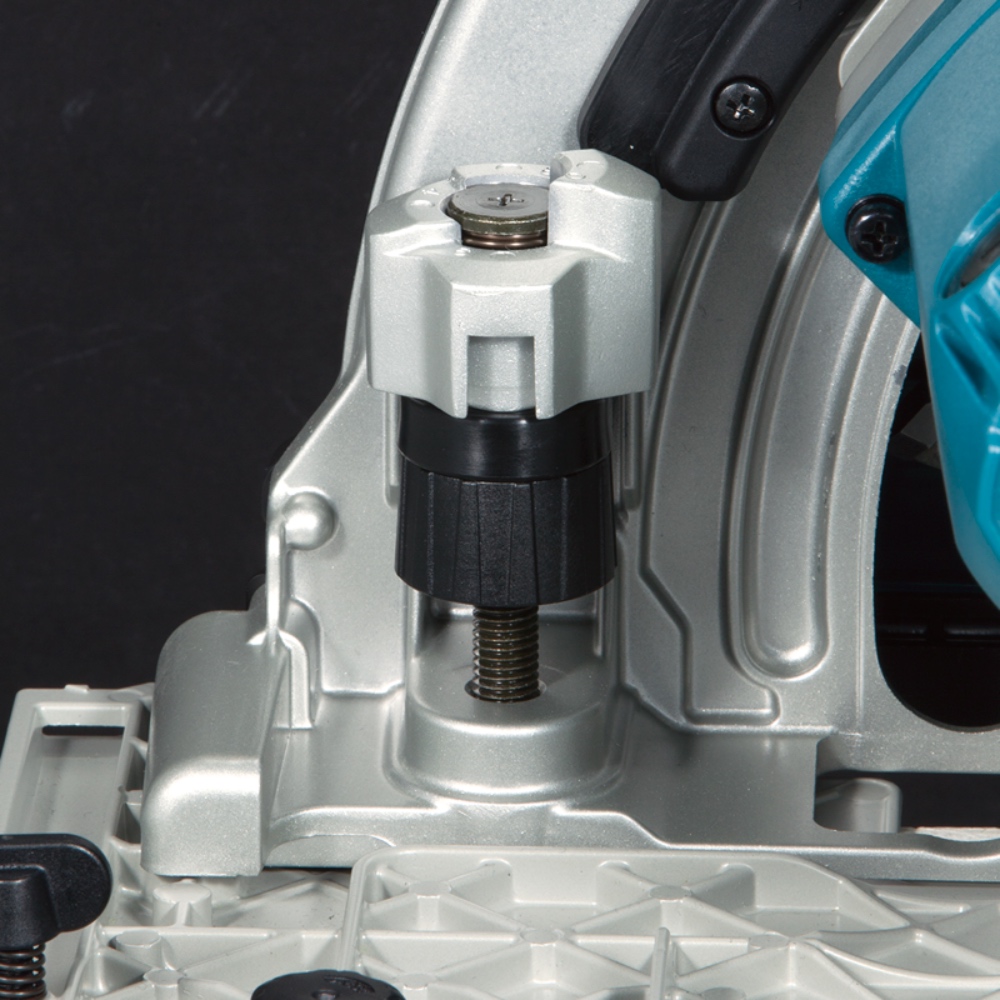

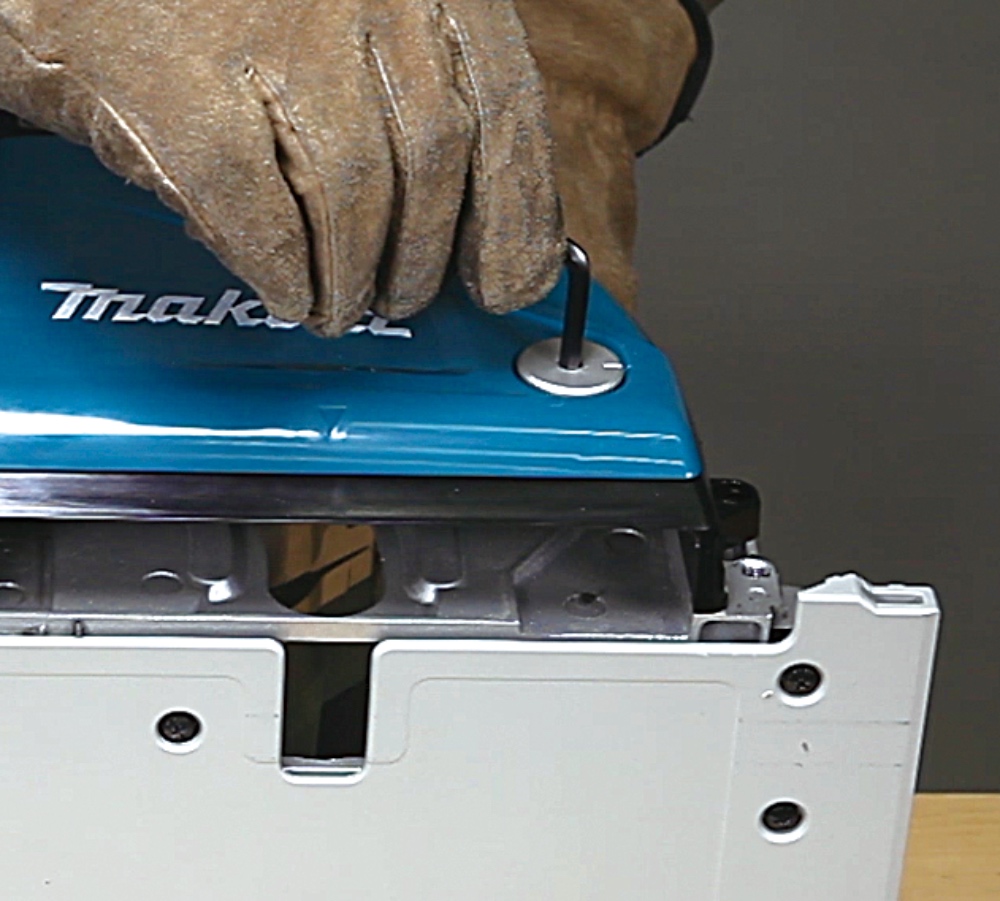

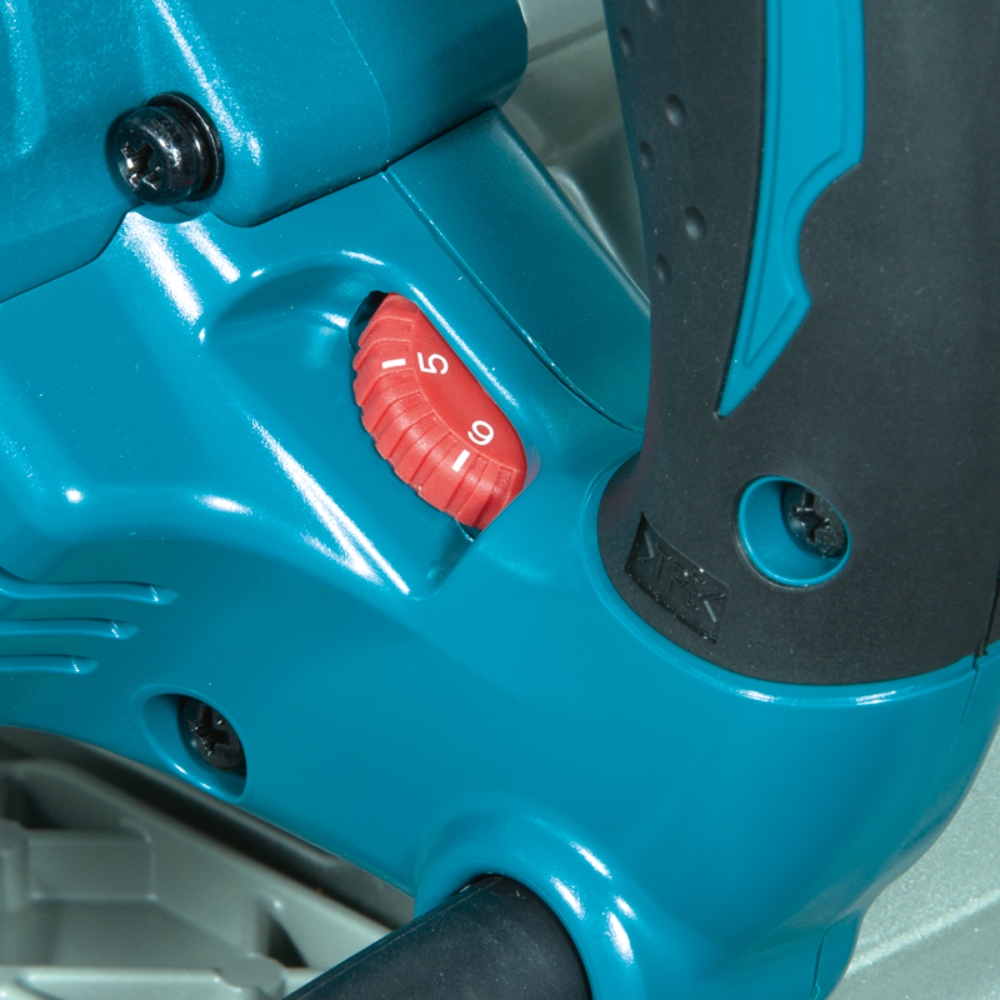

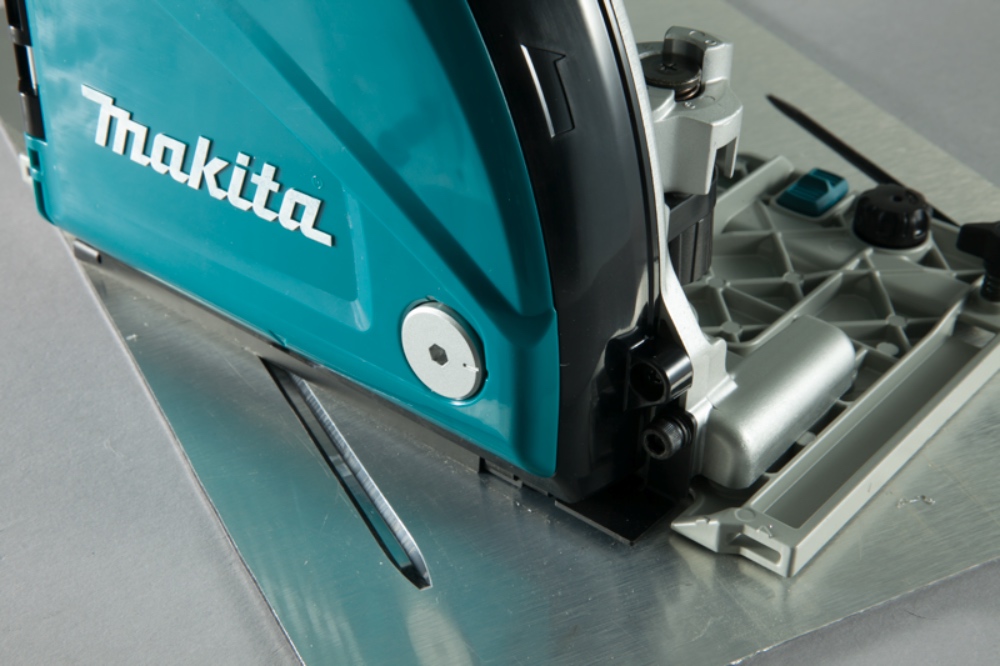

๐ Developed for cutting grooves in aluminum composite materials ๐ Cutter blade for 90 degrees V shaped groove enables you to cut grooves in aluminum composite materials (e.g. exterior wall panels) ๐ Ideal for processing aluminum composite material ๐ Cutter blade for 135 degrees V shaped groove as an option ๐ User-friendly blade cover design for easy blade change ๐ Two in one; Also can be used as a plunge cut circular saw ๐ Depth adjustment dial ๐ Easy blade change ๐ Main and auxiliary handles with elastomer soft grip ๐ Compatible with guide rail for increased maneuverability ๐ Aluminum diecast base plate for high durability and long tool life ๐ Variable speed (2,200 - 6,400 RPM) ๐ Constant speed control maintains constant speed under load ๐ Soft start for smooth start-ups ๐ Externally accessible brushes for easy serviceability ๐ Double insulated
Standard Equipments : Cutter blade, Plate, Hex wrench
Technical specifications
Continuous Rating Input | 1,300 W |
---|---|
Wheel Diameter | 118 mm |
Max cutting capacity w/ Cutter blade | 11 mm |
Max cutting capacity w/ TCT Saw blade | 36 - 41 mm |
No Load Speed | 2,200 - 6,400 minˉ¹ |
Dimensions (L x W x H) | 346 x 250 x 250 mm |
Net weight | 4.7 kg |
Power Supple Cord | 2.5 m |
Carbon Brush | 303 |
![Double Insulation Double Insulation](/images/functionv2/6379885577761093232.jpg)
![Variable Speed Variable Speed](/images/functionv2/6379885653157193771003.jpg)
![Brake Brake](/images/functionv2/6379885630399399931004.jpg)
![Constant Speed Constant Speed](/images/functionv2/6379885636627285321020.jpg)
![Soft Start Soft Start](/images/functionv2/6379885685478580181021.jpg)
![Dust Collection Dust Collection](/images/functionv2/6379885641786293571036.jpg)
![Carrying Case Carrying Case](/images/functionv2/6379885632405357661023.jpg)
