CS002G
Cordless Metal Cutter

CS002G
Cordless Metal Cutter

40V max Cordless Metal Cutter 185 mm

  

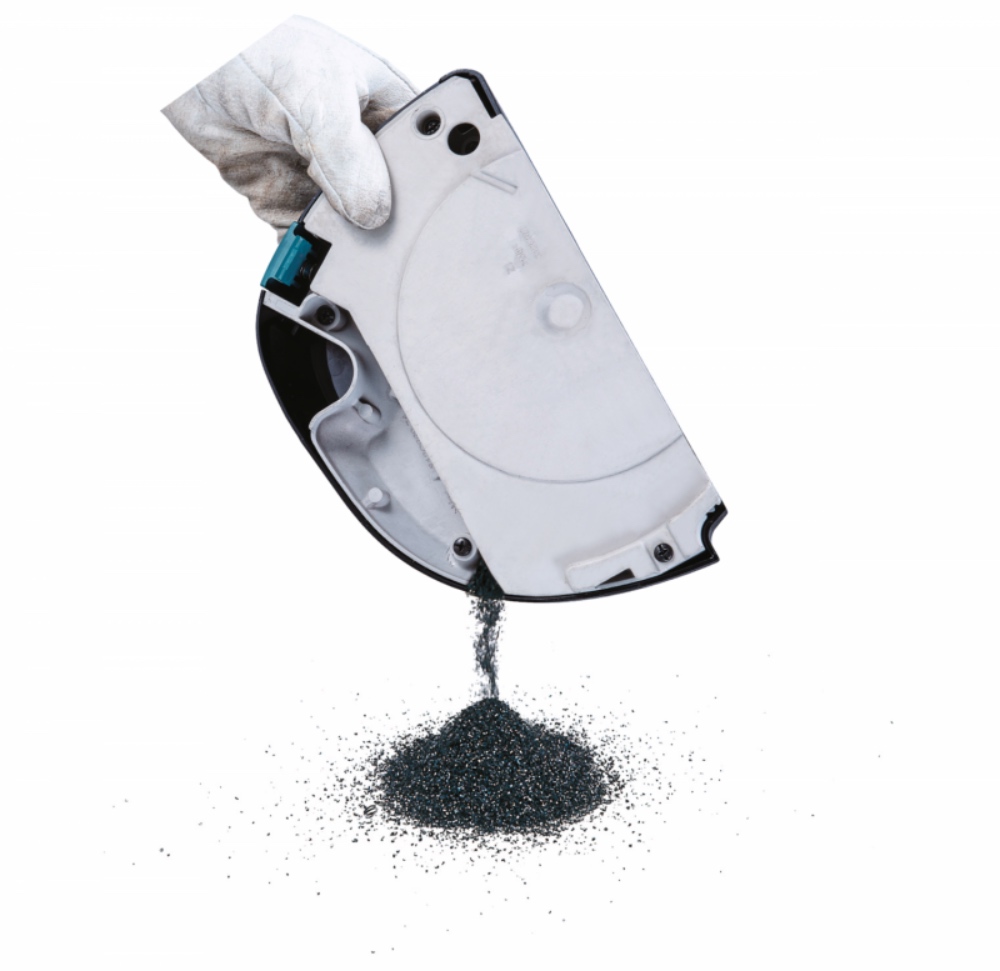

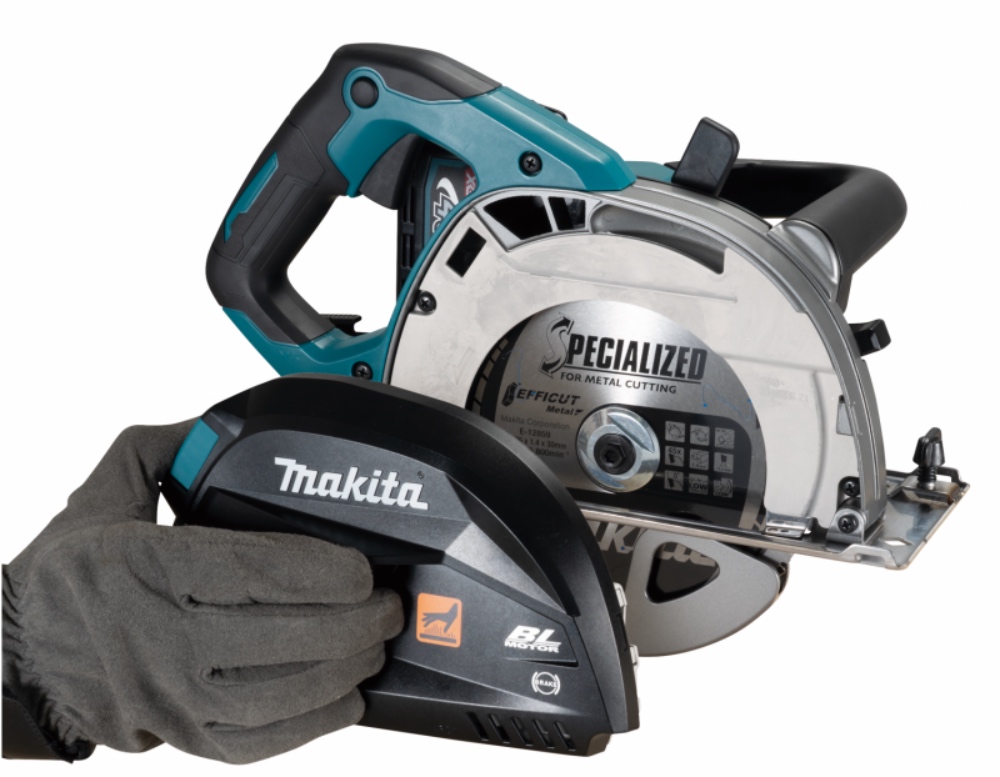

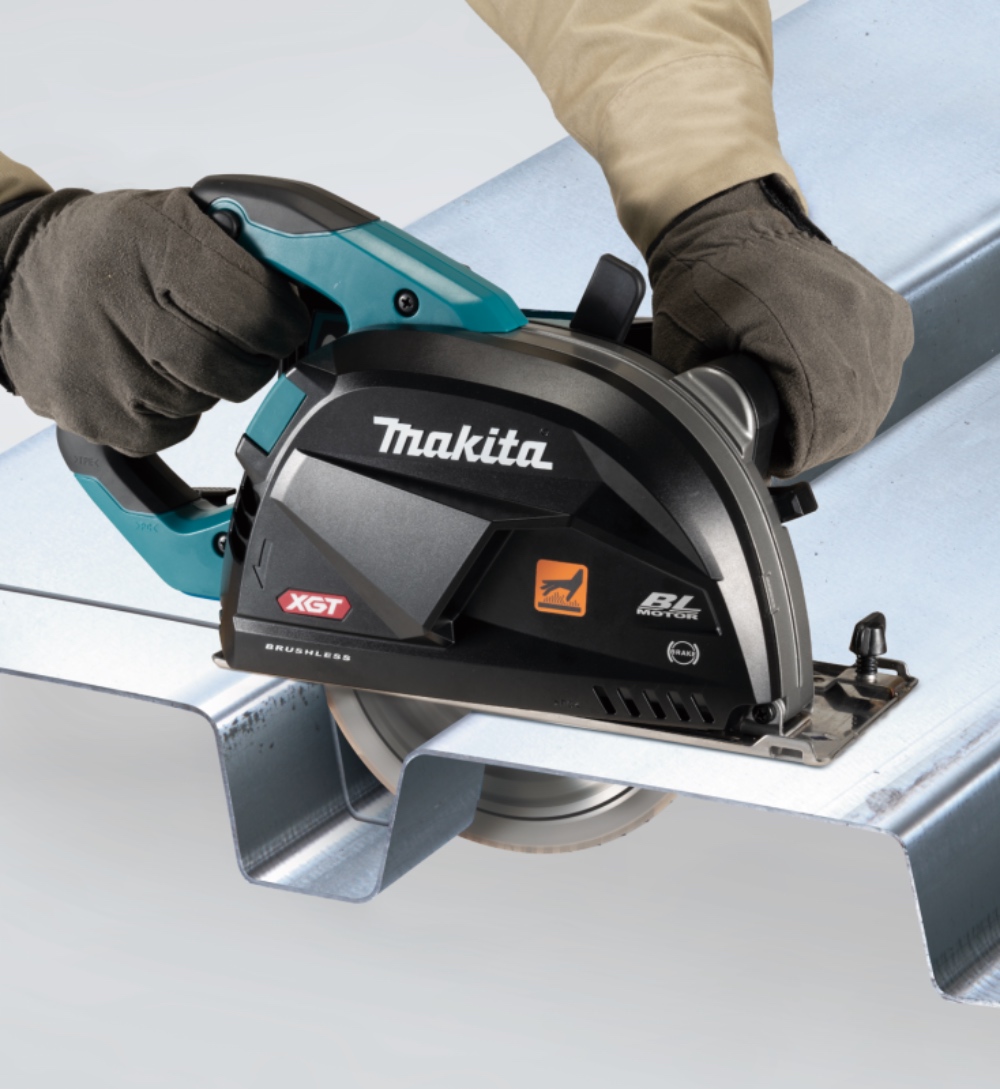

๐ Designed mainly for single-pass cutting of 65mm metal studs, 2-1/2" equal angle steel bars and lip channel steel bars ๐ Max cutting capacity of 67mm (2-5/8") ๐ The gear size of the final shaft is minimized by using a high torque BL motor, providing 185mm (7-1/4") CS002G with the same cutting capacity as a 203mm (8") class corded model ๐ 40Vmax XGT battery and High torque BL motor deliver high operation efficiency similar or superior to our or the competing corded models ๐ Improvement in ease to attach/detach Dust box Dust disposal efficiency is improved by newly using a mechanism which allows for attaching/detaching simply by one-hand operation of a plastic lever ๐ Equipped with a Lever for opening/closing Safety cover to comply with International Standard ๐ Built-in dust collection box for cleaner work environment ๐ Built-in twin LED lights with afterglow function for better illumination and more accurate work ๐ Electric brake allows you to move on to the next cutting immediately ๐ Soft start reduces recoil at startup ๐ Anti-restart function engineered to minimize motor start up when battery is inserted with switch locked on ๐ Lock-off (2 stage) safety switch for increased operator safety ๐ High water-resistance compatible with XPT ๐ BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life ๐ Constant speed control minimizes reduction in rotation speed under load ๐ Soft grip provides increased comfort on the job ๐ Battery protection circuit protects against overloading, over-discharging and over-heating

Standard Equipments : TCT saw blade, Hex wrench, Guide rule (country-specific)


Technical specifications

Wheel Diameter 185 mm
Max Cutting Capacity 67 mm
No Load Speed 3,500 minˉ¹
Dimensions (L x W x H) 350 x 232 x 270 mm
Net weight 4.2 - 5.4 kg
Brake
Constant Speed
Soft Start
Built-in-Job Light
Anti-restart function
Carrying Case
