(EN / TH)

GS5000
Straight Grinder

GS5000
Straight Grinder

Straight Grinder 125 mm (5") 750 W

  

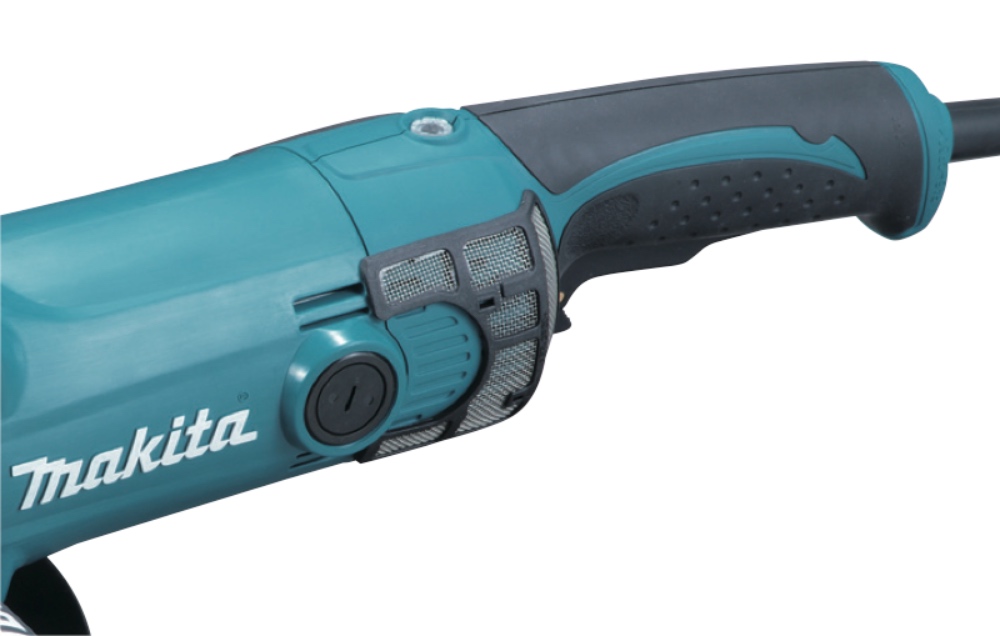

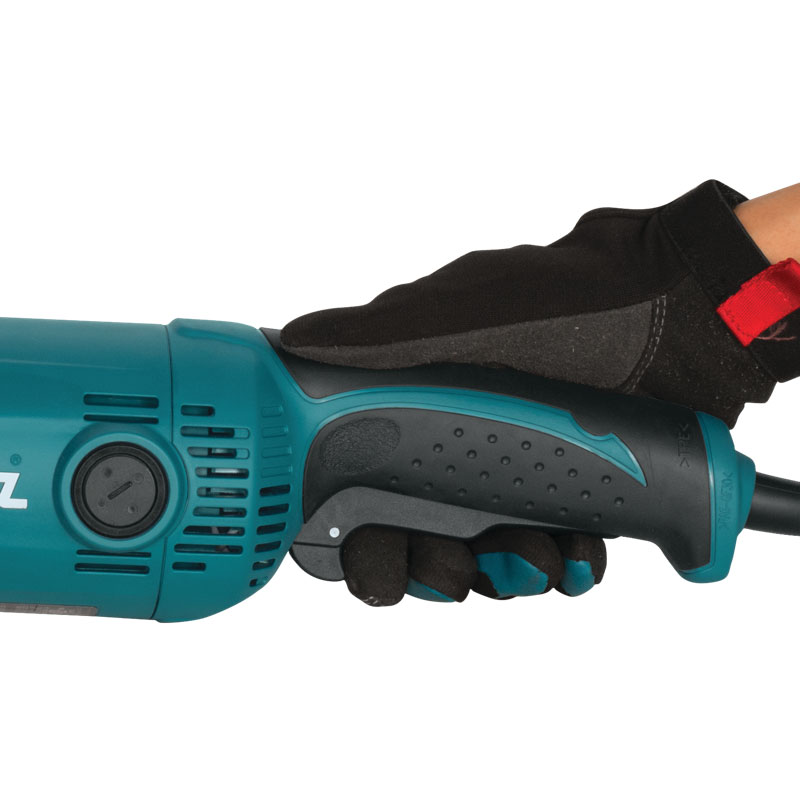

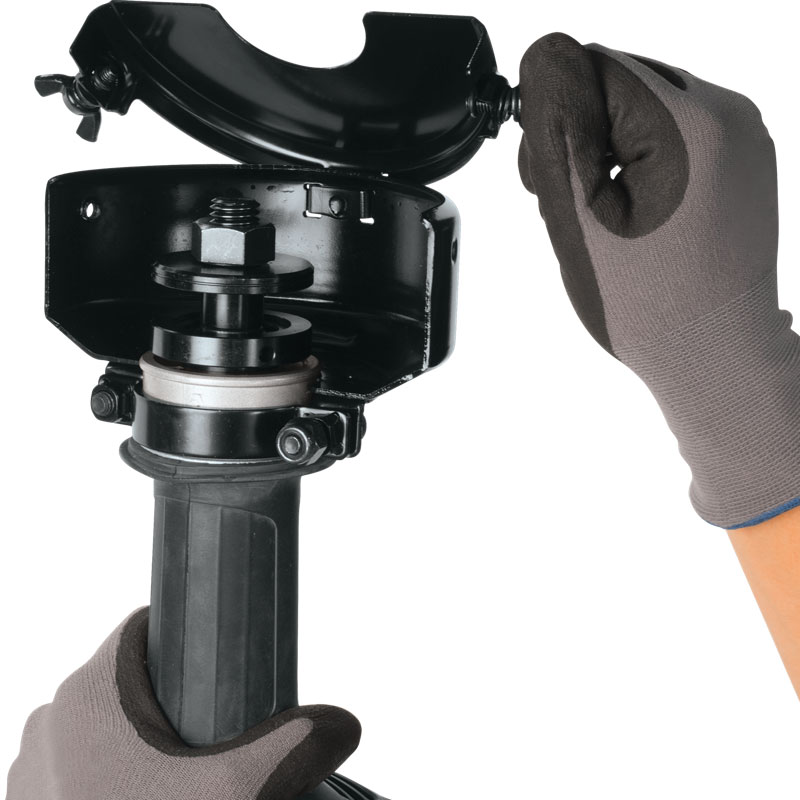

๐ Powerful 750W motor delivers more output and 5,600 RPM for demanding applications ๐ Rubberized handle for increased operator comfort ๐ “Tool-less” guard cap removal for more convenient wheel changes ๐ Spiral bevel gears for smoother rotations and a more efficient transfer of energy ๐ Externally accessible brushes for easier serviceability ๐ Zig-zag varnish protects the armature coil by deflecting dust and debris for longer motor life ๐ Labyrinth construction helps minimize dust and debris from penetrating the main bearing or gear box ๐ Spring loaded sealed drive bearing is engineered to help minimize dust and debris from penetrating drive bearing ๐ Rubberized gear housing for increased operator comfort ๐ Larger cooling fan and blades pull more air through the motor to help maintain lower operating temperature ๐ Ideal for metal fabrication and pipe welders ๐ Double insulated

Standard Equipments : Grinding wheel (country-specific), Hex wrench, Wrenches (country-specific)


Technical specifications

Continuous Rating Input 750 W
Wheel diameter 125
Wheel thickness 20 mm
No Load Speed 5,600 minˉ¹
Dimensions (L x W x H) 590 x 189 x 116 mm
Net weight 5-5.2 kg
Power Supple Cord 2.5 m
Carbon Brush 203
Double Insulation
