6924N

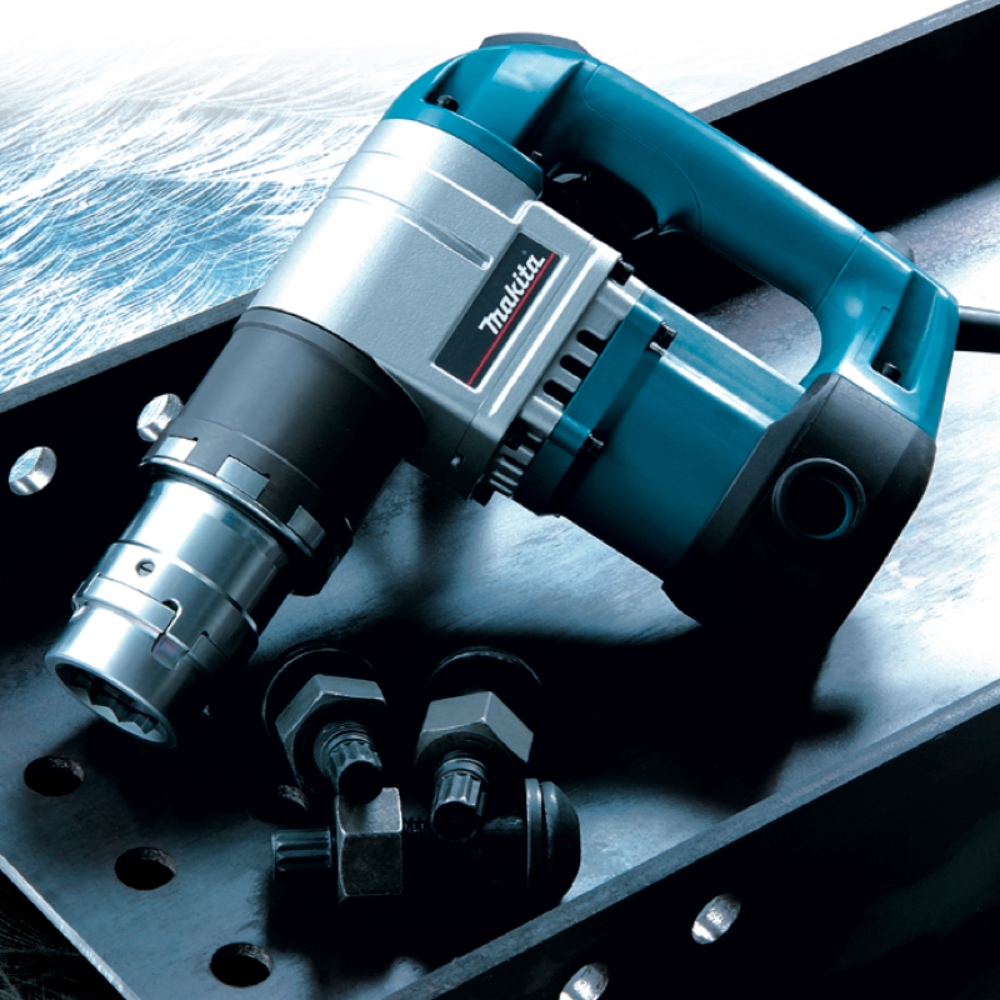

Shear Wrench
6924N
Shear Wrench
Shear Wrench 1,100 N·m 1,050W
Features
๐ Shear Wrench for tightening M24 (1") torque shear bolt
๐ Efficiently tightens M22 and M24 torque shear bolts
๐ High rotational speed for more efficient operation
๐ Lightweight design for easy and comfortable control
๐ Features lever for ejecting sheared bolt tip
๐ Anti-slipping mechanism
๐ Bumper for tool body protection
๐ Externally accessible brushes for easy serviceability
๐ Double insulated
Standard Equipments : Screwdriver
Technical specifications
| Continuous Rating Input | 1,050 W |
|---|---|
| Capacity | Bolt: M22, M24 (7/8, 1") / Super high tensile bolt: M22 |
| No Load Speed | 19 minˉ¹ |
| Max fastening torque | 1,100 N·m |
| Dimensions (L x W x H) | 330 x 104 x 257 mm |
| Net weight | 7.5 kg |
| Power Supple Cord | 2.5 m |
| Carbon Brush | 303 |
