(EN / TH)

WT001G
Cordless Shear Wrench



WT001G
Cordless Shear Wrench

40V max Cordless Shear Wrench 804 N·m

  

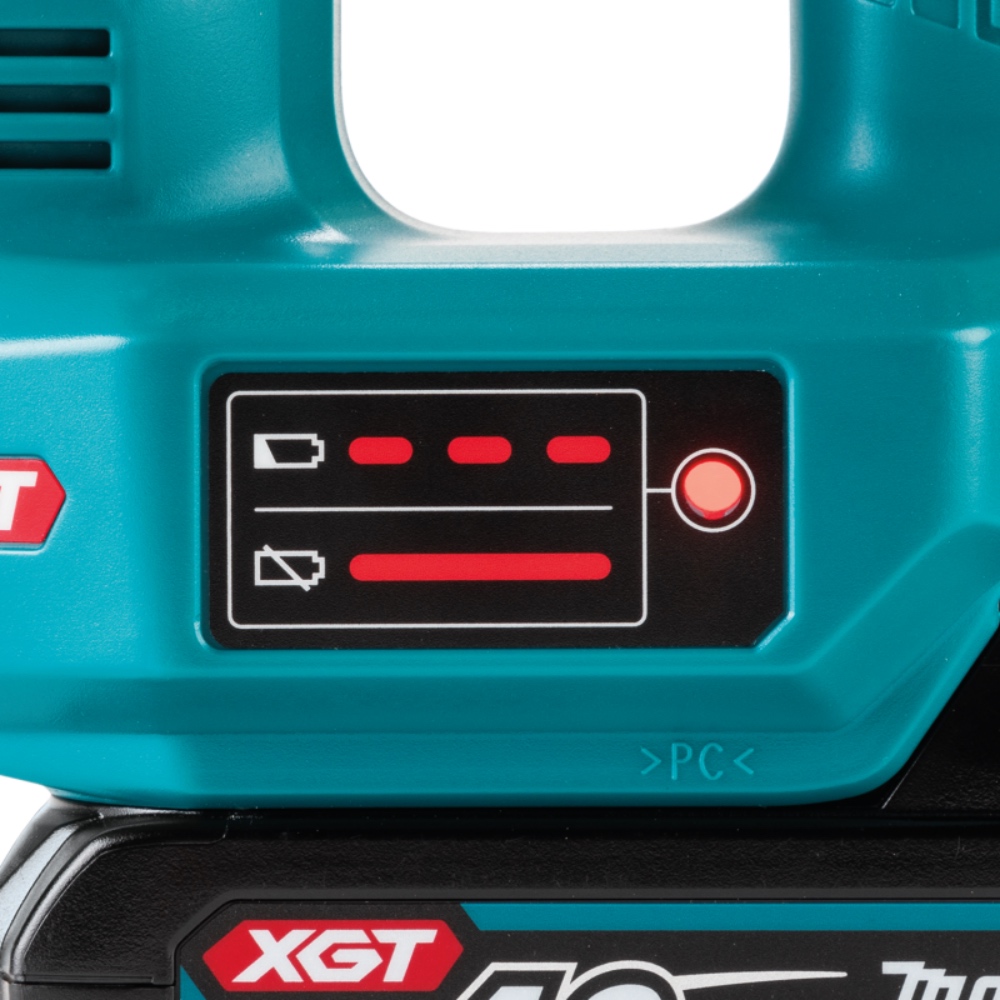

๐ WT001G has been developed based on the basic performance of DWT310, yet with lightweight design for improved maneuverability ๐ Compatible bolt size: M16 (5/8"), M20 (3/4"), M22 (7/8"); the same as those of DWT310/6922NB. ๐ Work amount: approx. 250 pcs of M22 Torque shear bolt with BL4040 ๐ Lightweight design; Higher maneuverability has been achieved due to the tool weight lighter than DWT310, which has been achieved by using shock-resistant XGT battery to eliminate the need for battery guard and by changing the material of rear cover ๐ High efficiency; • The same or higher than that of our corded model 6922NB • High fastening speed similar to that of our cordless model DWT310 ๐ Large work amount Fastening capacity of M22 Torque shear bolt: • Approx. 150 pcs with BL4025 • Approx. 250 pcs with BL4040 ๐ Battery capacity warning lamp; • LED blinks to notify user of decrease in battery capacity; specifically, it starts blinking when the capacity is reduced to an amount only enough to fasten approx 10 Torque shear bolts • LED lamp turns on solid when the tool cannot operate anymore ๐ Anti-thread-stripping mechanism minimizes the chance that bolt-tip threads might be stripped due to incomplete insertion of Inner sleeve ๐ Hook designed for use with Shoulder belt to carry the tool ๐ Shoulder belt (for transportation); Uses the same one as used for DWT310

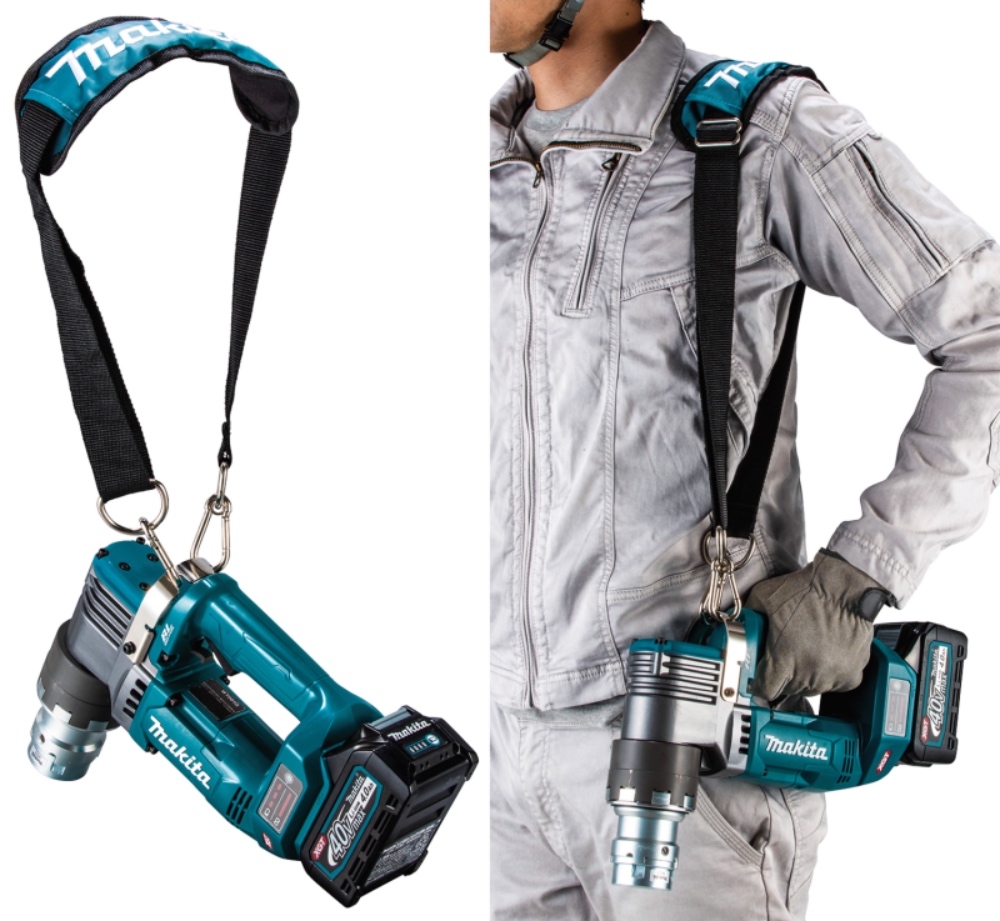

Standard Equipments : Screwdriver, Shoulder belt, Outer sleeve, Inner sleeve, Battery, Charger


Technical specifications

High strength torque shear bolt (HTB) M16, M20, M22 (5/8, 3/4, 7/8)
Super (high) strength torque shear bolt (SHTB) M16, M20 (5/8, 3/4")
No Load Speed 17 minˉ¹
Max fastening torque 804 N·m
Dimensions (L x W x H) 270 x 95 x 340 mm
Net weight 5.2 - 5.9 kg
Brake
Anti-restart function
Carrying Case
