UB004C

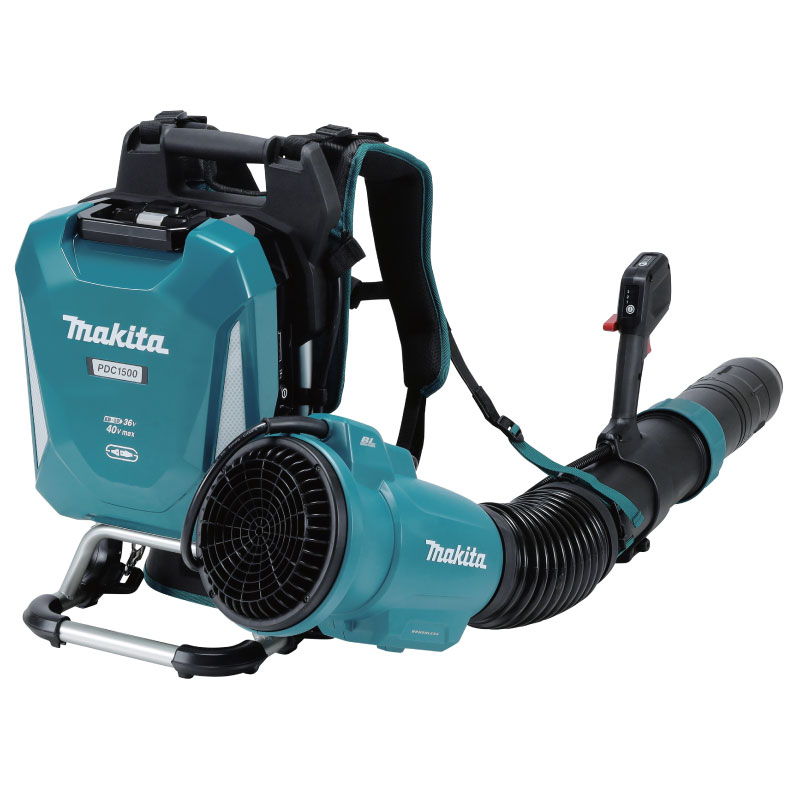

Battery Powered Backpack Blower



UB004C
Battery Powered Backpack Blower

Battery Powered Variable Speed Backpack Blower

  

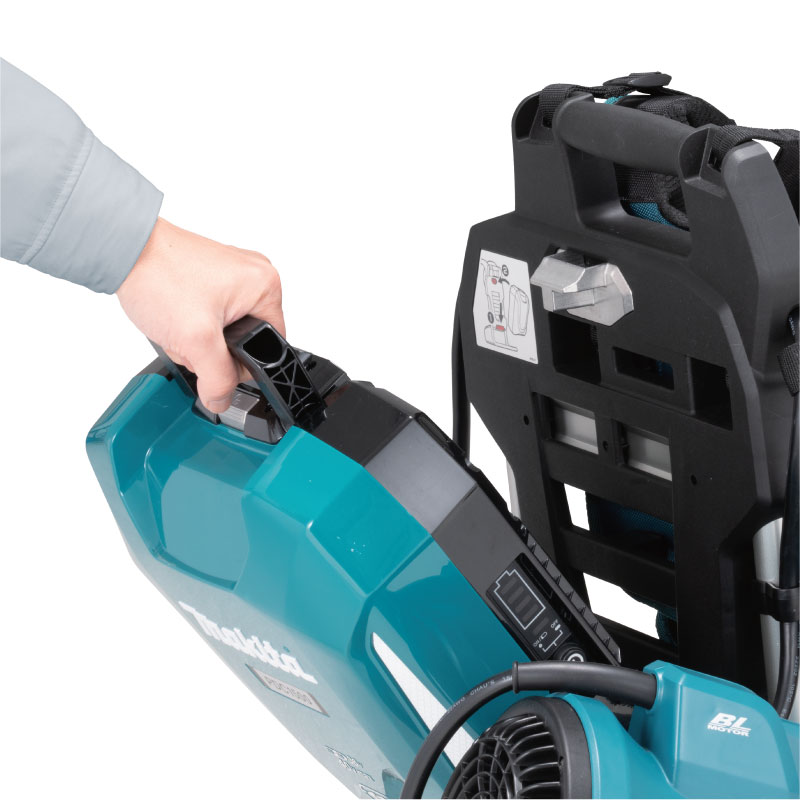

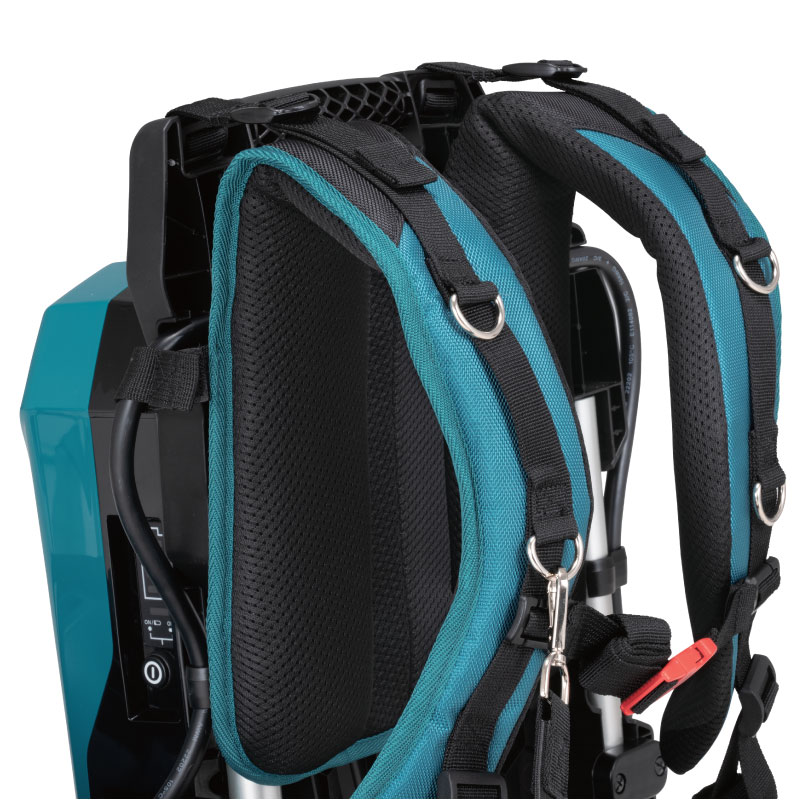

๐ A battery powered blower powered by Portable Power Pack PDC1500 or PDC1200 ๐ Using UB002C as the base model, we have made structural changes to increase the blowing efficiency and utilized the high output of ๐ PDC1500, achieving blower performance superior to competing models ๐ The machine operates at a high blowing force of 25N with no time limit, and at 28N in Boost mode with a time limit ๐ High power • By implementing structural changes to increase blowing efficiency and utilizing the high output of PDC1500, we have achieved blower performance that surpasses our competitors • Not only in Boost mode, but also when using Cruise control lever, continuous operation at high blowing force (25N) is possible ๐ Variable speed control by trigger plus Cruise control lever • Trigger can be fixed at a desired position by user • The machine can shift to Boost mode when Trigger is fully pulled from its halfway position ๐ The grip position is adjustable forward/backward and left/right to suit user's size or work posture ๐ Three speed mode button ๐ Battery fuel gauge ๐ XPT / IPX4-compatible

Standard Equipments : End nozzle, Flat nozzle, Pipe support belt complete, Pipe belt complete


Technical specifications

Max Air Volume Boost mode : 20.9 m³/min
Max Air Velocity Boost mode : 80.7 m/s
Blowing force 28 N
No Load Speed Mode 1 / 2 / 3 : 10,500 / 18,000 / 22,500 minˉ¹
Continuous Use 55 - 200 min.
Dimensions (L x W x H) 460 x 575 x 585 mm
Net weight 16.5 - 18.6 kg
Variable Speed
Constant Speed
Electronic 3-Speed
