DTR181
Cordless Rebar Tying Tool

DTR181 Parts List (1.31 MB)

DTR181 Leaflet (9.85 MB)

DTR181
Cordless Rebar Tying Tool

18V Cordless Rebar Tying Tool BL motor

  
Torque Setting 6
Carrying Case

Features

  • Developed to enable to tie large diameter rebars that DTR180 cannot
  • Applicable to large diameter rebars

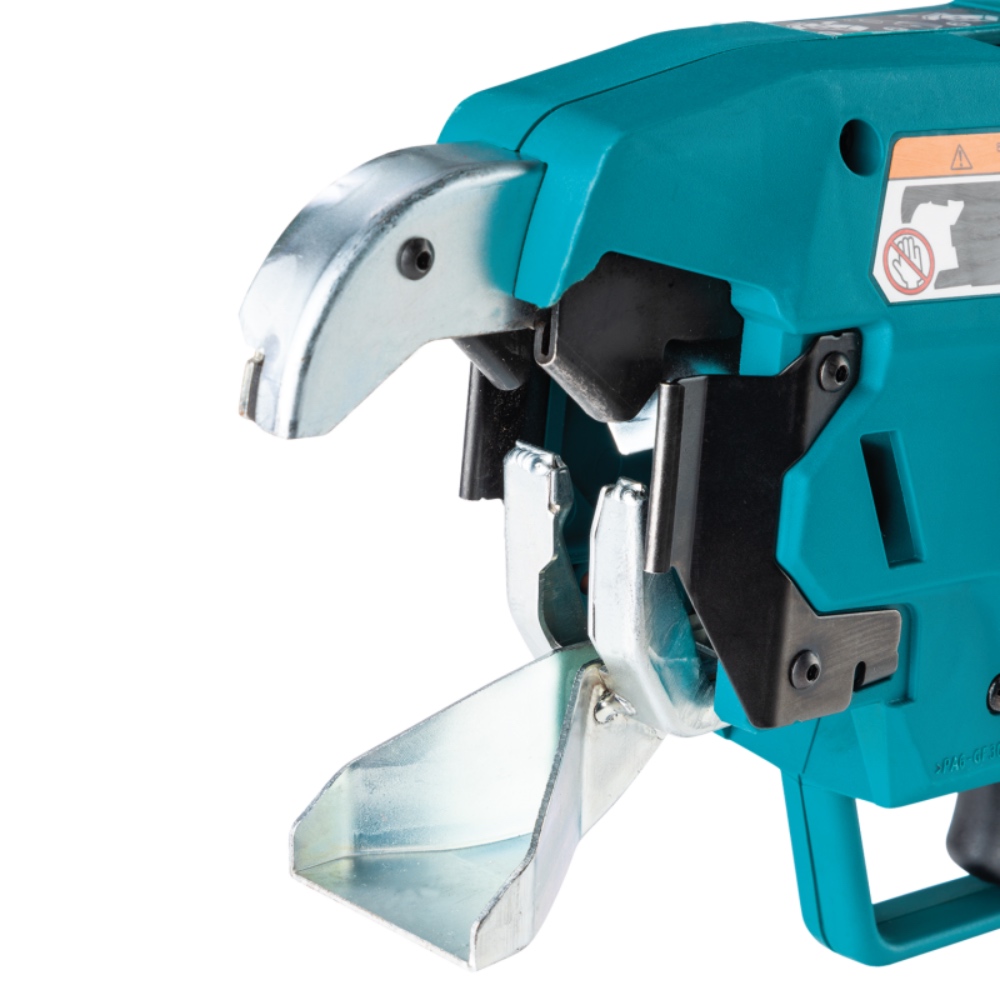

    The tool tip portion of tying mechanism is redesigned from DTR180 to enable to tie large diameter rebars that the current model cannot
  • Compatible with thick rebars (D22 x D25)
  • Extension handle available as option allows you to operate in a stand-up position, reducing lower back strain

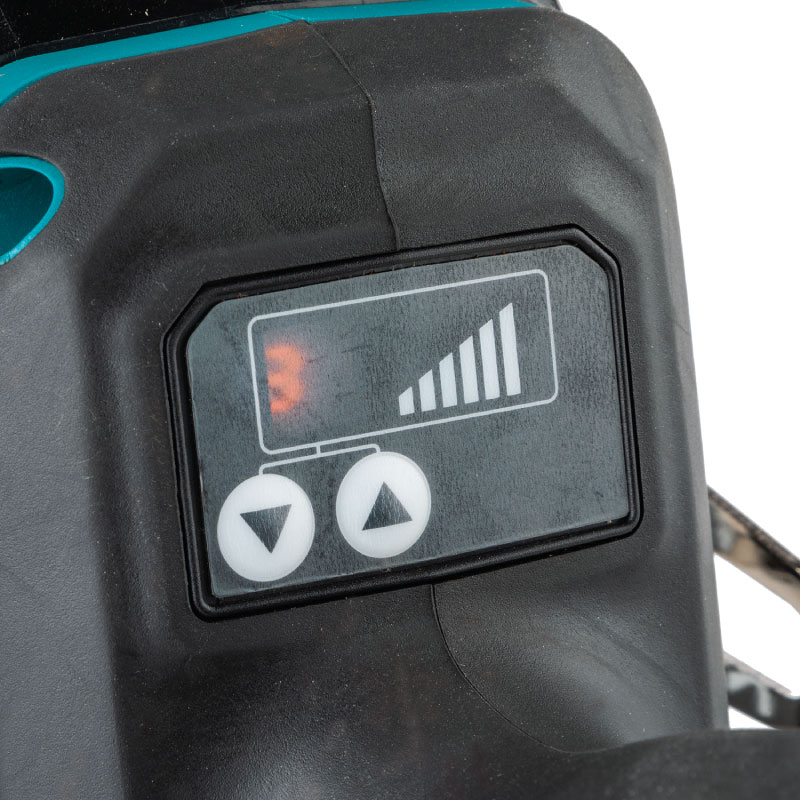

  • 6-stage adjustable tying strength
    Tying strength can be adjusted to suit the combination of rebars simply by operating the panel located above the battery
  • Tying rebars automatically

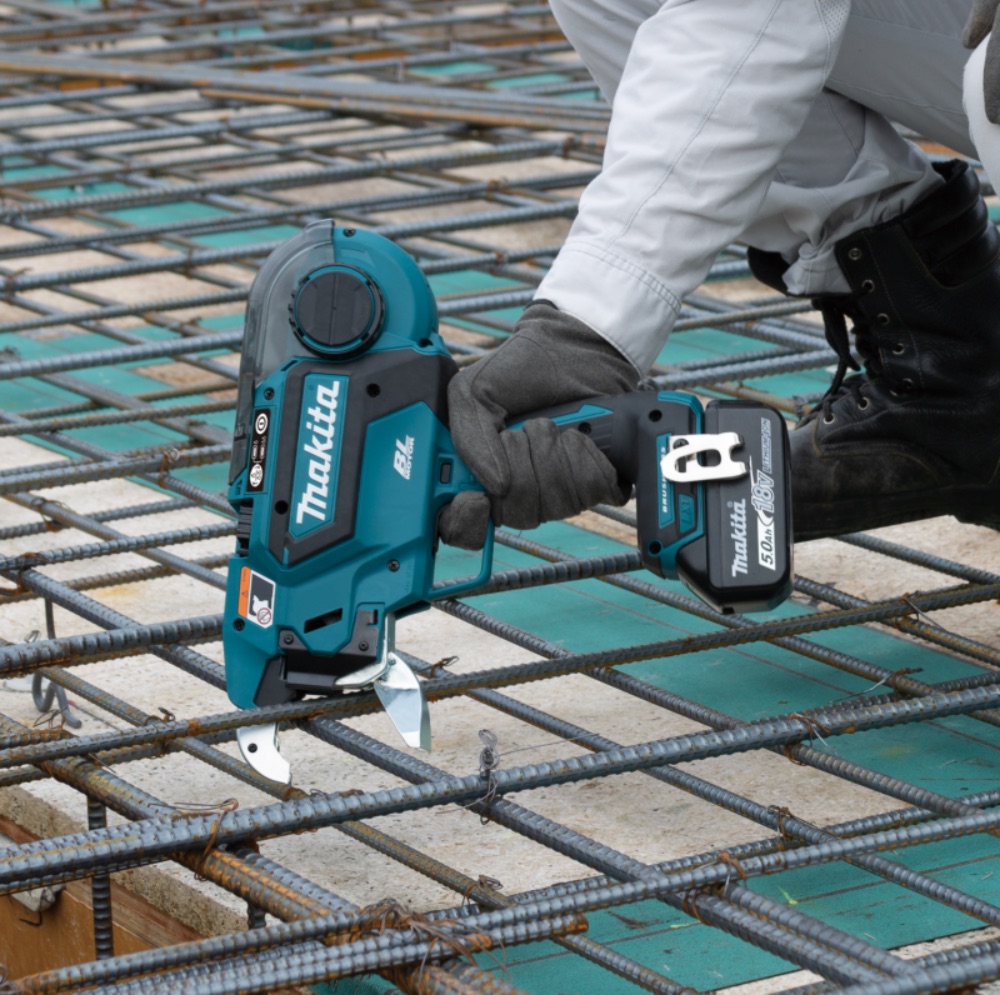

  • Tying rebars can be done automatically in a various range of applications such as building concrete foundations
  • Operable by only one hand, allowing the other hand to be free to adjust the position of rebar

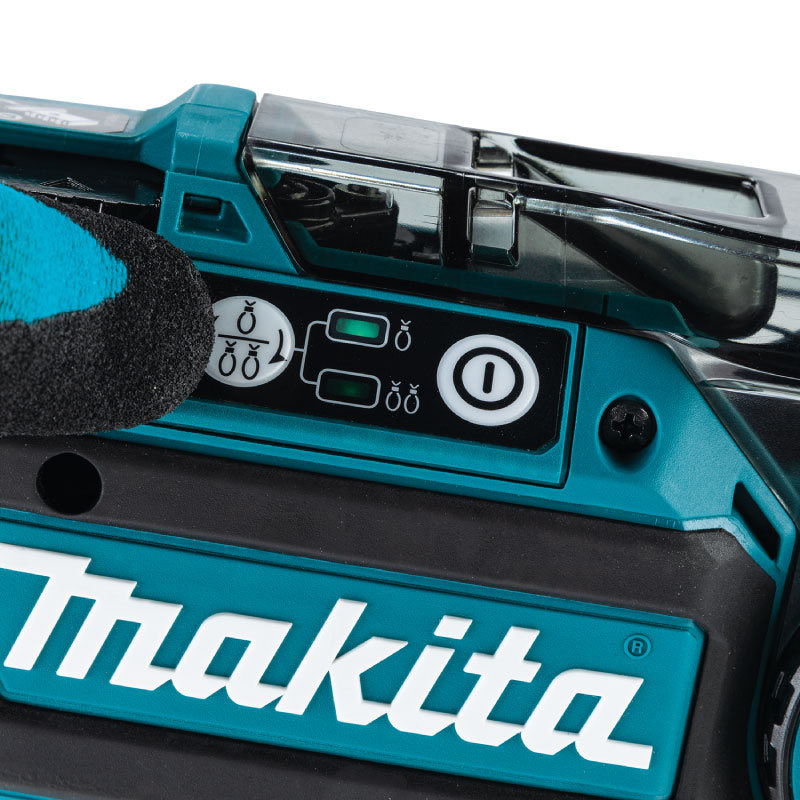

  • Continuous actuation mode for efficient continuous tying

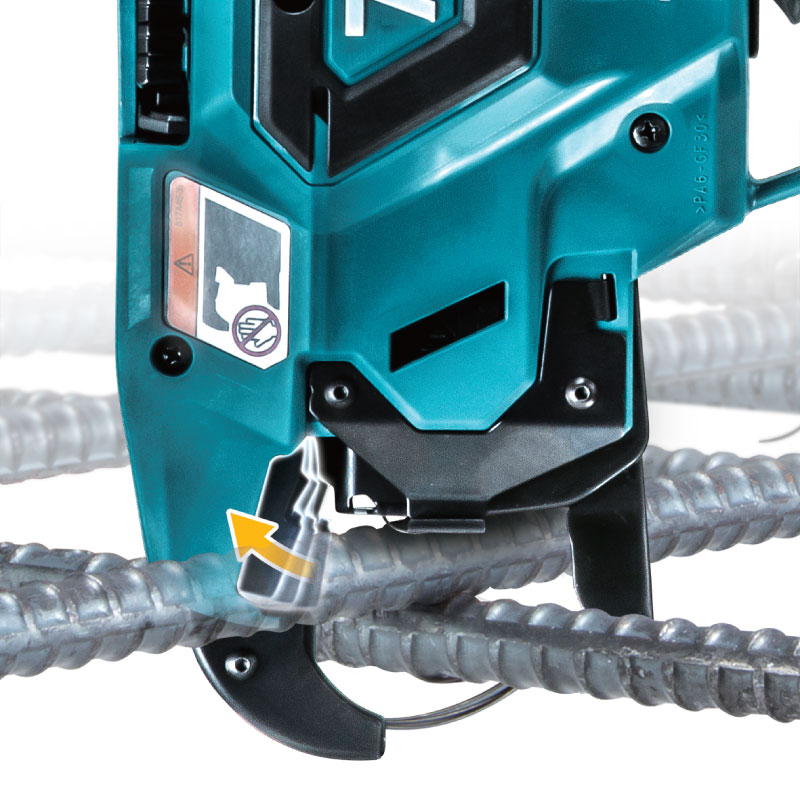

  • Users can tie rebars by only pulling contact arm against rebars if they continuously hold the trigger
  • Users can also tie rebars by pulling the trigger as single actuation mode
  • According to the condition of tying material, tying strength can be adjusted in 6 stages
  • Water-resistance compatible with XPT
  • BL motor with high power to weight and size ratio
  • 0.8 mm Annealed tie wire dedicated for DTR180

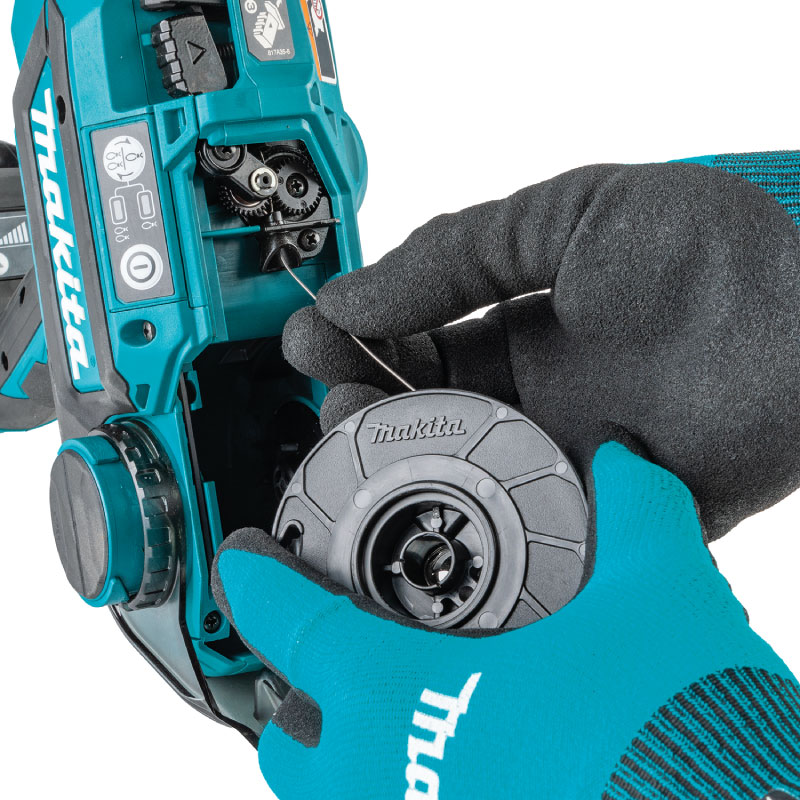

  • Tie wire reel can be replaced simply by opening Reel cover in the same way as competitor
  • On-tool storage of hex wrench: Hex wrench is supplied for maintenance of tie wire path
    Main switch with auto power-off: Operation starts by pulling trigger after main switch is turned on
    Ergonomically designed handle with sure grip provides increased comfort on the job

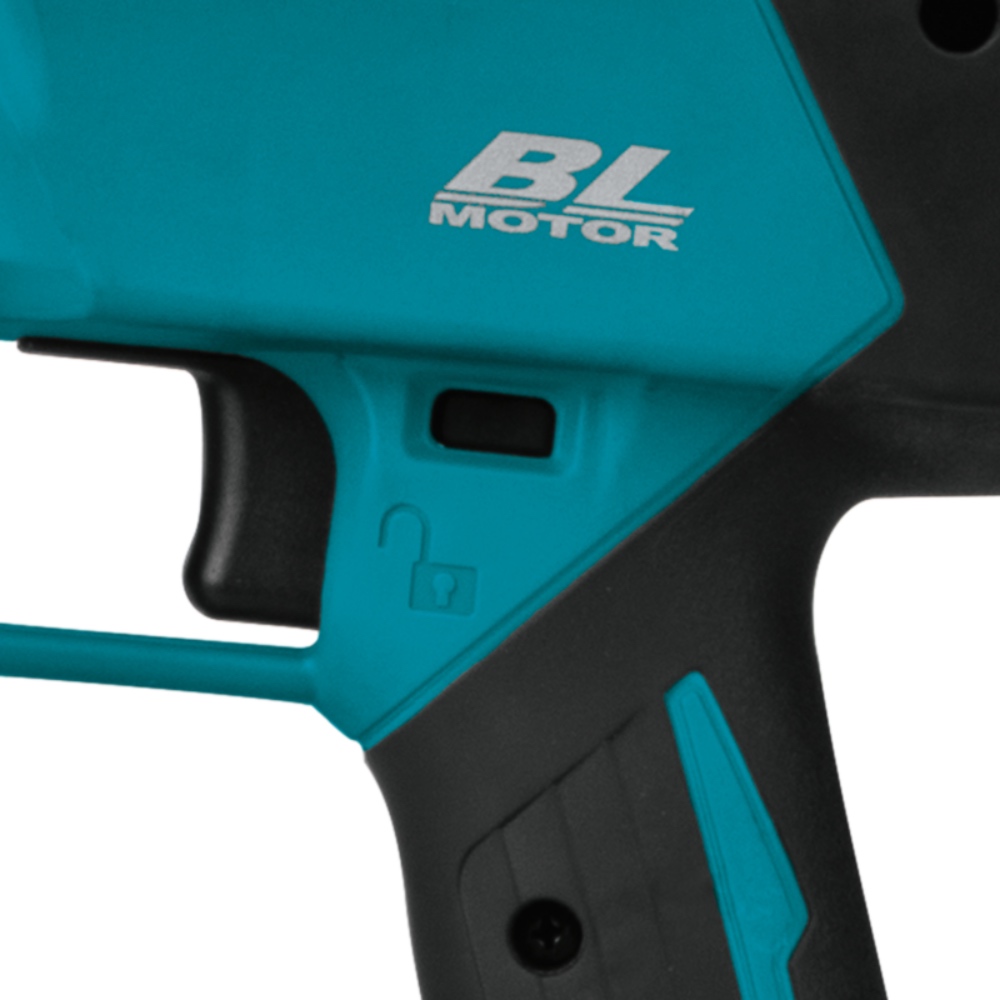

    Trigger lock function


Parts List
(1.31 MB)


Leaflet
(9.85 MB)

Technical specifications

Applicable rebar for tying D16 x D16 - (D13 x 2) x (D16 x 2)
Applicable Annealed wire 21Ga (0.8 mm)
Applicable Galvanized wire 21Ga (0.8 mm)
Applicable Poly coated wire 20Ga (0.9 mm)
Tying speed 1.3 s
Number of ties Per reel 75
Wire tail height 21 mm
Dimensions (L x W x H) 317 x 93 x 269 mm
Net weight 2.4 - 2.7 kg
