(EN / TH)

UV001G
Cordless Scarifier

UV001G
Cordless Scarifier

40V max Cordless Scarifier 380mm (15")

  

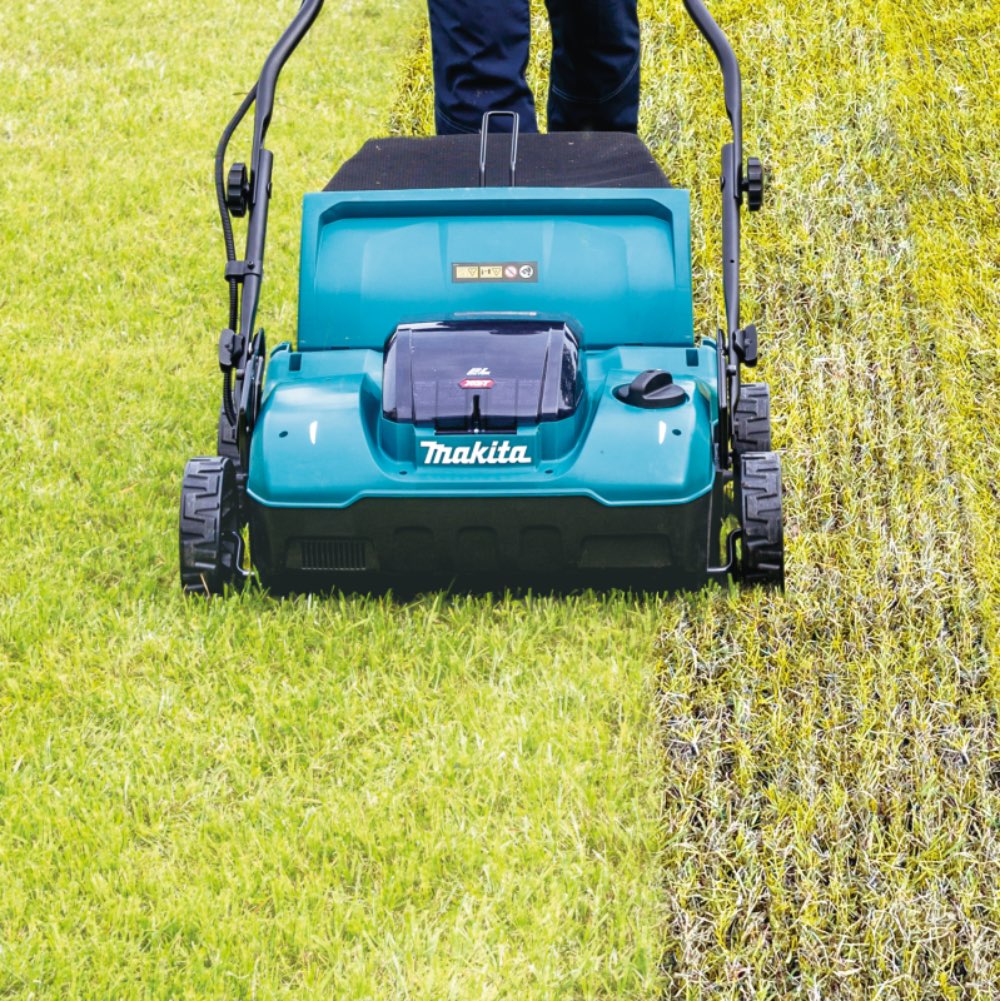

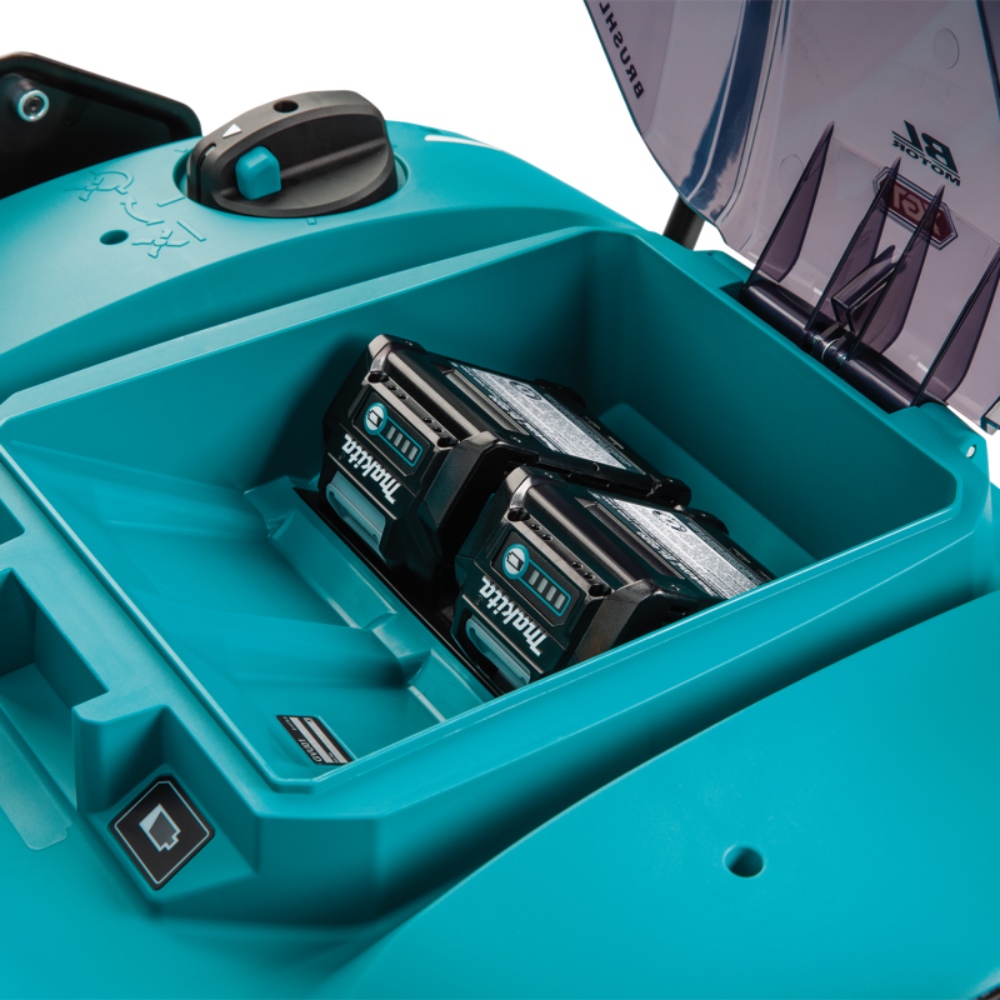

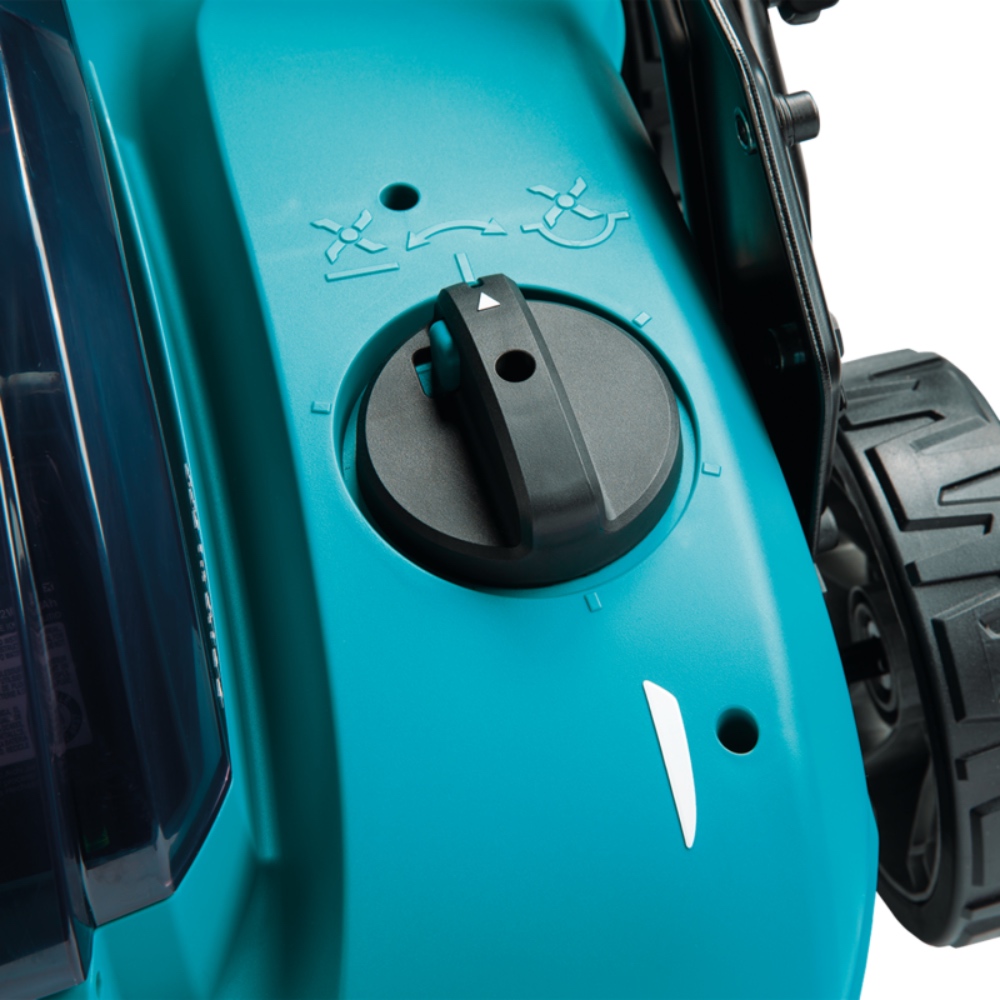

๐ For lawn maintenance, and designed to provide a working width of 380mm and a working depth of 12mm for removing deposited lawn clippings, generated moss, etc and for cutting through old roots for healthy lawn, etc. ๐ Powered by 40Vmax XGT Li-Ion battery (two in parallel or one) ๐ Automatic battery switching; If two batteries are installed and one battery in use has run out of power, the battery system automatically switches to the other one ๐ XPT (eXtreme Protection Technology)/IPX4-compatible ๐ Battery capacity warning lamp ๐ Toolless handle height adjustment (2 stages); Handle height can be adjusted without tool simply by pulling spring type Lock pin to release the lock (the same mechanism as that of DLM539) ๐ Grass catcher capacity: 50L ๐ Large Front/Rear tires with wheel diameter of 180/180mm; The same size Front/Rear tires provide an excellent balance of stable running performance (with front tires) and high turning performance (with rear tires) ๐ Water-resistant cutting deck; The inside is washable; however, must not be washed with high-pressure water ๐ Fine adjustment of working depth can be made by operating a dial, allowing for adjustment of working depth to suit the environment for lawn growth and wear of blade ๐ Vertical cutter; For cutting through old roots for healthy lawn and cutting through thatch and soil for improved penetration of water and air ๐ Thatching blade; For removing deposited lawn clippings, generated moss, etc. ๐ Blunt angled blade tip slows blade wear to minimize the reduction in working depth ๐ The slow wear reduces blade change frequency and running cost ๐ Low vibration; The blades of Vertical cutter are arranged symmetrically about the left-right center line of the rotary blade shaft to provide balanced rotation for reduced vibration

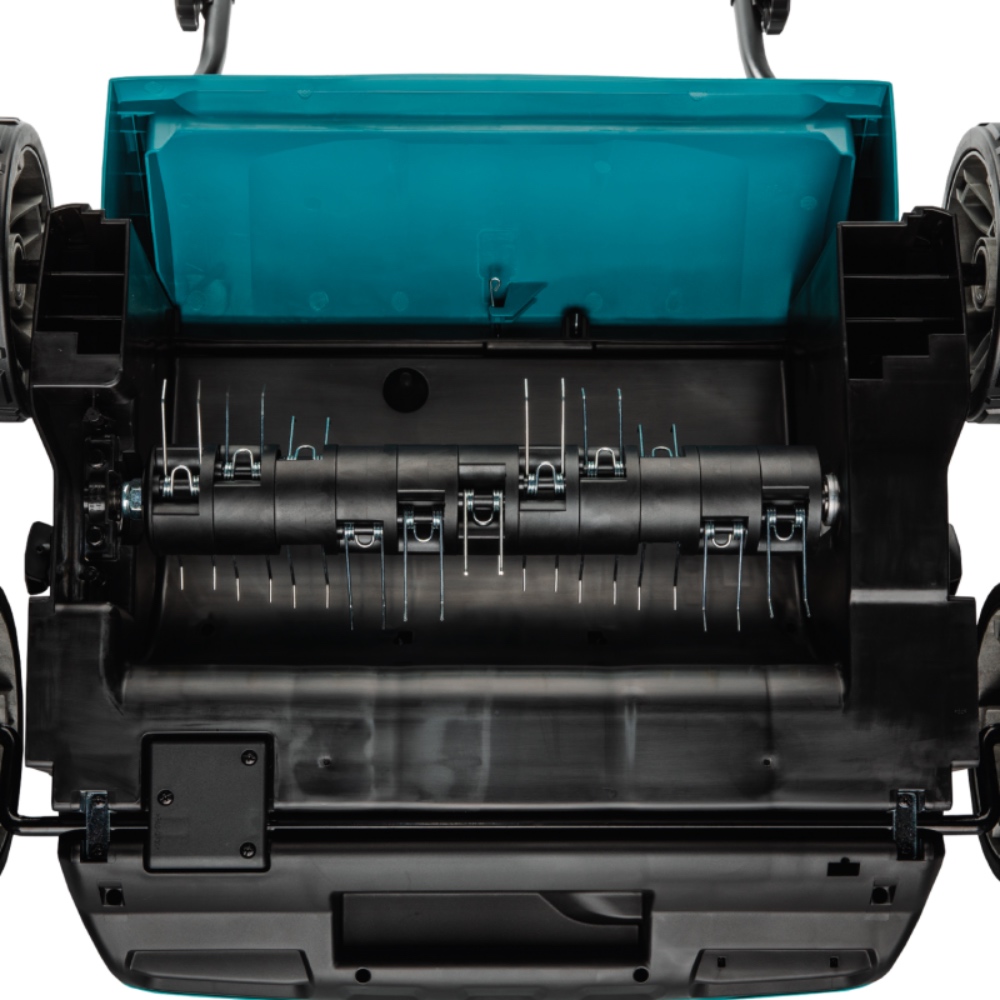

Standard Equipments : Vertical cutter, Thatching blade, Socket wrench, Grass catcher


Technical specifications

Cutting Width 380 mm
Working depth (Scarifier) -12 - 5 mm
Continuous Use BL4080F x2 : 38 - 41 min.
Actual Mowing Area 500 - 510 m²
No Load Speed 3,200 minˉ¹
Grass Box Capacity 50 L
Dimensions (L x W x H) 1,020-1,240 x 680 x 915-1,155 mm
Net weight 18.7-23.8 kg
Brake
Constant Speed
