UR013G
Cordless Grass Trimmer



UR013G
Cordless Grass Trimmer

40V max Cordless Grass Trimmer

  

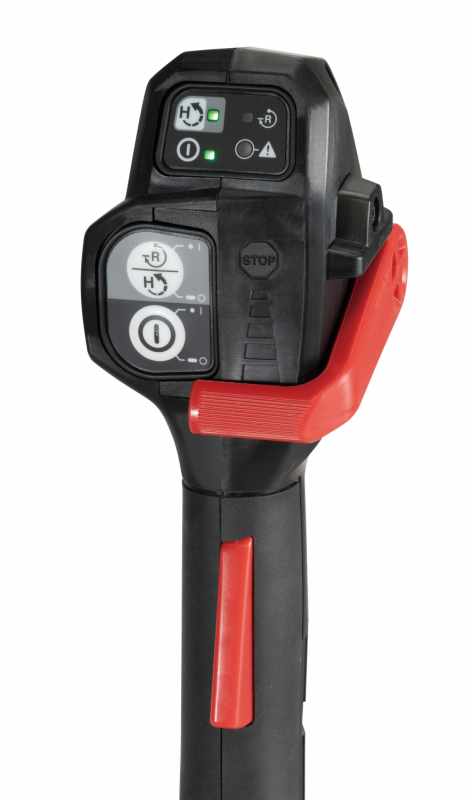

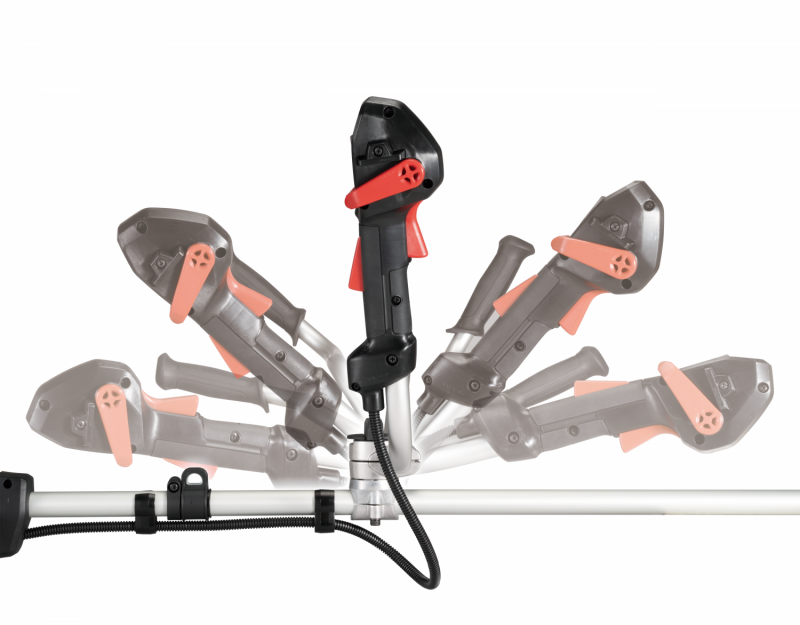

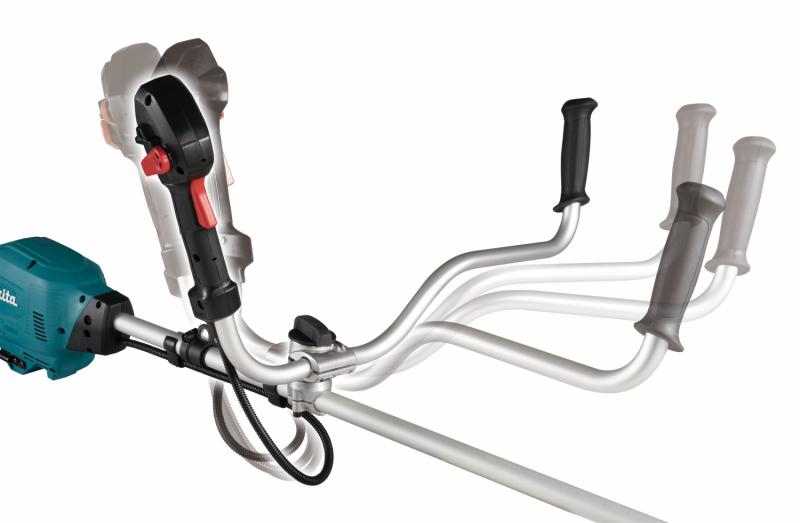

๐ High output power equivalent to that of 35 cc class engine models ๐ Compatible with ø450 mm Nylon cutting head ๐ High-torque mode • The current limiting threshold is raised to extend the load range where these models can run at a constant speed, making them applicable to heavy duty operation • Recommended for heavy-duty operation where particularly high torque • Tap the mode selection button for High-torque mode/ Normal mode ๐ Low noise level is achieved by : • using a low-speed and high-power motor of our own design to reduce the wind noise of motor • eliminating the need for gear reduction inside motor housing to remove gear noise ๐ With offset bike handle and standard protector, designed for use with metal blade/ plastic blade/ nylon cutting head ๐ Variable speed control by lever • enables user to adjust to desired speed and to hold on the speed • Finger fatigue from long continuous operation or repeated on/off operation has been reduced due to shorter trigger travel and reduced trigger pull resistance, which have been achieved by redesigning: ∙ Variable speed control lever (Adjusting lever) for use as variable speed control only ∙ Trigger switch for on/off control in single-speed mode only ๐ Tool-less handle angle adjustment ๐ Left/right separate type bike handle • Knob-type handle holder enables tool-less quick angle adjustment of handle bars for use or storage • Handle-to-shaft angle of each handle bar is independently adjustable, allowing for personal fit and comfort in operation or space-fitting storage • Compatible with existing ø270 mm Shredder blade and ø225 mm ๐ Chisel blade ๐ Rigid ø25.4 mm shaft pipe ensures high rigidity equivalent to that of 35 mL class engine models ๐ Rear end mounted motor ๐ AFT (Active Feedback sensing Technology) ๐ Grass tangles removing function ๐ WetGuard/ IPX4-compatible

Standard Equipments : Hex wrench, Box wrench, Band assembly, Accessory bag, Nylon cutting head , Metal blade, Plastic blade, Tool cover


Technical specifications

Cutting width : Metal blade 255 mm
Cutting width : Nylon cutting head 450 mm
Cutting width : Plastic blade 305 mm
No Load Speed 0 - 6,700 minˉ¹
Spindle size M10 x 1.25 LH
Continuous Use BL4050F : 11 - 81 min.
Dimensions (L x W x H) 1,966 x 690 x 546 mm
Net weight 5.9 - 7.2 kg
Variable Speed
Brake
Constant Speed
Soft Start
