HP0300
Hammer Driver Drill
HP0300
Hammer Driver Drill
Hammer Driver Drill 10 mm (3/8") 320 W
Features
- Compact Design with a Short Overall Length
- Reliable 10 mm double sleeve keyless drill chuck for easy bit installation and removal
- Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
- 2-mode operation for "Rotation Only" or "Hammering with Rotation" for multiple applications
- Variable speed control by trigger enables user to match the speed to the application
- Rubberized soft grip provides more control and reduced fatigue
- Recessed lock-on button for continuous use
- Reversing switch is conveniently located
- Externally accessible carbon brushes for easy replacement

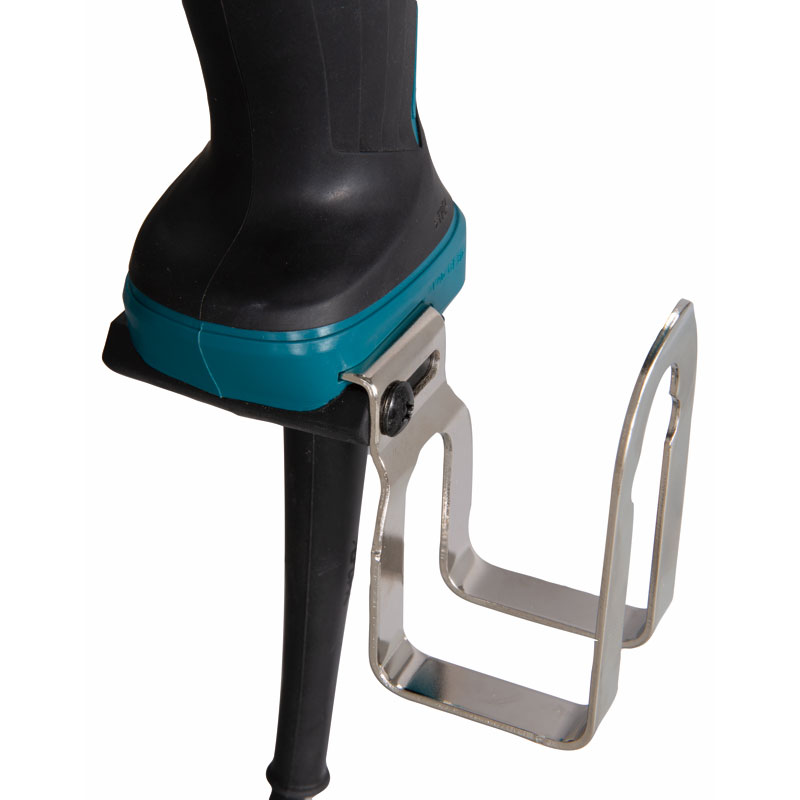

- Optional hook can be attached
- Double insulated
Standard Equipments : Bit
Technical specifications
| Continuous Rating Input | 320 W |
|---|---|
| Capacity : Concrete | 8 mm |
| Capacity : Steel | 10 mm |
| Capacity : Wood | 28 mm |
| Chuck Capacity | 1.0 - 10 mm |
| Blows Per Minute (BPM) | 0 - 22,000 / 0 - 6,750 |
| No Load Speed : High/Low | 0 - 1,500 / 0 - 450 minˉ¹ |
| Max Fastening Torque : High/Low | 56 / 21 N·m |
| Max Lock Torque | 42 N·m |
| Dimensions (L x W x H) | 235 x 67 x 206 mm |
| Net weight | 1.3 kg |
| Carbon Brush | 411 |
