4100NH3
Cutter
4100NH3
Cutter
Cutter 110 mm (4-3/8") 1,300 W , Dry / Wet Type

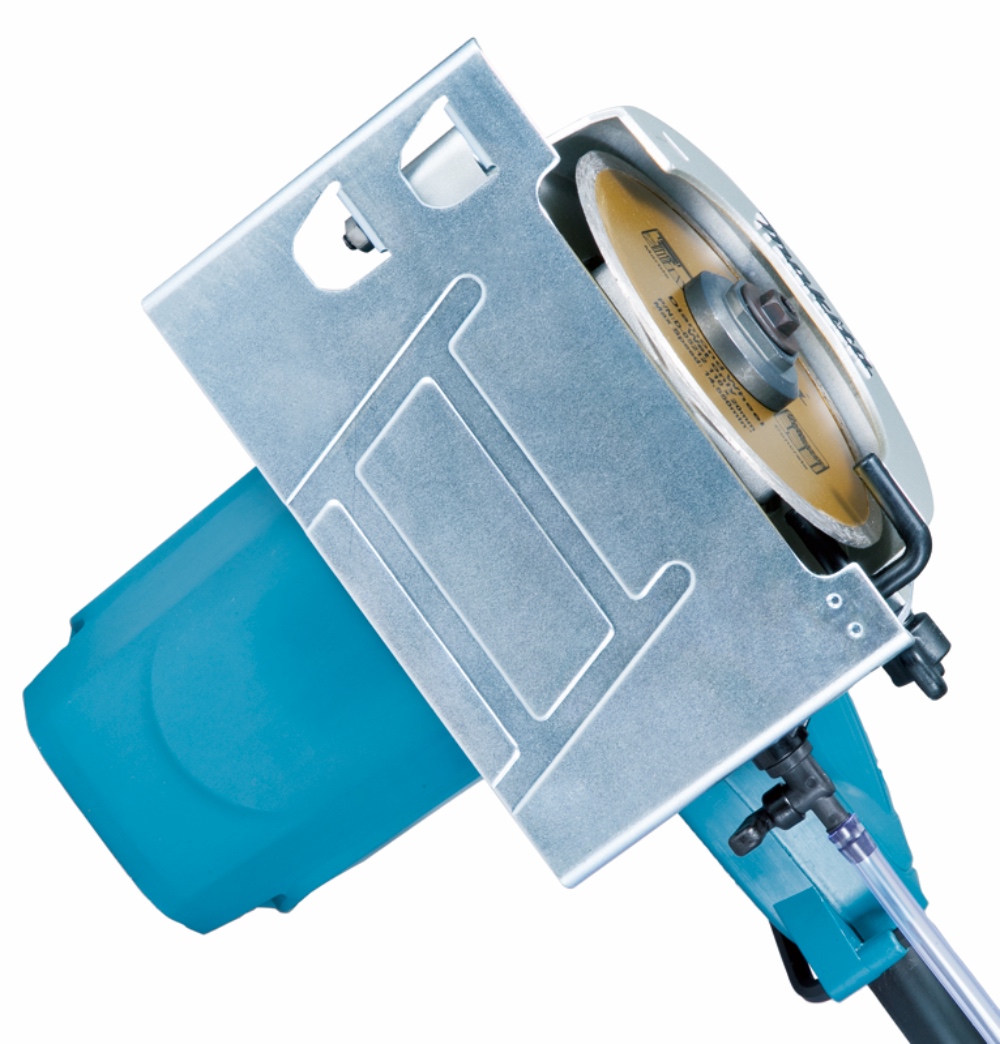

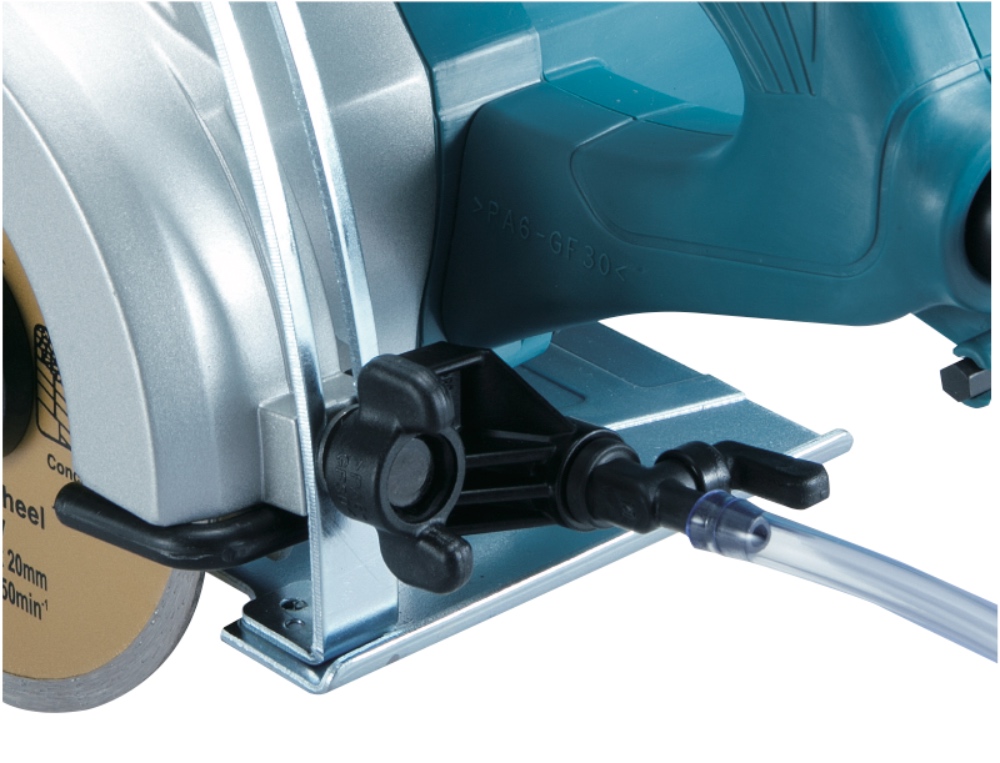

๐ Powerful 1,300 W motor delivers 13,800 RPM ๐ Redesigned base with grooved back surface for smoother operation ๐ Compact and lightweight for less operator fatigue ๐ Compact blade case developed with the same design concept as 4100NH2 ๐ Easy alignment of base end with the cutting line on workpiece ๐ Water supply fixture can be mounted ๐ On-tool hex wrench for fast and easy blade changes and keeping it from lost ๐ Anti-slip dimples ๐ Specialized for right angle cutting only ๐ Flat motor housing allows tool to stand upright when changing blades ๐ Cuts up to 32 mm (1-1/4") ๐ Can be used with wet or dry type wheels ๐ Easy to adjust depth gauge for precision cutting ๐ Large top handle design for increased comfort ๐ Lock-off button helps minimize accidental starts ๐ Lock-on button for continuous use operation
Standard Equipments : Diamond wheel, Water supply pipe set, Wrench, Hex wrench
Technical specifications
Continuous Rating Input | 1,300 W |
---|---|
Wheel Diameter | 110 mm |
Max Cutting Capacity | 32 mm |
No Load Speed | 13,800 minˉ¹ |
Dimensions (L x W x H) | 227 x 209 x 166 mm |
Net weight | 2.8 kg |
Carbon Brush | 303 |
