VR004G
Cordless Concrete Vibrator



VR004G Parts List (0.91 MB)

VR004G Leaflet (18.69 MB)

VR004G
Cordless Concrete Vibrator

40Vmax Cordless Concrete Vibrator 38 mm (1-1/2")

  
Electronic 2-Speed
Constant Speed

Features

  • 40Vmax XGT Cordless Concrete Vibrator
  • Compatible with large diameter shafts
  • VR001G series supports a larger vibration part diameter than the current model and transmits vibration to a wider range to improve compaction efficiency thanks to 40Vmax XGT Li-Ion battery and BL motor
  • Flexible shafts from ø28 to ø38 are suitable for a wide range of jobsites

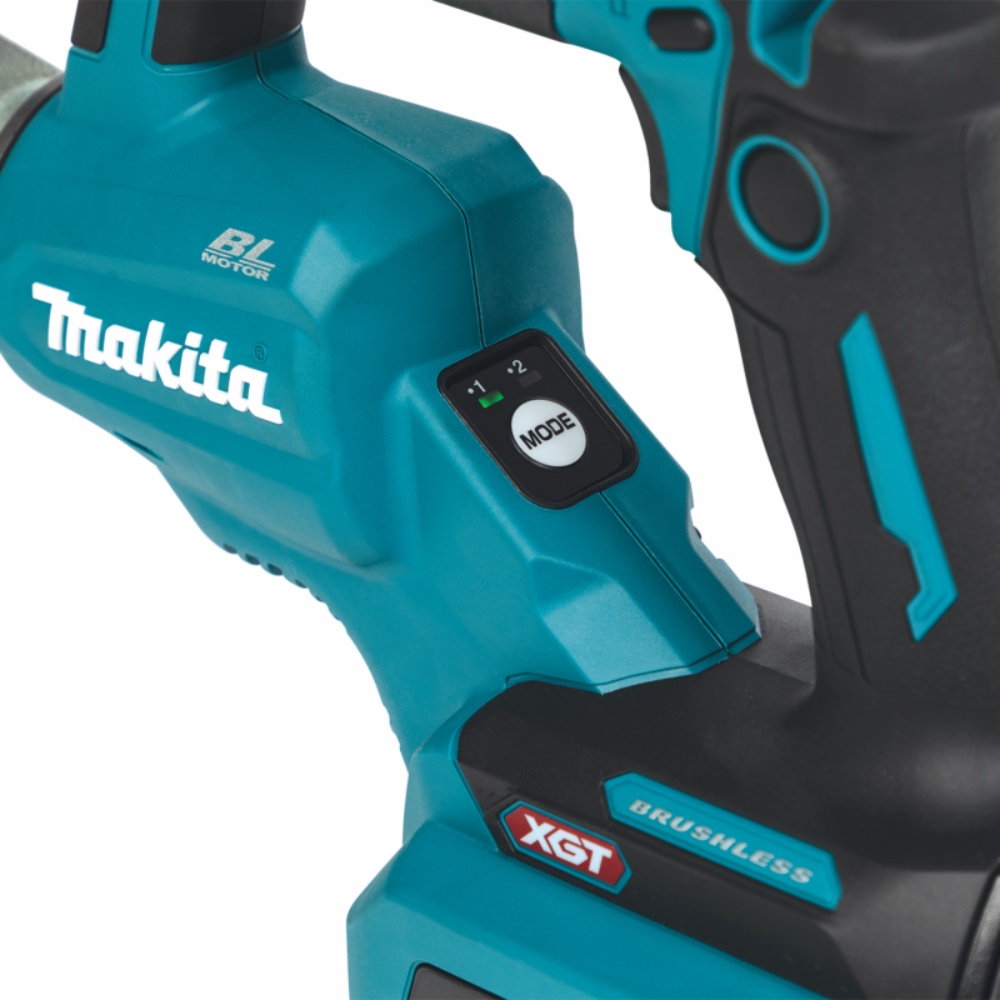

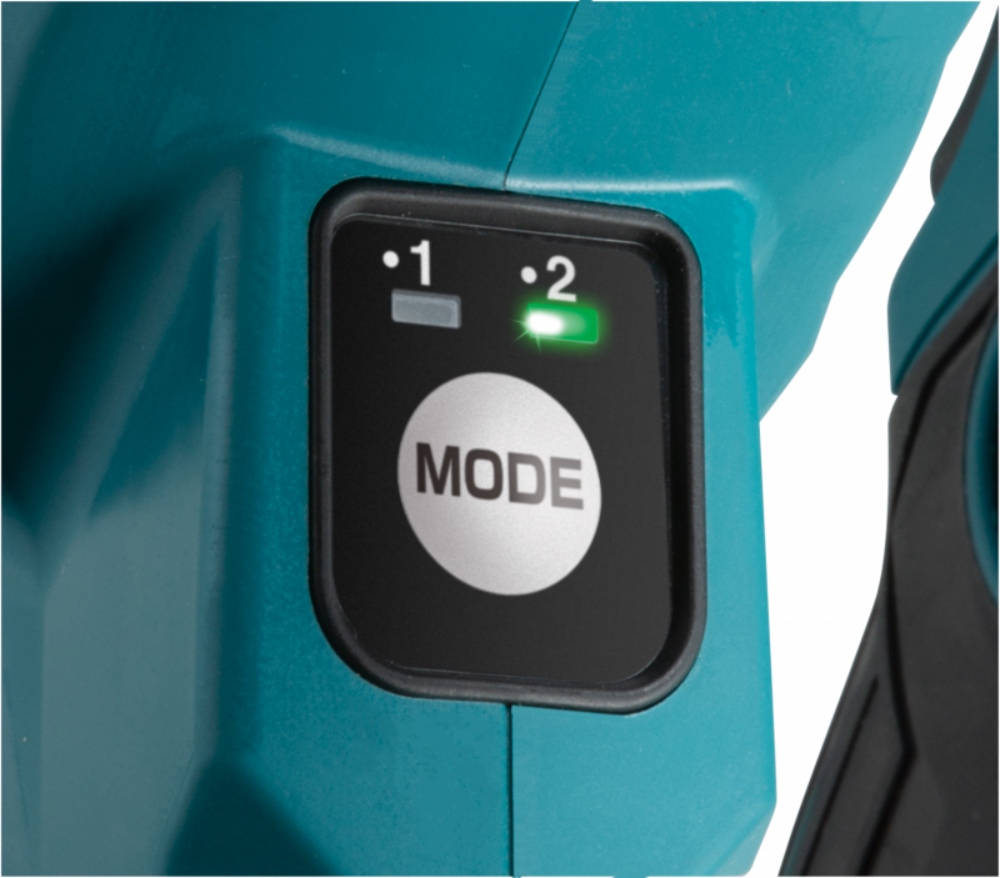

  • Two power mode selection (normal/power) allows to use the machine for a wide range of jobsites:

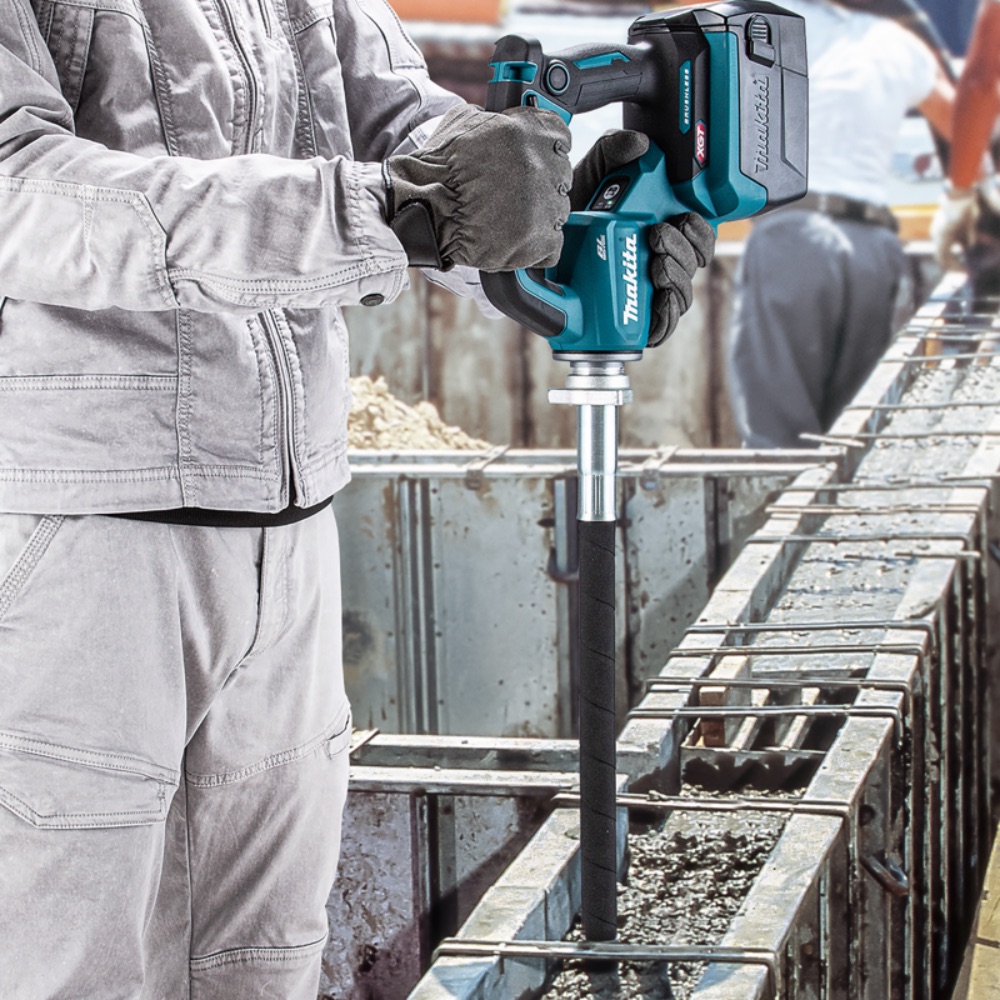

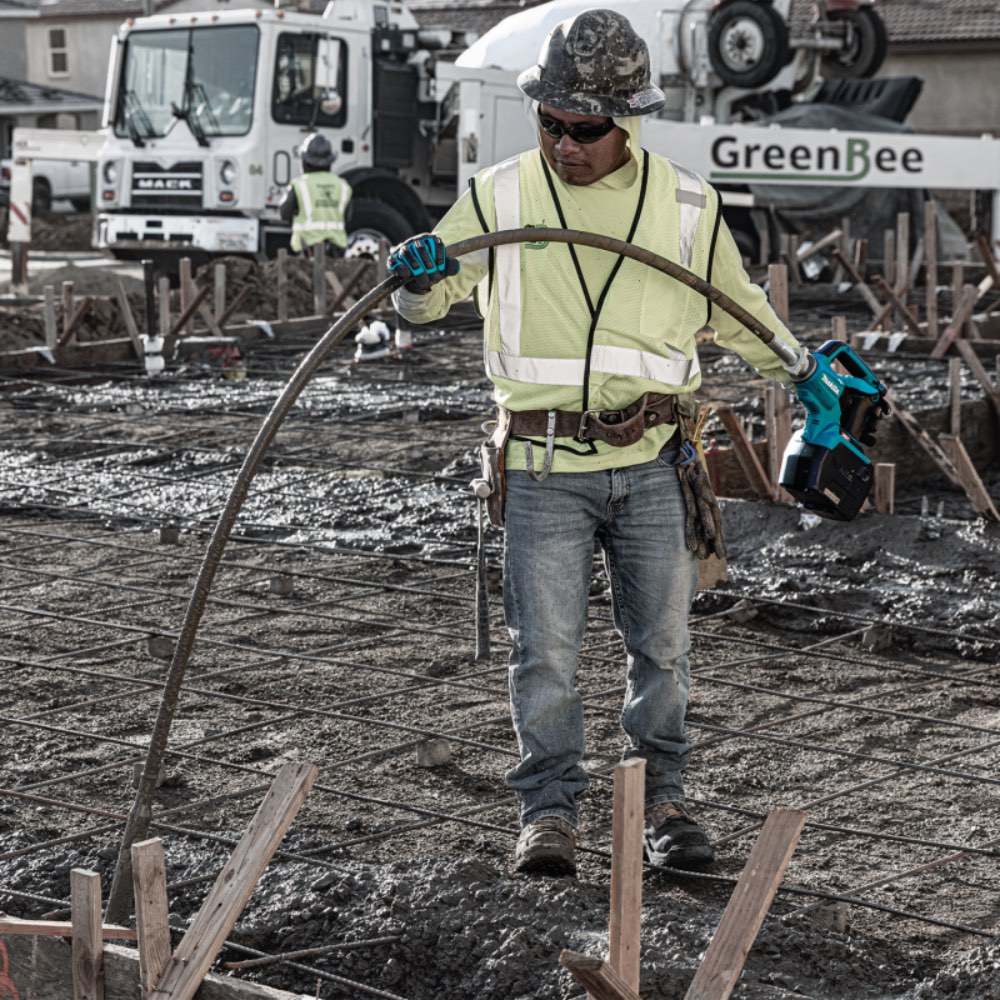

    • Power mode: For a wide range of concrete compaction, such as of soil floors, pillars, and mat foundations
    • Normal mode: Ideal for delicate works, such as step finishing or closure of temporary construction openings, where concrete is required not to flow out of the mold
  • With Flexible shaft ø38-1.2m or ø38-2.4m
  • Constant speed control allows for stable compaction work
  • Switch cover protects switch trigger and lock-on button from being blocked by adhered and hardened material such as concrete

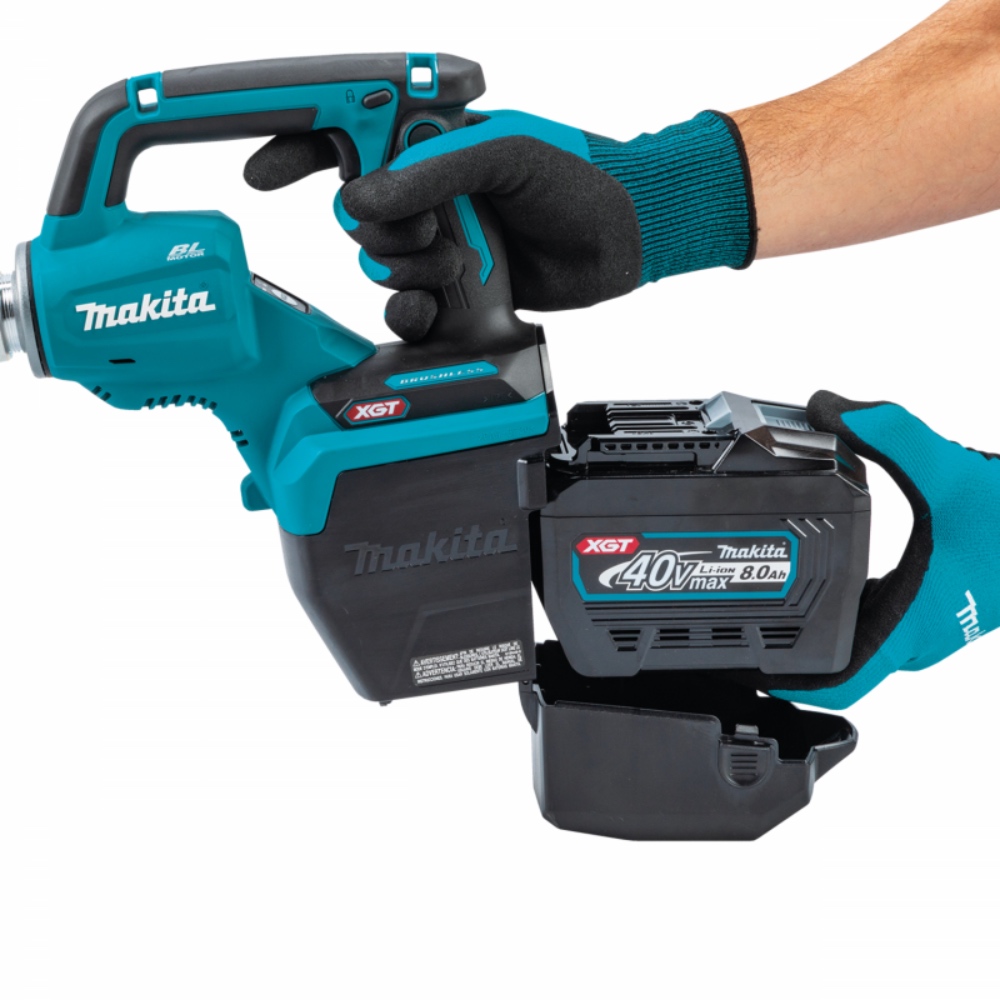

  • Various Battery covers are available for all recommended or compatible batteries
    • The supplied Battery cover is compatible with BL4020/BL4025/BL4040
    • The following Battery covers are also available as an option:
    ∙ Battery case L set for BL4050F/BL4080F
    ∙ Battery case H set for PDC01/PDC1200
  • High water-resistance compatible with XPT
  • Shoulder strap (sold separately) can be attached

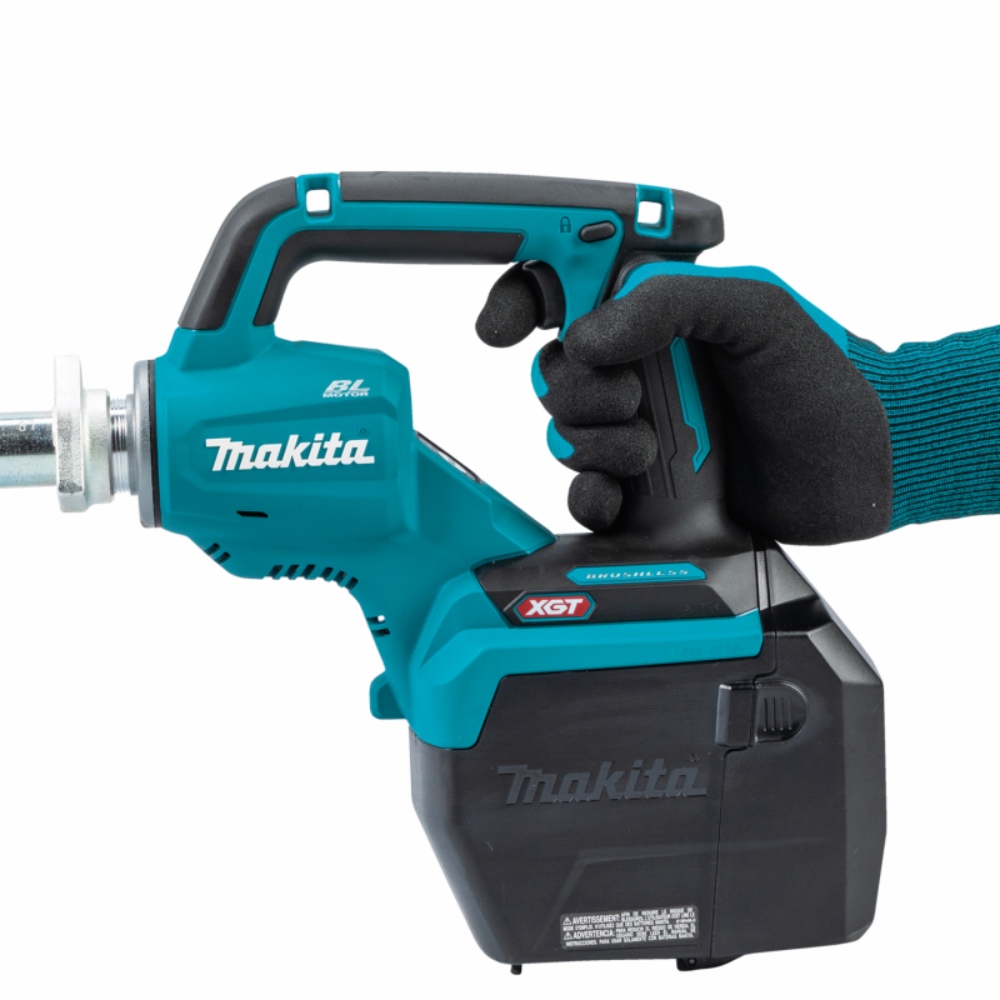

  • Ergonomically designed handle fits your hand well

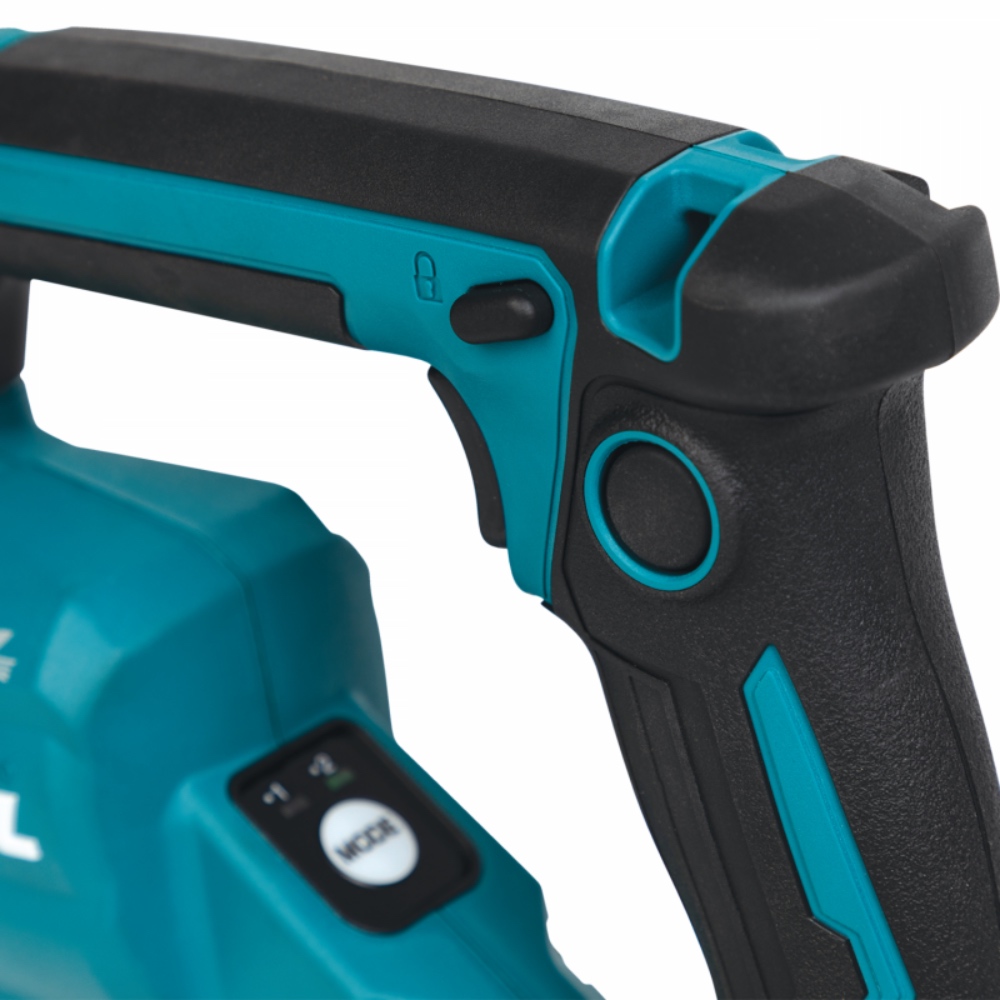

  • Lock-on switch reduces hand fatigue in long continuous operation
  • Trigger lock minimizes accidental start-up during transportation
  • Battery capacity warning lamp indicates ideal time to recharge battery
  • Anti-restart function engineered to minimize motor start up when battery is inserted with switch locked on

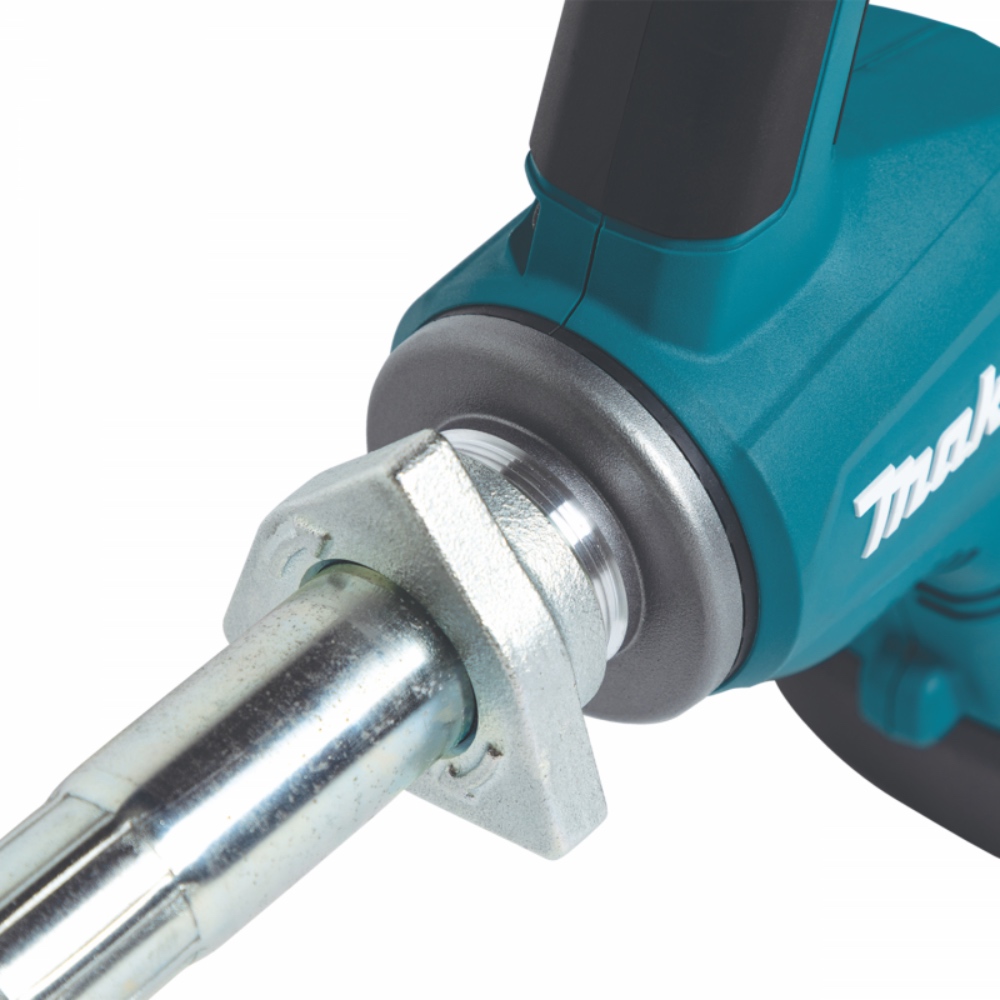

  • Flexible shaft thread size
    • Flexible core shaft: M6 x 1.0
    • Coupling of Outer casing: M36 x 1.5
  • Battery protection circuit protects against overloading, over-discharging and over-heating

Standard Equipments : Wrench


Parts List
(0.91 MB)


Leaflet
(18.69 MB)

Available options

VR004GZ
Tool only


Technical specifications

Max out put PDC1200 : 550 W W
Vibrator diameter 38 mm
Flexible shaft length 1.2, 2.4 m
Vibrations per minute (VPM) 15,500 / 12,000
Work amount on a full battery charge w/BL4040 : 45 - 60 min
Dimensions (L x W x H) 282 x 112 x 258 mm
Net weight 4.8 - 7.8 kg
