(EN / TH)

SD100D
Cordless Drywall Saw



SD100D
Cordless Drywall Saw

12V max Cordless Drywall Saw

  

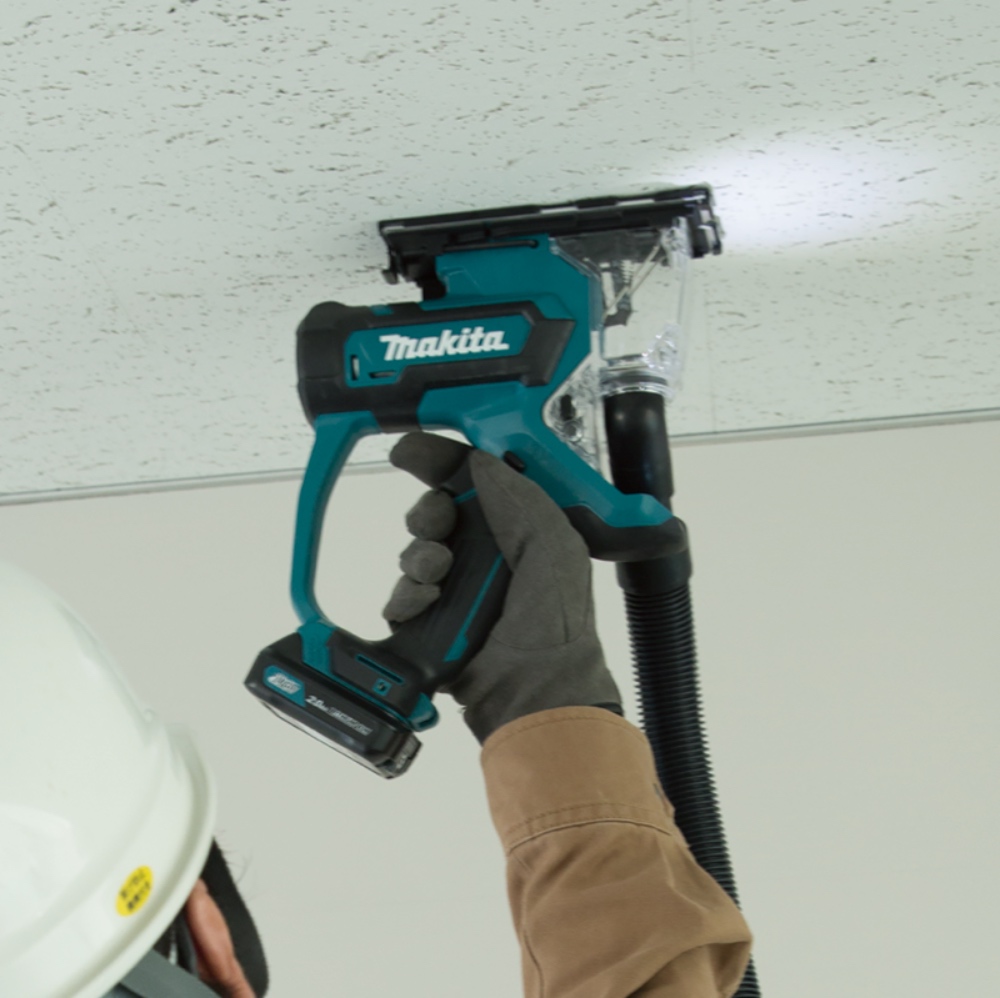

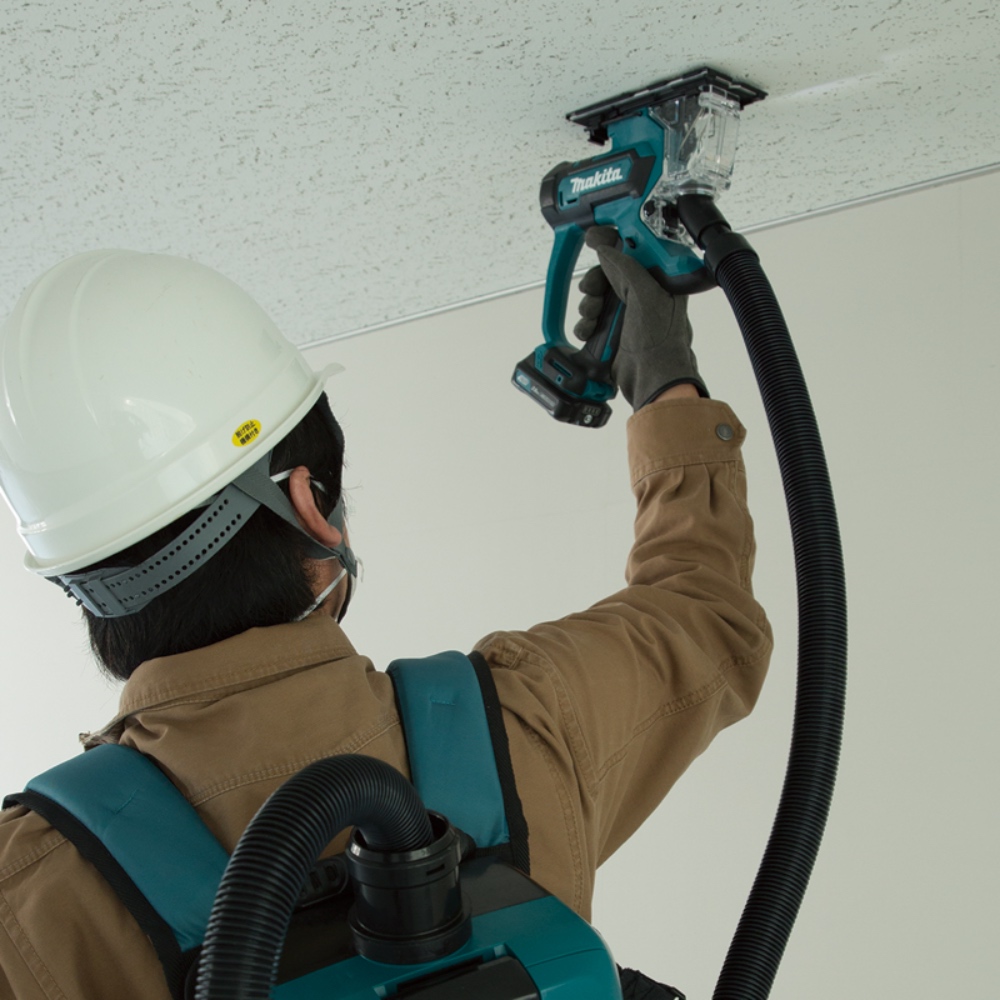

๐ Compact and ergonomic design for reduced operator fatigue ๐ Ideal for cutting holes in drywalls when setting ceiling lights, air vents etc ๐ More suitable for straight cuts compared with general cut-out tools ๐ Dust box designed to catch dust in overhead applications for comfortable work ๐ Excellent tool balance allows easy overhead application ๐ Easy straight cutting achieved by the blade shape and cutting system ๐ V-notch in base plate helps easy tracing of cutting line ๐ Corner cutting can be easily done ๐ Variable speed control by trigger allows easier start of cutting ๐ Orbital mechanism for increased efficiency ๐ Cutting depth can be adjusted to drywall thickness ๐ Compatible with both special blades for this drywall saw and OLFA snap-off blades ๐ Base cover and blade cover protect drywall surfaces from damage / scratches ๐ Dust box connectable to vacuum cleaners is also available as optional accessory ๐ LED job light brightly illuminates the cut line for easy cutting in the dark place ๐ Ergonomically designed handle with soft grip provides increased comfort on the job ๐ Trigger lock function for continuous operation ๐ Hex wrench can be stored on the machine

Standard Equipments : Blade, Blade cover, Base cover, Hex wrench


Technical specifications

Strokes Per Minute 0 - 6,000 minˉ¹
Length of Stroke 6 mm
Capacity : Drywall 30 mm
Capacity : Wood 15 mm
Dimensions (L x W x H) 239 x 79 x 266 mm
Net weight 1.4 - 1.6 kg
Variable Speed
Orbital Cutting
Dust Collection
Built-in-Job Light
