HS301D
Cordless Circular Saw



HS301D
Cordless Circular Saw

12V max Cordless Circular Saw 85 mm (3-3/8")

  

๐ Powerful 1,500 RPM motor delivers fast cutting of plywood, MDF, pegboard, particleboard, melamine, drywall and more ๐ 85 mm (3-3/8") blade delivers a 25.5 mm (1") cutting capacity for a wide range of cutting applications ๐ Adjustable cutting depth from 25.5 mm (1") at 90° and 16.5 mm (5/8") at 45° ๐ Tilting base for bevel cuts from 0° - 45° ๐ Built-in dust blower helps keep the line of cut free of debris for increased accuracy ๐ Ergonomically designed handle with soft grip provides comfortable grip and more control while minimizing hand fatigue and pain ๐ Battery protection circuit protects against overloading, over-discharging and over-heating ๐ On-tool hex wrench for fast and easy blade changes and keeping it from lost ๐ Two-stage safety trigger switch minimizes accidental start up (For tool with Lock-off button) ๐ Optional dust nozzle can be attached for use with a vacuum cleaner

Standard Equipments : TCT saw blade, Hex wrench


Technical specifications

Wheel Diameter 85 mm
Hole diameter 15 mm
Max Cutting Capacity 25.5 mm
Max Cutting Capacity 45° 16.5 mm
No Load Speed 1,500 minˉ¹
Dimensions (L x W x H) 313 x 170 x 155 mm
Net weight 1.6 - 1.7 kg

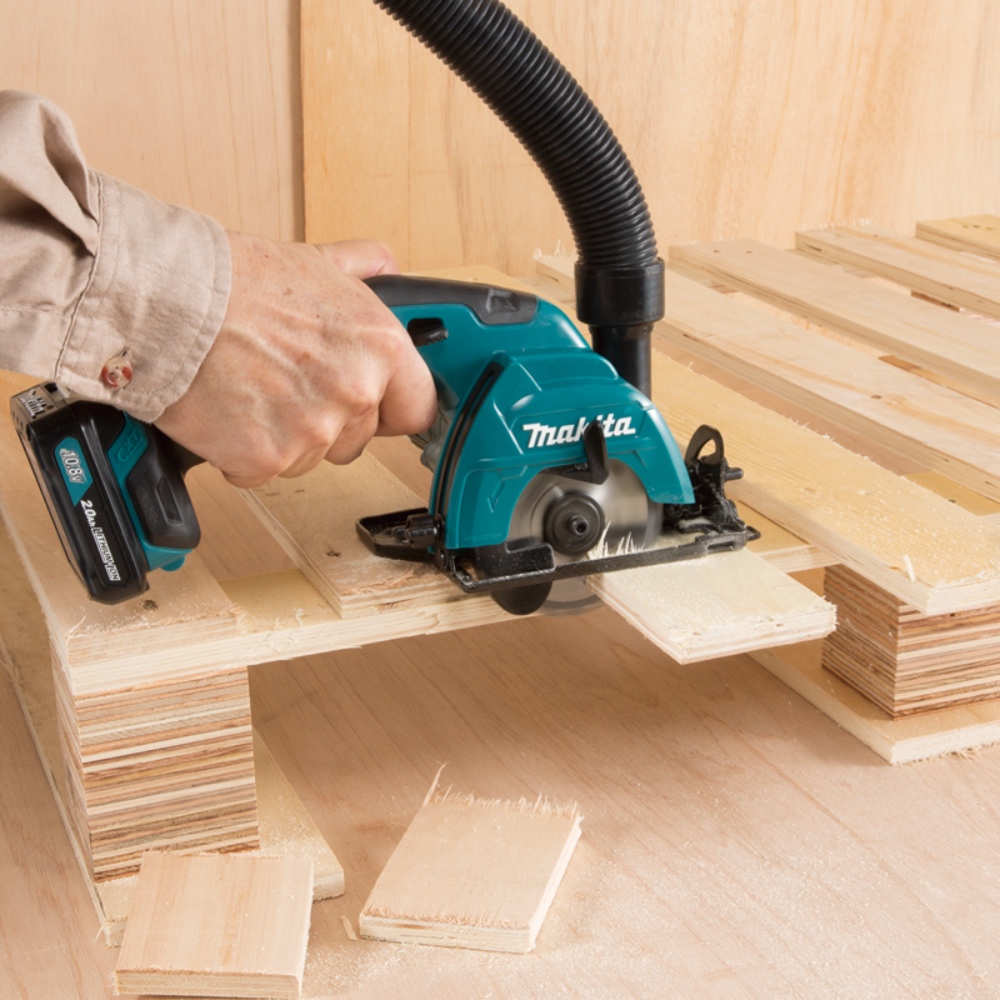

Dust Collection
