CC301D
Cordless Cutter



CC301D
Cordless Cutter

12V max Cordless Cutter 85 mm (3-3/8") Wet Type

  

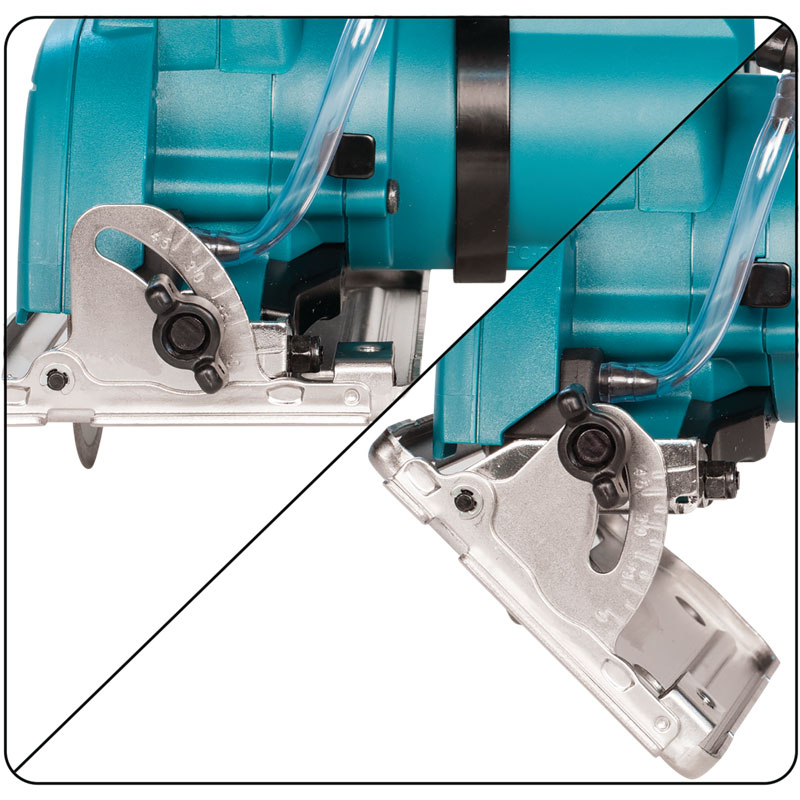

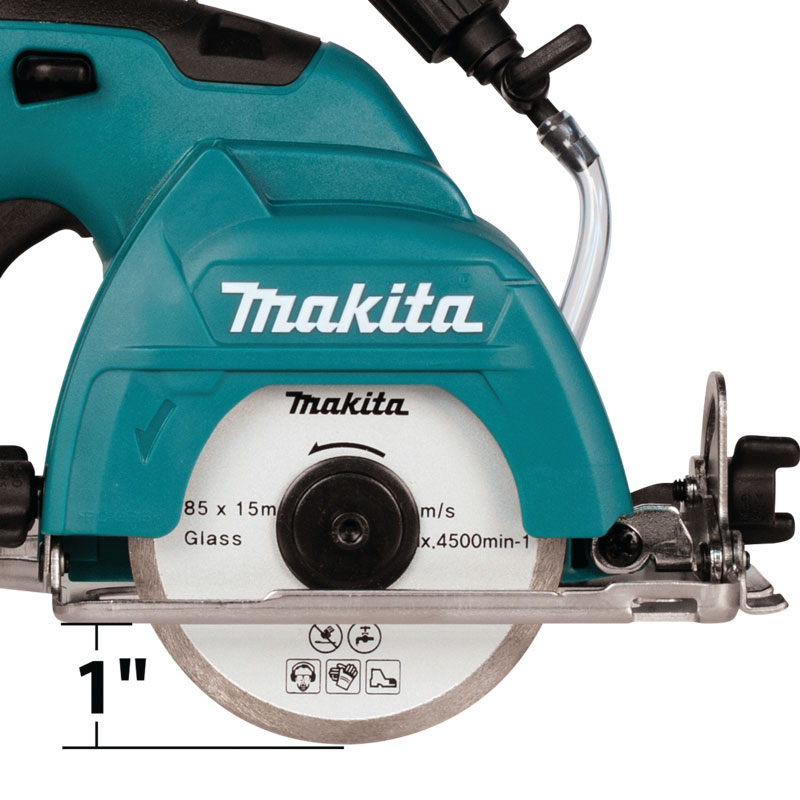

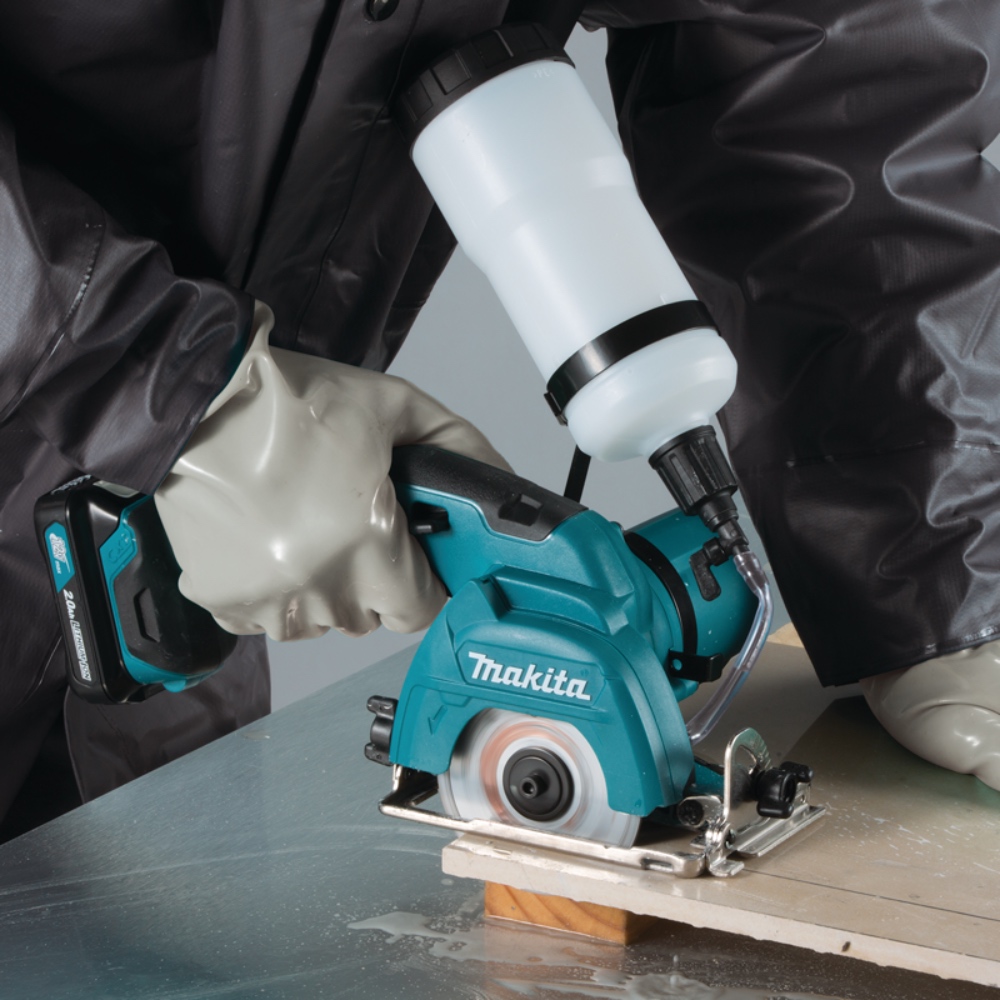

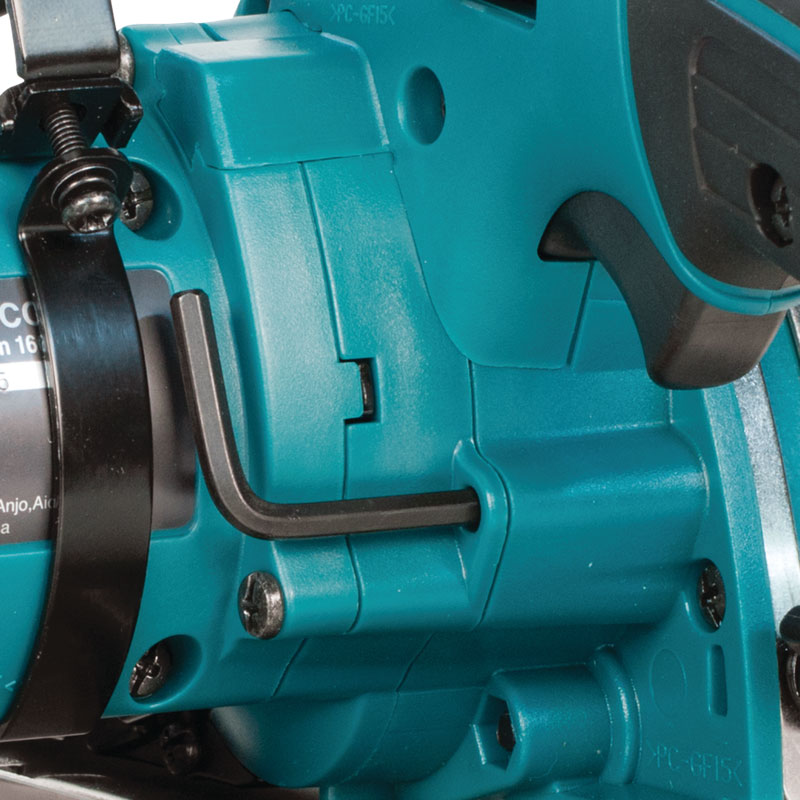

๐ Specifically designed for cutting glass and ceramic tile ๐ Powerful 1,600 RPM motor delivers fast and powerful cutting ๐ 85 mm blade delivers a maximum cutting depth of 25.5 mm for a wide range of cutting applications ๐ Compact and ergonomic design at only 313 mm long ๐ Lightweight for reduced operator fatigue ๐ Nickel-plated tilting base for bevel cuts from 0° to 45° ๐ Nickel-plated tilting base minimizes staining and corrosion ๐ Adjustable cutting depth up to 25.5 mm at 90° and 16.5 mm at 45° ๐ Large water supply tank with easy open cap for wet cutting applications ๐ Soft grip provides increased comfort on the job ๐ Lock-off safety lever minimizes accidental start up ๐ Conveniently located shaft and lock for easy blade replacement ๐ Battery protection circuit protects against overloading, over-discharging and over-heating

Standard Equipments : Diamond wheel, Water supply tank assembly, Hex wrench


Technical specifications

Wheel Diameter 85 mm
Hole diameter 15 mm
Max Cutting Capacity 25.5 mm
No Load Speed 1,600 minˉ¹
Tank 0.5 L
Dimensions (L x W x H) 313 x 170 x 125 mm
Net weight 1.9 kg
Bevel Cutting 45 left
