DTW300
Cordless Impact Wrench

DTW300
Cordless Impact Wrench

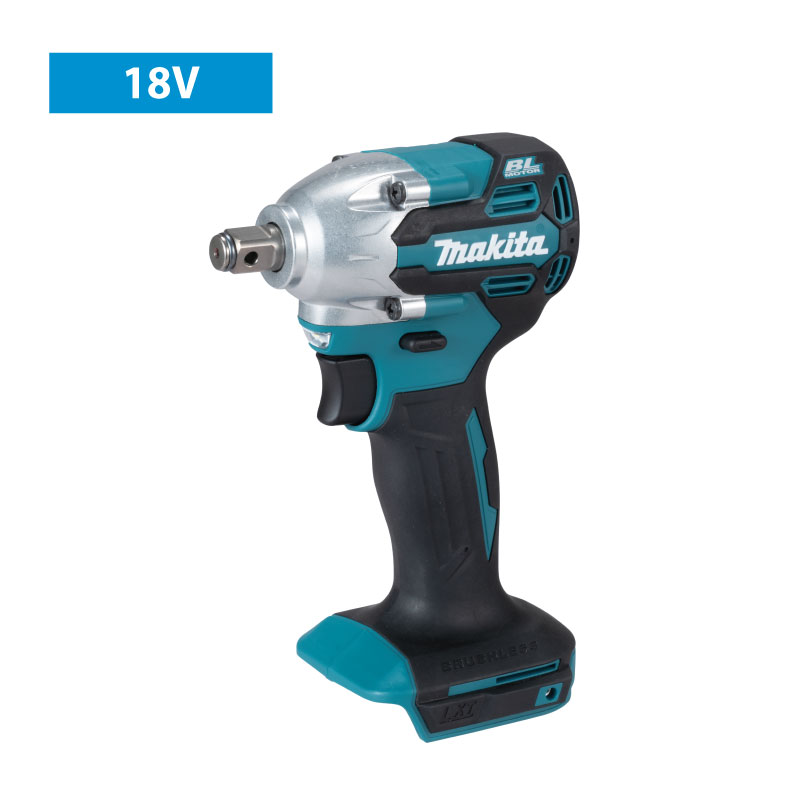

18V Cordless Impact Wrench 1/2" (12.7 mm) 330 N·m

  

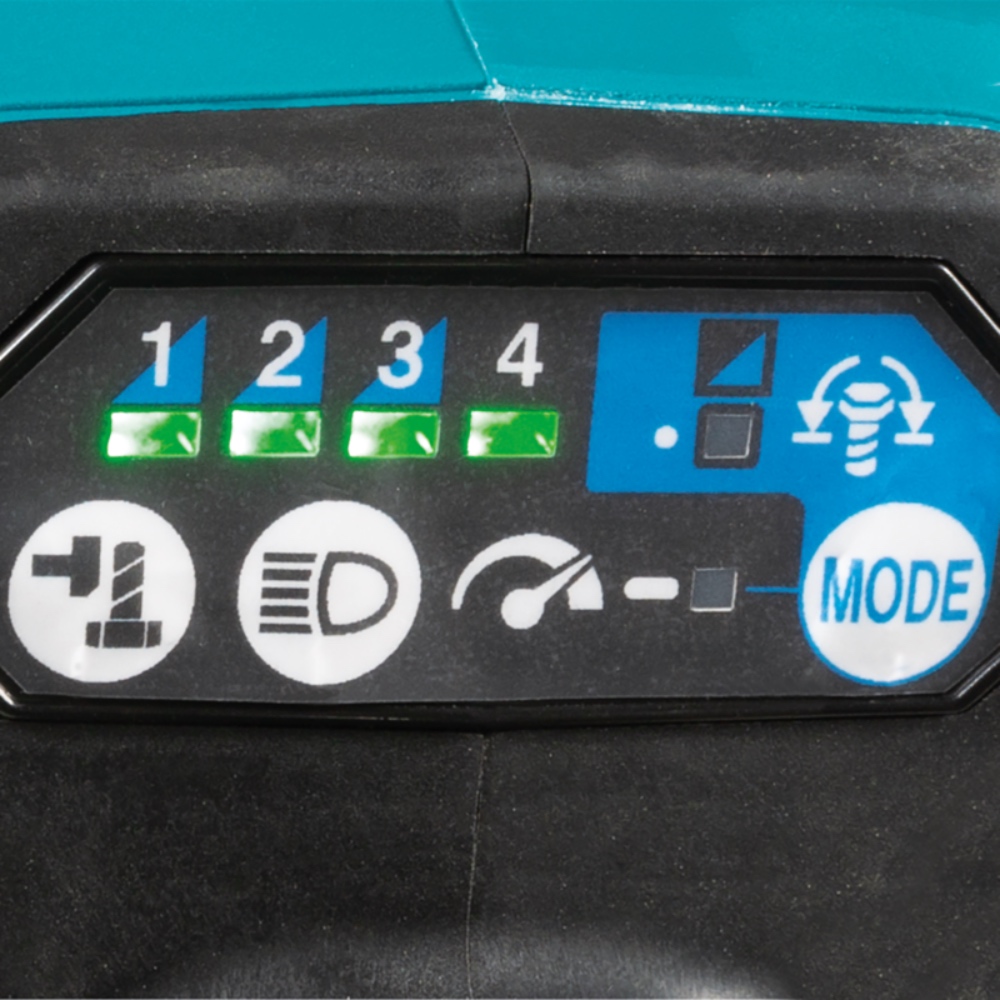

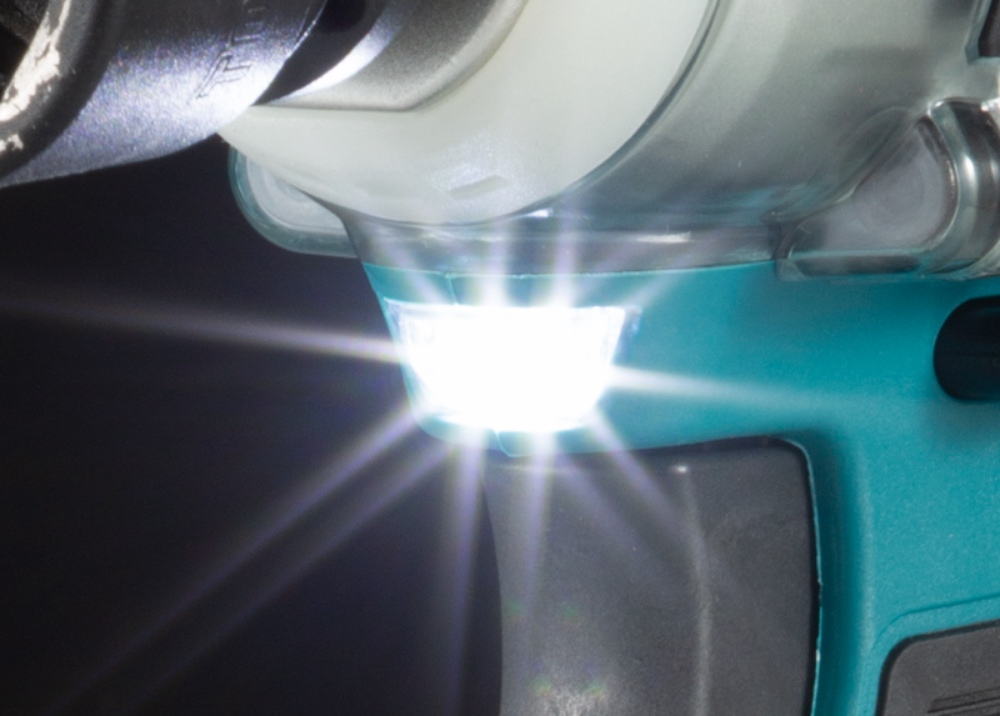

๐ Increased rotation speed delivers higher torque than DTW285 ๐ 3 modes of reaction time for automatic stop available both in forward and reverse rotation modes ๐ Trigger switch with full speed mode allows for less hand and finger fatigue ๐ Compact design with a short overall length of 144 mm (5-5/8") ๐ Socket can be fixed with C-ring (ring spring) ๐ BL motor delivers 330 N·m (240 ft.lbs.) of max torque ๐ BL motor is electronically controlled to optimize battery energy use for longer run time per charge ๐ Variable 4-speed provides fastening control for a wide range of applications ๐ Twin LED lights ๐ Convenient 1/2" (12.7 mm) square drive for quick socket changes ๐ Ergonomically designed handle with soft grip provides increased comfort on the job ๐ Extreme Protection Technology (XPT) is engineered to provide improved dust and water resistance for operation in harsh conditions ๐ Electric brake for increased operator safety ๐ Reversing switch is conveniently located ๐ Phosphorescent bumper glows blue in dark places

Standard Equipments : Belt clip


Technical specifications

Fastening capacities Standard bolt M10 - M20
Fastening capacities High strength bolt M10 - M16
Square drive 12.7 mm (1/2")
No Load Speed 0 - 3,200 / 2,600 / 1,800 / 1,000 minˉ¹
Impacts Per Minute (IPM) 0 - 4,000 / 3,400 / 2,600 / 1,800
Max fastening torque 330 N·m
Dimensions (L x W x H) 144 x 81 x 246 mm
Net weight 1.5 - 1.8 kg
Variable Speed
Brake
Reversing
Electronic 4-Speed
Built-in-Job Light
