(EN / TH)

DPJ180
Cordless Plate Joiner

DPJ180
Cordless Plate Joiner

18V Cordless Plate Joiner

  

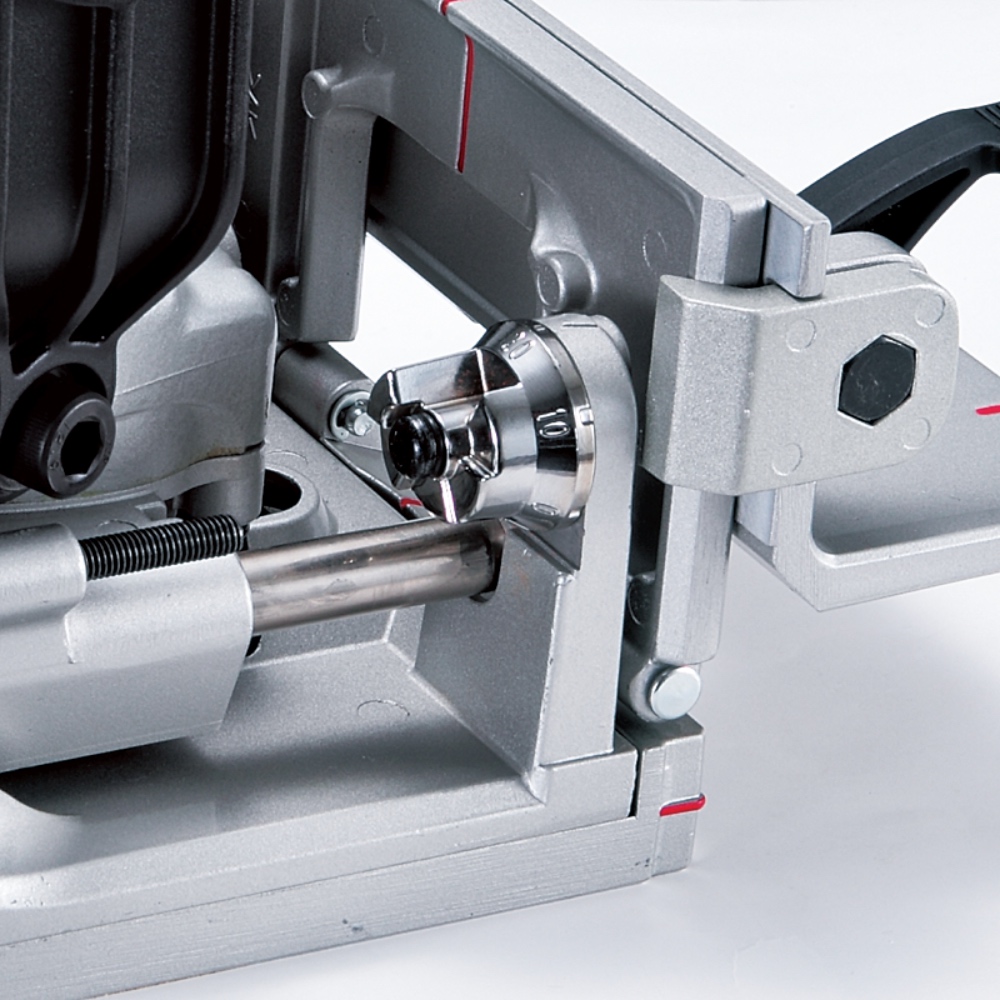

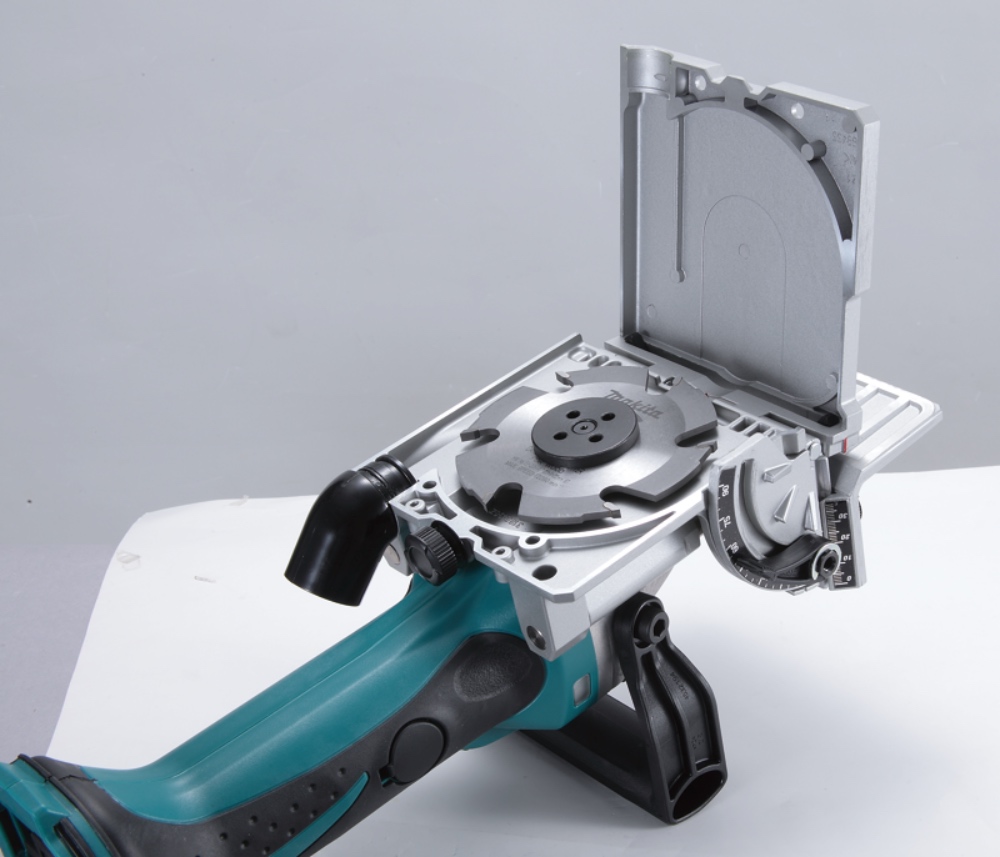

๐ Provides up to 300 cuts or 150 joints on a single charge of BL1830 ๐ Rack-and-pinion vertical fence system engineered for accurate fence adjustments ๐ 6,500 RPM for quick and precise cutting in a variety of woods ๐ Cast aluminum pivot fence with three positive stops at 0°, 45° and 90°, and easy centering on 20 mm (3/4") material ๐ Six depth settings with one-touch stops for #0, #10, and #20 and most common biscuits sizes ๐ Cordless plate joiner provides portability and performance in the field or in the shop without the cord ๐ Large and easy-to-operate cam locks for fence adjustments ๐ Toolless blade cover and shaft lock for fast and easy blade changes ๐ Non-marring rubber inserts on shoe engineered to minimize material from slipping ๐ Cast aluminum front body for added durability ๐ Slim and ergonomic body design for added comfort ๐ Large top grip handle for improved handling ๐ Dust bag for a cleaner work environment ๐ Connectable to vacuum cleaner ๐ Anti-restart function for safety (with warning lamp) ๐ Electronic current limiter (with warning lamp)

Standard Equipments : Cutter blade, Angle guide, Lock nut wrench, Set plate, Dust bag


Technical specifications

Wheel Diameter 100 mm
Hole diameter 22 mm
Max cutting depth 20 mm
No Load Speed 6,500 minˉ¹
Dimensions (L x W x H) 351 x 139 x 149 mm
Net weight 2.8 - 3.1 kg
Carbon Brush 430
Dust Collection
Carrying Case
