HR005G
Cordless Rotary Hammer



HR005G Parts List (1.26 MB)

HR005G Leaflet (1.26 MB)

HR005G
Cordless Rotary Hammer

40Vmax Cordless Rotary Hammer 28 mm SDS-MAX

  
Variable Speed
Brake
Torque Limiter
Constant Speed
Soft Start
Dust Collection
Built-in-Job Light
SDS-MAX Shank
Carrying Case

Features

  • 8.0 Joules (EPTA) Impact Energy Delivers High Performance Equivalent to HR4013C
  • BL motor delivers high power and excellent performance equivalent to corded model HR4013C
  • Active Feedback sensing Technology (AFT) turns the motor off if bit rotation is suddenly forced to stop

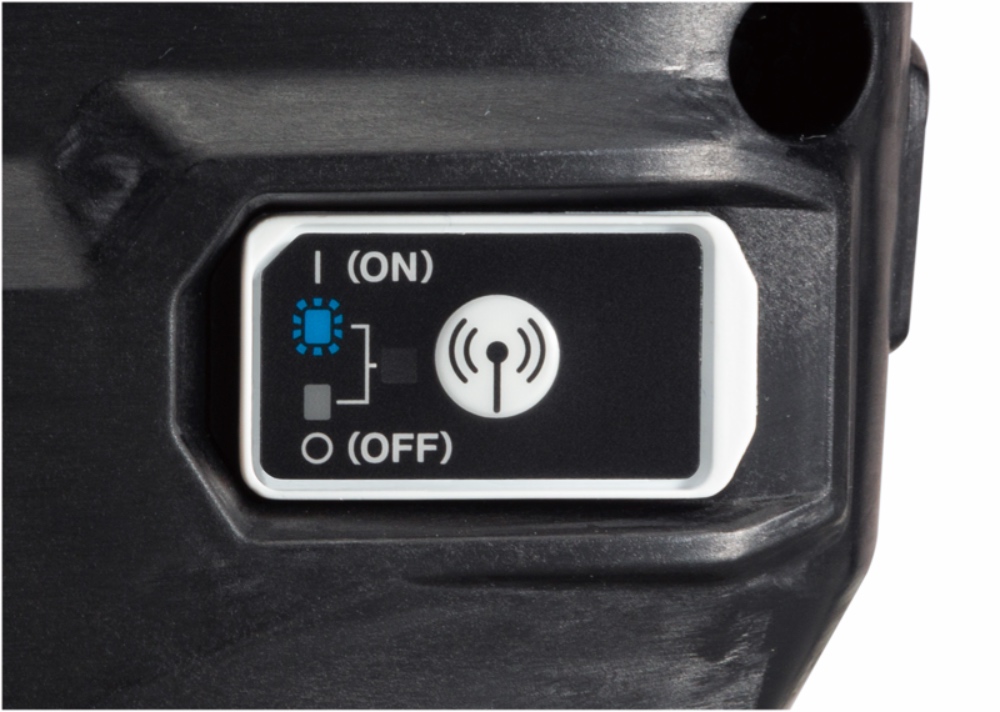

  • Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
  • Low vibration achieved by Anti-Vibration Technology (AVT) & SOFT NO LOAD (suppression of motor speed during no-load)
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • BL motor efficiently uses energy to match torque and RPM to the changing demands of the application

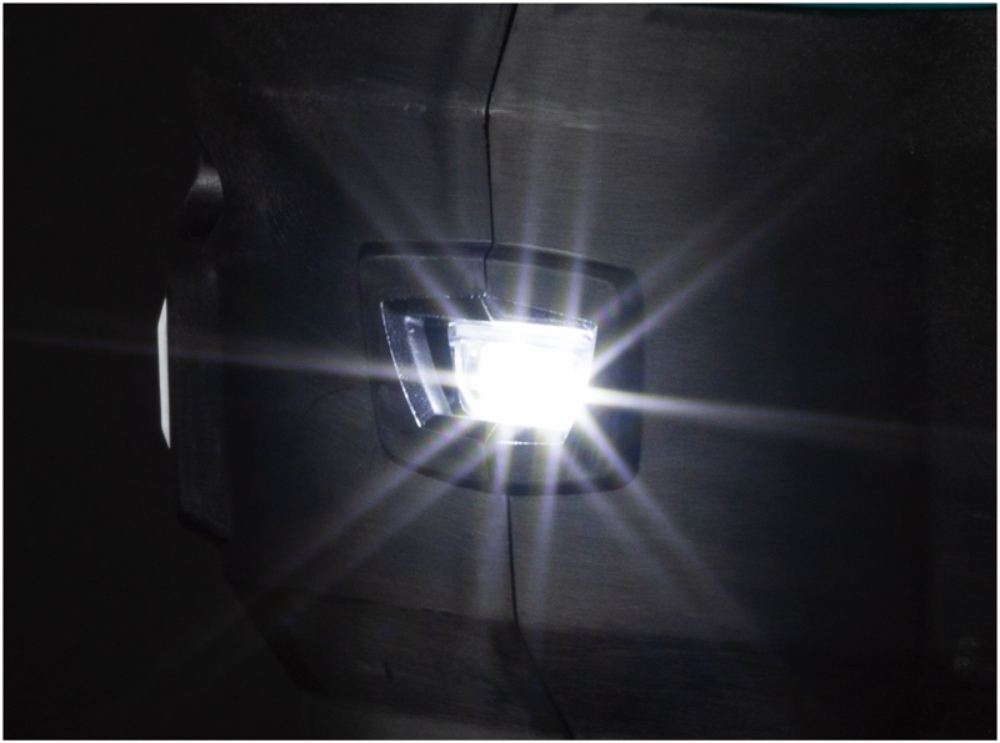

  • Twin LED job lights with preglow and afterglow functions
  • Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

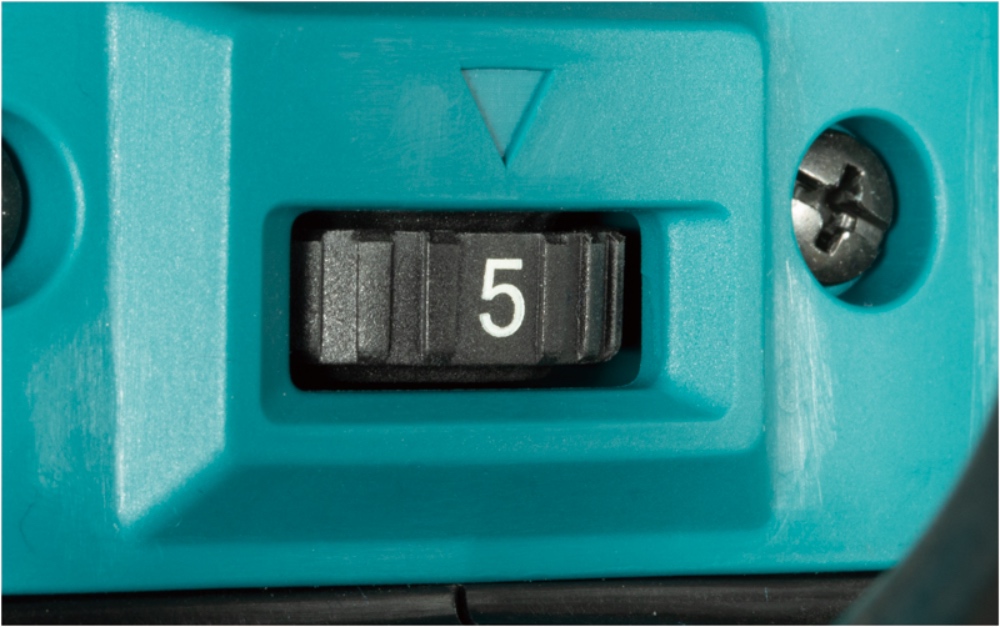

  • Variable speed control dial allows operator to adjust speed based on materials or application
  • Constant speed control automatically applies additional power to the motor to maintain speed under load
  • Soft start for smooth start-ups
  • Extreme Protection Technology (XPT) engineered to provide increased dust and water resistance
  • 2-mode operation for "Hammering Only" or "Hammering with Rotation" for multiple applications
  • Depth gauge for increased drilling consistency.
    Electric brake for maximum productivity.
    Battery protection circuit protects against overloading, over-discharging and over-heating


Parts List
(1.26 MB)


Leaflet
(1.26 MB)

Available options

HR005GZ
Tool only   


Technical specifications

Impact energy 8 J
Capacity : Concrete 40 mm
Shank type SDS-MAX
Blows Per Minute (BPM) 1,450 - 2,900
No Load Speed 250 - 500 minˉ¹
Dimensions (L x W x H) 477 x 115 x 286 mm
Net weight 7.4 - 8.2 kg
