HP001G
Cordless Hammer Driver Drill

HP001G
Cordless Hammer Driver Drill

40V max Cordless Hammer Driver Drill 125 N·m

  

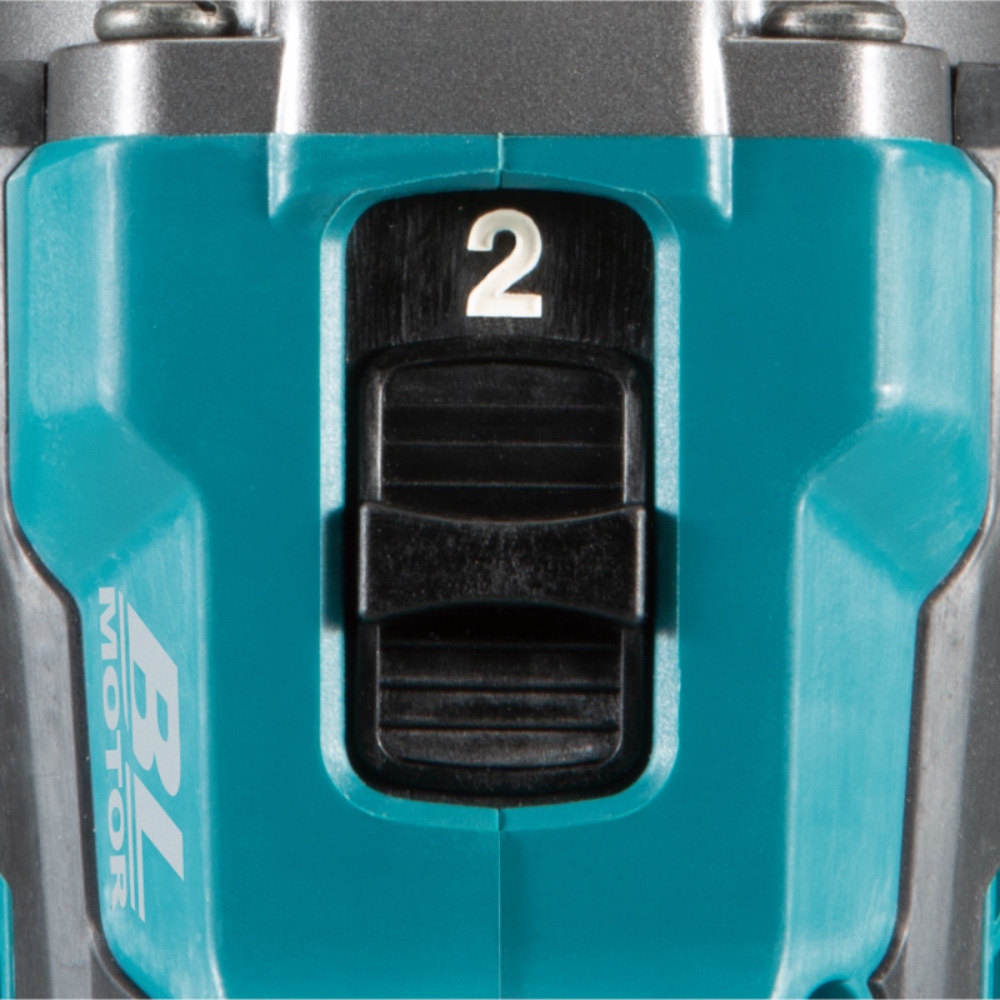

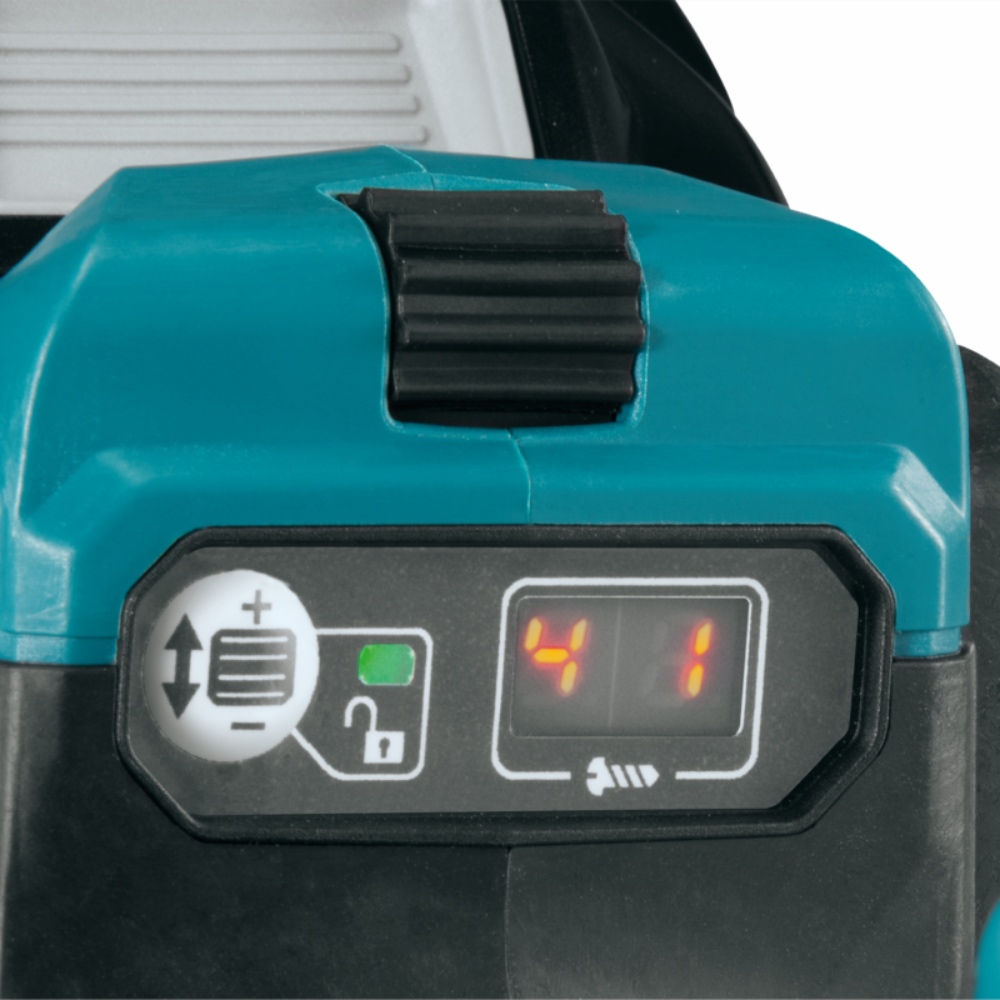

๐ Excellent performance in continuous heavy duty applications ๐ Outstanding drilling speed; Delivers 20% or more higher speed than previous model ๐ Increased max speed (0-2,600 RPM) in High mode for faster drilling speed in light duty applications ๐ Variable 2-speed transmission (0-650 & 0-2,600 RPM) for a wide range of drilling, fastening and hammer drilling applications ๐ Compact overall length for easy handling and control ๐ Active Feedback sensing Technology (AFT) turns the motor off if bit rotation is suddenly forced to stop ๐ Electronical clutch (41/21 settings in Low/High mode) allows for clutch setting in the torque range which cannot be covered with mechanical clutch ๐ Jog dial for easy adjustment of fastening torque; with digital display for visual confirmation of selected torque ๐ Electric brake for maximum productivity and increased operator safety ๐ Keyless chuck for quick and easy bit installation and removal ๐ Depth gauge for increased drilling consistency ๐ XPT (eXtreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh conditions ๐ Reversing switch is conveniently located

Standard Equipments : Belt clip, (+)(-) Bit


Technical specifications

Capacity : Steel 20 mm
Capacity : Wood 50 mm
Capacity : Masonry 20 mm
Chuck Capacity 1.5 - 13 mm
Impacts Per Minute (IPM) 0 - 39,000 / 0 - 9,750
No Load Speed : High/Low 0 - 2,600/ 0 - 650 minˉ¹
Max Fastening Torque : High/Low 140 / 68 N·m
Max Lock Torque 125 N·m
Dimensions (L x W x H) 182 x 86 x 275 mm
Net weight 2.7 - 3.0 kg
Variable Speed
Brake
Reversing
Mechanical 2-Speed
Keyless Chuck
Clutch-equipped

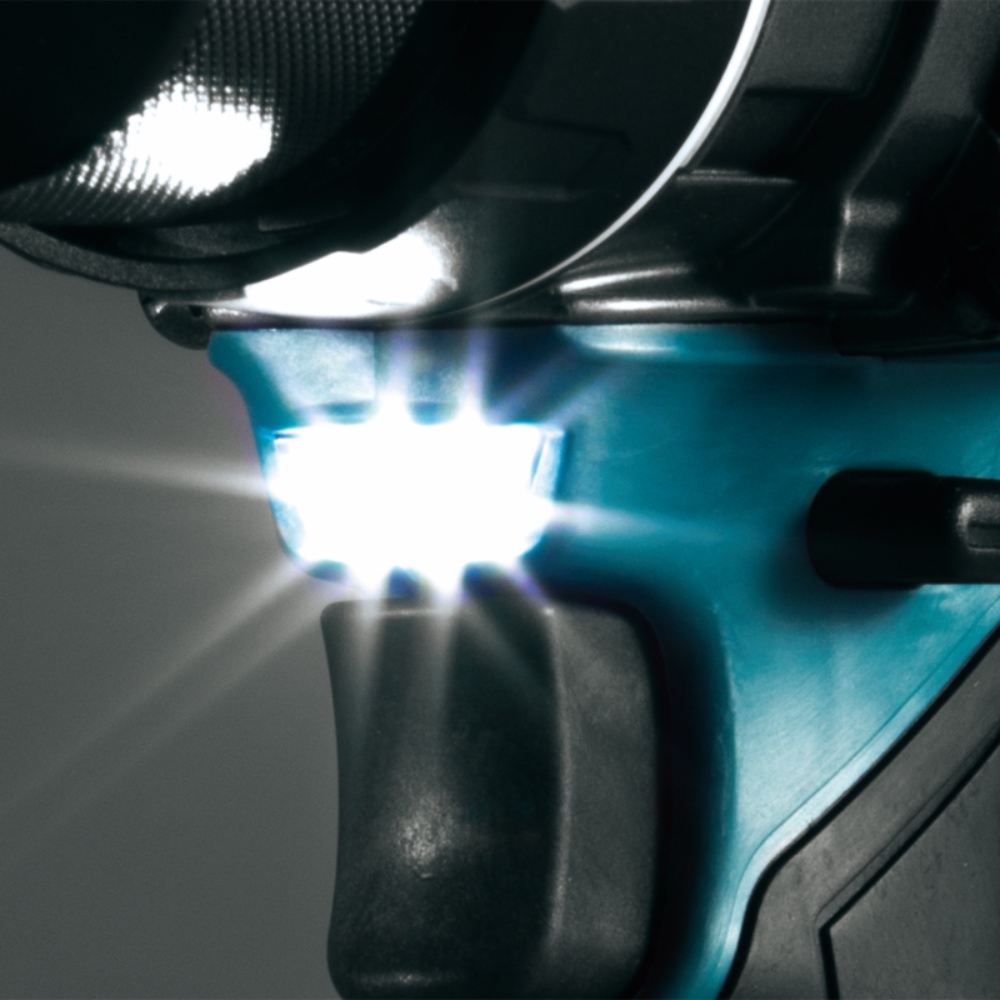

Built-in-Job Light
Torque Setting 21
Carrying Case
