PM7650H
Mist Blower

PM7650H
Mist Blower

Mist Blower 75.6 cc MM4

  

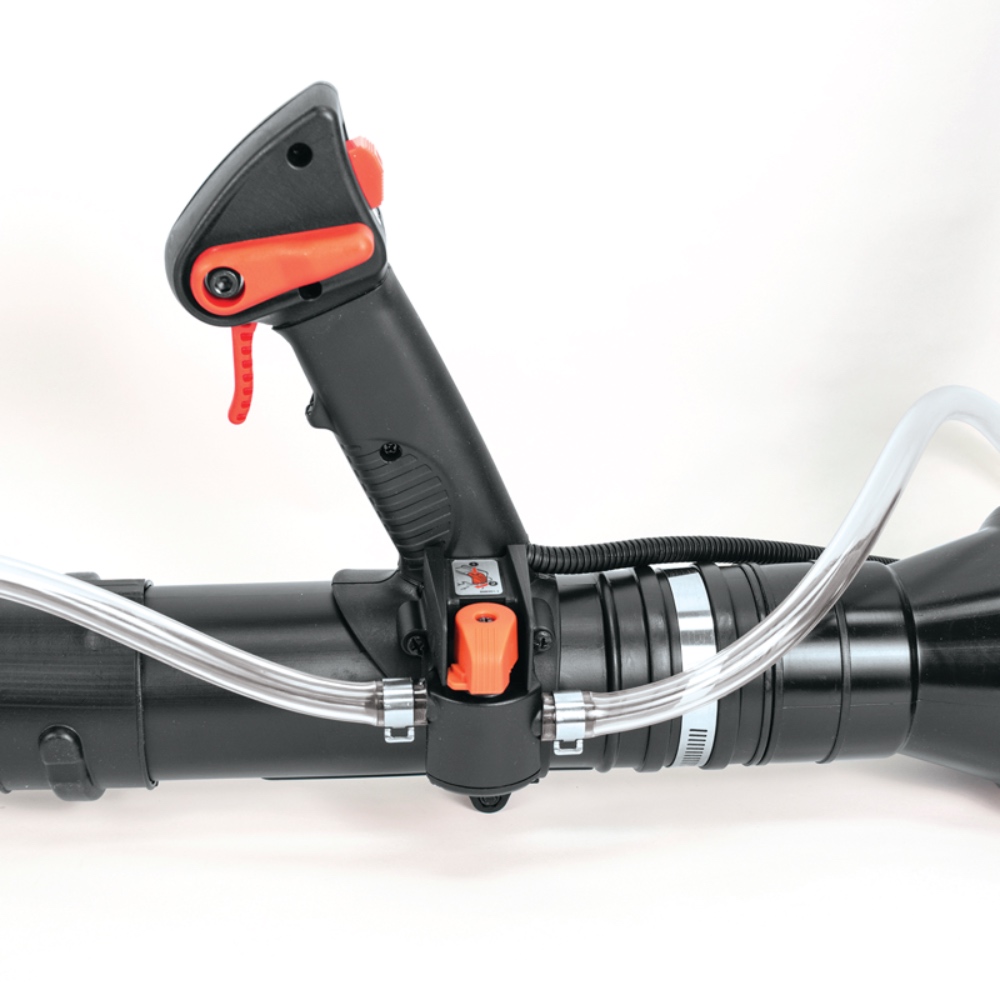

๐ Efficient 4-Stroke Engine, No Fuel Mix Required ๐ L-shaped chemical tank lowers center of gravity for improved balance ๐ Single action switch to activate liquid chemical flow ๐ Padded shoulder straps retain their shape for easier re-shouldering ๐ Liquid chemical in tank is automatically mixed by intake air flow for ๐ uniform solution concentration ๐ Mechanical automatic engine decompression for quick and easy start-ups ๐ Large damper springs mounted between engine and frame reduce vibration ๐ Large capacity air filter is replaceable and easily accessible ๐ Compact design with less weight ๐ Excellent spray range performance up to 16 m (52 ft) horizontally ๐ Spray volume adjustment by valve control ๐ Fan guard installed between the engine and the tank to minimize leaves/debris from entering into the fan section

Standard Equipments : Oil bottle, Hand strap, Screwdriver, Diffusion cover, Hose clamp, Flexible pipe, Straight pipe


Technical specifications

Displacement 75.6 CC
Max Air Volume 14.1 m³/min
Max Air Velocity 85 m/s
Fuel tank capacity 1.8 L
Sound Pressure Level 98.3 dB(A)
Sound Power Level 110.7 dB(A)
Vibration Level 3.5 m/s²
Dimensions (L x W x H) 420 x 440 x 595 mm
Net weight 13.9 kg
Anti Vibration
Primer-Pump
Capacition Discharge Ignition
Auto-Decomperssion
