DCE090
Cordless Power Cutter



DCE090
Cordless Power Cutter

18V X2 (36V) Cordless 230 mm (9") Power Cutter

  

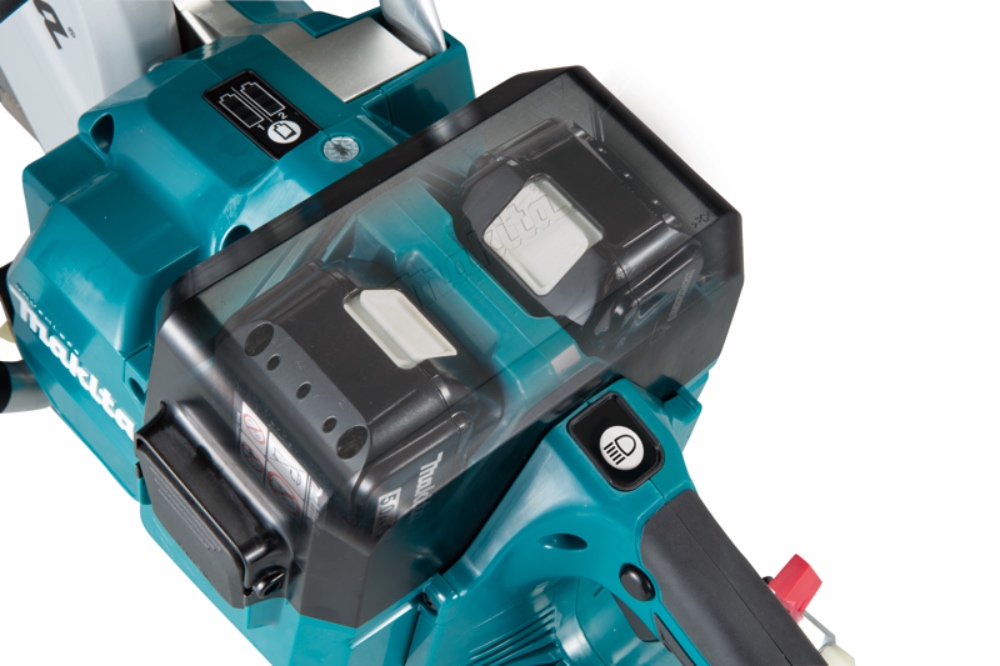

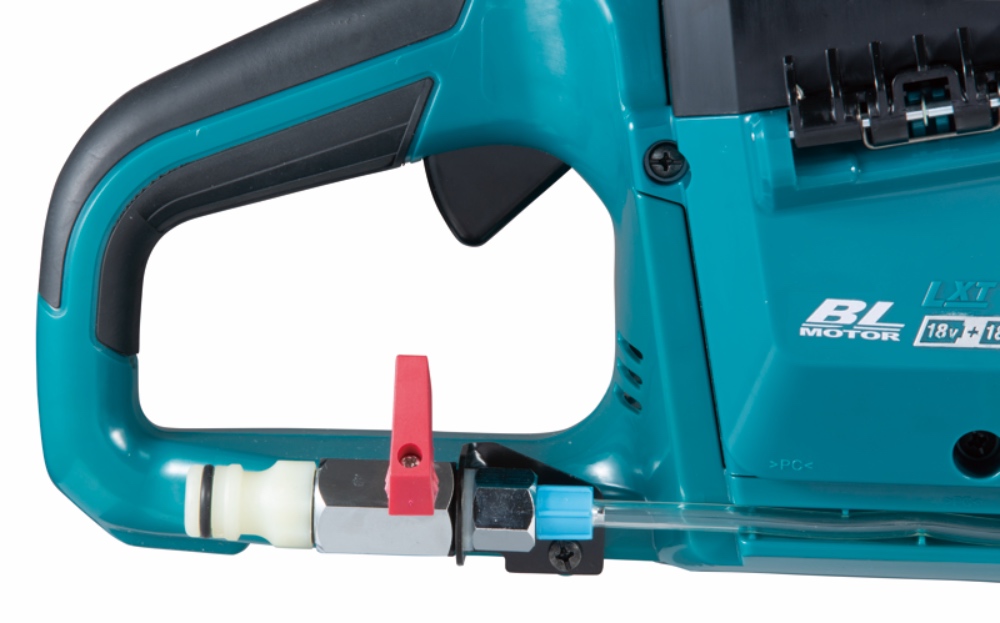

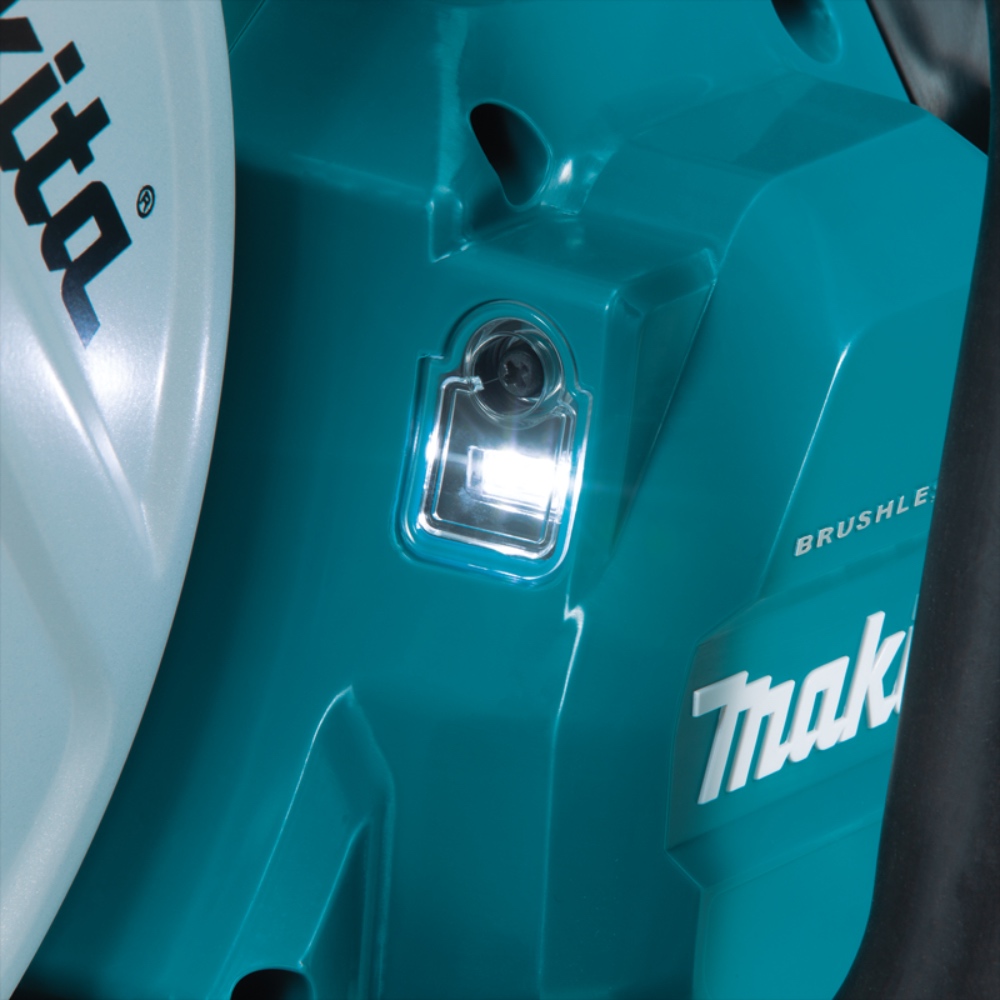

๐ Max Cutting Capacity: 88 mm ๐ Active Feedback sensing Technology (AFT) turns the motor off if rotation speed suddenly slows or wheel is forced to stop ๐ LED job light enables operation in the dark sites where electricity is not supplied; can be turned on/off by pushing the button conveniently located on the top of the tool ๐ Battery cover protects battery from water in wet cutting Low vibration for increased operator convenience ๐ BL motor is electronically controlled to optimize battery energy use for longer run time per charge ๐ Electric brake; having electric brake system that engine power cutters do not have; stops the cut-off wheel / diamond wheel in 2.0 / 4.0 seconds for maximum productivity ๐ Overload indicator lamp; alerts operator of overload with a red blinking LED; reduces unnecessary battery recharging by overload protection ๐ Lock-off button minimizes accidental start up ๐ Soft start suppresses start-up reaction for smooth start-ups ๐ Water supply kit can be connected; The hose is designed to run inside the tool housing to minimize from being caught in objects ๐ eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh job site conditions

Standard Equipments : Hex wrench, Wrench, Coupling sleeve


Technical specifications

Wheel Diameter 230 mm
Max Cutting Capacity 88 mm
Cutting work amount 16 [50 x 300 mm]
No Load Speed 6,600 minˉ¹
Vibration Level L / R : 5.9 / 4.0 m/s²
Sound Pressure Level 103 dB(A)
Sound Power Level 114 dB(A)
Dimensions (L x W x H) 554 x 241 x 283 mm
Net weight 5.6 - 6.3 kg
Brake
Soft Start
Built-in-Job Light
