DDG460
Cordless Earth Auger



DDG460
Cordless Earth Auger

36V Cordless Earth Auger

  

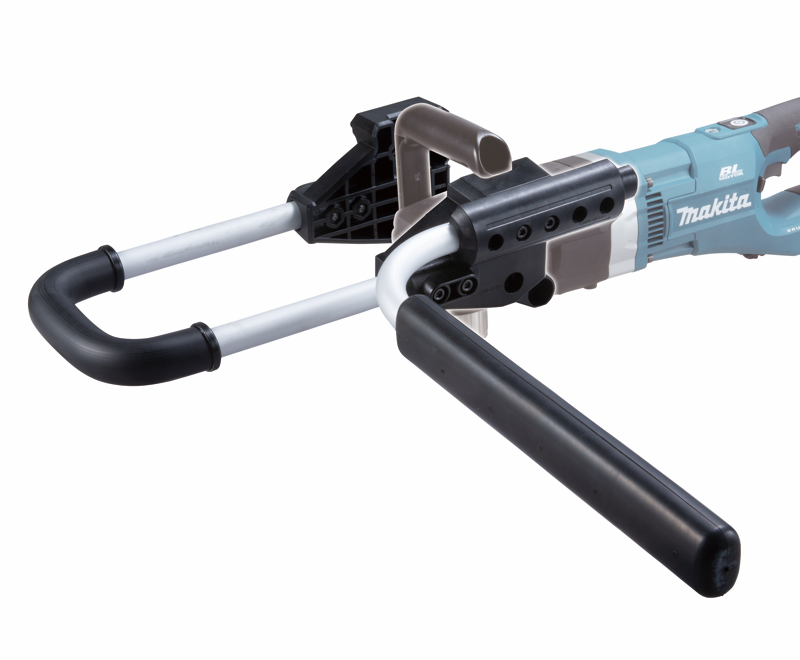

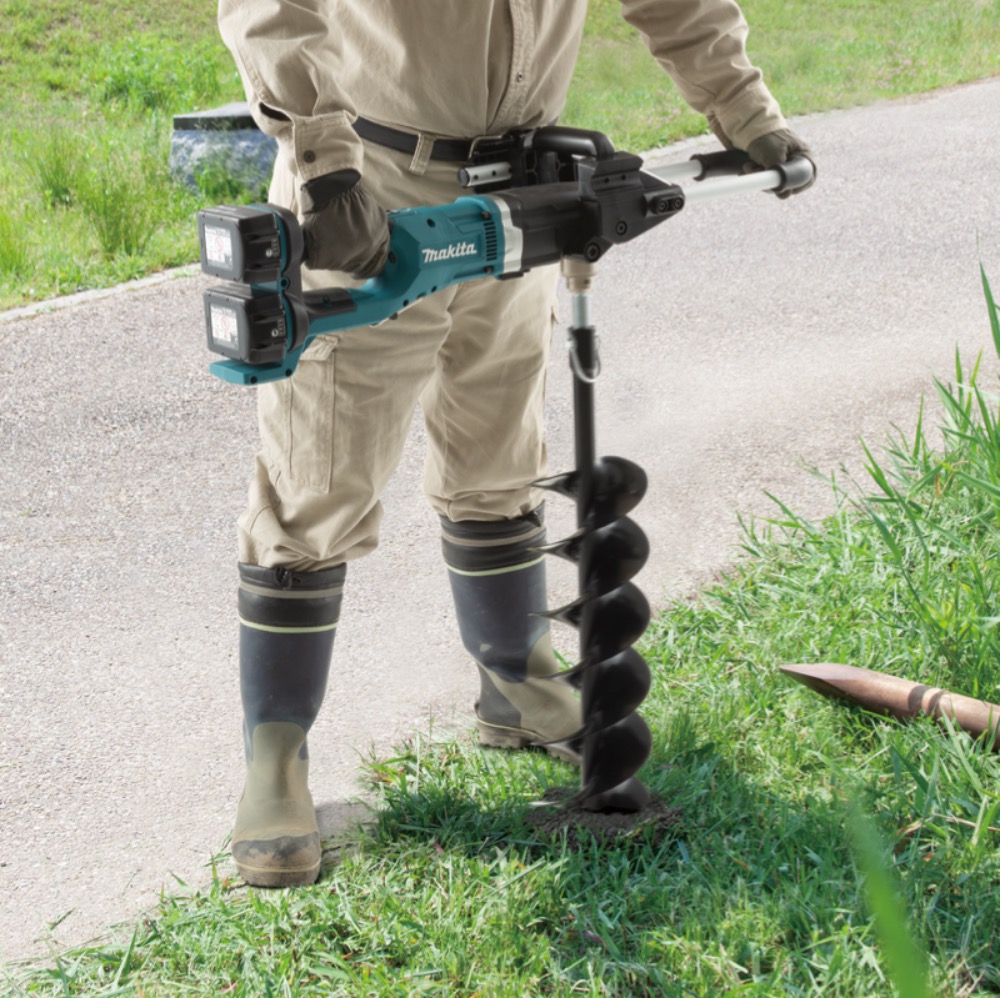

๐ Earth auger attachment includes a bar which receives reaction force and an auxiliary handle, and helps the user drill holes in the ground easier ๐Reversing switch enables to extract, in reverse rotation mode, an auger bit jammed in soil with high resistance like clay soil ๐ Lightweight design for reduced operator fatigue ๐ Auger bit adapter enables to use the auger bits for popular engine earth augers ๐ Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance ๐ BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life ๐ Variable 2-speed (0-350 & 0-1,400 RPM) for increased drilling versatility ๐ Built-in clutch reduces gear damage by automatically disengaging gears if the bit binds ๐ Soft start for smooth start-ups ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions ๐ Electric brake for increased productivity ๐ Optional Portable power pack PDC01/PDC1200 can be used

Standard Equipments : Chuck key, Hex wrench, Adapter


Technical specifications

Capacity Clay soil : 150 mm
Capacity Sandy soil : 200 mm
Work amount ø150 : 155 / ø200 : 90 holes
Chuck Capacity 2 - 13 mm
No Load Speed : High/Low 0 - 1400 / 0 - 350 minˉ¹
Max torque (High/Low) 48 / 136 N·m
Dimensions (L x W x H) 840 x 607 x 223 mm
Net weight 7.3 - 8.2 kg
Variable Speed
Brake
Reversing

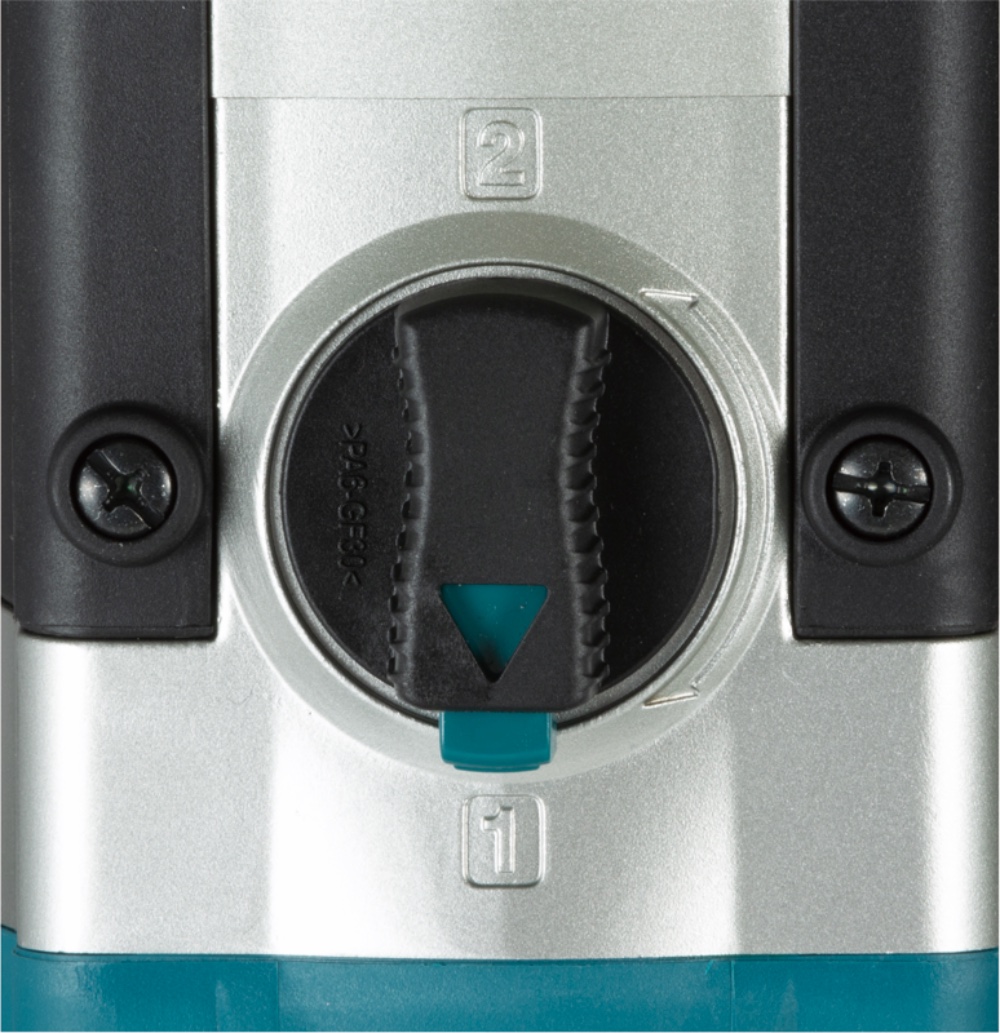

Mechanical 2-Speed
Torque Limiter
Soft Start
Built-in-Job Light
Carrying Case
