(EN / TH)

M5802B

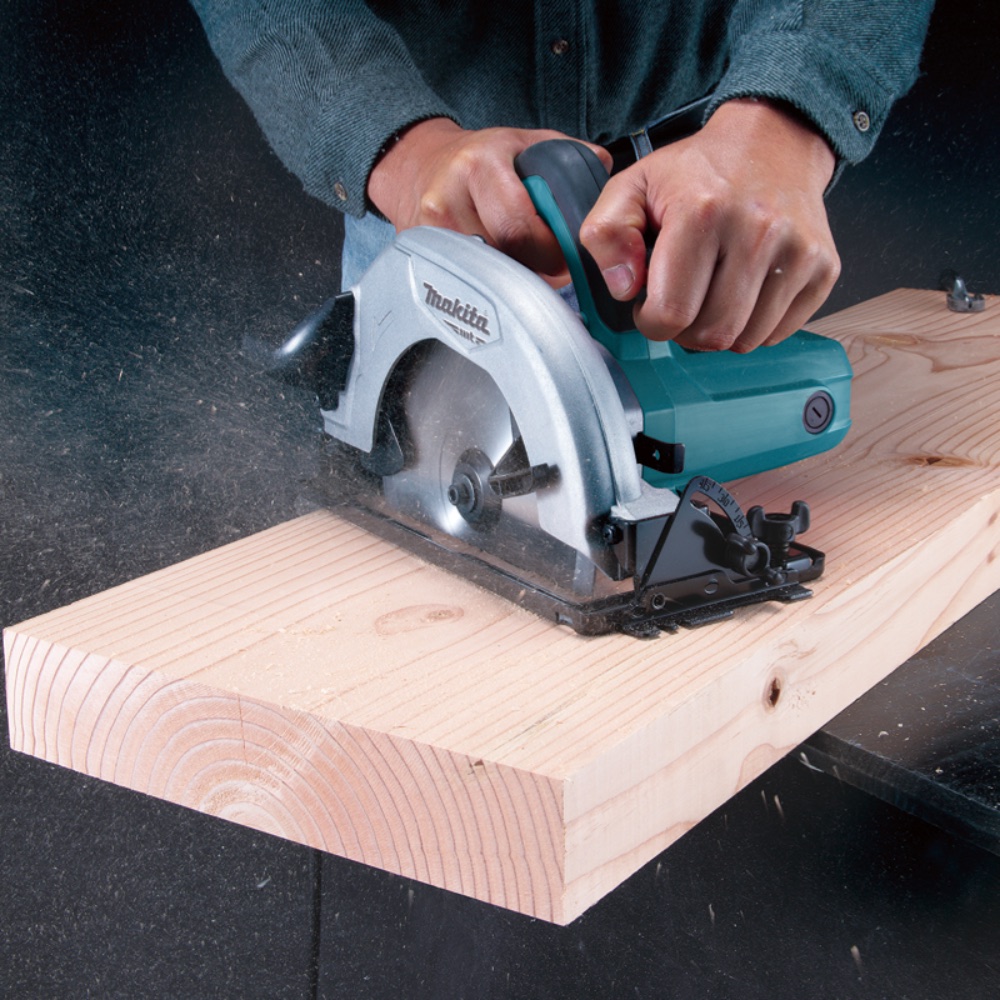

Circular Saw

M5802B
Circular Saw

190 mm (7-1/2") / 185 mm (7-1/4") 1,050 W Circular Saw

  

๐ Well-balanced and lightweight for superior handling and performance ๐ Ergonomically designed handle with soft grip covered with non-slip elastomer fits your hand perfectly to provide maximum comfort and control ๐ Rear dust port exhausts sawdust away from operator for clean and comfortable operation (complying with the regulations of the EU directives) ๐ Dust nozzle is attachable for connecting to vacuum cleaner ๐ Bevel cuts 0°- 45° for the most common cutting applications ๐ Rear angular guide for smooth and precise adjustment of bevel angle ๐ Large cutting capacity (68 mm at 90°, 46 mm at 45° with 190 mm blade) (66 mm at 90°, 44 mm at 45° with 185 mm blade) ๐ Powerful 1,050 W motor delivers 4,900 RPM for performance and job site durability ๐ Aluminum blade case for high durability and long tool life ๐ Single action lever for quick adjustment of cutting depth

Standard Equipments : TCT saw blade, Rip fence (Guide rule), Hex wrench, Dust nozzle (country-specific)


Technical specifications

Continuous Rating Input 1,050 W
Wheel Diameter 185/ 190 mm
Max Cutting Capacity 90° 68/ 66 mm
Max Cutting Capacity 45° 46/ 44 mm
No Load Speed 4,900 minˉ¹
Vibration Level 2.5 m/s²
Sound Pressure Level 95 dB(A)
Sound Power Level 106 dB(A)
Dimensions (L x W x H) 297 x 232 x 255 mm
Net weight 3.8 kg
Power Supple Cord 2.0 m
Carbon Brush 303
Double Insulation
Dust Collection
