DHS710
Cordless Circular Saw

DHS710 Parts List (0.98 MB)

DHS710 Leaflet (1.56 MB)

DHS710
Cordless Circular Saw

18V X2 (36V) Cordless Circular Saw 190 / 185 mm

  
Brake
Soft Start
Dust Collection

Features

  • 18V X2 (36V) LXT Li-Ion Cordless 190 / 185 mm (7-1/2" / 7-1/4") Circular Saw, Electric Brake, Soft Start
  • 18V solution for corded power demands
  • Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform
  • Makita-built motor delivers 4,800 RPM for fast cutting and ripping
  • Heavy gauge aluminum die cast wraparound base engineered for improved durability and straighter cuts
  • Lightweight for operator comfort

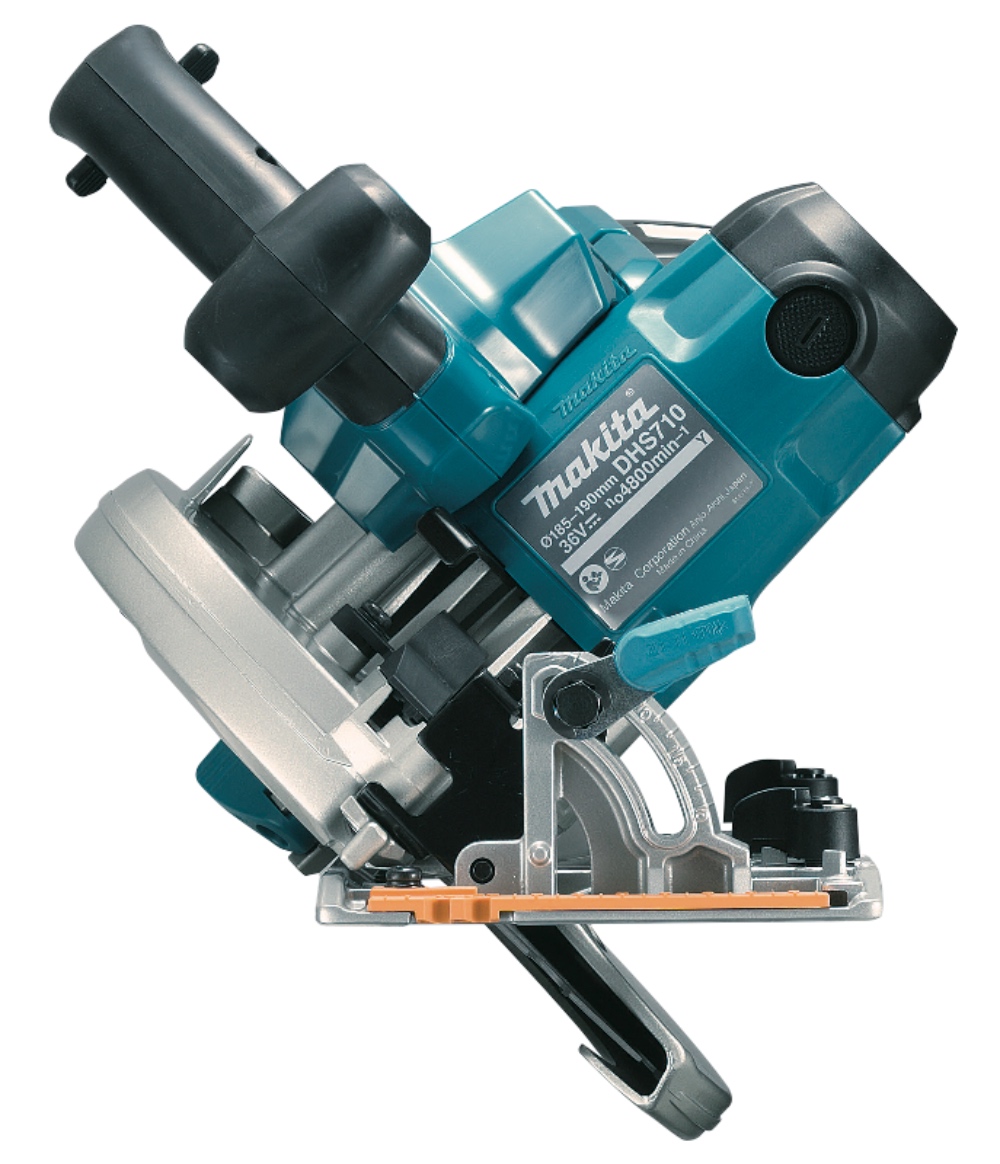

  • Large cutting capacity (68.5 / 66 mm at 90°) and bevel capacity (0°- 50°) with a positive stop at 45°
  • Soft grip provides increased comfort on the job
  • Large rubberized levers for quick and easy depth and bevel adjustments
  • On-board blade wrench for convenience
  • Flat motor housing design for stability when changing the blade
  • Built-in dust blower cleans the line of cut for operator accuracy
  • Electric brake for maximum productivity and increased operator safety
  • Rear dust port exhausts sawdust away from operator for clean and comfortable operation

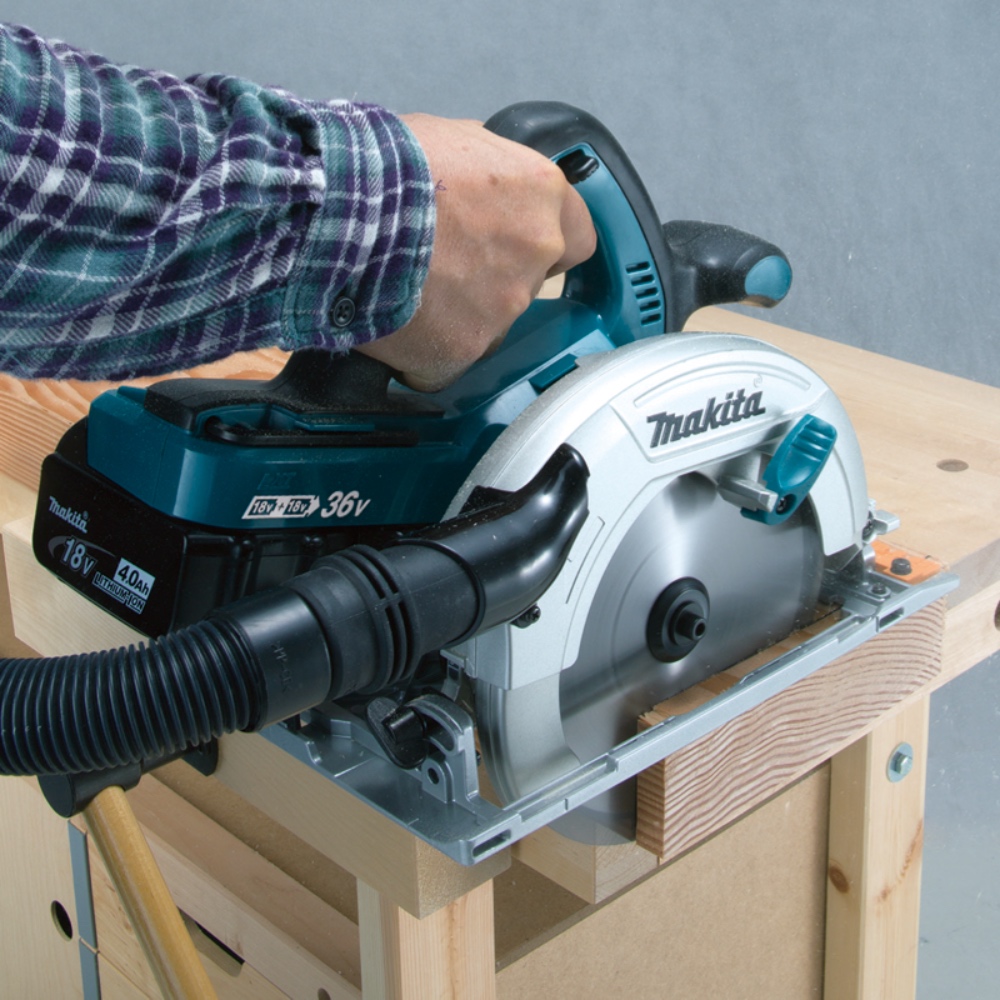

  • Dust nozzle is attachable for connecting to vacuum cleaner
  • Large lock-off safety lever minimizes accidental start up
  • Soft start suppresses start-up reaction for more control and better accuracy
  • Handy guide rule allows operator to do extra-accurate straight cuts
  • LED battery indicators show charge level for each battery
  • Large, comfortable front grip.
    Battery protection circuit protects against overloading, over-discharging and over-heating.
    Externally accessible brushes for easy serviceability.
    Ideal for framers, builders, roofers, forming, and more

Standard Equipments : TCT saw blade, Rip fence (Guide rule), Hex wrench, Dust nozzle


Parts List
(0.98 MB)


Leaflet
(1.56 MB)

Available options

DHS710Z
เฉพาะเครื่องเปล่า  


Technical specifications

Wheel Diameter 185 / 190 mm
Hole diameter 20 mm
Max Cutting Capacity 68.5 / 66 mm
Max Cutting Capacity 45° 49 / 47.5 mm
No Load Speed 4,800 minˉ¹
Dimensions (L x W x H) 356 x 217 x 298 mm
Net weight 4.2 - 4.8 kg
Carbon Brush 442
