DSS501

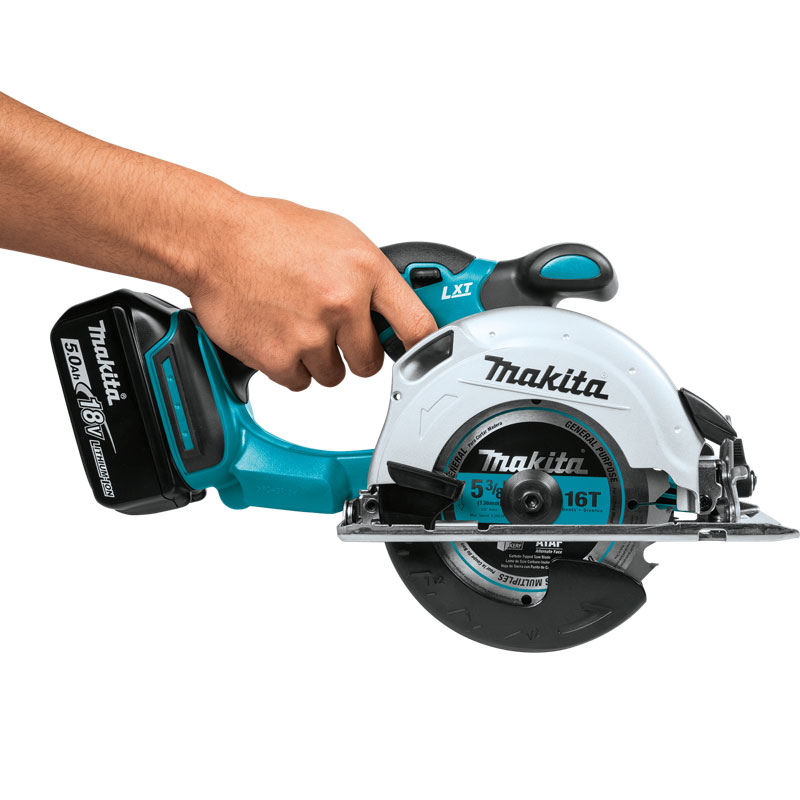

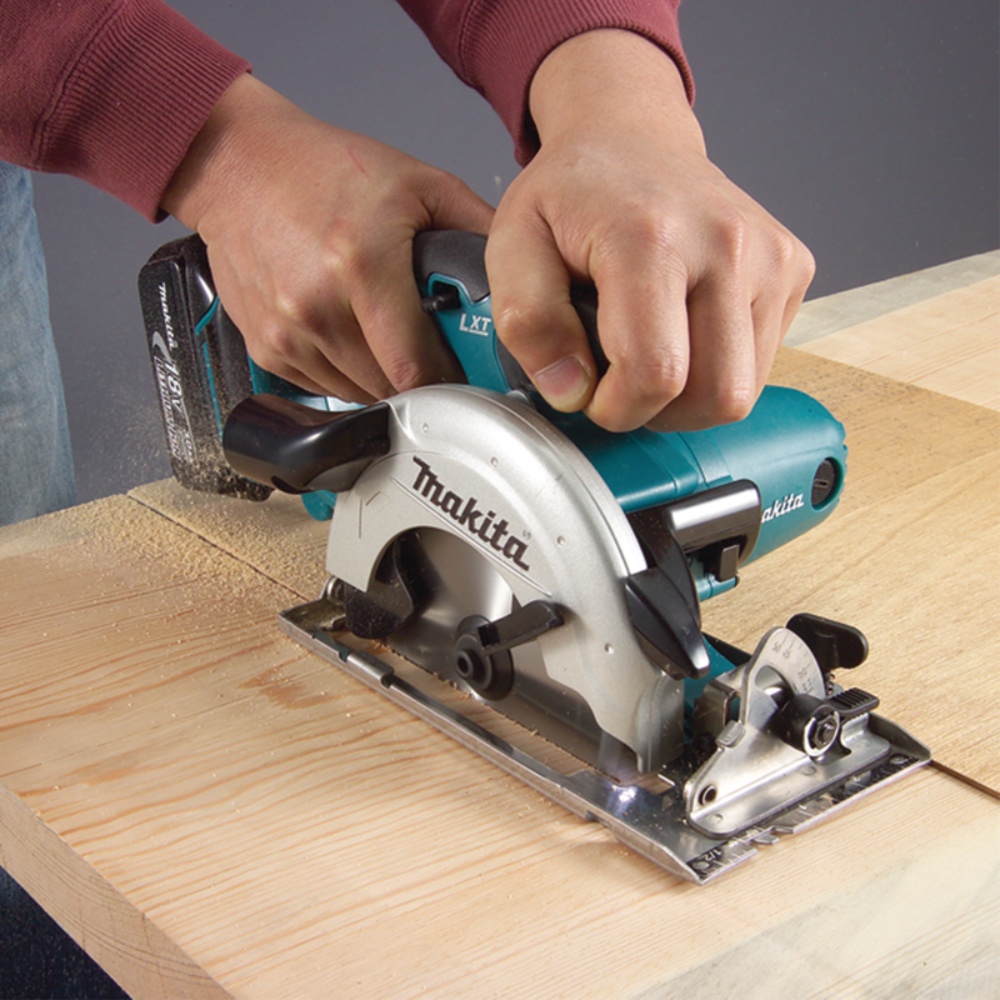

Cordless Circular Saw

DSS501
Cordless Circular Saw

18V Cordless Circular Saw, 136 mm (5-3/8")

  

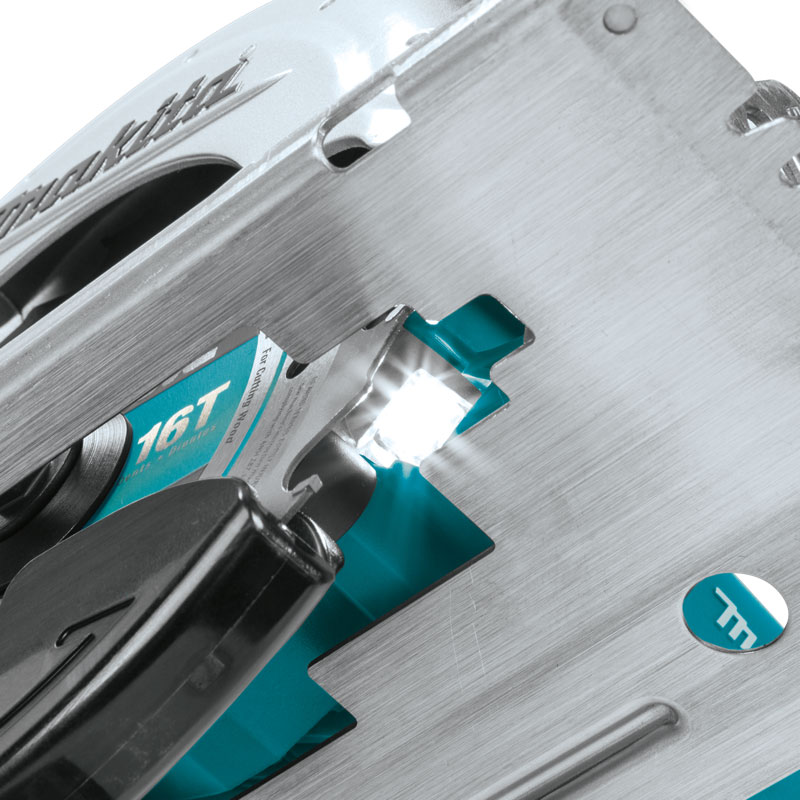

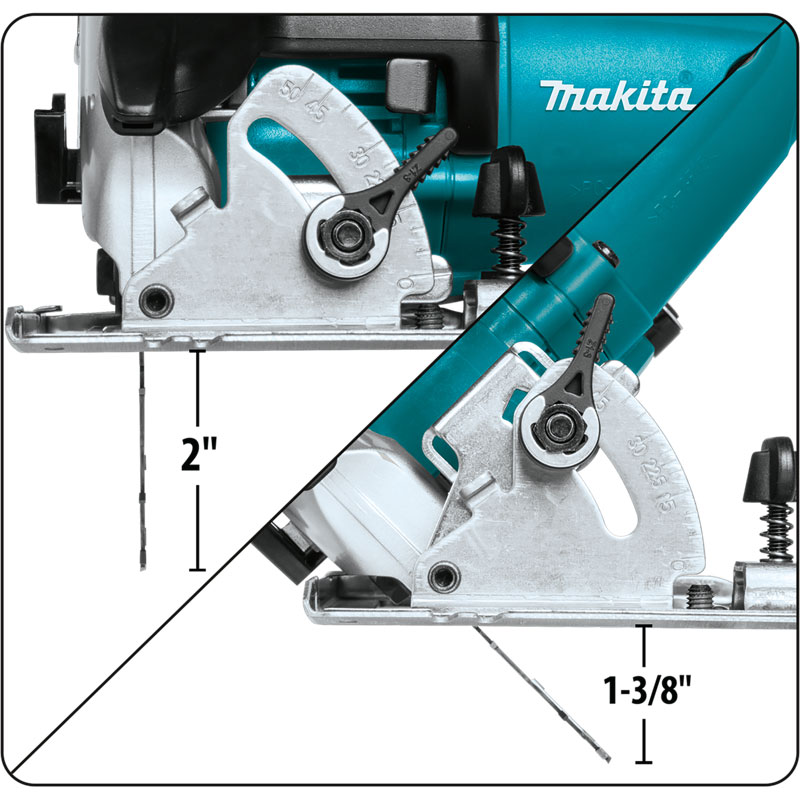

๐ Well balanced tool design for high maneuverability ensures easy handling even in overhead or horizontal application ๐ Compact and lightweight design ๐ 51 mm (2") max cut-depth ๐ Bevel cuts up to 50 degrees ๐ Smooth cutting at high rotational speed of 3,600 RPM ๐ Large lock-off lever easy to operate even with gloved hand ๐ Dual LED lights illuminate blade edge for accurate cutting even in dark place ๐ The air directed from the end of the top guide blows sawdust off the cut line ahead ๐ Dust nozzle is attachable for connecting to vacuum cleaner ๐ Electric brake for maximum productivity and increased operator safety ๐ Rubberized soft grip with non-skid elastomer grip on front and rear handles for more control and comfort ๐ Large, comfortable front grip ๐ Transverse-mounted motor ๐ Rigid base plate of stainless steel ๐ Battery protection circuit protects against overloading, over-discharging and over-heating

Standard Equipments : Carbide-tipped saw blade, Hex wrench, Rip fence


Technical specifications

Wheel Diameter 136 mm
Hole diameter 20 mm
Max Cutting Capacity 51 mm
Max Cutting Capacity 45° 35 mm
No Load Speed 3,600 minˉ¹
Dimensions (L x W x H) 364 x 183 x 201 mm
Net weight 2.4 - 2.7 kg
Carbon Brush
Brake
Dust Collection
Built-in-Job Light
