JR003G
Cordless Recipro Saw

JR003G Parts List (0.90 MB)

JR003G Leaflet (18.25 MB)

JR003G
Cordless Recipro Saw

Cordless Recipro Saw 40Vmax , Chain Vise

  
Variable Speed
Brake
Anti-restart function
Constant Speed
Soft Start

Features

  • Overview:

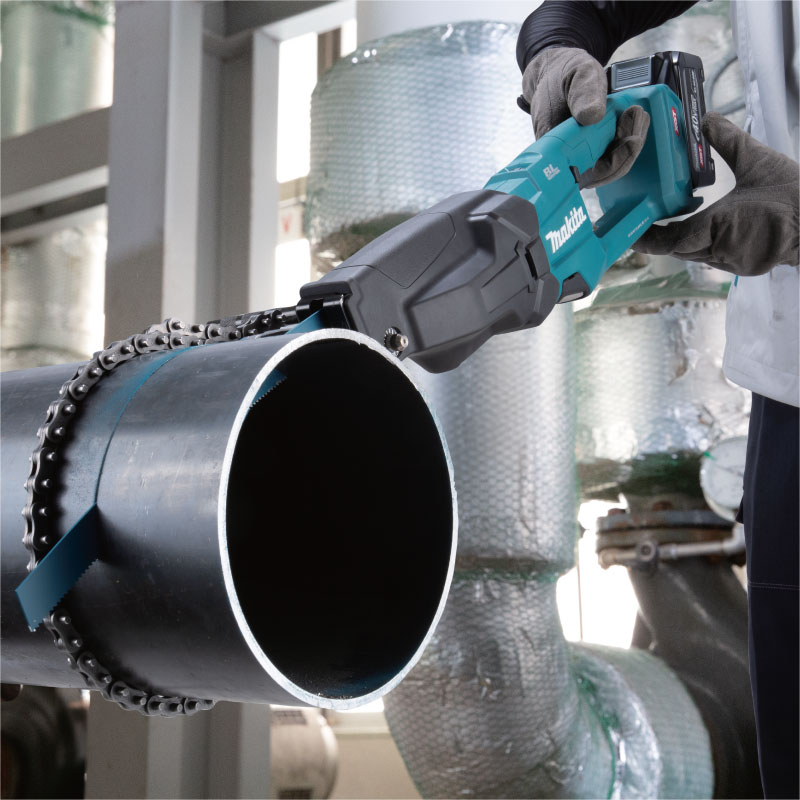

    The JR003G is a cordless recipro saw equipped with a chain vise, powered by a 40Vmax XGT Li-Ion battery. The tool improves cutting accuracy by using the chain vise to securely fix the workpiece, and delivers both the power and durability required for cutting large-diameter pipes.
  • Delivers excellent cutting efficiency through the use of an XGT battery, a load-resistant BL motor, and enhanced stroke rate.
  • Enhanced structural rigidity around the crank mechanism delivers durability exceeding that of competing models by more than 50%.

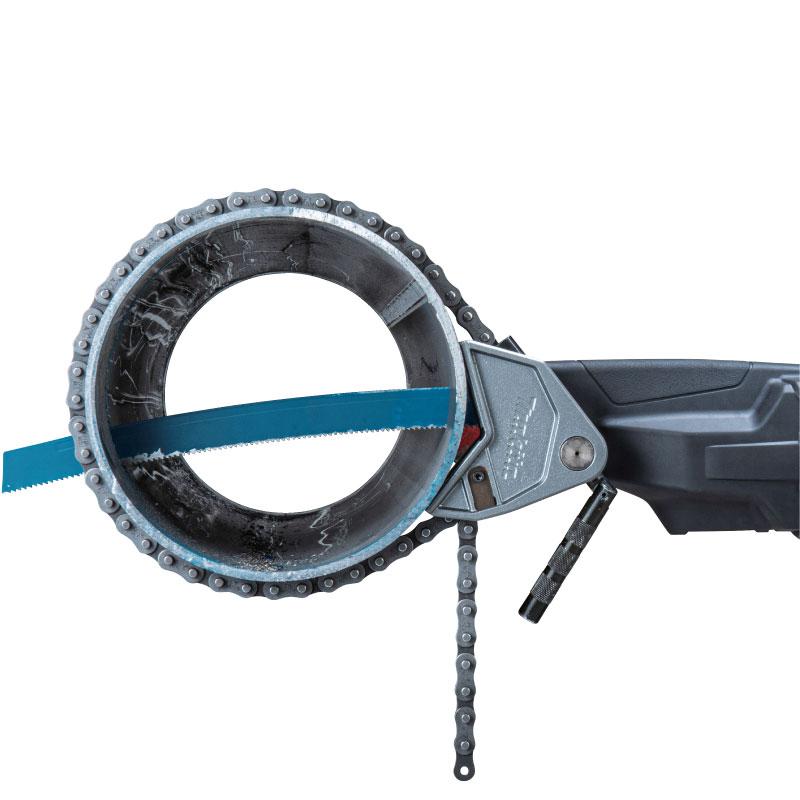

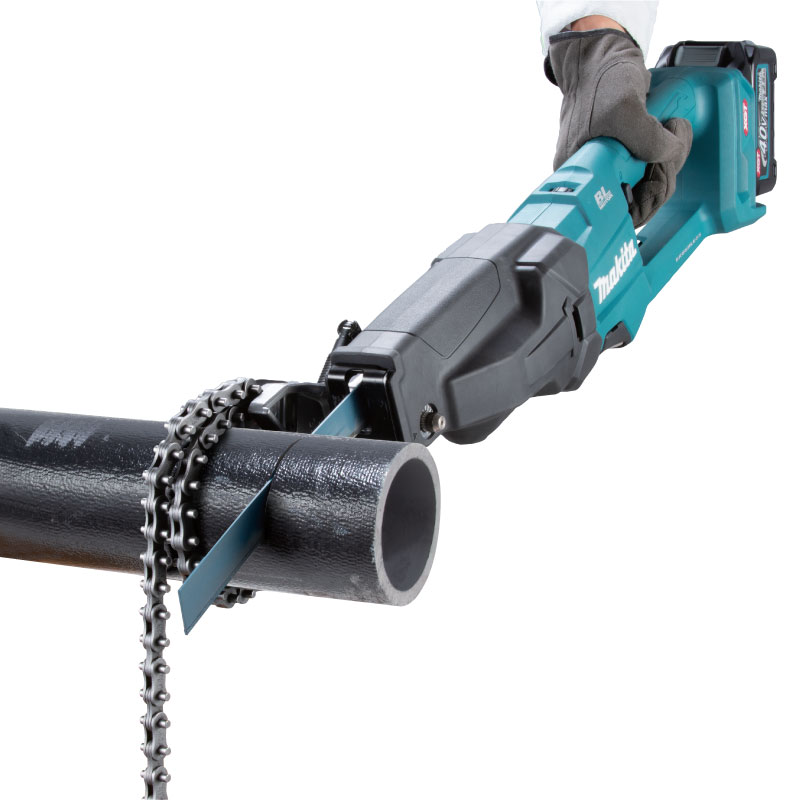

  • Capable of cutting pipes with an outer diameter of up to 220 mm by securely clamping them with the chain vise

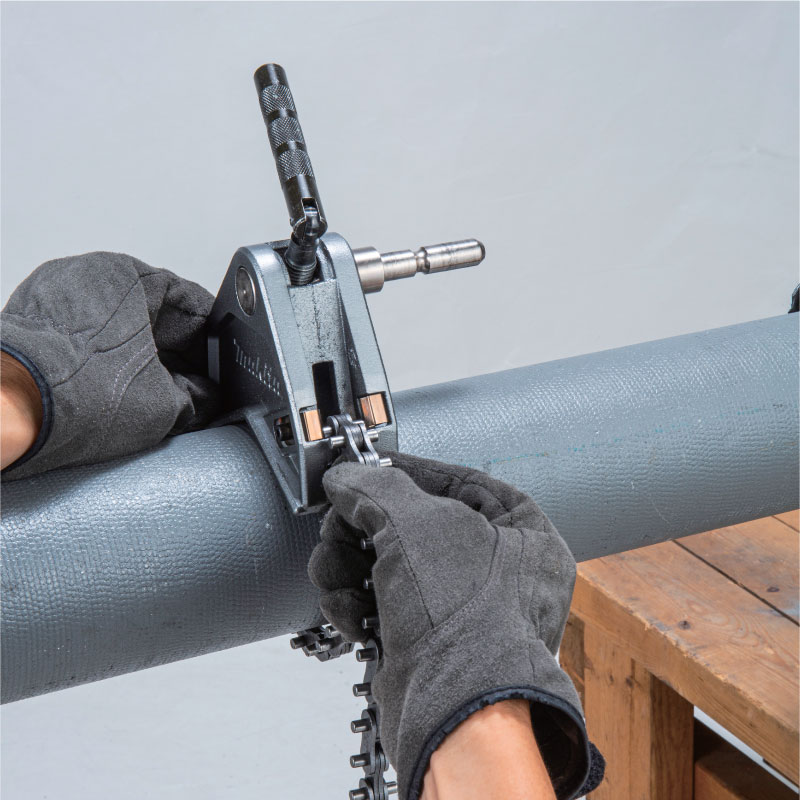

  • Built-in spring keeps the chain securely in place while wrapping and tightening around the pipe.

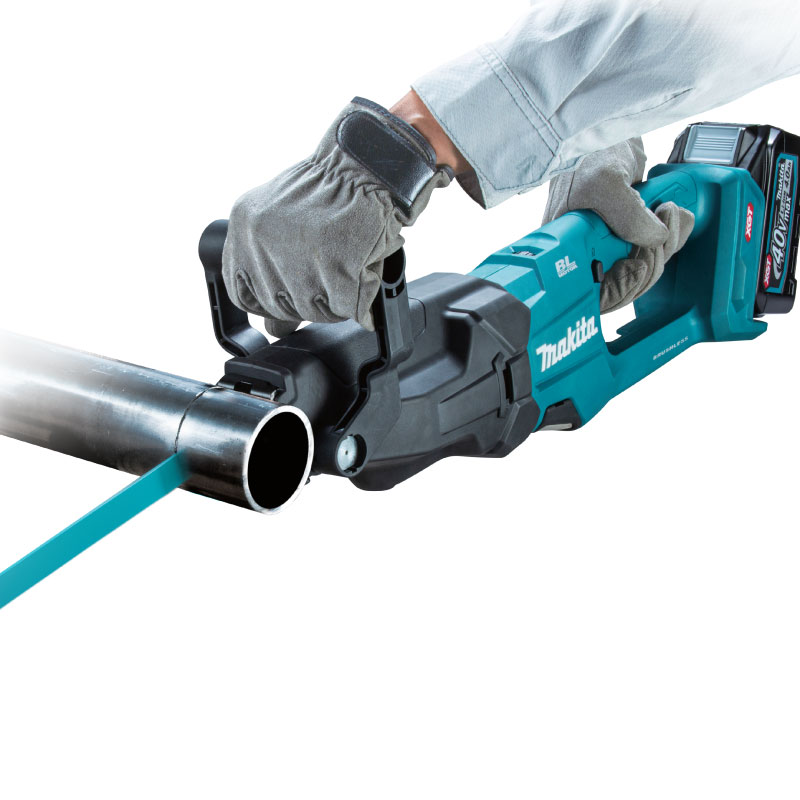

  • The tool can also be used as a standard recipro saw by attaching the front grip and optional blade clamp.

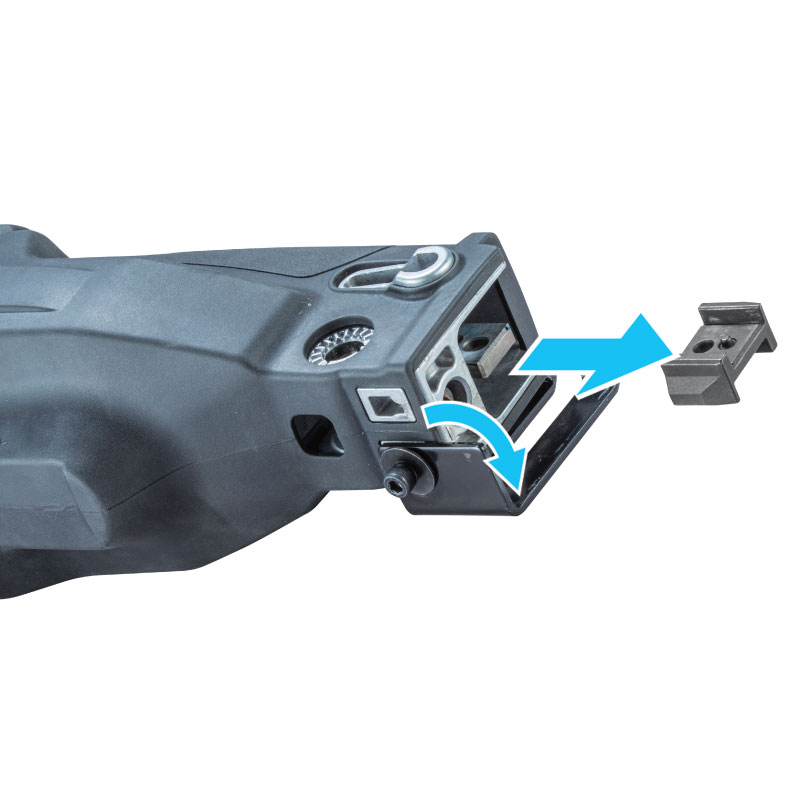

  • The blade clamp can be easily replaced simply by loosening the hex socket bolts without removing the shoe.

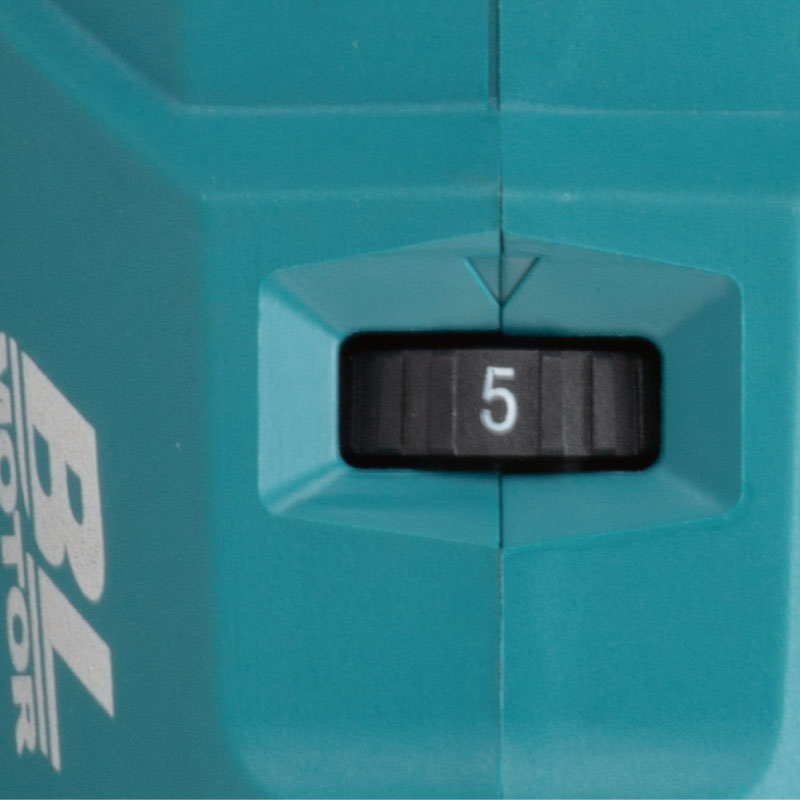

  • Adjustable stroke rate from 800 to 2,200 min⁻¹ with a dial improves cutting efficiency and extends blade life.
  • Constant speed control minimizes reduction in cutting speed under load
  • High water-resistance compatible with XPT (eXtreme Protection Technology)

Standard equipment : • Recipro saw blade set for use with chain vise • Vise assembly • Front grip • Grip shaft


Parts List
(0.90 MB)


Leaflet
(18.25 MB)

Available options

JR003GZ
Tool only   


Technical specifications

Max cutting diameter 220 mm
Length of Stroke 26 mm
Strokes Per Minute 0 - 2,200 minˉ¹
Speed adjustment 800 - 2,200
Dimensions (L x W x H) 583 x 103 x 152 mm
Net weight 4.5 - 6.8 kg
