HP003G
Cordless Hammer Driver Drill

HP003G Parts List (0.96 MB)

HP003G Leaflet (5.58 MB)

HP003G
Cordless Hammer Driver Drill

40Vmax Cordless Hammer Driver Drill 13 mm (1/2") 180 N·m

  
Variable Speed
Brake
Reversing
Mechanical 3-Speed
Keyless Chuck
Clutch-equipped
Soft Start
Built-in-Job Light

Features

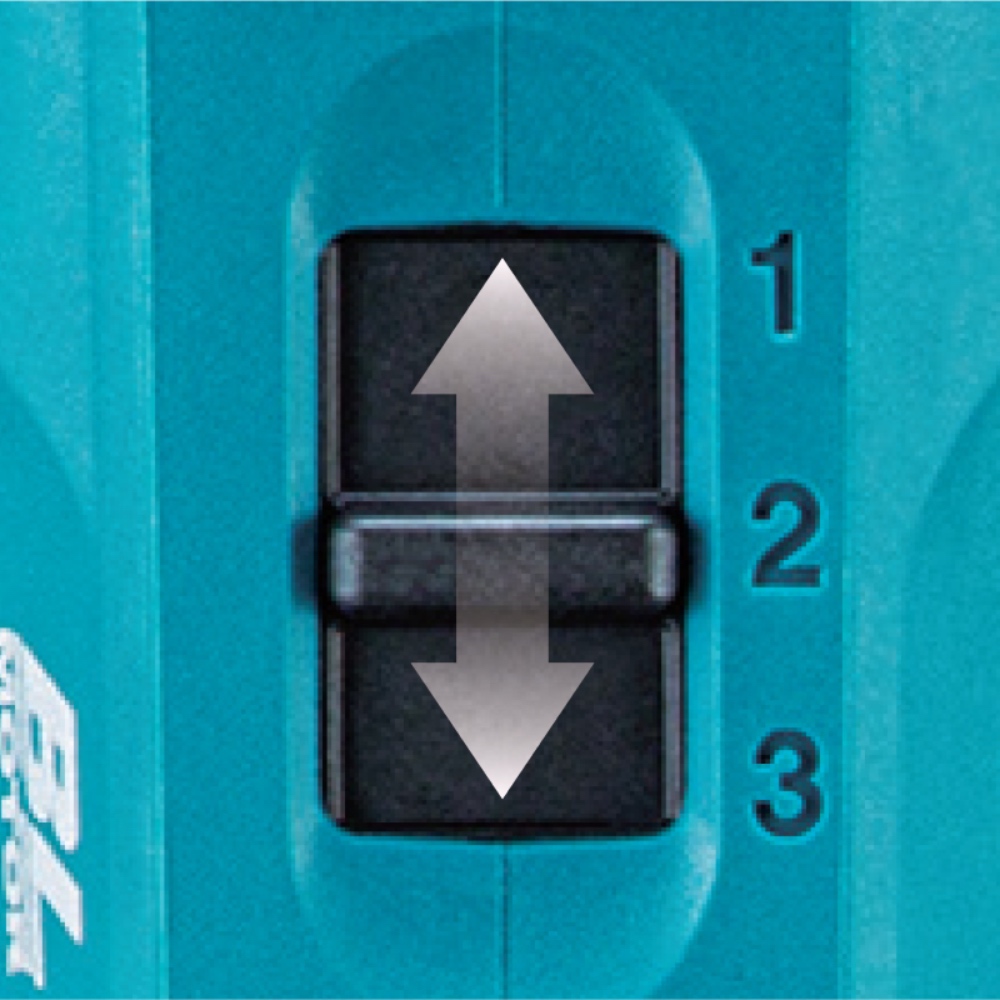

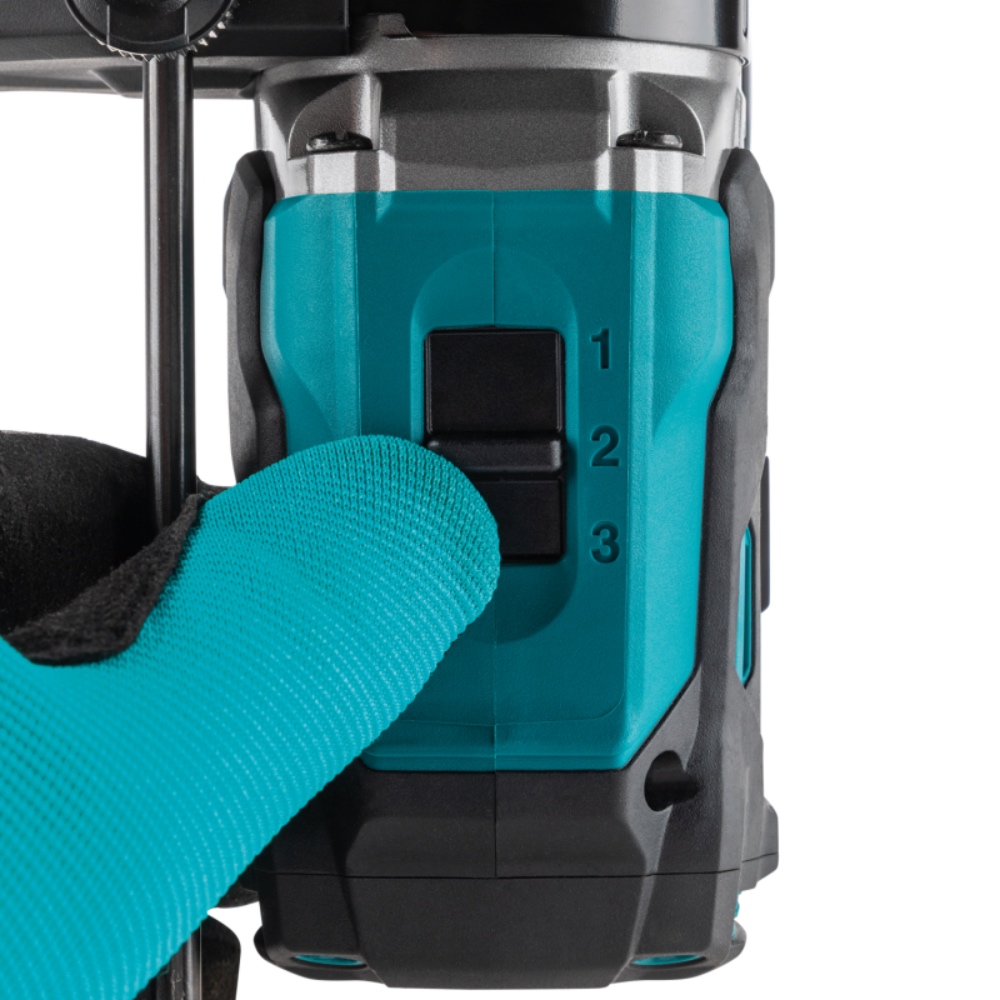

  • Feature a newly added medium-speed mode as one of its three-speed settings
  • The added medium-speed mode delivers combination of the torque and speed ideal for demanding tasks, such as driving long screws, which require both high torque and speed.
  • Added medium-speed mode improves work efficiency in heavy-duty applications, where our current and the competitors’models can operate only in low-speed mode and with lower work efficiency.
  • In tightening of long screw, operating speed in the medium-mode is approx twice as high as that in low-speed mode.
  • Active Feedback sensing Technology (AFT) turns the motor off if bit rotation is suddenly forced to stop
  • Electronical clutch; Enhanced torque and clutch stages in clutch mode, thanks to high-torque in high-speed mode and new 3-speed settings (41/30/25 settings in Low/Medium/High mode).

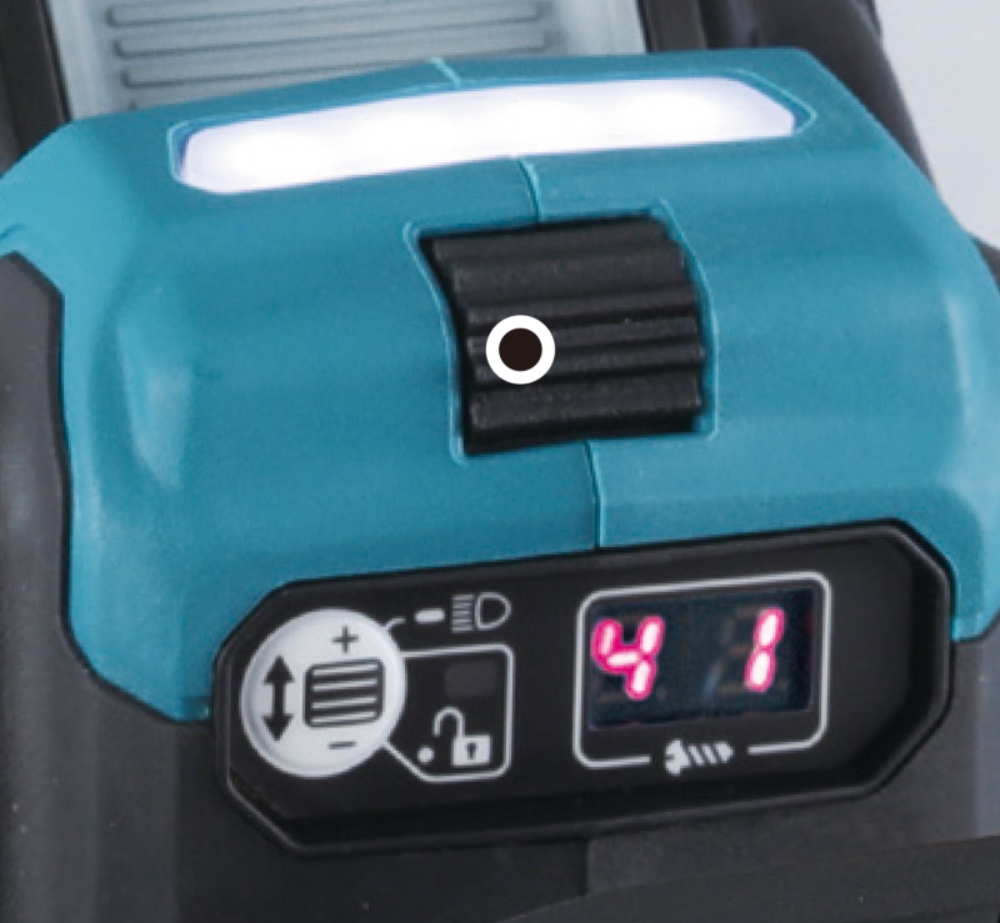

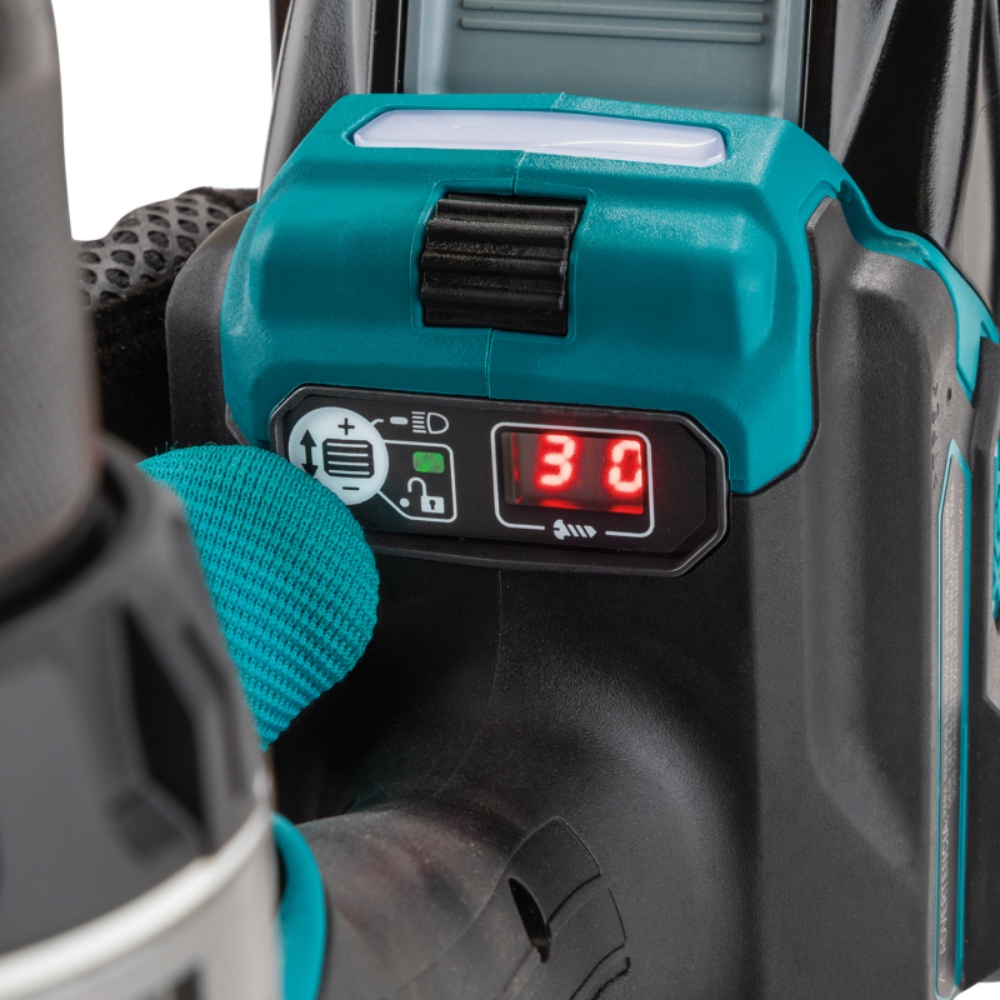

  • Jog dial for easy adjustment of fastening torque; with digital display for visual confirmation of selected torque
  • Electric brake for maximum productivity and increased operator safety
  • Soft start (in Low-speed mode); Reduces kickback when starting with high-inertia bits such as ø220mm Multi siding core bit, etc.

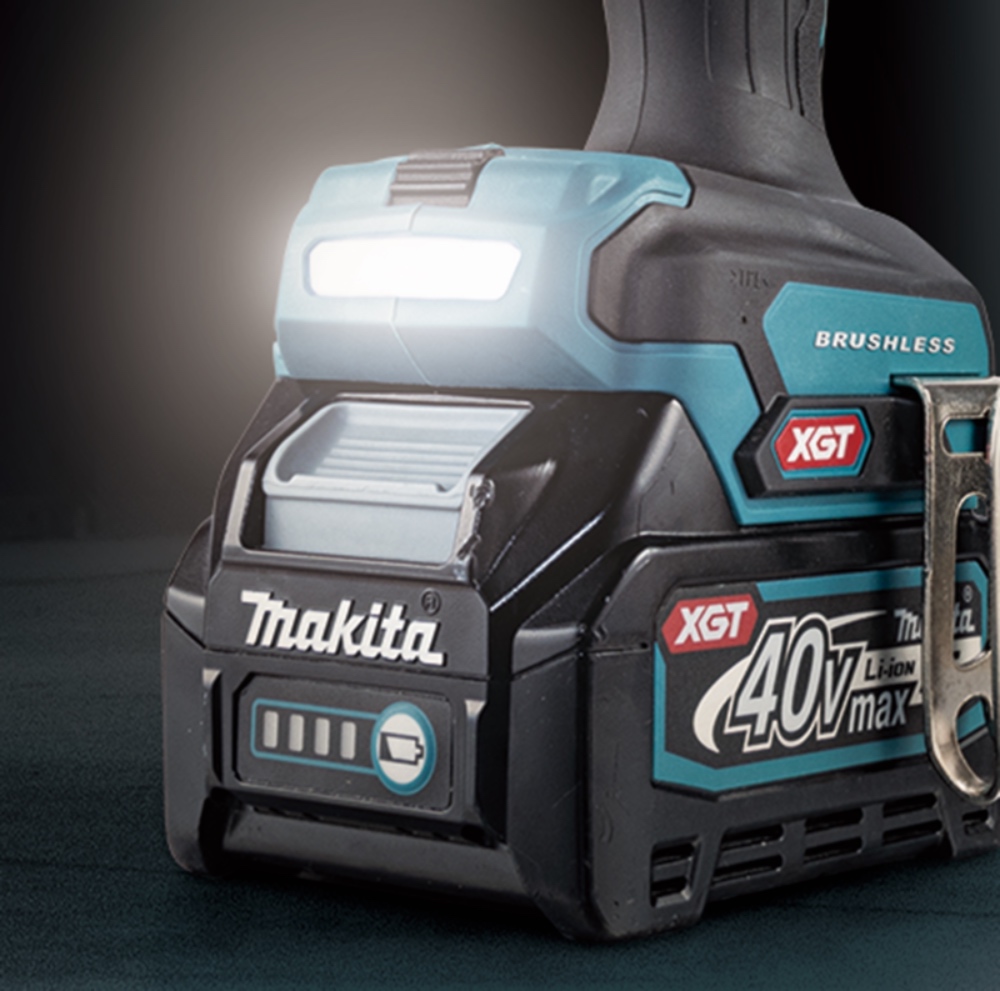

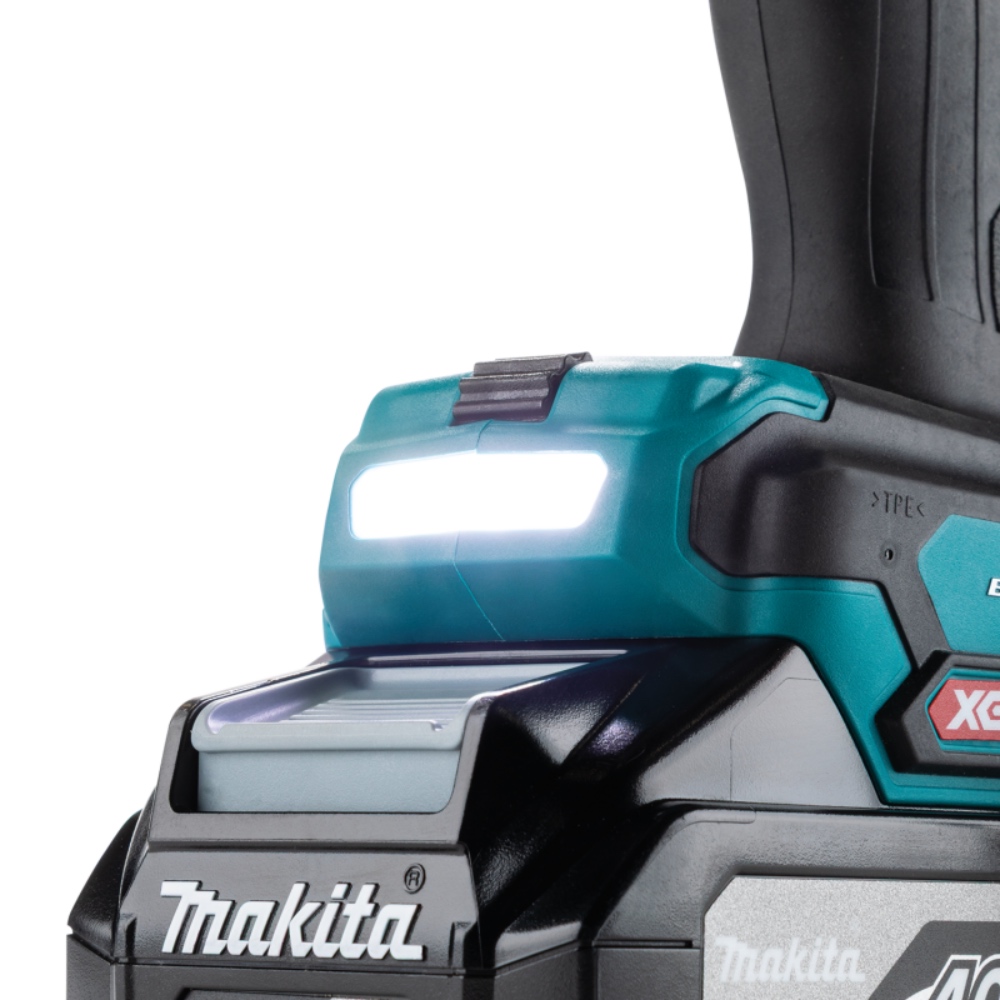

  • LED job light with higher brightness and wider illumination area;
    - LED job light has been relocated from the switch portion to the bottom of the grip portion or improved illumination coverage.

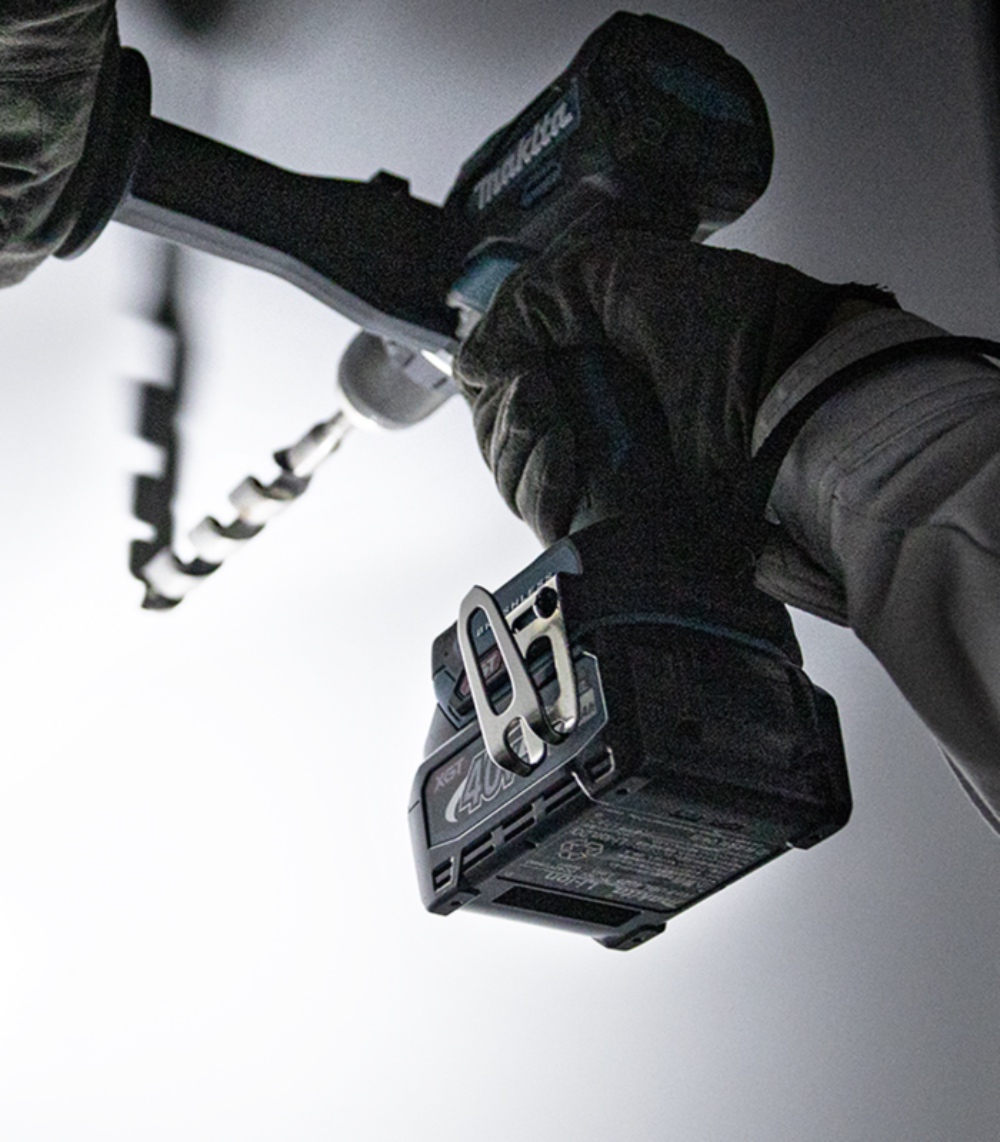

    - In Light mode, the illumination time is extended, allowing for use as a jobsite light in dark environments.

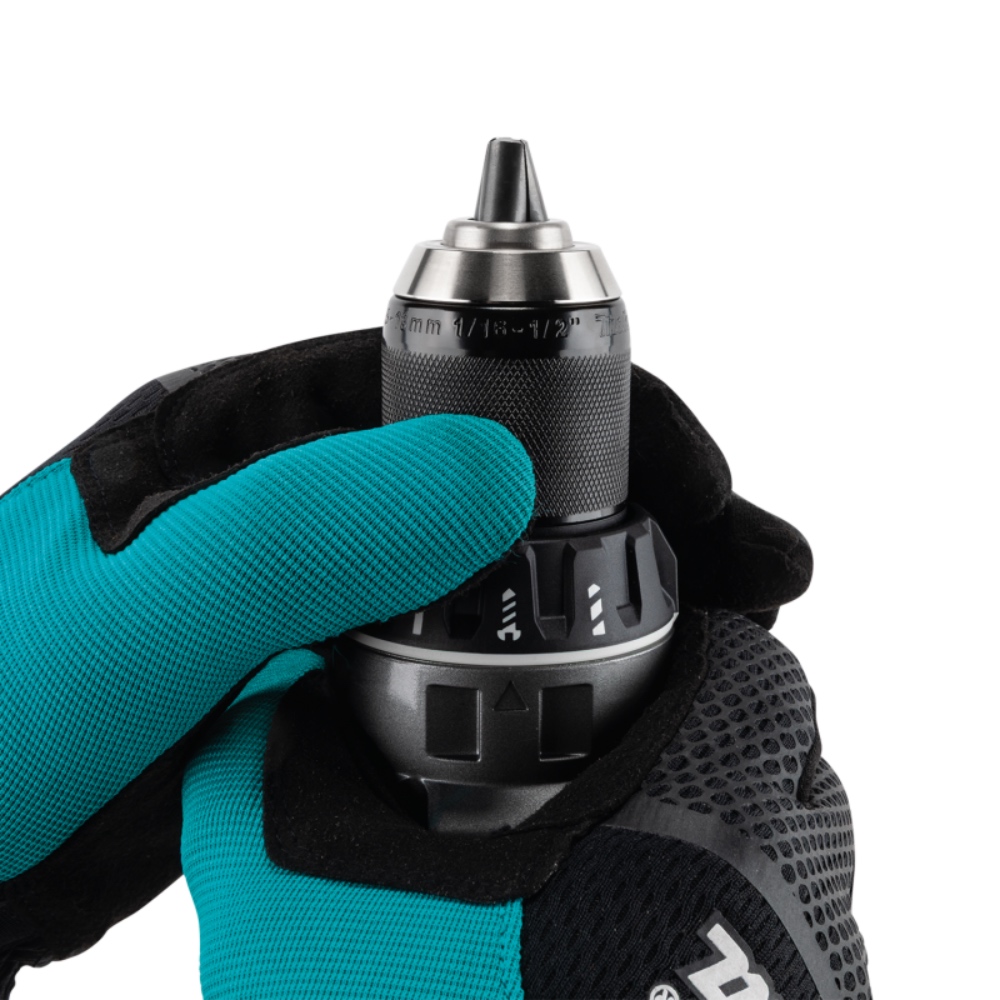

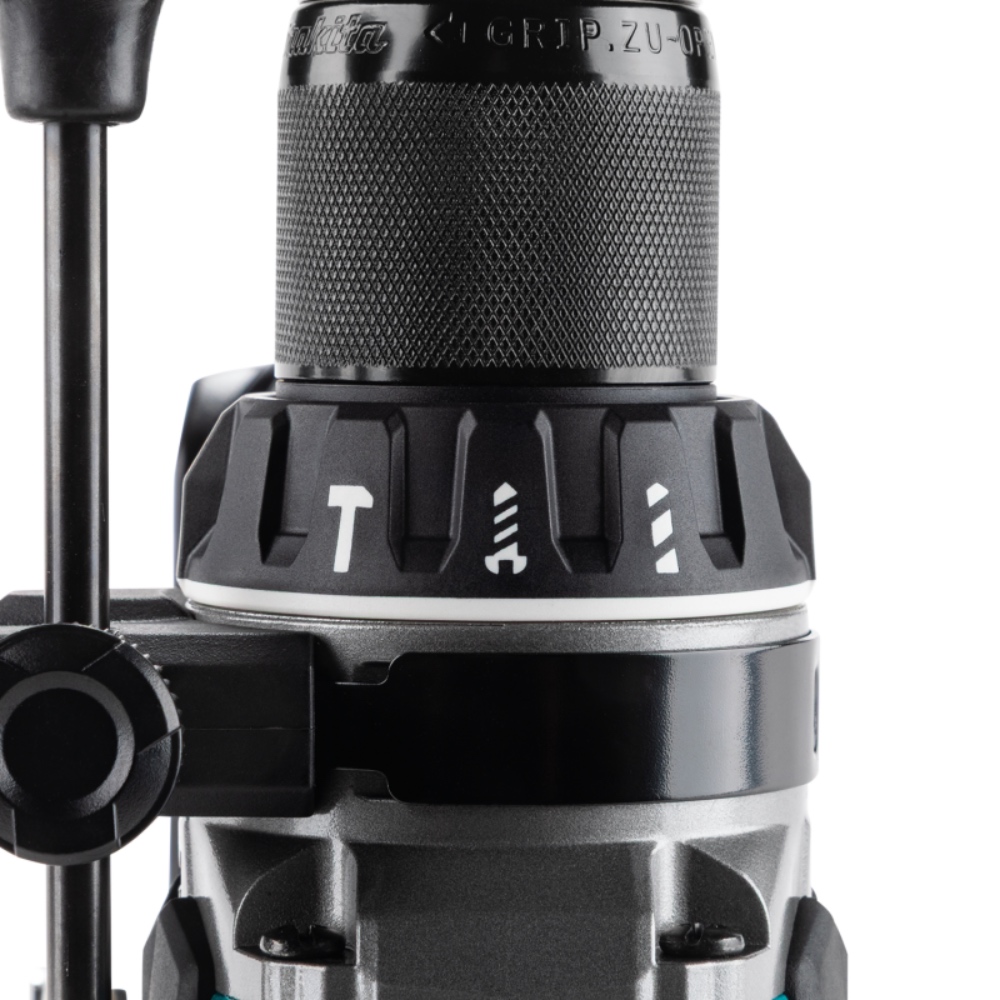

  • All metal 13 mm self-ratcheting chuck for improved bit gripping strength and durability
  • Keyless chuck for quick and easy bit installation and removal
  • High water-resistance compatible with XPT
  • Reversing switch is conveniently located
  • Durable, reversible belt clip convenient for temporary tool hanging


Parts List
(0.96 MB)


Leaflet
(5.58 MB)

Available options

HP003GZ
Tool only


Technical specifications

No Load Speed : High/Med./Low 0 - 2,400 / 0 - 1,800 / 0 - 650 minˉ¹
Impacts per minute : Max / Hard / Med. / Soft 0 - 36,000 / 0 - 27,000 / 0 - 9,750 minˉ¹

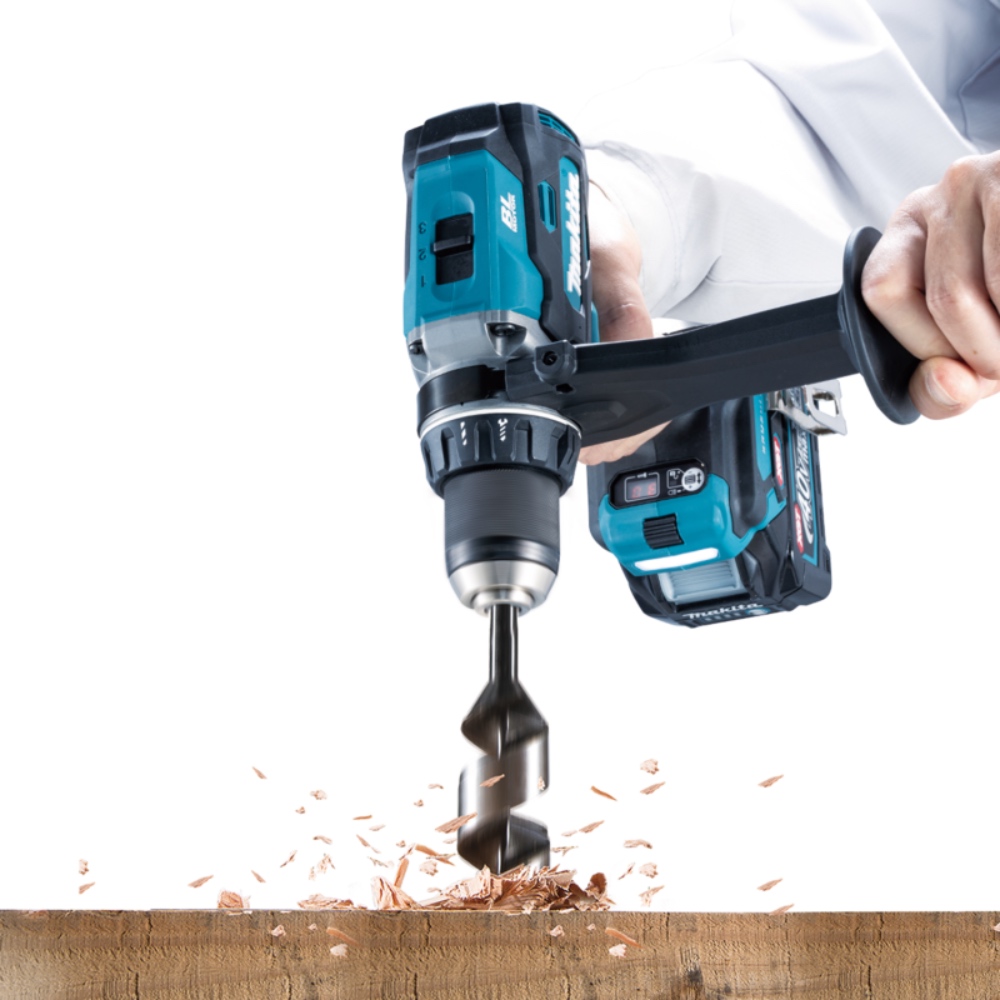

Wood Bit dia. 20 mm

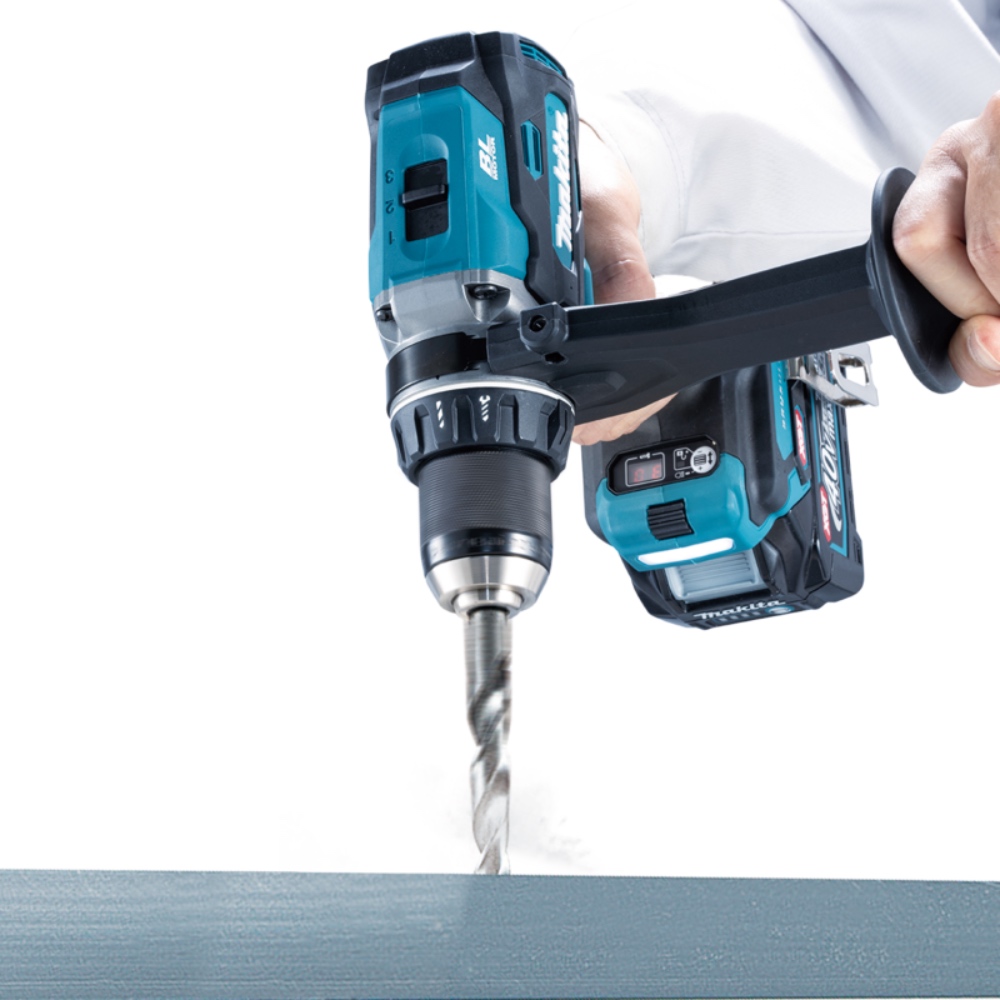

Capacity : Steel 20 mm

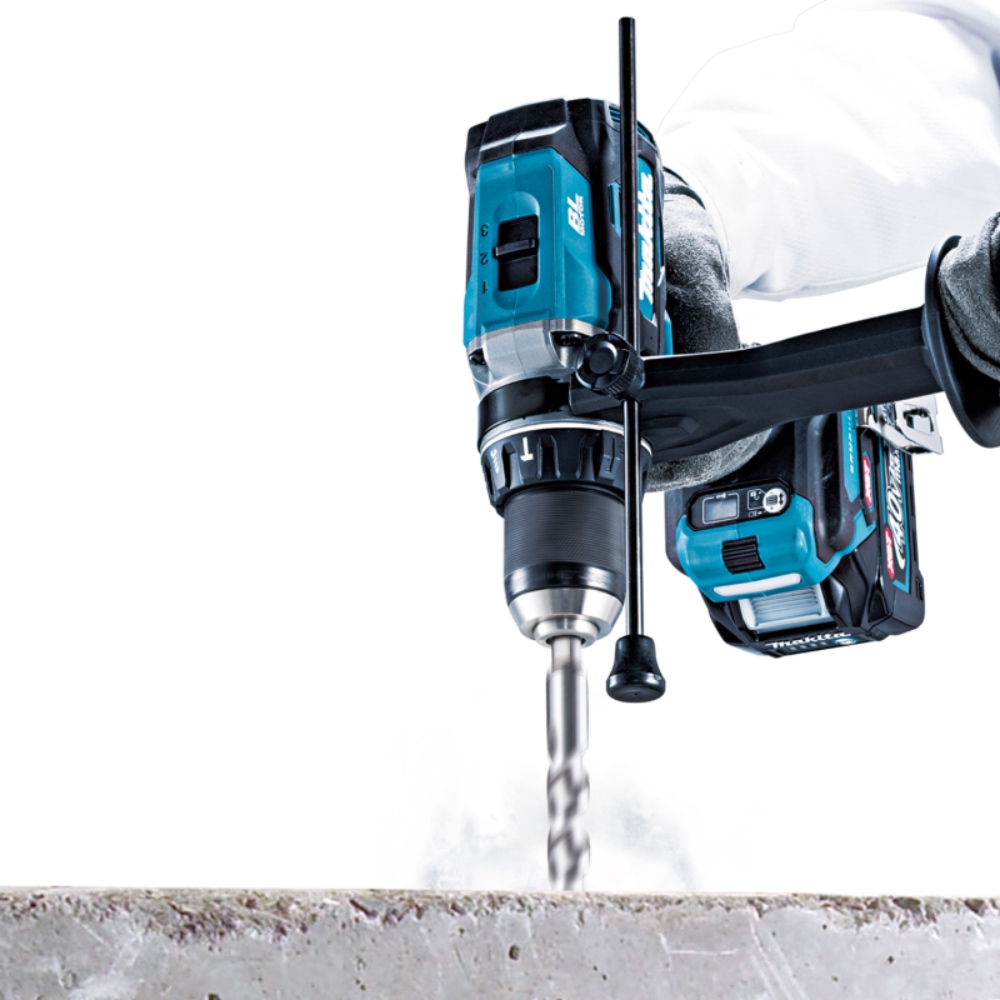

Capacity : Masonry 20 mm
Max fastening torque 180 N·m
Chuck Capacity 13 mm
Dimensions (L x W x H) 197 x 86 x 284 mm
Net weight 2.8 - 4.0 kg
