PT001G
Cordless Pin Nailer
PT001G
Cordless Pin Nailer
40Vmax Cordless Pin Nailer 23 GA 35 mm



Features

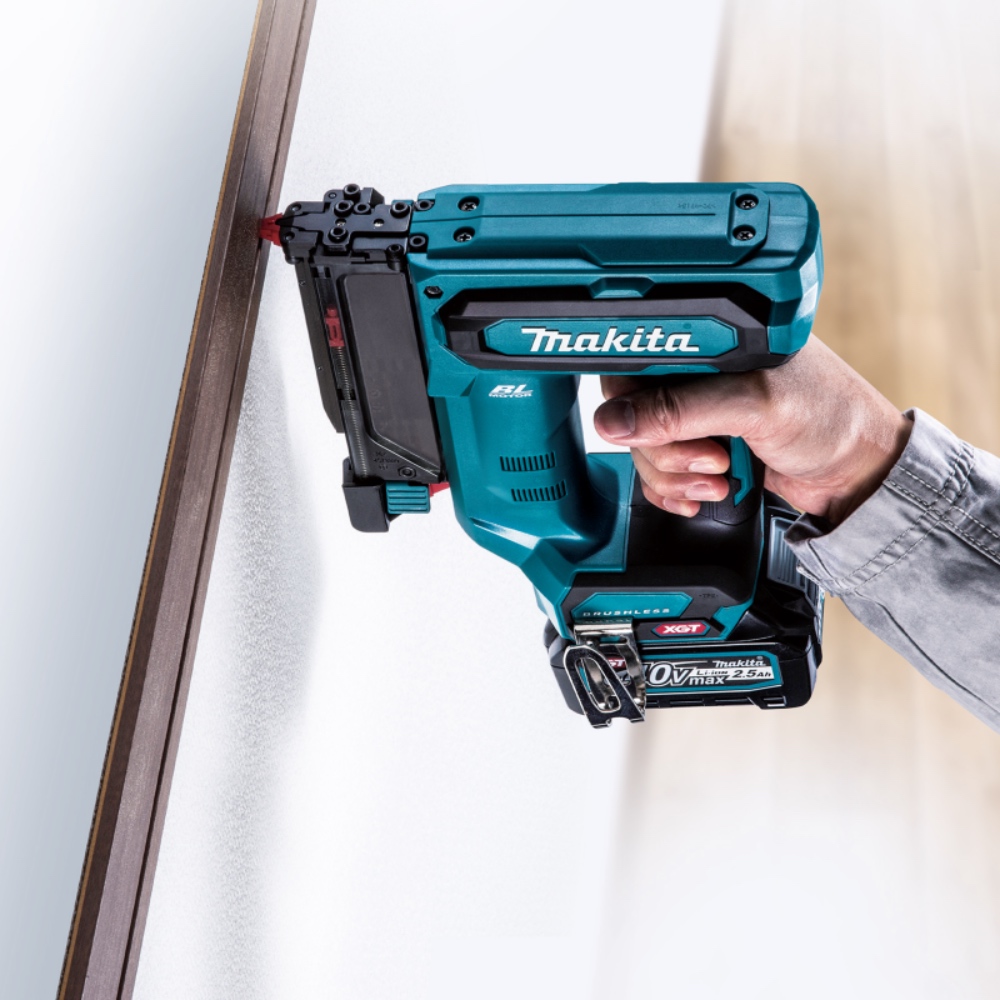

๐ Developed mainly for interior nailing operations where a high quality finish is required, e.g. installation of baseboards, crown moldings and more

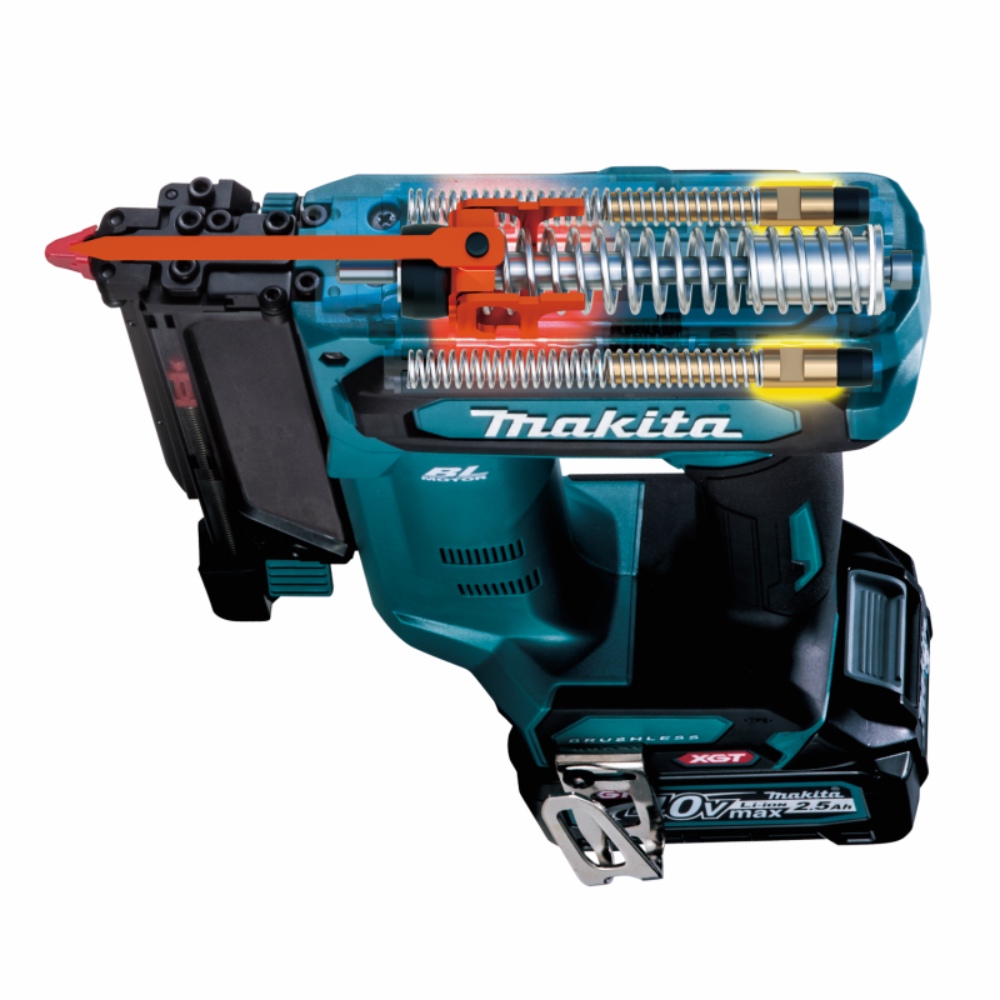

๐ Use of BL motor and redesigned driving spring lets users operate nearly as if they were using a pneumatic pin nailer
๐ Quick firing thanks to BL motor
๐ Low reaction force mechanism enables easier long pin nailing and high-quality finish
๐ Main application: Interior nailing' Baseboard/ Crown molding/ Panel, etc.
๐ 40Vmax XGT battery and BL motor for high power
๐ Improved driver durability achieved by redesigning the shape of the driver tip and reducing thin places
๐ High water-resistance compatible with XPT
๐ IP56-rated dust and shower-proof construction
๐ Drives 5 different lengths of 23 gauge pin nails (15 mm (5/8"), 18 mm (11/16"), 25 mm (1"), 30 mm (1-3/16") and 35 mm (1-3/8")); magazine capacity up to 120 nails
๐ Anti-dry fire mechanism engineered to minimize driving blanks and damage to work surface
๐ Nose tip designed to provide better visibility
๐ Contact arm mechanism enables "continuous nailing" and "drag nailing"

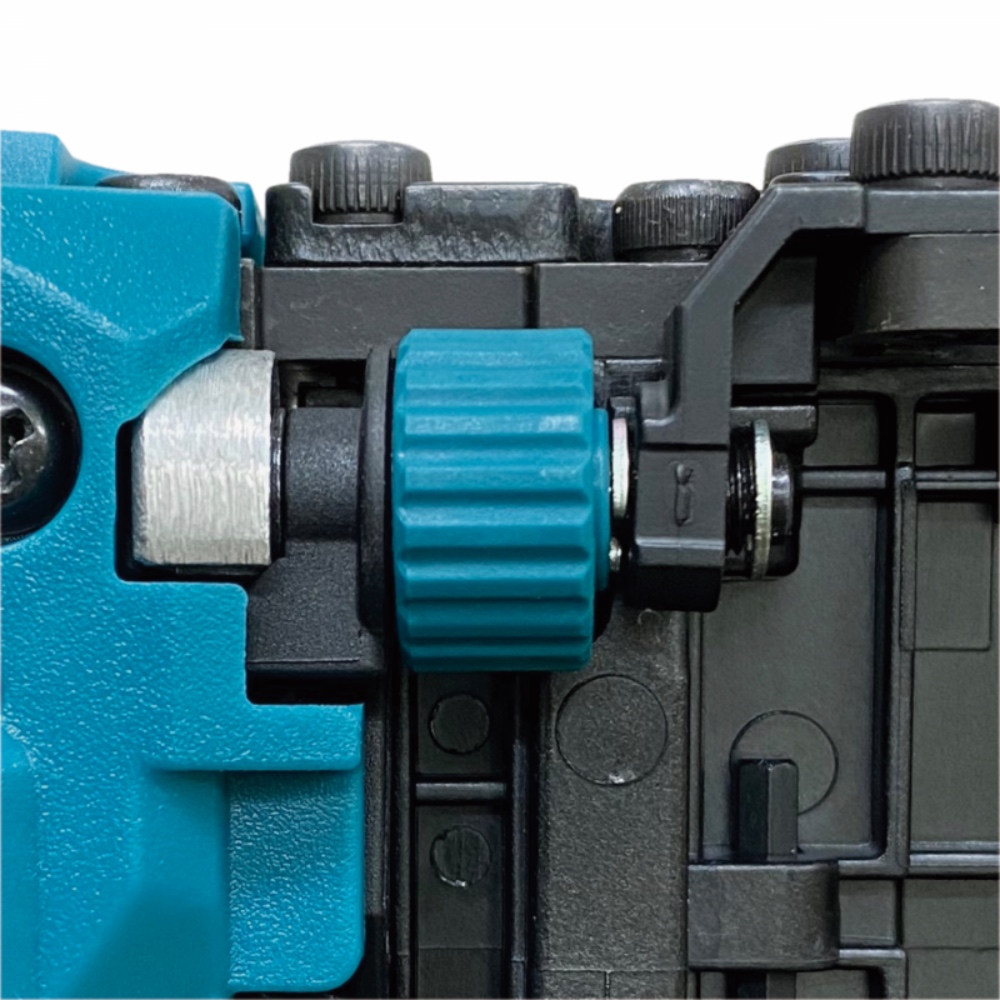

๐ Driving depth adjustment by dial (Adjustment range is the same as DPT353)

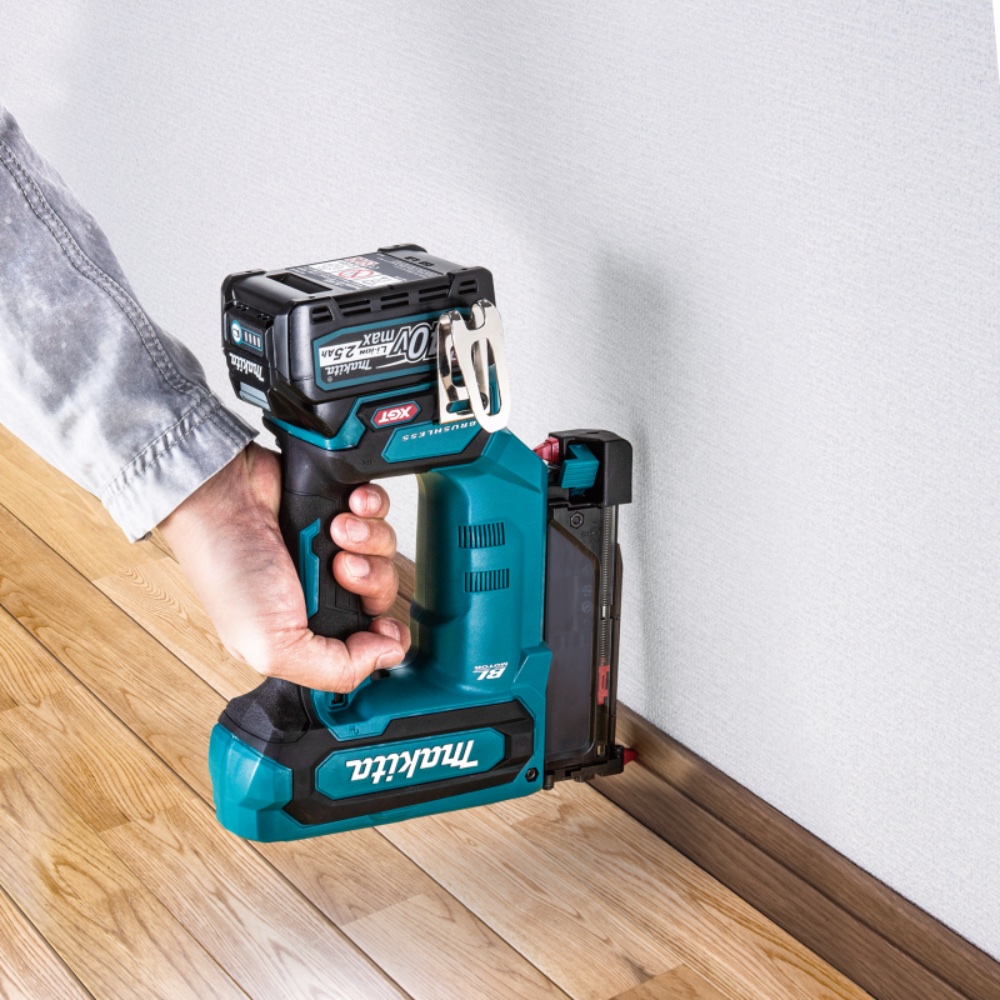

๐ Nose tip designed to provide better visibility so that nails can be fired in the groove of baseboard

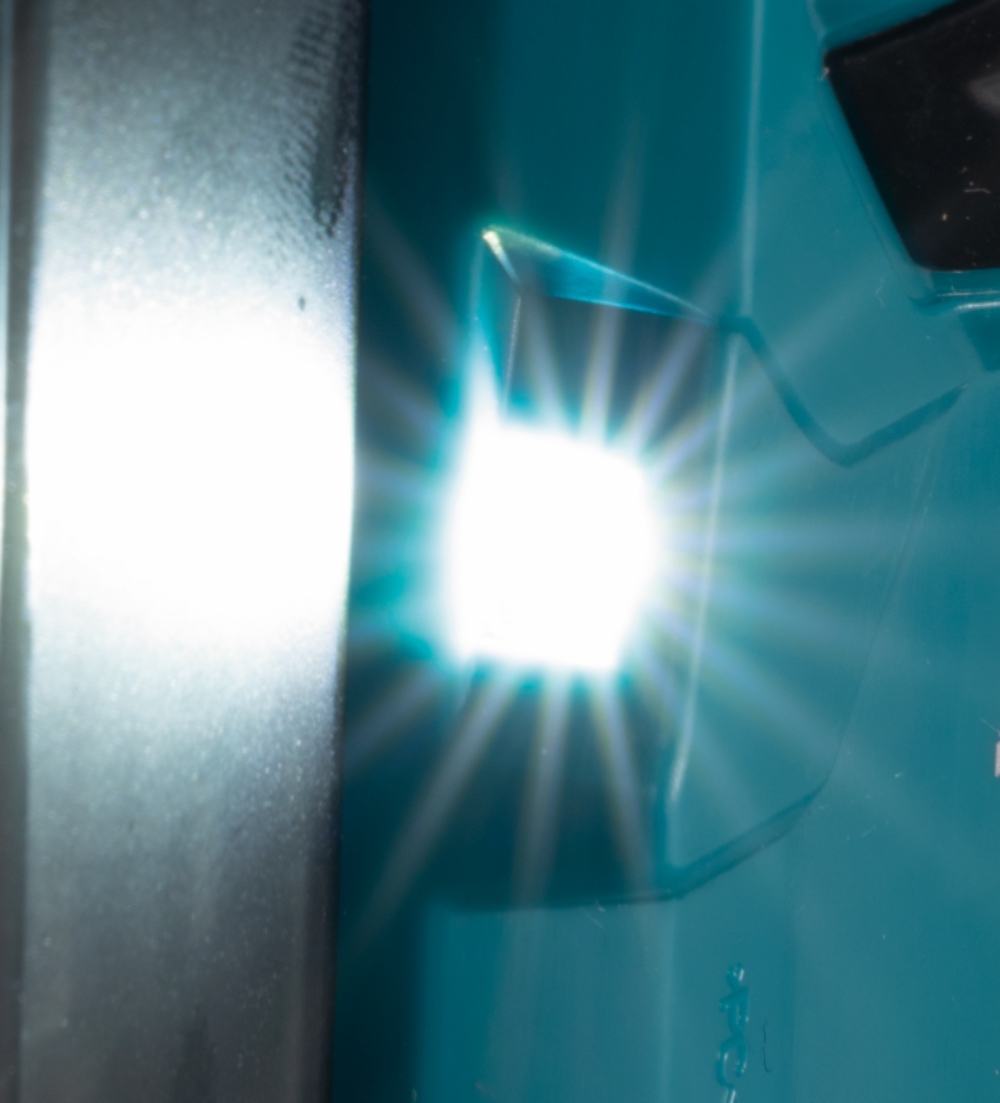

๐ Single LED job light with pre-glow and after-glow functions
๐ Ergonomically designed grip provides increased comfort
๐ Durable, reversible belt clip convenient for temporary tool hanging
๐ Battery protection circuit protects against overloading, over-discharging and over-heating
อุปกรณ์มาตรฐาน : ตะขอ, ประแจหกเหลี่ยม, อแดปเตอร์จมูก
Technical specifications
Capacity | 15, 18, 25, 30, 35 mm / Dia.: 0.6 mm / 23 Ga |
---|---|
Magazine capacity | 120 |
Work amount | w/ BL4025 : 6,000 shots |
Dimensions (L x W x H) | 218 x 86 x 226 mm |
Net weight | 2.4 - 3.0 kg |
