DG002G
Cordless Earth Auger

DG002G
Cordless Earth Auger

40Vmax Cordless Earth Auger

  
Variable Speed
Brake
Reversing
Mechanical 2-Speed
Torque Limiter
Soft Start
Built-in-Job Light
Anti-restart function

Features

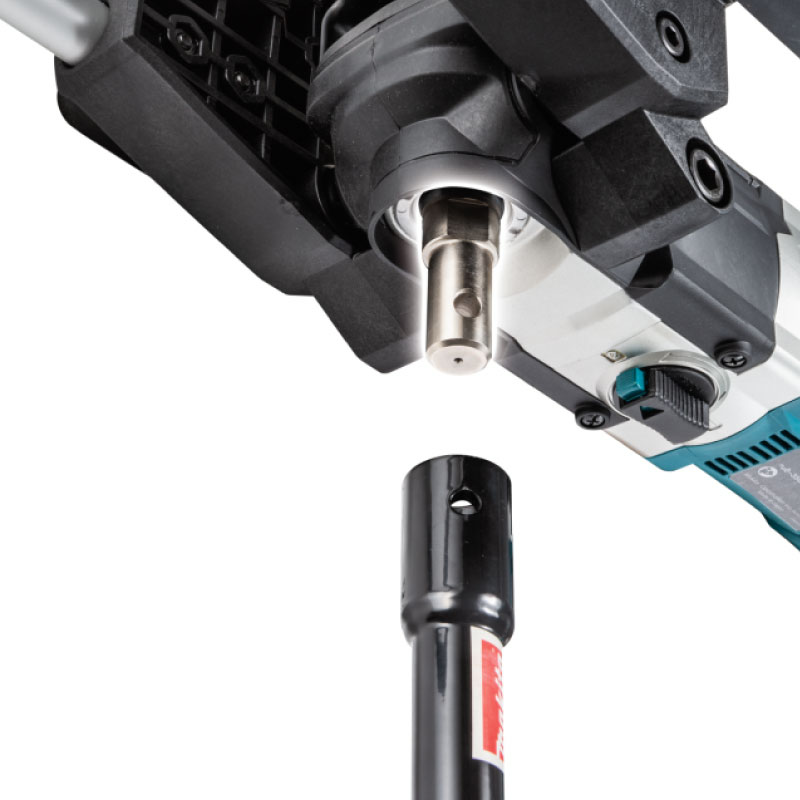

  • Auger bit is directly attached
  • Reversing switch enables to extract, in reverse rotation mode, an auger bit jammed in soil with high resistance like clay soil
  • Powered by 40Vmax XGT Li-Ion battery
  • Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance
  • BL motor delivers 1,500 RPM
  • Variable 2-speed for increased drilling versatility
  • Built-in clutch reduces gear damage by automatically disengaging gears if the bit binds
  • Twin LED lights with preglow and afterglow feature illuminate the work area
  • Soft start for smooth start-ups
  • High water-resistance compatible with XPT
  • Electric brake for increased productivity
  • Main power switch with auto power-off function

Standard Equipments : Hex wrench, Battery, Charger


Available options


Technical specifications

Capacity Clay soil : 150 mm
Capacity Sandy soil : 200 mm
No Load Speed : High/Low 0 - 1,500 / 0 - 400 minˉ¹
Max torque (High/Low) 55 / 136 N·m
Dimensions (L x W x H) 842 x 605 x 194 mm
Net weight 6.8 - 8.0 kg
