(EN / TH)

HP1630
Hammer Drill

HP1630
Hammer Drill

Hammer Drill 6 mm (5/8") 710 W with Keyed Chuck

  

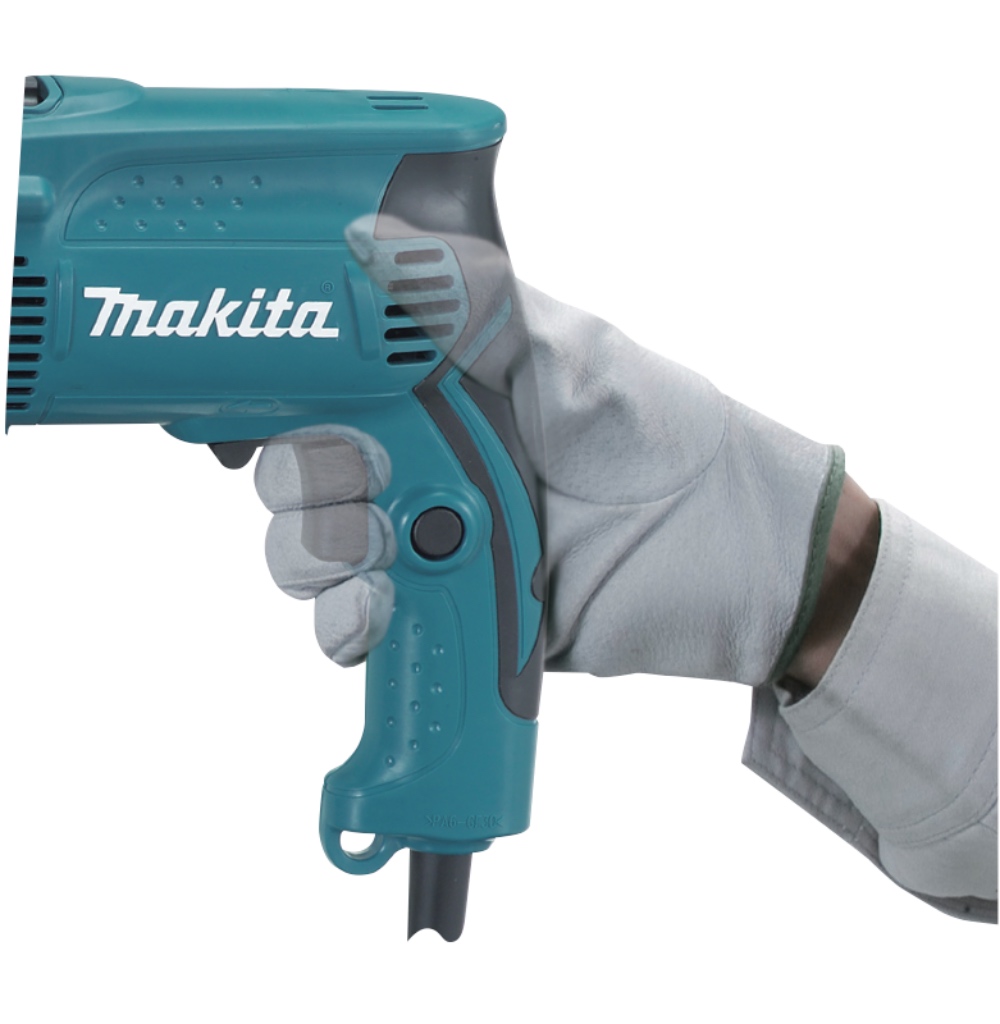

๐ Powerful 710 W motor with 0-3,200 RPM & 0-48,000 IPM for the most demanding applications ๐ Soft grip handle provides increased comfort on the job ๐ Industrial aluminum gear housing for durability and long tool life ๐ In-line positive grip design maximises power thrust ๐ Keyless chuck for easy bit installation and removal (HP1631) ๐ Lightweight with large drilling capacity up to 16 mm in concrete ๐ Large 2-finger trigger for added convenience ๐ Recessed lock-on button for continuous use ๐ Reversing switch is conveniently located ๐ 360° Swivel side handle ๐ Variable speed control dial enables user to match the speed to the application ๐ 2-mode operation for "Rotation Only" or "Hammering with Rotation" for multiple applications ๐ Double insulated ๐ Depth gauge for increased drilling consistency (country-specific)

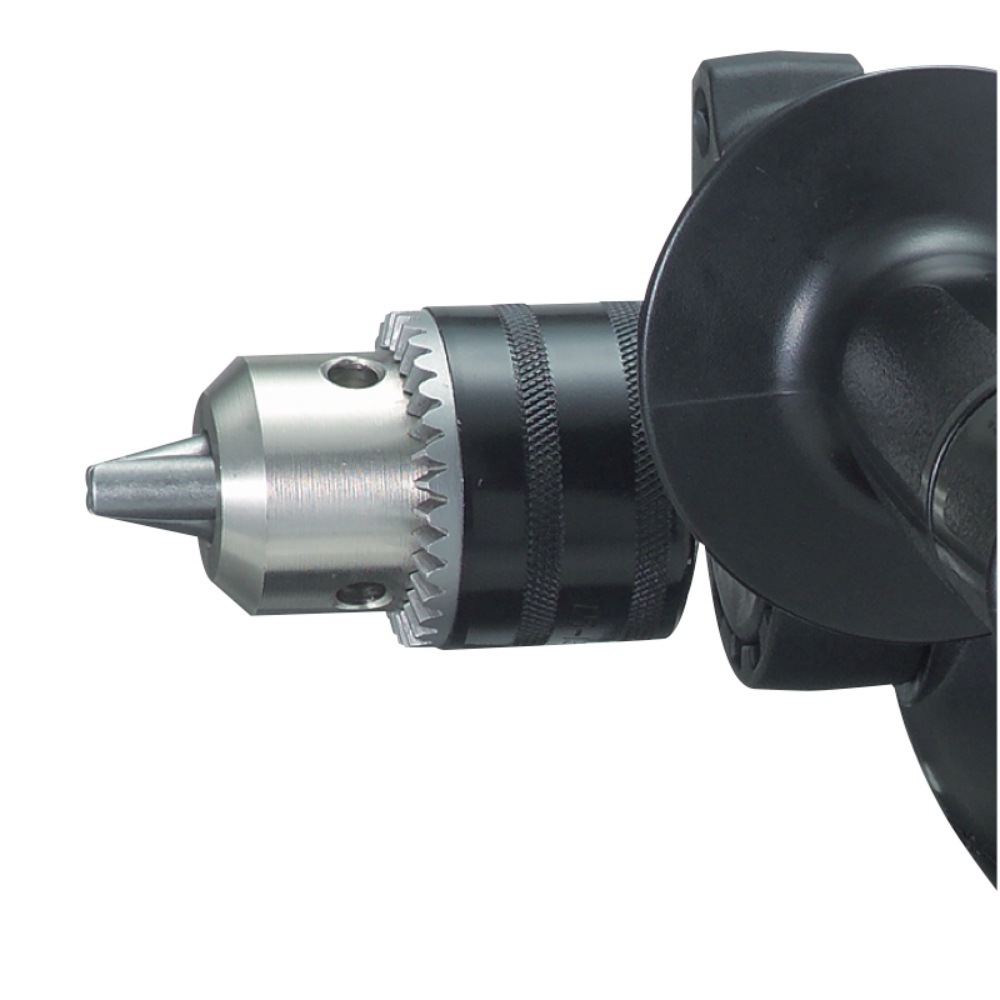

Standard Equipments : Side handle, Chuck key, Chuck key holder, Depth gauge


Technical specifications

Continuous Rating Input 710 W
Capacity : Wood 30 mm
Capacity : Steel 13 mm
Capacity : Concrete 16 mm
Blows Per Minute (BPM) 0 - 48,000
No Load Speed (RPM) 0 - 3,200
Dimensions (L x W x H) 96 x 75 x 204 mm
Net weight 2.1 kg
Carbon Brush 85
Double Insulation
Variable Speed
Reversing
