DWD181
Rechargeable Wall Scanner



DWD181
Rechargeable Wall Scanner

18V Rechargeable Wall Scanner

  

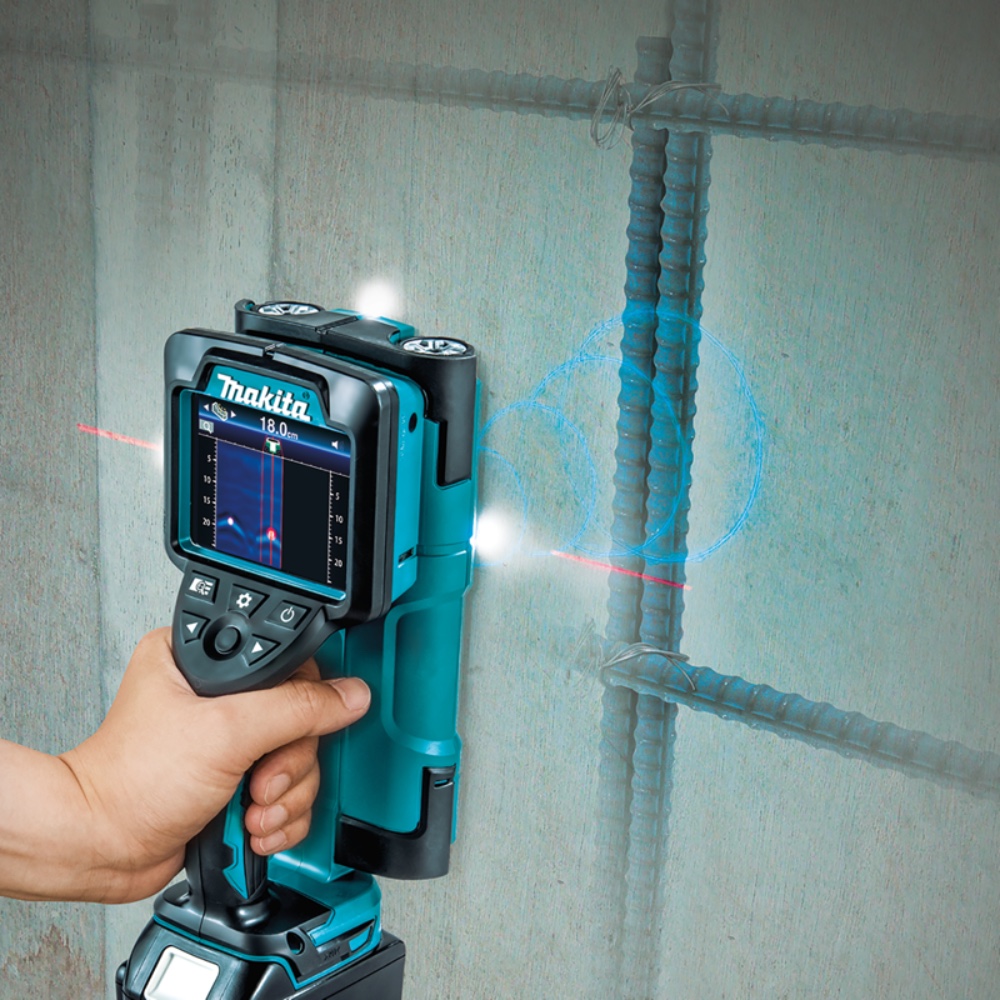

๐ High detection accuracy ๐ Detects objects embedded in concrete frame like metal, live electrical cables, plastic pipes and more ๐ Multi-detection mode; Up to 3 detection results can be displayed on a split screen at a time; Ideal for efficient and accurate detection of a wide surface ๐ Laser guide; emits laser lines to indicate the vertical center of the sensor and the axis of the scanning direction; helps scan correctly along the horizontal axis ๐ LED job lights illuminate around the wall scanner and the scanning area ahead in the moving direction, allowing for accurate object detection in the dark ๐ Full-color display indicates object position, depth and more in a large 4.1 inch screen for user to easily read ๐ Indication of detection status; The presence of object is indicated visually and acoustically ๐ Selectable display language; The display language can be selected from 8 languages: English, German, French, Italian, Spanish, Dutch, Portuguese and Russian ๐ Control panel is operable by one hand while holding the handle ๐ Scene mode is selectable to suit wall surface material ๐ Dry concrete mode: For detecting rebars or plastic pipes in dry concrete ๐ Wet concrete mode: For detecting rebars or plastic pipes in wet concrete ๐ Partition mode: For detecting studs or steel frame behind wood or drywall ๐ Radar view mode: For detecting composite objects, such as rebars and cavities, in concrete block or brick wall (Object can be discerned by checking the wave pattern.) ๐ eXtreme Protection Technology (XPT) is engineered to provide improved dust and water resistance for operation in harsh conditions (Main unit: IP54) ๐ Ergonomically designed handle with soft grip provides increased comfort on the job


Technical specifications

Max detection depth 25 - 180 mm
Detection accuracy +/-5 mm
Minimum detectable distance 40 mm
Display size 4.1"
Max run time 28 hours
Operating temperature -10 - 40°C
Storage temperature -20 - 50°C
Dimensions (L x W x H) 288 x 118 x 108 mm
Net weight 1.3 - 1.7 kg
Built-in-Job Light
Carrying Case
