DVP181
Cordless Vacuum Pump
DVP181
Cordless Vacuum Pump
18V Cordless Vacuum Pump

Features
๐ 4 CFM class cordless vacuum pump for air purge during installation of air conditioning systems
๐ Designed to purge large air conditioning systems which DVP180 cannot purge
๐ High power
・DVP181 adopts dual-stage compression method, which can generate vacuum level much higher than single-stage compression method of DVP180
・This high power enables DVP181 to purge large air conditioning systems such as 20hp class industrial refrigerating showcases or air conditioners for office use

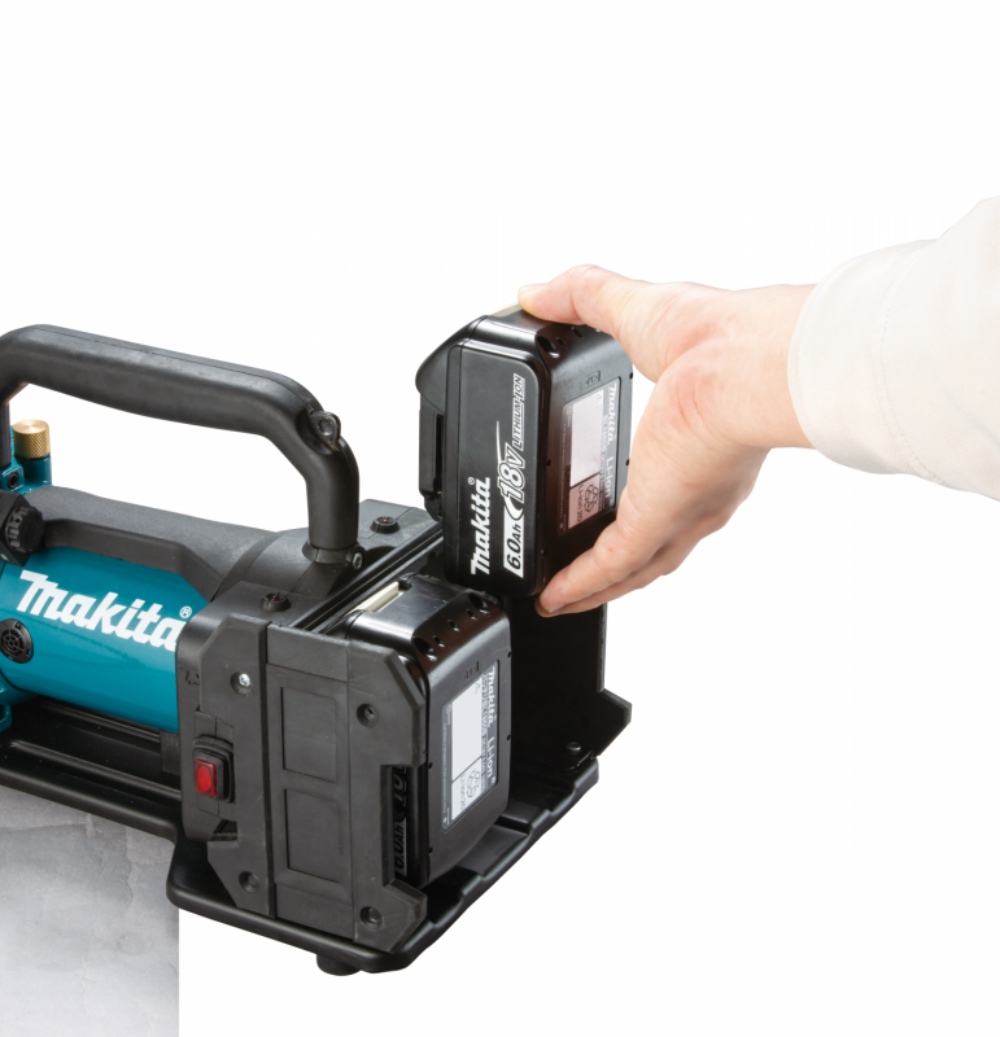

๐ Long run time of 60 minutes with a fully charged BL1860B x2, enough to complete most purging jobs
๐ Compression type: Oil-sealed rotary vane type, Dual-stage compression
๐ Check valve: Electromagnetic valve
๐ Cordless vacuum pump for air purge during installation of room air conditioner
๐ Removes all air from refrigerant tubing to create a vacuum environment before the tubing is charged with refrigerant gas
๐ Easy to carry with a compact and lightweight body
๐ Drain port with valve allows for easy change of vacuum oil pump
๐ Valve minimizes securely oil back flow
๐ Convenient in places where AC outlet is not available
๐ Battery guards minimize the possibility of battery damage even if the machine falls down

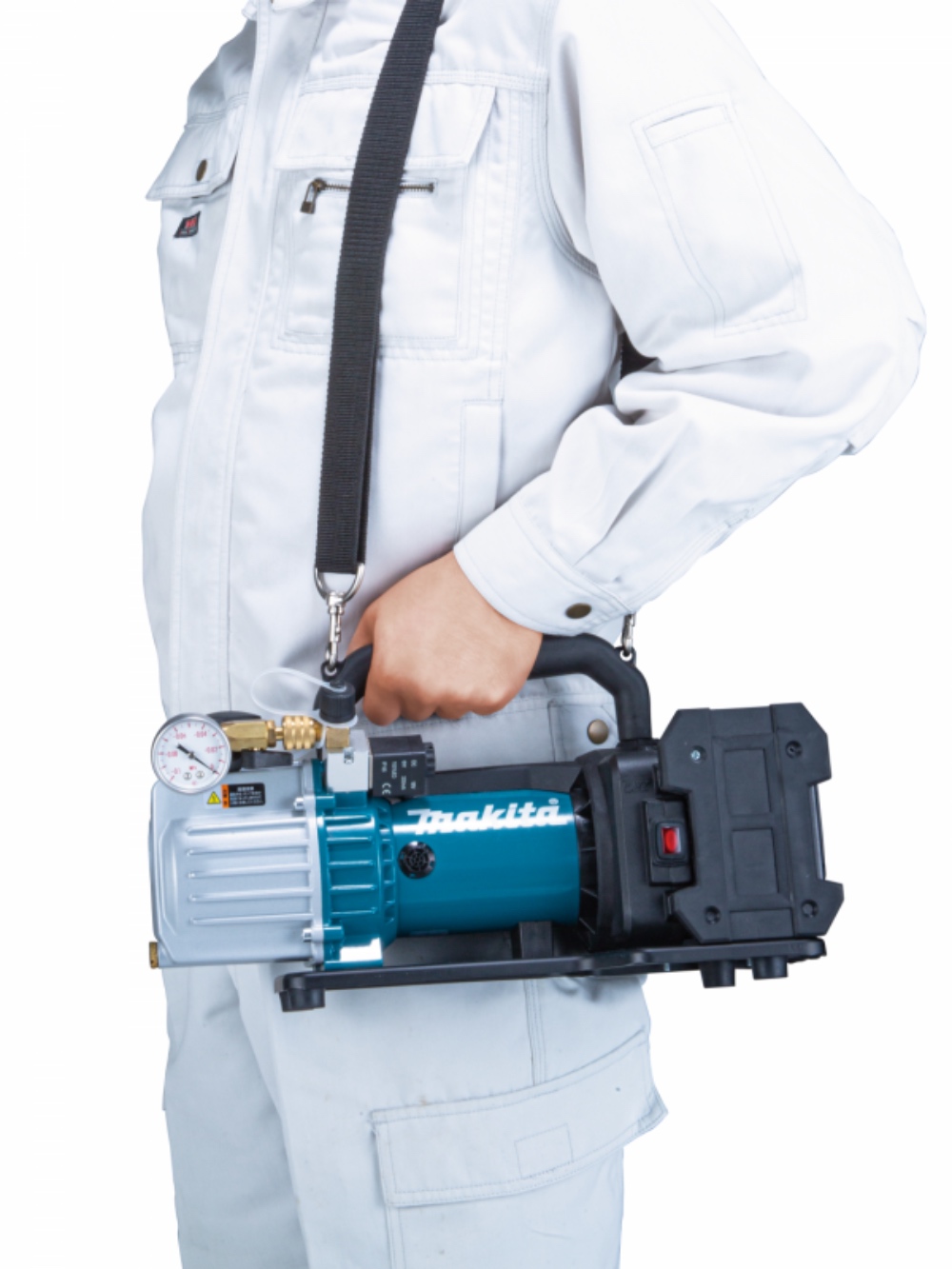

๐ Optional shoulder belt can be attached
Standard Equipments : Vacuum pump oil, Adapter
Technical specifications
Flow rate | 113 L/min |
---|---|
Ultimate vacuum | 3Pa |
Motor speed | 3,200 minˉ¹ |
Oil tank capacity | 300 mL |
Inlet port | 5/16 / 3/8" |
Run time (min) | w/ BL1860B x2 : 60 |
Dimensions (L x W x H) | 383 x 193 x 210 mm |
Net weight | 8.1 - 8.2 kg |
